#include "OSConfig.h"#include "OSParameters.h"#include "OSnLNode.h"#include "OSExpressionTree.h"#include <string>#include <vector>

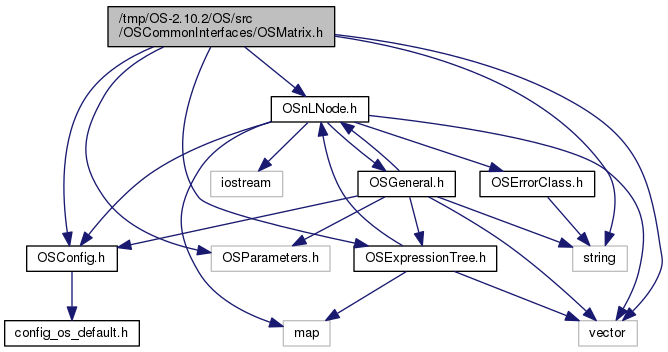

Include dependency graph for OSMatrix.h:

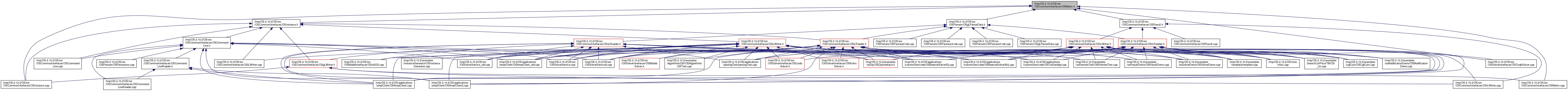

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| class | MatrixNode |
| a generic class from which we derive matrix constructors (BaseMatrix, MatrixElements, MatrixTransformation and MatrixBlocks) as well as matrix types (OSMatrix and MatrixBlock). More... | |
| class | MatrixConstructor |
| a data structure to describe one step in the construction of a matrix. To facilitate parsing of complicated matrix constructors and the recursion implicit in the block structure, we distinguish the following types: 1 - BaseMatrix 2 - several types of Elements (e.g., constant, var reference, etc.) 3 - Transformation 4 - MatrixBlocks 5 - MatrixBlock 6 - OSMatrix Most of the logic of this representation is derived from the OSnLNode class. More... | |
| class | MatrixElements |
| an abstract class to help represent the elements in a MatrixType object From this we derive concrete classes that are used to store specific types of values, such as constant values, variable references, general nonlinear expressions, etc. More... | |
| class | MatrixElementValues |
| an abstract class to help represent the elements in a MatrixType object From this we derive concrete classes that are used to store specific types of values, such as constant values, variable references, general nonlinear expressions, etc. More... | |
| class | LinearMatrixElementTerm |
| a data structure to represent a term in a linearMatrix element A term has the form c*x_{k}, where c defaults to 1 and k is a valid index for a variable This is essentially an index-value pair, but with the presence of a default value More... | |
| class | LinearMatrixElement |
| a data structure to represent an expression in a linearMatrix element A LinearMatrixElement is a (finite) sum of LinearMatrixElementTerms, with an optional additive constant More... | |
| class | ConReferenceMatrixElement |
| a data structure to represent an entry in a conReferenceMatrix element, which consists of a constraint reference as well as a value type. More... | |
| class | ConstantMatrixValues |
| to represent the nonzeros in a constantMatrix element More... | |
| class | VarReferenceMatrixValues |
| A concrete class that is used to store a specific type of matrix values, references to variable indexes defined in the core section. More... | |
| class | LinearMatrixValues |
| a data structure to represent the linear expressions in a LinearMatrixElement object More... | |
| class | GeneralMatrixValues |
| a data structure to represent the nonzeros in a generalMatrix element More... | |
| class | ObjReferenceMatrixValues |
| to represent the nonzeros in an objReferenceMatrix element More... | |
| class | ConReferenceMatrixValues |
| a data structure to represent the nonzeros in a conReferenceMatrix element More... | |
| class | ConstantMatrixElements |
| a data structure to represent the constant elements in a MatrixType object More... | |
| class | VarReferenceMatrixElements |
| a data structure to represent variable reference elements in a MatrixType object Each nonzero element is of the form x_{k} where k is the index of a variable More... | |
| class | LinearMatrixElements |
| a data structure to represent the nonzero values in a linearMatrix element More... | |
| class | GeneralMatrixElements |
| a data structure to represent the nonzero values in a generalMatrix element More... | |
| class | ObjReferenceMatrixElements |
| a data structure to represent objective reference elements in a MatrixType object Each nonzero element is of the form x_{k} where k is the index of an objective (i.e., less than zero) More... | |
| class | ConReferenceMatrixElements |
| a data structure to represent row reference elements in a MatrixType object Each nonzero element is of the form x_{k} where k is the index of a constraint More... | |
| class | MixedRowReferenceMatrixElements |
| a data structure to represent row reference elements in a MatrixType object Each nonzero element references a row (if index is negative) or constraint (otherwise) This class allows the combining of row and constraint references in a single matrix constructor. More... | |
| class | MatrixTransformation |
| a data structure to represent the nonzeroes of a matrix by transformation from other (previously defined) matrices More... | |
| class | MatrixBlocks |
| a data structure to represent the nonzeroes of a matrix in a blockwise fashion. Each block can be given elementwise, through transformation, or by nested blocks, and so on, recursively. More... | |
| class | BaseMatrix |
| a data structure to represent a point of departure for constructing a matrix by modifying parts of a previously defined matrix More... | |
| class | GeneralSparseMatrix |
| a sparse matrix data structure for matrices that can hold nonconstant values More... | |
| class | ExpandedMatrixBlocks |
| a sparse matrix data structure for matrices that can hold nonconstant values and have block structure In addition it is assumed that all nesting of blocks has been resolved. More... | |
| class | MatrixType |
| a data structure to represent a MatrixType object (from which we derive OSMatrix and MatrixBlock) More... | |
| class | OSMatrix |
| a data structure to represent a matrix object (derived from MatrixType) More... | |
| class | OSMatrixWithMatrixVarIdx |
| this class extends OSMatrix for use, e.g., in the matrixVar section of OSoL and OSrL More... | |
| class | OSMatrixWithMatrixObjIdx |
| this class extends OSMatrix for use, e.g., in the matrixObj section of OSoL and OSrL More... | |
| class | OSMatrixWithMatrixConIdx |
| this class extends OSMatrix for use, e.g., in the matrixCon section of OSoL and OSrL More... | |
| class | MatrixBlock |
| a data structure to represent a MatrixBlock object (derived from MatrixType) More... | |
Functions | |
| LinearMatrixElement * | convertToLinearMatrixElement (double val) |
| Some methods to convert one type of matrix element into another. More... | |
| LinearMatrixElement * | convertToLinearMatrixElement (int varref) |
| ScalarExpressionTree * | convertToGeneralMatrixElement (double val) |
| ScalarExpressionTree * | convertToGeneralMatrixElement (int refIdx, bool varRef) |
| ScalarExpressionTree * | convertToGeneralMatrixElement (LinearMatrixElement *val) |
| ScalarExpressionTree * | convertToGeneralMatrixElement (ConReferenceMatrixElement *val) |
| ConReferenceMatrixElement * | convertToConReferenceMatrixElement (int objref) |
Detailed Description
- Remarks
- Copyright (C) 2010-2015, Horand Gassmann, Jun Ma, Kipp Martin, Northwestern University, and the University of Chicago. All Rights Reserved. This software is licensed under the Eclipse Public License. Please see the accompanying LICENSE file in root directory for terms.
Definition in file OSMatrix.h.
Function Documentation
| LinearMatrixElement* convertToLinearMatrixElement | ( | double | val | ) |
Some methods to convert one type of matrix element into another.
Definition at line 6635 of file OSMatrix.cpp.
| LinearMatrixElement* convertToLinearMatrixElement | ( | int | varref | ) |
Definition at line 6651 of file OSMatrix.cpp.
| ScalarExpressionTree* convertToGeneralMatrixElement | ( | double | val | ) |
Definition at line 6670 of file OSMatrix.cpp.
| ScalarExpressionTree* convertToGeneralMatrixElement | ( | int | refIdx, |
| bool | varRef | ||
| ) |
Definition at line 6692 of file OSMatrix.cpp.
| ScalarExpressionTree* convertToGeneralMatrixElement | ( | LinearMatrixElement * | val | ) |
Definition at line 6721 of file OSMatrix.cpp.
| ScalarExpressionTree* convertToGeneralMatrixElement | ( | ConReferenceMatrixElement * | val | ) |
Definition at line 6770 of file OSMatrix.cpp.
| ConReferenceMatrixElement* convertToConReferenceMatrixElement | ( | int | objref | ) |
Definition at line 6783 of file OSMatrix.cpp.
