a generic class from which we derive matrix constructors (BaseMatrix, MatrixElements, MatrixTransformation and MatrixBlocks) as well as matrix types (OSMatrix and MatrixBlock). More...

#include <OSMatrix.h>

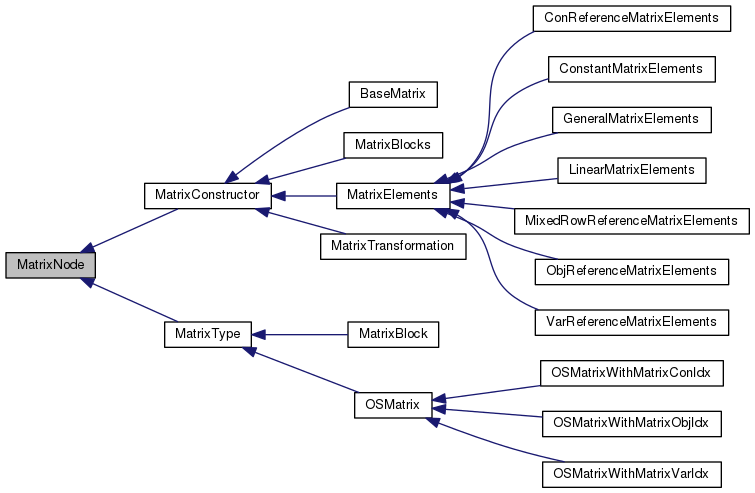

Inheritance diagram for MatrixNode:

[legend]

Collaboration diagram for MatrixNode:

[legend]

Public Member Functions
	MatrixNode ()
	default constructor More...

virtual	~MatrixNode ()
	destructor More...

virtual ENUM_MATRIX_CONSTRUCTOR_TYPE	getNodeType ()

virtual ENUM_MATRIX_TYPE	getMatrixType ()=0

virtual std::string	getNodeName ()=0

virtual std::string	getMatrixNodeInXML ()=0

std::vector< MatrixNode * >	getPrefixFromNodeTree ()

std::vector< MatrixNode * >	preOrderMatrixNodeTraversal (std::vector< MatrixNode * > *prefixVector)

std::vector< MatrixNode * >	getPostfixFromNodeTree ()

std::vector< MatrixNode * >	postOrderMatrixNodeTraversal (std::vector< MatrixNode * > *postfixVector)

virtual MatrixNode *	cloneMatrixNode ()=0

virtual bool	alignsOnBlockBoundary (int firstRow, int firstColumn, int nRows, int nCols)=0
	Check whether a submatrix aligns with the block partition of a matrix or block or other constructor. More...

virtual bool	IsEqual (MatrixNode *that)
	A function to check for the equality of two objects. More...

bool	setRandom (double density, bool conformant, int iMin, int iMax)
	A function to make a random instance of this class. More...

bool	deepCopyFrom (MatrixNode *that)
	A function to make a deep copy of an instance of this class. More...

Public Attributes
ENUM_MATRIX_TYPE	matrixType
	matrixType tracks the type of elements contained in this MatrixNode, which may be useful in solver selection For an enumeration of the possible types see OSParameters.h More...

ENUM_MATRIX_CONSTRUCTOR_TYPE	nType
	nType is a unique integer assigned to each type of matrix node (see OSParameters.h) More...

unsigned int	inumberOfChildren
	inumberOfChildren is the number of MatrixNode child elements For the matrix types (OSMatrix and MatrixBlock) this number is not fixed and is temporarily set to 0 More...

MatrixNode **	m_mChildren
	m_mChildren holds all the children, that is, nodes used in the definition or construction of the current node. More...

Detailed Description

a generic class from which we derive matrix constructors (BaseMatrix, MatrixElements, MatrixTransformation and MatrixBlocks) as well as matrix types (OSMatrix and MatrixBlock).

Definition at line 50 of file OSMatrix.h.

Constructor & Destructor Documentation

MatrixNode::MatrixNode ( )

default constructor

-------— Methods for class MatrixNode -------—

Definition at line 40 of file OSMatrix.cpp.

MatrixNode::~MatrixNode ( )

virtual

destructor

Definition at line 50 of file OSMatrix.cpp.

Member Function Documentation

ENUM_MATRIX_CONSTRUCTOR_TYPE MatrixNode::getNodeType ( )

virtual

Returns: the value of nType

Reimplemented in MatrixBlock, OSMatrix, BaseMatrix, MatrixBlocks, MatrixTransformation, MixedRowReferenceMatrixElements, ConReferenceMatrixElements, ObjReferenceMatrixElements, GeneralMatrixElements, LinearMatrixElements, VarReferenceMatrixElements, and ConstantMatrixElements.

Definition at line 84 of file OSMatrix.cpp.

virtual ENUM_MATRIX_TYPE MatrixNode::getMatrixType ( )

pure virtual

Returns: the type of the matrix elements

Implemented in MatrixBlock, OSMatrix, BaseMatrix, MatrixBlocks, MatrixTransformation, MixedRowReferenceMatrixElements, ConReferenceMatrixElements, ObjReferenceMatrixElements, GeneralMatrixElements, LinearMatrixElements, VarReferenceMatrixElements, and ConstantMatrixElements.

virtual std::string MatrixNode::getNodeName ( )

pure virtual

Returns: the name of the matrix constructor

Implemented in MatrixBlock, OSMatrix, BaseMatrix, MatrixBlocks, MatrixTransformation, MixedRowReferenceMatrixElements, ConReferenceMatrixElements, ObjReferenceMatrixElements, GeneralMatrixElements, LinearMatrixElements, VarReferenceMatrixElements, and ConstantMatrixElements.

std::string MatrixNode::getMatrixNodeInXML ( )

pure virtual

The following method writes a matrix node in OSgL format. it is used by OSgLWriter to write a <matrix> element.

Returns: the MatrixNode and its children as an OSgL string.

Implemented in MatrixBlock, OSMatrixWithMatrixConIdx, OSMatrixWithMatrixObjIdx, OSMatrixWithMatrixVarIdx, OSMatrix, BaseMatrix, MatrixBlocks, MatrixTransformation, MixedRowReferenceMatrixElements, ConReferenceMatrixElements, ObjReferenceMatrixElements, GeneralMatrixElements, LinearMatrixElements, VarReferenceMatrixElements, and ConstantMatrixElements.

Definition at line 89 of file OSMatrix.cpp.

std::vector<MatrixNode*> MatrixNode::getPrefixFromNodeTree ( )

Get a vector of pointers to OSnLNodes and OSnLMNodes that correspond to the MatrixNode tree in prefix format.

Returns: the node tree as a vector of MatrixNodes in prefix.

std::vector<MatrixNode*> MatrixNode::preOrderMatrixNodeTraversal ( std::vector< MatrixNode * > * prefixVector )

std::vector<MatrixNode*> MatrixNode::getPostfixFromNodeTree ( )

Get a vector of pointers to MatrixNodes that correspond to the MatrixNode tree in postfix format

Returns: the node tree as a vector of MatrixNodes in postfix.

std::vector<MatrixNode*> MatrixNode::postOrderMatrixNodeTraversal ( std::vector< MatrixNode * > * postfixVector )

Called by getPostfixFromNodeTree(). This method calls itself recursively and generates a vector of pointers to MatrixNodes in postfix.

Parameters

a	pointer postfixVector to a vector of pointers of MatrixNodes

Returns: a vector of pointers to MatrixNodes in postfix.

virtual MatrixNode* MatrixNode::cloneMatrixNode ( )

pure virtual

Create or clone a node of this type. This is an abstract method which is required to be implemented by the concrete operator nodes that derive or extend from this class.

Implemented in MatrixBlock, OSMatrixWithMatrixConIdx, OSMatrixWithMatrixObjIdx, OSMatrixWithMatrixVarIdx, OSMatrix, BaseMatrix, MatrixBlocks, MatrixTransformation, MixedRowReferenceMatrixElements, ConReferenceMatrixElements, ObjReferenceMatrixElements, GeneralMatrixElements, LinearMatrixElements, VarReferenceMatrixElements, and ConstantMatrixElements.

bool MatrixNode::alignsOnBlockBoundary	(	int	firstRow,
		int	firstColumn,
		int	nRows,
		int	nCols
	)

pure virtual

Check whether a submatrix aligns with the block partition of a matrix or block or other constructor.

Parameters

firstRow	gives the number of the first row in the submatrix (zero-based)
firstColumn	gives the number of the first column in the submatrix (zero-based)
nRows	gives the number of rows in the submatrix
nColumns	gives the number of columns in the submatrix

Returns: true if the submatrix aligns with the boundaries of a block This is an abstract method which is required to be implemented by the concrete operator nodes that derive or extend from this class.

Implemented in MatrixBlock, OSMatrix, MatrixType, BaseMatrix, MatrixBlocks, MatrixTransformation, MixedRowReferenceMatrixElements, ConReferenceMatrixElements, ObjReferenceMatrixElements, GeneralMatrixElements, LinearMatrixElements, VarReferenceMatrixElements, and ConstantMatrixElements.

Definition at line 94 of file OSMatrix.cpp.

bool MatrixNode::IsEqual ( MatrixNode * that )

virtual

A function to check for the equality of two objects.

Definition at line 99 of file OSMatrix.cpp.

bool MatrixNode::setRandom	(	double	density,
		bool	conformant,
		int	iMin,
		int	iMax
	)

A function to make a random instance of this class.

Parameters

density,:	corresponds to the probability that a particular child element is created
conformant,:	if true enforces side constraints not enforceable in the schema (e.g., agreement of "numberOfXXX" attributes and <XXX> children)
iMin,:	lowest index value (inclusive) that a variable reference in this matrix can take
iMax,:	greatest index value (inclusive) that a variable reference in this matrix can take

bool MatrixNode::deepCopyFrom ( MatrixNode * that )

A function to make a deep copy of an instance of this class.

Parameters

that,: the instance from which information is to be copied

Returns: whether the copy was created successfully

Member Data Documentation

ENUM_MATRIX_TYPE MatrixNode::matrixType

matrixType tracks the type of elements contained in this MatrixNode, which may be useful in solver selection For an enumeration of the possible types see OSParameters.h

Definition at line 58 of file OSMatrix.h.

ENUM_MATRIX_CONSTRUCTOR_TYPE MatrixNode::nType

nType is a unique integer assigned to each type of matrix node (see OSParameters.h)

Definition at line 64 of file OSMatrix.h.

unsigned int MatrixNode::inumberOfChildren

inumberOfChildren is the number of MatrixNode child elements For the matrix types (OSMatrix and MatrixBlock) this number is not fixed and is temporarily set to 0

Definition at line 70 of file OSMatrix.h.

MatrixNode** MatrixNode::m_mChildren

m_mChildren holds all the children, that is, nodes used in the definition or construction of the current node.

Definition at line 76 of file OSMatrix.h.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSMatrix.h
/tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSMatrix.cpp
