a data structure to represent a MatrixType object (from which we derive OSMatrix and MatrixBlock) More...

#include <OSMatrix.h>

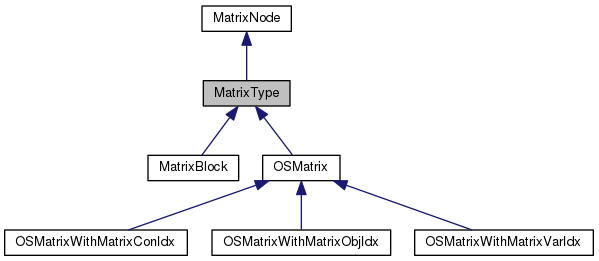

Inheritance diagram for MatrixType:

Collaboration diagram for MatrixType:

Public Member Functions
	MatrixType ()
	-------— Methods for class MatrixType -------— More...

virtual	~MatrixType ()

virtual bool	alignsOnBlockBoundary (int firstRow, int firstColumn, int nRows, int nCols)
	A method to check whether a matrix or block is diagonal. More...

bool	matrixHasBase ()
	Several tools to parse the constructor list of a matrix. More...

bool	matrixHasElements ()

bool	matrixHasTransformations ()

bool	matrixHasBlocks ()

int	getNumberOfElementConstructors ()

int	getNumberOfTransformationConstructors ()

int	getNumberOfBlocksConstructors ()

GeneralSparseMatrix *	getMatrixCoefficientsInColumnMajor ()

GeneralSparseMatrix *	getMatrixCoefficientsInRowMajor ()

GeneralSparseMatrix *	getMatrixBlockInColumnMajorForm (int columnIdx, int rowIdx)

bool	printExpandedMatrix (bool rowMajor)
	a utility routine to print the expanded matrix or block. More...

int	getRowPartitionSize ()
	get the size of the row partition of a matrix More...

int *	getRowPartition ()
	get the row partition of the matrix More...

int	getColumnPartitionSize ()
	get the size of the column partition of a matrix More...

int *	getColumnPartition ()
	get the column partition of the matrix More...

virtual bool	expandElements (bool rowMajor)
	A method to expand a matrix or block The result is a GeneralSparseMatrix object of constant matrix elements, variable references, linear or nonlinear expressions, or objective and constraint references (possibly mixed). More...

GeneralSparseMatrix *	convertToOtherMajor (bool isColumnMajor)
	A method to convert a matrix to the other major. More...

bool	processBlockPartition ()
	A method to determine the block structure of a matrixType as defined by the <blocks> element or elements. More...

virtual bool	processBlocks (bool rowMajor, ENUM_MATRIX_SYMMETRY symmetry)
	A method to process a matrixType into a block structure defined by the <blocks> element or elements. More...

virtual bool	processBlocks (int rowOffset, int rowOffsetSize, int colOffset, int colOffsetSize, bool rowMajor, ENUM_MATRIX_SYMMETRY symmetry)
	A method to process a matrixType into a specific block structure. More...

GeneralSparseMatrix *	extractBlock (int firstrow, int firstcol, int lastrow, int lastcol, bool rowMajor, ENUM_MATRIX_SYMMETRY symmetry)
	A method to extract a block from a larger matrix The result is a sparse matrix object, depending on the matrixType, of constant matrix elements, variable references, linear or nonlinear expressions, or objective and constraint references (possibly mixed). More...

ExpandedMatrixBlocks *	getBlocks (int rowPartition, int rowPartitionSize, int colPartition, int colPartitionSize, bool rowMajor, bool appendToBlockArray)
	A method to extract a block from a larger matrix The result is a sparse matrix object, depending on the matrixType, of constant matrix elements, variable references, linear or nonlinear expressions, or objective and constraint references (possibly mixed). More...

ExpandedMatrixBlocks *	disassembleMatrix (int rowPartition, int rowPartitionSize, int colPartition, int colPartitionSize, bool rowMajor, ENUM_MATRIX_SYMMETRY symmetry)
	A method to disassemble a MatrixType into individual blocks of specific structure. More...

bool	IsEqual (MatrixType *that)
	A function to check for the equality of two objects. More...

bool	setRandom (double density, bool conformant, int iMin, int iMax)
	A function to make a random instance of this class. More...

bool	deepCopyFrom (MatrixType *that)
	A function to make a deep copy of an instance of this class. More...

Public Member Functions inherited from MatrixNode
	MatrixNode ()
	default constructor More...

virtual	~MatrixNode ()
	destructor More...

virtual ENUM_MATRIX_CONSTRUCTOR_TYPE	getNodeType ()

virtual ENUM_MATRIX_TYPE	getMatrixType ()=0

virtual std::string	getNodeName ()=0

virtual std::string	getMatrixNodeInXML ()=0

std::vector< MatrixNode * >	getPrefixFromNodeTree ()

std::vector< MatrixNode * >	preOrderMatrixNodeTraversal (std::vector< MatrixNode * > *prefixVector)

std::vector< MatrixNode * >	getPostfixFromNodeTree ()

std::vector< MatrixNode * >	postOrderMatrixNodeTraversal (std::vector< MatrixNode * > *postfixVector)

virtual MatrixNode *	cloneMatrixNode ()=0

virtual bool	IsEqual (MatrixNode *that)
	A function to check for the equality of two objects. More...

bool	setRandom (double density, bool conformant, int iMin, int iMax)
	A function to make a random instance of this class. More...

bool	deepCopyFrom (MatrixNode *that)
	A function to make a deep copy of an instance of this class. More...

Public Attributes
ENUM_MATRIX_SYMMETRY	symmetry
	To track the type of symmetry present in the matrix or block. More...

ENUM_MATRIX_TYPE	type
	To track the type of values present in the matrix or block. More...

int	numberOfRows

int	numberOfColumns

GeneralSparseMatrix *	ExpandedMatrixInRowMajorForm
	The matrix can be held in expanded form by rows or by columns and in a number of ways stored by blocks. More...

GeneralSparseMatrix *	ExpandedMatrixInColumnMajorForm

std::vector < ExpandedMatrixBlocks * >	ExpandedMatrixByBlocks

Public Attributes inherited from MatrixNode
ENUM_MATRIX_TYPE	matrixType
	matrixType tracks the type of elements contained in this MatrixNode, which may be useful in solver selection For an enumeration of the possible types see OSParameters.h More...

ENUM_MATRIX_CONSTRUCTOR_TYPE	nType
	nType is a unique integer assigned to each type of matrix node (see OSParameters.h) More...

unsigned int	inumberOfChildren
	inumberOfChildren is the number of MatrixNode child elements For the matrix types (OSMatrix and MatrixBlock) this number is not fixed and is temporarily set to 0 More...

MatrixNode **	m_mChildren
	m_mChildren holds all the children, that is, nodes used in the definition or construction of the current node. More...

Private Attributes
int *	m_miRowPartition
	m_miRowPartition is the partition vector of the matrix rows into blocks More...

int	m_iRowPartitionSize
	m_iRowPartitionSize gives the size of the m_miRowPartition array, which is one more than the number of blocks in each row More...

int *	m_miColumnPartition
	m_miColumnPartition is the partition vector of the matrix columns into blocks More...

int	m_iColumnPartitionSize
	m_iColumnPartitionSize gives the size of the m_miColumnPartition array, which is one more than the number of blocks in each column More...

bool	m_bHaveRowPartition
	m_bHaveRowPartition tracks whether the row partition has been determined from the constructor list and stored in m_miRowPartition More...

bool	m_bHaveColumnPartition
	m_bHaveColumnPartition tracks whether the column partition has been determined from the constructor list and stored in m_miColumnPartition More...

Detailed Description

a data structure to represent a MatrixType object (from which we derive OSMatrix and MatrixBlock)

Definition at line 1889 of file OSMatrix.h.

Constructor & Destructor Documentation

MatrixType::MatrixType ( )

-------— Methods for class MatrixType -------—

Definition at line 163 of file OSMatrix.cpp.

MatrixType::~MatrixType ( )

virtual

Definition at line 184 of file OSMatrix.cpp.

Member Function Documentation

bool MatrixType::alignsOnBlockBoundary	(	int	firstRow,
		int	firstColumn,
		int	nRows,
		int	nCols
	)

virtual

A method to check whether a matrix or block is diagonal.

Check whether a submatrix aligns with the block partition of a matrix or block or other constructor

Parameters

firstRow	gives the number of the first row in the submatrix (zero-based)
firstColumn	gives the number of the first column in the submatrix (zero-based)
nRows	gives the number of rows in the submatrix
nColumns	gives the number of columns in the submatrix

Returns: true if the submatrix aligns with the boundaries of a block

Implements MatrixNode.

Reimplemented in MatrixBlock, and OSMatrix.

Definition at line 191 of file OSMatrix.cpp.

bool MatrixType::matrixHasBase ( )

Several tools to parse the constructor list of a matrix.

Definition at line 196 of file OSMatrix.cpp.

bool MatrixType::matrixHasElements ( )

Definition at line 202 of file OSMatrix.cpp.

bool MatrixType::matrixHasTransformations ( )

Definition at line 217 of file OSMatrix.cpp.

bool MatrixType::matrixHasBlocks ( )

Definition at line 227 of file OSMatrix.cpp.

int MatrixType::getNumberOfElementConstructors ( )

Definition at line 237 of file OSMatrix.cpp.

int MatrixType::getNumberOfTransformationConstructors ( )

Definition at line 253 of file OSMatrix.cpp.

int MatrixType::getNumberOfBlocksConstructors ( )

Definition at line 264 of file OSMatrix.cpp.

GeneralSparseMatrix * MatrixType::getMatrixCoefficientsInColumnMajor ( )

Definition at line 275 of file OSMatrix.cpp.

GeneralSparseMatrix * MatrixType::getMatrixCoefficientsInRowMajor ( )

Definition at line 1028 of file OSMatrix.cpp.

GeneralSparseMatrix * MatrixType::getMatrixBlockInColumnMajorForm	(	int	columnIdx,
		int	rowIdx
	)

Definition at line 2261 of file OSMatrix.cpp.

bool MatrixType::printExpandedMatrix ( bool rowMajor )

a utility routine to print the expanded matrix or block.

Parameters

rowMajor controls whether the matrix should be printed in row or column major.

Returns: whether the operation was successful

Remarks: if the expanded matrix does not exist, return false

Definition at line 1785 of file OSMatrix.cpp.

int MatrixType::getRowPartitionSize ( )

get the size of the row partition of a matrix

Returns: an corresponding to the number of partition points of the rows of this matrix (which is one more than the number of blocks in one row)

Definition at line 2101 of file OSMatrix.cpp.

int * MatrixType::getRowPartition ( )

get the row partition of the matrix

Returns: a vector of int corresponding to the partition points of the rows of this matrix

Definition at line 2111 of file OSMatrix.cpp.

int MatrixType::getColumnPartitionSize ( )

get the size of the column partition of a matrix

Returns: an corresponding to the number of partition points of the columns of this matrix (which is one more than the number of blocks in one column)

Definition at line 2121 of file OSMatrix.cpp.

int * MatrixType::getColumnPartition ( )

get the column partition of the matrix

Returns: a vector of int corresponding to the partition points of the columns of this matrix

Definition at line 2131 of file OSMatrix.cpp.

bool MatrixType::expandElements ( bool rowMajor )

virtual

A method to expand a matrix or block The result is a GeneralSparseMatrix object of constant matrix elements, variable references, linear or nonlinear expressions, or objective and constraint references (possibly mixed).

(Values depend on the matrixType.) Duplicate elements are removed according to the rules formulated in the OSiL schema.

Parameters

rowMajor can be used to store the objects in row major form.

Returns: whether the operation was successful or not.

Reimplemented in MatrixBlock, and OSMatrix.

Definition at line 1780 of file OSMatrix.cpp.

GeneralSparseMatrix * MatrixType::convertToOtherMajor ( bool isColumnMajor )

A method to convert a matrix to the other major.

Parameters

isColumnMajor holds whether the matrix is stored by column. If true, the matrix is converted to row major form. If false, the matrix is stored by row and is converted to column major.

Returns: A pointer to the matrix in the other major. Return null if input matrix not valid.

Definition at line 1914 of file OSMatrix.cpp.

bool MatrixType::processBlockPartition ( )

A method to determine the block structure of a matrixType as defined by the <blocks> element or elements.

If multiple partitions are found, they are consolidated into the coarsest partition (intersection of all partition sets).

Returns: whether the operation was successful

Remarks: This method sets m_iRowPartition, m_iRowPartitionSize, m_iColumnPartition and m_iColumnPartitionSize, but does not expand any of the blocks themselves.

Definition at line 2142 of file OSMatrix.cpp.

bool MatrixType::processBlocks	(	bool	rowMajor,
		ENUM_MATRIX_SYMMETRY	symmetry
	)

virtual

A method to process a matrixType into a block structure defined by the <blocks> element or elements.

Parameters

rowMajor	indicates whether the blocks should be stored in row major (if true) or column major.
symmetry	can be used to store only the upper or lower triangle, depending on the parameter value — see OSParameters.h for definitions

Returns: whether the operation was successful

Remarks: The blocks are stored into a std::vector of type expandedMatrixBlocks so that they can be retrieved later using extractBlocks (see below). It is possible (though probably not advisable) to maintain multiple decompositions with different row and column partitions (see next method)

Definition at line 2304 of file OSMatrix.cpp.

bool MatrixType::processBlocks	(	int *	rowOffset,
		int	rowOffsetSize,
		int *	colOffset,
		int	colOffsetSize,
		bool	rowMajor,
		ENUM_MATRIX_SYMMETRY	symmetry
	)

virtual

A method to process a matrixType into a specific block structure.

Parameters

rowOffset	defines a partition of the matrix rows into the blocks
rowOffsetSize	gives the number of elements in the rowOffset array
colOffset	defines a partition of the matrix columns into the blocks
colOffsetSize	gives the number of elements in the colOffset array
rowMajor	controls whether the blocks are stored by row or by column
symmetry	can be used to store only the upper or lower triangle, depending on the parameter value — see OSParameters.h for definitions

Returns: whether the operation was successful

Remarks: The blocks are stored into a std::vector of type expandedMatrixBlocks so that they can be retrieved later using extractBlock (see below). It is possible (though probably not advisable) to maintain multiple decompositions with different row and column partitions

Definition at line 2313 of file OSMatrix.cpp.

GeneralSparseMatrix * MatrixType::extractBlock	(	int	firstrow,
		int	firstcol,
		int	lastrow,
		int	lastcol,
		bool	rowMajor,
		ENUM_MATRIX_SYMMETRY	symmetry
	)

A method to extract a block from a larger matrix The result is a sparse matrix object, depending on the matrixType, of constant matrix elements, variable references, linear or nonlinear expressions, or objective and constraint references (possibly mixed).

Duplicate elements are removed according to the rules formulated in the OSiL schema.

Parameters

firstrow	gives the first row of the block
firstcol	gives the first column of the block
lastrow	gives the last row of the block
lastcol	gives the last column of the block
rowMajor	can be used to store the objects in row major form.
symmetry	can be used to store only the upper or lower triangle, depending on the parameter value — see OSParameters.h for definitions

Returns: the block as a general sparse matrix

Remarks: Before extracting a block it is necessary to call processBlocks() in order to make sure that a block partition conformal to the block dimensions and positions has been defined or prepared.

Definition at line 2807 of file OSMatrix.cpp.

ExpandedMatrixBlocks * MatrixType::getBlocks	(	int *	rowPartition,
		int	rowPartitionSize,
		int *	colPartition,
		int	colPartitionSize,
		bool	rowMajor,
		bool	appendToBlockArray
	)

A method to extract a block from a larger matrix The result is a sparse matrix object, depending on the matrixType, of constant matrix elements, variable references, linear or nonlinear expressions, or objective and constraint references (possibly mixed).

Duplicate elements are removed according to the rules formulated in the OSiL schema.

Parameters

rowPartition	defines the partition of the set of rows into the blocks
rowPartitionSize	gives the size of the rowPartition array
colPartition	defines the partition of the set of columns into the blocks
colPartitionSize	gives the size of the colPartition array
rowMajor	indicates whether the blocks are stored in row major form or not.
appendToBlockArray	determines whether the blocks should be created if not found.

Returns: the blocks as an ExpandedMatrixBlocks object, which is essentially an array of general sparse matrices.

Remarks: If blocks corresponding to the indicated partition do not exist, this method can try to create them. This can be quite storage-intensive and is controlled by the parameter appendToBlockArray. If no blocks found (and appending is inhibited) return NULL.

Definition at line 2269 of file OSMatrix.cpp.

ExpandedMatrixBlocks * MatrixType::disassembleMatrix	(	int *	rowPartition,
		int	rowPartitionSize,
		int *	colPartition,
		int	colPartitionSize,
		bool	rowMajor,
		ENUM_MATRIX_SYMMETRY	symmetry
	)

A method to disassemble a MatrixType into individual blocks of specific structure.

Parameters

rowPartition	defines the partition of the set of rows into the blocks
rowPartitionSize	gives the size of the rowPartition array
colPartition	defines the partition of the set of columns into the blocks
colPartitionSize	gives the size of the colPartition array
rowMajor	indicates whether the blocks are stored in row major form or not.
symmetry	determines what kind of symmetry to use in representing the blocks.

Returns: the blocks as an ExpandedMatrixBlocks object, which is essentially an array of general sparse matrices.

Definition at line 2595 of file OSMatrix.cpp.

bool MatrixType::IsEqual ( MatrixType * that )

A function to check for the equality of two objects.

bool MatrixType::setRandom	(	double	density,
		bool	conformant,
		int	iMin,
		int	iMax
	)

A function to make a random instance of this class.

Parameters

density,:	corresponds to the probability that a particular child element is created
conformant,:	if true enforces side constraints not enforceable in the schema (e.g., agreement of "numberOfXXX" attributes and <XXX> children)
iMin,:	lowest index value (inclusive) that a variable reference in this matrix can take
iMax,:	greatest index value (inclusive) that a variable reference in this matrix can take

bool MatrixType::deepCopyFrom ( MatrixType * that )

A function to make a deep copy of an instance of this class.

Parameters

that,: the instance from which information is to be copied

Returns: whether the copy was created successfully

Member Data Documentation

ENUM_MATRIX_SYMMETRY MatrixType::symmetry

To track the type of symmetry present in the matrix or block.

Remarks: for definitions, see OSParameters.h

Definition at line 1896 of file OSMatrix.h.

ENUM_MATRIX_TYPE MatrixType::type

To track the type of values present in the matrix or block.

Remarks: for definitions, see OSParameters.h

Definition at line 1902 of file OSMatrix.h.

int MatrixType::numberOfRows

Definition at line 1904 of file OSMatrix.h.

int MatrixType::numberOfColumns

Definition at line 1905 of file OSMatrix.h.

GeneralSparseMatrix* MatrixType::ExpandedMatrixInRowMajorForm

The matrix can be held in expanded form by rows or by columns and in a number of ways stored by blocks.

Definition at line 1911 of file OSMatrix.h.

GeneralSparseMatrix* MatrixType::ExpandedMatrixInColumnMajorForm

Definition at line 1912 of file OSMatrix.h.

std::vector<ExpandedMatrixBlocks*> MatrixType::ExpandedMatrixByBlocks

Definition at line 1913 of file OSMatrix.h.

int* MatrixType::m_miRowPartition

private

m_miRowPartition is the partition vector of the matrix rows into blocks

Remarks: This only tracks the top-level partition and does not recurse

Definition at line 1919 of file OSMatrix.h.

int MatrixType::m_iRowPartitionSize

private

m_iRowPartitionSize gives the size of the m_miRowPartition array, which is one more than the number of blocks in each row

Definition at line 1924 of file OSMatrix.h.

int* MatrixType::m_miColumnPartition

private

m_miColumnPartition is the partition vector of the matrix columns into blocks

Remarks: This only tracks the top-level partition and does not recurse

Definition at line 1929 of file OSMatrix.h.

int MatrixType::m_iColumnPartitionSize

private

m_iColumnPartitionSize gives the size of the m_miColumnPartition array, which is one more than the number of blocks in each column

Definition at line 1934 of file OSMatrix.h.

bool MatrixType::m_bHaveRowPartition

private

m_bHaveRowPartition tracks whether the row partition has been determined from the constructor list and stored in m_miRowPartition

Definition at line 1939 of file OSMatrix.h.

bool MatrixType::m_bHaveColumnPartition

private

m_bHaveColumnPartition tracks whether the column partition has been determined from the constructor list and stored in m_miColumnPartition

Definition at line 1944 of file OSMatrix.h.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSMatrix.h
/tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSMatrix.cpp

Public Member Functions

Public Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
