a data structure to represent a matrix object (derived from MatrixType) More...

#include <OSMatrix.h>

Inheritance diagram for OSMatrix:

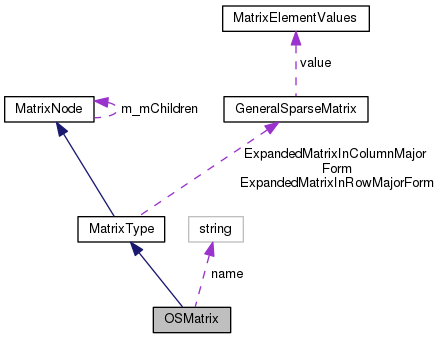

Collaboration diagram for OSMatrix:

Public Member Functions
	OSMatrix ()
	-------— Methods for class OSMatrix -------— More...

	~OSMatrix ()

OSMatrix *	createConstructorTreeFromPrefix (std::vector< MatrixNode * > mtxConstructorVec)

virtual ENUM_MATRIX_CONSTRUCTOR_TYPE	getNodeType ()

virtual std::string	getNodeName ()

virtual ENUM_MATRIX_TYPE	getMatrixType ()

virtual bool	expandElements (bool rowMajor)
	A method to process a matrixType into a specific block structure. More...

virtual bool	alignsOnBlockBoundary (int firstRow, int firstColumn, int nRows, int nCols)
	Check whether a submatrix aligns with the block partition of a matrix or block or other constructor. More...

bool	isBlockDiagonal ()
	A method to check whether a matrix is block-diagonal. More...

bool	setMatrix (std::string name, int numberOfRows, int numberOfColumns, ENUM_MATRIX_SYMMETRY symmetry, ENUM_MATRIX_TYPE matrixType, unsigned int inumberOfChildren, MatrixNode **m_mChildren)
	add values to this matrix. More...

virtual std::string	getMatrixNodeInXML ()

virtual OSMatrix *	cloneMatrixNode ()
	The implementation of the virtual functions. More...

bool	IsEqual (OSMatrix *that)
	A function to check for the equality of two objects. More...

bool	setRandom (double density, bool conformant, int iMin, int iMax)
	A function to make a random instance of this class. More...

bool	deepCopyFrom (OSMatrix *that)
	A function to make a deep copy of an instance of this class. More...

Public Member Functions inherited from MatrixType
	MatrixType ()
	-------— Methods for class MatrixType -------— More...

virtual	~MatrixType ()

bool	matrixHasBase ()
	Several tools to parse the constructor list of a matrix. More...

bool	matrixHasElements ()

bool	matrixHasTransformations ()

bool	matrixHasBlocks ()

int	getNumberOfElementConstructors ()

int	getNumberOfTransformationConstructors ()

int	getNumberOfBlocksConstructors ()

GeneralSparseMatrix *	getMatrixCoefficientsInColumnMajor ()

GeneralSparseMatrix *	getMatrixCoefficientsInRowMajor ()

GeneralSparseMatrix *	getMatrixBlockInColumnMajorForm (int columnIdx, int rowIdx)

bool	printExpandedMatrix (bool rowMajor)
	a utility routine to print the expanded matrix or block. More...

int	getRowPartitionSize ()
	get the size of the row partition of a matrix More...

int *	getRowPartition ()
	get the row partition of the matrix More...

int	getColumnPartitionSize ()
	get the size of the column partition of a matrix More...

int *	getColumnPartition ()
	get the column partition of the matrix More...

GeneralSparseMatrix *	convertToOtherMajor (bool isColumnMajor)
	A method to convert a matrix to the other major. More...

bool	processBlockPartition ()
	A method to determine the block structure of a matrixType as defined by the <blocks> element or elements. More...

virtual bool	processBlocks (bool rowMajor, ENUM_MATRIX_SYMMETRY symmetry)
	A method to process a matrixType into a block structure defined by the <blocks> element or elements. More...

virtual bool	processBlocks (int rowOffset, int rowOffsetSize, int colOffset, int colOffsetSize, bool rowMajor, ENUM_MATRIX_SYMMETRY symmetry)
	A method to process a matrixType into a specific block structure. More...

GeneralSparseMatrix *	extractBlock (int firstrow, int firstcol, int lastrow, int lastcol, bool rowMajor, ENUM_MATRIX_SYMMETRY symmetry)
	A method to extract a block from a larger matrix The result is a sparse matrix object, depending on the matrixType, of constant matrix elements, variable references, linear or nonlinear expressions, or objective and constraint references (possibly mixed). More...

ExpandedMatrixBlocks *	getBlocks (int rowPartition, int rowPartitionSize, int colPartition, int colPartitionSize, bool rowMajor, bool appendToBlockArray)
	A method to extract a block from a larger matrix The result is a sparse matrix object, depending on the matrixType, of constant matrix elements, variable references, linear or nonlinear expressions, or objective and constraint references (possibly mixed). More...

ExpandedMatrixBlocks *	disassembleMatrix (int rowPartition, int rowPartitionSize, int colPartition, int colPartitionSize, bool rowMajor, ENUM_MATRIX_SYMMETRY symmetry)
	A method to disassemble a MatrixType into individual blocks of specific structure. More...

bool	IsEqual (MatrixType *that)
	A function to check for the equality of two objects. More...

bool	setRandom (double density, bool conformant, int iMin, int iMax)
	A function to make a random instance of this class. More...

bool	deepCopyFrom (MatrixType *that)
	A function to make a deep copy of an instance of this class. More...

Public Member Functions inherited from MatrixNode
	MatrixNode ()
	default constructor More...

virtual	~MatrixNode ()
	destructor More...

std::vector< MatrixNode * >	getPrefixFromNodeTree ()

std::vector< MatrixNode * >	preOrderMatrixNodeTraversal (std::vector< MatrixNode * > *prefixVector)

std::vector< MatrixNode * >	getPostfixFromNodeTree ()

std::vector< MatrixNode * >	postOrderMatrixNodeTraversal (std::vector< MatrixNode * > *postfixVector)

virtual bool	IsEqual (MatrixNode *that)
	A function to check for the equality of two objects. More...

bool	setRandom (double density, bool conformant, int iMin, int iMax)
	A function to make a random instance of this class. More...

bool	deepCopyFrom (MatrixNode *that)
	A function to make a deep copy of an instance of this class. More...

Public Attributes
int	idx

std::string	name

Public Attributes inherited from MatrixType
ENUM_MATRIX_SYMMETRY	symmetry
	To track the type of symmetry present in the matrix or block. More...

ENUM_MATRIX_TYPE	type
	To track the type of values present in the matrix or block. More...

int	numberOfRows

int	numberOfColumns

GeneralSparseMatrix *	ExpandedMatrixInRowMajorForm
	The matrix can be held in expanded form by rows or by columns and in a number of ways stored by blocks. More...

GeneralSparseMatrix *	ExpandedMatrixInColumnMajorForm

std::vector < ExpandedMatrixBlocks * >	ExpandedMatrixByBlocks

Public Attributes inherited from MatrixNode
ENUM_MATRIX_TYPE	matrixType
	matrixType tracks the type of elements contained in this MatrixNode, which may be useful in solver selection For an enumeration of the possible types see OSParameters.h More...

ENUM_MATRIX_CONSTRUCTOR_TYPE	nType
	nType is a unique integer assigned to each type of matrix node (see OSParameters.h) More...

unsigned int	inumberOfChildren
	inumberOfChildren is the number of MatrixNode child elements For the matrix types (OSMatrix and MatrixBlock) this number is not fixed and is temporarily set to 0 More...

MatrixNode **	m_mChildren
	m_mChildren holds all the children, that is, nodes used in the definition or construction of the current node. More...

Detailed Description

a data structure to represent a matrix object (derived from MatrixType)

Definition at line 2185 of file OSMatrix.h.

Constructor & Destructor Documentation

OSMatrix::OSMatrix ( )

-------— Methods for class OSMatrix -------—

Definition at line 2968 of file OSMatrix.cpp.

OSMatrix::~OSMatrix ( )

Definition at line 2979 of file OSMatrix.cpp.

Member Function Documentation

OSMatrix * OSMatrix::createConstructorTreeFromPrefix ( std::vector< MatrixNode * > mtxConstructorVec )

Take a vector of MatrixNodes in prefix format and create a matrix root node

Parameters

mtxConstructorVec holds a vector of pointers to matrix constructors, mtxConstructorVec and blocks in prefix format

Returns: a pointer to an OSMatrix which is the root of a list of constructors.

Definition at line 2987 of file OSMatrix.cpp.

ENUM_MATRIX_CONSTRUCTOR_TYPE OSMatrix::getNodeType ( )

virtual

Returns: the value of nType

Reimplemented from MatrixNode.

Definition at line 3010 of file OSMatrix.cpp.

std::string OSMatrix::getNodeName ( )

virtual

Returns: the name of the operator

Implements MatrixNode.

Definition at line 3015 of file OSMatrix.cpp.

ENUM_MATRIX_TYPE OSMatrix::getMatrixType ( )

virtual

Returns: the type of the matrix elements

Implements MatrixNode.

Definition at line 3020 of file OSMatrix.cpp.

bool OSMatrix::expandElements ( bool rowMajor )

virtual

A method to process a matrixType into a specific block structure.

Parameters

rowOffset	defines a partition of the matrix rows into the blocks
colOffset	defines a partition of the matrix columns into the blocks
rowMajor	controls whether the blocks are stored by row or by column
symmetry	can be used to store only the upper or lower triangle, depending on the parameter value — see OSParameters.h for definitions

Returns: whether the operation was successful

Remarks: The blocks are stored into a std::vector of type expandedMatrixBlocks so that they can be retrieved later using extractBlock (see below). It is possible (though probably not advisable) to maintain multiple decompositions with different row and column partitions A method to expand a matrix or block The result is a GeneralSparseMatrix object of constant matrix elements, variable references, linear or nonlinear expressions, or objective and constraint references (possibly mixed). (Values depend on the matrixType.) Duplicate elements are removed according to the rules formulated in the OSiL schema.

Parameters

rowMajor can be used to store the objects in row major form.

Returns: whether the operation was successful or not.

Reimplemented from MatrixType.

Definition at line 3031 of file OSMatrix.cpp.

bool OSMatrix::alignsOnBlockBoundary	(	int	firstRow,
		int	firstColumn,
		int	nRows,
		int	nCols
	)

virtual

Check whether a submatrix aligns with the block partition of a matrix or block or other constructor.

Parameters

firstRow	gives the number of the first row in the submatrix (zero-based)
firstColumn	gives the number of the first column in the submatrix (zero-based)
nRows	gives the number of rows in the submatrix
nColumns	gives the number of columns in the submatrix

Returns: true if the submatrix aligns with the boundaries of a block

Reimplemented from MatrixType.

Definition at line 3411 of file OSMatrix.cpp.

bool OSMatrix::isBlockDiagonal ( )

A method to check whether a matrix is block-diagonal.

bool OSMatrix::setMatrix	(	std::string	name,
		int	numberOfRows,
		int	numberOfColumns,
		ENUM_MATRIX_SYMMETRY	symmetry,
		ENUM_MATRIX_TYPE	matrixType,
		unsigned int	inumberOfChildren,
		MatrixNode **	m_mChildren
	)

add values to this matrix.

Parameters

name	holds the matrix name; use null or empty std::string ("") if no matrix name.
numberOfRows	holds the number of rows. It is required. Use 1 for column vectors.
numberOfColumns	holds the number of columns. It is required. Use 1 for row vectors.
symmetry	holds the type of symmetry used in the definition of the matrix. For more information see the enumeration ENUM_MATRIX_SYMMETRY in OSGeneral.h. If no symmetry, use ENUM_MATRIX_SYMMETRY_none.
matrixType	tracks the type of elements contained in this matrix. For more information see the enumeration ENUM_MATRIX_TYPE in OSGeneral.h. If unsure, use ENUM_MATRIX_TYPE_unknown.
inumberOfChildren	is the number of MatrixNode child elements, i.e., the number of matrix constructors in the m_mChildren array.
m_mChildren	is the array of matrix constructors used in the definition of this matrix.

Returns: whether the matrix was added successfully.

Definition at line 3668 of file OSMatrix.cpp.

std::string OSMatrix::getMatrixNodeInXML ( )

virtual

The following method writes a matrix node in OSgL format. it is used by OSgLWriter to write a <matrix> element.

Returns: the MatrixNode and its children as an OSgL string.

Implements MatrixNode.

Reimplemented in OSMatrixWithMatrixConIdx, OSMatrixWithMatrixObjIdx, and OSMatrixWithMatrixVarIdx.

Definition at line 3683 of file OSMatrix.cpp.

OSMatrix * OSMatrix::cloneMatrixNode ( )

virtual

The implementation of the virtual functions.

Returns: a pointer to a new MatrixNode of the proper type.

Implements MatrixNode.

Reimplemented in OSMatrixWithMatrixConIdx, OSMatrixWithMatrixObjIdx, and OSMatrixWithMatrixVarIdx.

Definition at line 3708 of file OSMatrix.cpp.

bool OSMatrix::IsEqual ( OSMatrix * that )

A function to check for the equality of two objects.

Definition at line 3715 of file OSMatrix.cpp.

bool OSMatrix::setRandom	(	double	density,
		bool	conformant,
		int	iMin,
		int	iMax
	)

A function to make a random instance of this class.

Parameters

density,:	corresponds to the probability that a particular child element is created
conformant,:	if true enforces side constraints not enforceable in the schema (e.g., agreement of "numberOfXXX" attributes and <XXX> children)
iMin,:	lowest index value (inclusive) that a variable reference in this matrix can take
iMax,:	greatest index value (inclusive) that a variable reference in this matrix can take

bool OSMatrix::deepCopyFrom ( OSMatrix * that )

A function to make a deep copy of an instance of this class.

Parameters

that,: the instance from which information is to be copied

Returns: whether the copy was created successfully

Member Data Documentation

int OSMatrix::idx

Definition at line 2188 of file OSMatrix.h.

std::string OSMatrix::name

Definition at line 2189 of file OSMatrix.h.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSMatrix.h
/tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSMatrix.cpp
