flopc::MP_variable Class Reference

Symantic representation of a variable. More...

#include <MP_variable.hpp>

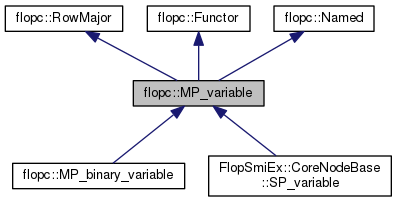

Inheritance diagram for flopc::MP_variable:

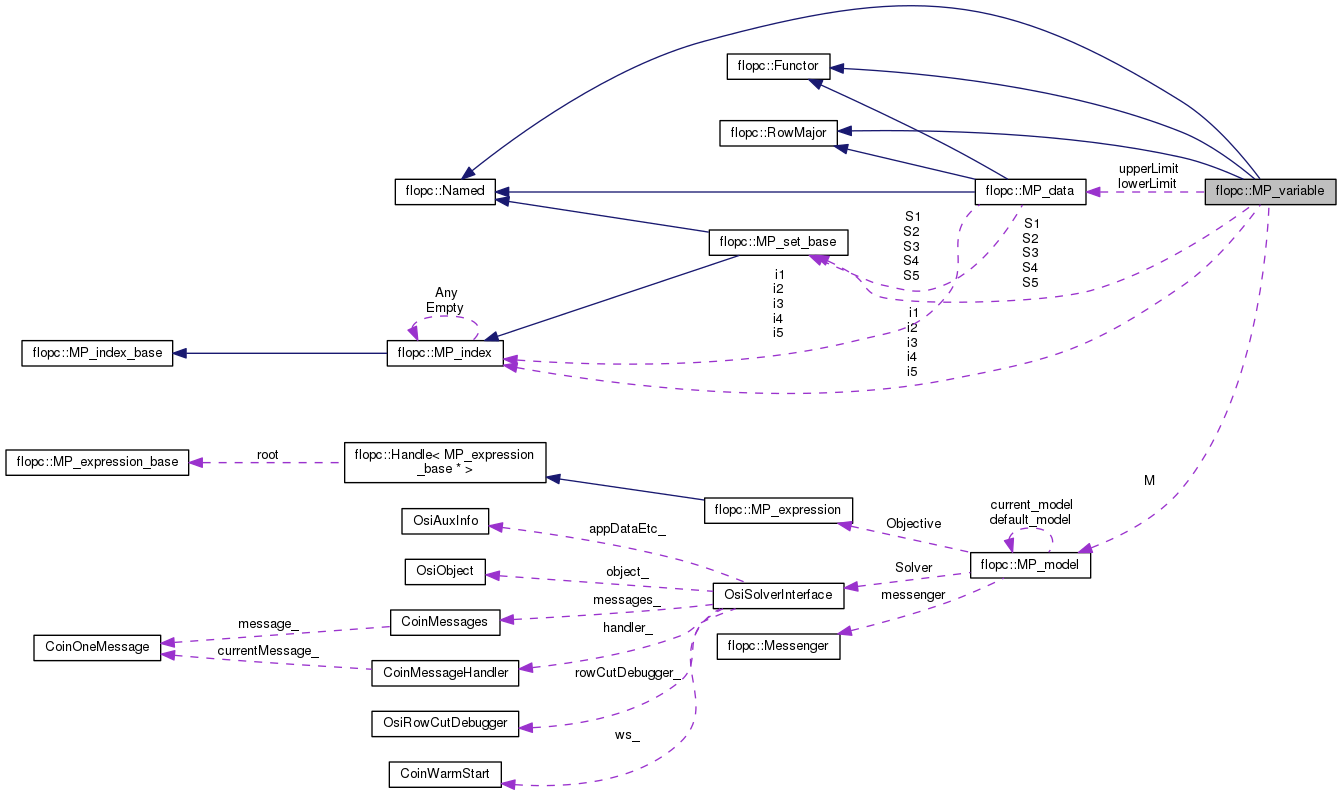

Collaboration diagram for flopc::MP_variable:

Public Member Functions
	MP_variable (const MP_set_base &s1=MP_set::getEmpty(), const MP_set_base &s2=MP_set::getEmpty(), const MP_set_base &s3=MP_set::getEmpty(), const MP_set_base &s4=MP_set::getEmpty(), const MP_set_base &s5=MP_set::getEmpty())
void	display (const std::string &s="")
	~MP_variable ()
double	level (int i1=0, int i2=0, int i3=0, int i4=0, int i5=0)
	Returns the value of the variable given the specific index values. More...
const VariableRef &	operator() (const MP_index_exp &d1=MP_index_exp::getEmpty(), const MP_index_exp &d2=MP_index_exp::getEmpty(), const MP_index_exp &d3=MP_index_exp::getEmpty(), const MP_index_exp &d4=MP_index_exp::getEmpty(), const MP_index_exp &d5=MP_index_exp::getEmpty())
	Interal use only. More...
void	binary ()
	Call this method to turn the variable into a binary variable. More...
void	integer ()
	Call this method to turn the MP_variable into an integer variable. More...
Public Member Functions inherited from flopc::RowMajor
int	size () const
Public Member Functions inherited from flopc::Named
std::string	getName () const
void	setName (const std::string &n)

Public Attributes
MP_data	upperLimit
	Upper bound on the variable value. More...
MP_data	lowerLimit
	Lower bound on the variable value. More...

Private Member Functions
void	operator() () const

Private Attributes
const MP_set_base *	S1
const MP_set_base *	S2
const MP_set_base *	S3
const MP_set_base *	S4
const MP_set_base *	S5
MP_index	i1
MP_index	i2
MP_index	i3
MP_index	i4
MP_index	i5
MP_model *	M
variableType	type
int	offset

Friends
class	MP_model
class	DisplayVariable
class	VariableRef

Additional Inherited Members
Protected Member Functions inherited from flopc::RowMajor
	RowMajor (int s1, int s2, int s3, int s4, int s5)
int	f (int i1=0, int i2=0, int i3=0, int i4=0, int i5=0) const
Protected Member Functions inherited from flopc::Functor
	Functor ()
virtual	~Functor ()
Protected Attributes inherited from flopc::RowMajor
int	size1
int	size2
int	size3
int	size4
int	size5
int	size_

Detailed Description

Symantic representation of a variable.

This is one of the main public interface classes. It should be directly declared by clients of the FlopC++. The parametersof construction are MP_set s which specify the indexes over which the variable is defined.

Definition at line 75 of file MP_variable.hpp.

Constructor & Destructor Documentation

flopc::MP_variable::MP_variable	(	const MP_set_base &	s1 = MP_set::getEmpty(),
		const MP_set_base &	s2 = MP_set::getEmpty(),
		const MP_set_base &	s3 = MP_set::getEmpty(),
		const MP_set_base &	s4 = MP_set::getEmpty(),
		const MP_set_base &	s5 = MP_set::getEmpty()
	)

flopc::MP_variable::~MP_variable ( )

inline

Definition at line 88 of file MP_variable.hpp.

Member Function Documentation

void flopc::MP_variable::display

(

const std::string &

s = ""

)

double flopc::MP_variable::level	(	int	i1 = 0,
		int	i2 = 0,
		int	i3 = 0,
		int	i4 = 0,
		int	i5 = 0
	)

Returns the value of the variable given the specific index values.

const VariableRef& flopc::MP_variable::operator() ( const MP_index_exp &  d1 = MP_index_exp::getEmpty(), const MP_index_exp &  d2 = MP_index_exp::getEmpty(), const MP_index_exp &  d3 = MP_index_exp::getEmpty(), const MP_index_exp &  d4 = MP_index_exp::getEmpty(), const MP_index_exp &  d5 = MP_index_exp::getEmpty()  )

inline

Interal use only.

Definition at line 95 of file MP_variable.hpp.

void flopc::MP_variable::binary ( )

inline

Call this method to turn the variable into a binary variable.

Definition at line 108 of file MP_variable.hpp.

void flopc::MP_variable::integer ( )

inline

Call this method to turn the MP_variable into an integer variable.

Definition at line 114 of file MP_variable.hpp.

void flopc::MP_variable::operator() ( ) const

privatevirtual

Implements flopc::Functor.

Friends And Related Function Documentation

friend class MP_model

friend

Definition at line 76 of file MP_variable.hpp.

friend class DisplayVariable

friend

Definition at line 77 of file MP_variable.hpp.

friend class VariableRef

friend

Definition at line 78 of file MP_variable.hpp.

Member Data Documentation

MP_data flopc::MP_variable::upperLimit

Upper bound on the variable value.

Definition at line 119 of file MP_variable.hpp.

MP_data flopc::MP_variable::lowerLimit

Lower bound on the variable value.

Definition at line 121 of file MP_variable.hpp.

const MP_set_base* flopc::MP_variable::S1

private

Definition at line 124 of file MP_variable.hpp.

const MP_set_base * flopc::MP_variable::S2

private

Definition at line 124 of file MP_variable.hpp.

const MP_set_base * flopc::MP_variable::S3

private

Definition at line 124 of file MP_variable.hpp.

const MP_set_base * flopc::MP_variable::S4

private

Definition at line 124 of file MP_variable.hpp.

const MP_set_base * flopc::MP_variable::S5

private

Definition at line 124 of file MP_variable.hpp.

MP_index flopc::MP_variable::i1

private

Definition at line 125 of file MP_variable.hpp.

MP_index flopc::MP_variable::i2

private

Definition at line 125 of file MP_variable.hpp.

MP_index flopc::MP_variable::i3

private

Definition at line 125 of file MP_variable.hpp.

MP_index flopc::MP_variable::i4

private

Definition at line 125 of file MP_variable.hpp.

MP_index flopc::MP_variable::i5

private

Definition at line 125 of file MP_variable.hpp.

MP_model* flopc::MP_variable::M

private

Definition at line 127 of file MP_variable.hpp.

variableType flopc::MP_variable::type

private

Definition at line 128 of file MP_variable.hpp.

int flopc::MP_variable::offset

private

Definition at line 129 of file MP_variable.hpp.

---

The documentation for this class was generated from the following file:

• /tmp/Smi-0.96.1/FlopCpp/src/MP_variable.hpp
