Representation of a set for indexing into some other construct. More...

#include <MP_set.hpp>

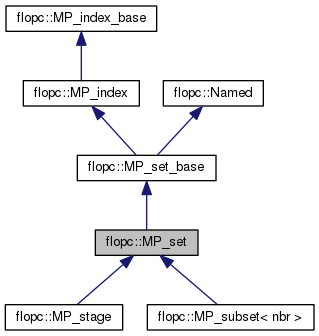

Inheritance diagram for flopc::MP_set:

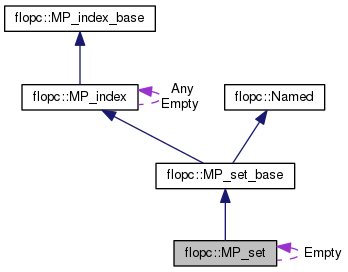

Collaboration diagram for flopc::MP_set:

Public Member Functions
	MP_set (int i=0)
	constructs a set with specific cardinality. More...

MP_domain	operator() (const MP_index_exp &i) const
	Constructs an MP_domain on the stack given an index expression into the set. More...

	operator MP_domain () const
	constructs an MP_domain from the MP_set. More...

MP_domain	such_that (const MP_boolean &b)
	constructs a domain by subsetting this MP_set where the MP_boolean evaluates to 'true' More...

void	cyclic ()
	setter for 'cyclic' property More...

virtual int	size () const
	getter for the cardinality of this MP_set. More...

int	last ()

Public Member Functions inherited from flopc::MP_set_base
	MP_set_base ()

void	display () const

int	check (int i) const

int	checkStage (int i) const

virtual int	isStage () const

Public Member Functions inherited from flopc::MP_index
	MP_index ()
	Default constructor. More...

int	evaluate () const

bool	isInstantiated () const
	interrogate state of instatiation of data. More...

void	assign (int i)
	Setter for the index. More...

void	unInstantiate ()
	unsetter for instatiated. More...

void	instantiate ()
	setter for instatiated. More...

MP_index *	getIndex () const
	getter for MP_index * data type. More...

virtual MP_domain	getDomain (MP_set *s) const
	Getter for domain over which this index is applied. More...

Public Member Functions inherited from flopc::Named
std::string	getName () const

void	setName (const std::string &n)

Static Public Member Functions
static MP_set &	getEmpty ()
	gets the distinct 'empty' MP_set. More...

Static Public Member Functions inherited from flopc::MP_index
static MP_index &	getEmpty ()
	returns a reference to the distinct "empty" index. More...

Private Attributes
int	cardinality

Static Private Attributes
static MP_set	Empty

Additional Inherited Members
Public Attributes inherited from flopc::MP_set_base
bool	Cyclic

Static Public Attributes inherited from flopc::MP_index
static MP_index &	Any

Protected Member Functions inherited from flopc::MP_index_base
	MP_index_base ()

virtual	~MP_index_base ()

Detailed Description

Representation of a set for indexing into some other construct.

This is one of the main public interface classes. One uses this when constructing MP_domains, and subsets. It is frequent that one would directly construct sets of indices, then use expressions to subset or slice the data.

Note: term: cardinality is the number of elements in the set.; term: dimension is the number of indices used to reference into it.; there is a distince 'empty' MP_set

Definition at line 78 of file MP_set.hpp.

Constructor & Destructor Documentation

flopc::MP_set::MP_set ( int i = 0 )

inline

constructs a set with specific cardinality.

Definition at line 81 of file MP_set.hpp.

Member Function Documentation

MP_domain flopc::MP_set::operator() ( const MP_index_exp & i ) const

inlinevirtual

Constructs an MP_domain on the stack given an index expression into the set.

Todo:: is the internal use?

Implements flopc::MP_set_base.

Definition at line 86 of file MP_set.hpp.

flopc::MP_set::operator MP_domain ( ) const

inlinevirtual

constructs an MP_domain from the MP_set.

Implements flopc::MP_set_base.

Definition at line 90 of file MP_set.hpp.

MP_domain flopc::MP_set::such_that ( const MP_boolean & b )

inline

constructs a domain by subsetting this MP_set where the MP_boolean evaluates to 'true'

Definition at line 96 of file MP_set.hpp.

void flopc::MP_set::cyclic ( )

inline

setter for 'cyclic' property

Todo:: better explain the use of cyclic.

Definition at line 102 of file MP_set.hpp.

virtual int flopc::MP_set::size ( ) const

inlinevirtual

getter for the cardinality of this MP_set.

Implements flopc::MP_set_base.

Reimplemented in flopc::MP_subset< nbr >.

Definition at line 106 of file MP_set.hpp.

int flopc::MP_set::last ( )

inline

Definition at line 109 of file MP_set.hpp.

static MP_set& flopc::MP_set::getEmpty ( )

static

gets the distinct 'empty' MP_set.

Member Data Documentation

MP_set flopc::MP_set::Empty

staticprivate

Definition at line 115 of file MP_set.hpp.

int flopc::MP_set::cardinality

private

Definition at line 116 of file MP_set.hpp.

The documentation for this class was generated from the following file:

/tmp/Smi-0.96.1/FlopCpp/src/MP_set.hpp
