This is the anchor point for all constructs in a FlopC++ model. More...

#include <MP_model.hpp>

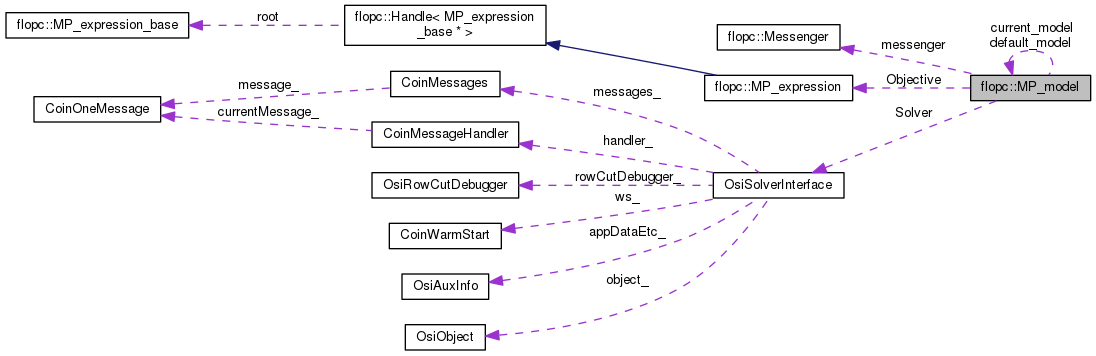

Collaboration diagram for flopc::MP_model:

Public Types
enum	MP_direction { MINIMIZE =1, MAXIMIZE =-1 }
	used when calling the solve() method. More...

enum	MP_status { OPTIMAL, PRIMAL_INFEASIBLE, DUAL_INFEASIBLE, ABANDONED, SOLVER_ONLY, ATTACHED, DETACHED }
	Reflects the state of the solution from solve() More...

Public Member Functions
	MP_model (OsiSolverInterface s, Messenger m=new NormalMessenger)
	Constructs an MP_model from an OsiSolverInterface *. More...

	~MP_model ()

MP_status	getStatus () const
	Returns the current status of the model-solver interaction. More...

void	silent ()
	used to silence FlopC++ More...

void	verbose ()
	used to help understanding and debugging FlopC++'s behavior. More...

void	setSolver (OsiSolverInterface *s)
	allows for replacement of the solver used. More...

OsiSolverInterface *	operator-> ()
	allows access to the OsiSolverInterface * More...

MP_model &	add (MP_constraint &c)
	Adds a constrataint block to the model. More...

void	maximize ()
	Binds the data and calls the solver to maximize the current objective expression. More...

void	maximize (const MP_expression &obj)
	Binds the data and calls the solver to maximize the parameter obj objective expression. More...

void	minimize ()
	Binds the data and calls the solver to minimize the current objective expression. More...

void	minimize (const MP_expression &obj)
	Binds the data and calls the solver to minimize the parameter obj objective expression. More...

void	minimize_max (MP_set &d, const MP_expression &obj)
	Binds the data and calls the solver to minimize maximum value of the parameter obj objective expression. More...

void	setObjective (const MP_expression &o)
	sets the "current objective" to the parameter o More...

void	attach (OsiSolverInterface *solver=NULL)
	attaches the symantic representation of a model and data to a particular OsiSolverInterface More...

void	detach ()
	detaches an OsiSolverInterface object from the model. More...

MP_model::MP_status	solve (const MP_model::MP_direction &dir)
	calls the appropriate solving methods in the OsiSolverInterface. More...

double	getInfinity () const
	Useful for getting an appropriate value to pass in as "infinity". More...

void	add (MP_variable *v)
	Adds a variable to the MP_model. More...

void	addRow (const Constraint &c)
	Adds a constraint to the MP_model. More...

Messenger *	getMessenger ()
	Gets the current messenger. More...

Static Public Member Functions
static MP_model &	getDefaultModel ()
	Can be used to get the default model. More...

static MP_model *	getCurrentModel ()
	Can be used to get the current model. More...

Public Attributes
const double *	solution
	Accessors for the results after a call to maximize()/minimize() More...

const double *	reducedCost

const double *	rowPrice

const double *	rowActivity

OsiSolverInterface *	Solver

Private Types
typedef std::set< MP_variable * > ::iterator	varIt

typedef std::set < MP_constraint * >::iterator	conIt

Private Member Functions
	MP_model (const MP_model &)

MP_model &	operator= (const MP_model &)

void	add (MP_constraint *c)

Static Private Member Functions
static void	assemble (std::vector< Coef > &v, std::vector< Coef > &av)

Private Attributes
Messenger *	messenger

MP_expression	Objective

std::set< MP_constraint * >	Constraints

std::set< MP_variable * >	Variables

int	m

int	n

int	nz

int *	Cst

int *	Clg

int *	Rnr

double *	Elm

double *	bl

double *	bu

double *	c

double *	l

double *	u

MP_status	mSolverState

Static Private Attributes
static MP_model &	default_model

static MP_model *	current_model

Friends
class	MP_constraint

Detailed Description

This is the anchor point for all constructs in a FlopC++ model.

The constructors take an OsiSolverInterface, and (optionally) a replacemente for the Messenger class. There are some built-in changes to the verbosity for output.
The main methods to use are:

add(MP_constraint & c)
add(MP_variable* v)
maximize() and minimize()
The main ideas are to construct a model, construct domains where things are defined over, then construct variables, constraints, and add them in. Finally, one attaches data and the model is "complete". Then minimize is called, the model is attached and the OsiSolverInterface is called.
Note
There are variations on adding objectives and maximize/minimize

See Also
verbose()

silent().

Messenger

Definition at line 89 of file MP_model.hpp.

Member Typedef Documentation

typedef std::set<MP_variable* >::iterator flopc::MP_model::varIt

private

Definition at line 239 of file MP_model.hpp.

typedef std::set<MP_constraint* >::iterator flopc::MP_model::conIt

private

Definition at line 240 of file MP_model.hpp.

Member Enumeration Documentation

enum flopc::MP_model::MP_direction

used when calling the solve() method.

Enumerator
MINIMIZE
MAXIMIZE

Definition at line 93 of file MP_model.hpp.

enum flopc::MP_model::MP_status

Reflects the state of the solution from solve()

Enumerator
OPTIMAL	if the solve method is called and the optimal solution found.
PRIMAL_INFEASIBLE	if solve is called and solver finds model primal infeasible.
DUAL_INFEASIBLE	if solve is called and solver finds the model dual infeasible.
ABANDONED	if solve is called and solver abandons the problem (time?, iter limit?)
SOLVER_ONLY	A solver is placed in the constructor, but it is not yet attached or solved.
ATTACHED	A solver is attached, but not yet solved.
DETACHED	No solver is attached.

Definition at line 97 of file MP_model.hpp.

Constructor & Destructor Documentation

flopc::MP_model::MP_model	(	OsiSolverInterface *	s,
		Messenger *	m = `new NormalMessenger`
	)

Constructs an MP_model from an OsiSolverInterface *.

flopc::MP_model::~MP_model ( )

inline

Definition at line 119 of file MP_model.hpp.

flopc::MP_model::MP_model ( const MP_model & )

private

Member Function Documentation

MP_status flopc::MP_model::getStatus ( ) const

inline

Returns the current status of the model-solver interaction.

This method will return the current understanding of the model in regard to the solver's state.

Note: It is not kept up to date if a call is made directly to the solver. Only if the MP_model interface is used.

See Also: MP_status

Definition at line 130 of file MP_model.hpp.

void flopc::MP_model::silent ( )

inline

used to silence FlopC++

Definition at line 134 of file MP_model.hpp.

void flopc::MP_model::verbose ( )

inline

used to help understanding and debugging FlopC++'s behavior.

Definition at line 139 of file MP_model.hpp.

void flopc::MP_model::setSolver ( OsiSolverInterface * s )

inline

allows for replacement of the solver used.

Definition at line 145 of file MP_model.hpp.

OsiSolverInterface* flopc::MP_model::operator-> ( )

inline

allows access to the OsiSolverInterface *

Definition at line 150 of file MP_model.hpp.

MP_model& flopc::MP_model::add ( MP_constraint & c )

Adds a constrataint block to the model.

void flopc::MP_model::maximize ( )

Binds the data and calls the solver to maximize the current objective expression.

void flopc::MP_model::maximize ( const MP_expression & obj )

Binds the data and calls the solver to maximize the parameter obj objective expression.

void flopc::MP_model::minimize ( )

Binds the data and calls the solver to minimize the current objective expression.

void flopc::MP_model::minimize ( const MP_expression & obj )

Binds the data and calls the solver to minimize the parameter obj objective expression.

void flopc::MP_model::minimize_max	(	MP_set &	d,
		const MP_expression &	obj
	)

Binds the data and calls the solver to minimize maximum value of the parameter obj objective expression.

void flopc::MP_model::setObjective ( const MP_expression & o )

sets the "current objective" to the parameter o

void flopc::MP_model::attach ( OsiSolverInterface * solver = NULL )

attaches the symantic representation of a model and data to a particular OsiSolverInterface

Note: this is called as a part of minimize(), maximize(), and minimize_max(); This takes the symantic representation of the model, generates coefficients for the matrices and adds them into the OsiSolverInterface. The OsiSolverInterface may be specified at construction time, or as late as the call to attach()

void flopc::MP_model::detach ( )

detaches an OsiSolverInterface object from the model.

In essence, this will clean up any intermediate storage. A model may then be attached to another solverInterface.

Note: a solver may only be attached to one solver at a time

Todo:: verify that on "attach", old solver is detached.

MP_model::MP_status flopc::MP_model::solve ( const MP_model::MP_direction & dir )

calls the appropriate solving methods in the OsiSolverInterface.

Note: this is called as a part of minimize(), maximize(), and minimize_max() It expects that the object function is already set and only the direction is to be specified.

Todo:: should the direction be defaulted?

double flopc::MP_model::getInfinity ( ) const

Useful for getting an appropriate value to pass in as "infinity".

Note: some solvers may be more or less sensitive to the value.

void flopc::MP_model::add ( MP_variable * v )

Adds a variable to the MP_model.

void flopc::MP_model::addRow ( const Constraint & c )

Adds a constraint to the MP_model.

static MP_model& flopc::MP_model::getDefaultModel ( )

static

Can be used to get the default model.

Todo:: explain the default and current model concepts.

static MP_model* flopc::MP_model::getCurrentModel ( )

static

Can be used to get the current model.

Todo:: explain the default and current model concepts.

Messenger* flopc::MP_model::getMessenger ( )

inline

Gets the current messenger.

Definition at line 235 of file MP_model.hpp.

MP_model& flopc::MP_model::operator= ( const MP_model & )

private

static void flopc::MP_model::assemble	(	std::vector< Coef > &	v,
		std::vector< Coef > &	av
	)

staticprivate

void flopc::MP_model::add ( MP_constraint * c )

private

Friends And Related Function Documentation

friend class MP_constraint

friend

Definition at line 90 of file MP_model.hpp.

Member Data Documentation

const double* flopc::MP_model::solution

Accessors for the results after a call to maximize()/minimize()

Todo:

should these be private with accessors? What if not set yet?

what if not a complete result? What if only one LP in the IP?

Definition at line 211 of file MP_model.hpp.

const double* flopc::MP_model::reducedCost

Definition at line 212 of file MP_model.hpp.

const double* flopc::MP_model::rowPrice

Definition at line 213 of file MP_model.hpp.

const double* flopc::MP_model::rowActivity

Definition at line 214 of file MP_model.hpp.

MP_model& flopc::MP_model::default_model

staticprivate

Definition at line 241 of file MP_model.hpp.

MP_model* flopc::MP_model::current_model

staticprivate

Definition at line 242 of file MP_model.hpp.

Messenger* flopc::MP_model::messenger

private

Definition at line 246 of file MP_model.hpp.

MP_expression flopc::MP_model::Objective

private

Definition at line 251 of file MP_model.hpp.

std::set<MP_constraint *> flopc::MP_model::Constraints

private

Definition at line 252 of file MP_model.hpp.

std::set<MP_variable *> flopc::MP_model::Variables

private

Definition at line 253 of file MP_model.hpp.

OsiSolverInterface* flopc::MP_model::Solver

Todo:: should this be private?

Definition at line 256 of file MP_model.hpp.

int flopc::MP_model::m

private

Definition at line 258 of file MP_model.hpp.

int flopc::MP_model::n

private

Definition at line 259 of file MP_model.hpp.

int flopc::MP_model::nz

private

Definition at line 260 of file MP_model.hpp.

int* flopc::MP_model::Cst

private

Definition at line 261 of file MP_model.hpp.

int* flopc::MP_model::Clg

private

Definition at line 262 of file MP_model.hpp.

int* flopc::MP_model::Rnr

private

Definition at line 263 of file MP_model.hpp.

double* flopc::MP_model::Elm

private

Definition at line 264 of file MP_model.hpp.

double* flopc::MP_model::bl

private

Definition at line 265 of file MP_model.hpp.

double* flopc::MP_model::bu

private

Definition at line 266 of file MP_model.hpp.

double* flopc::MP_model::c

private

Definition at line 267 of file MP_model.hpp.

double* flopc::MP_model::l

private

Definition at line 268 of file MP_model.hpp.

double* flopc::MP_model::u

private

Definition at line 269 of file MP_model.hpp.

MP_status flopc::MP_model::mSolverState

private

Definition at line 270 of file MP_model.hpp.

The documentation for this class was generated from the following file:

/tmp/Smi-0.96.1/FlopCpp/src/MP_model.hpp

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
