flopc::MP_data Class Reference

Input data set.This is one of the main public interface classes. It is normally directly constructed given a set of indices (domain) over which it is valid. If the data is not bound at construction, either the value() or initialize() method must be called which (deep) copies in the actual data. If one wishes to refer to external data instead rather than doing a deep copy, use the constructor which takes the value pointer as an argument. This copies the original data pointer value (rather than a deep copy).
This is used for construction of : More...

#include <MP_data.hpp>

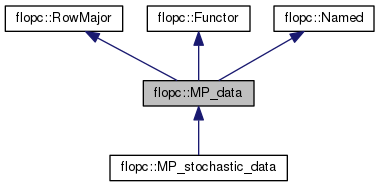

Inheritance diagram for flopc::MP_data:

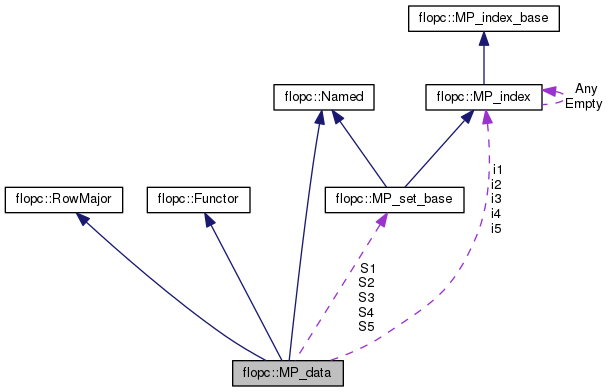

Collaboration diagram for flopc::MP_data:

Public Member Functions
void	operator() () const
void	initialize (double d)
	similar to value() but copies the same value to all entries. More...
	MP_data (const MP_set_base &s1=MP_set::getEmpty(), const MP_set_base &s2=MP_set::getEmpty(), const MP_set_base &s3=MP_set::getEmpty(), const MP_set_base &s4=MP_set::getEmpty(), const MP_set_base &s5=MP_set::getEmpty())
	MP_data (double *value, const MP_set_base &s1=MP_set::getEmpty(), const MP_set_base &s2=MP_set::getEmpty(), const MP_set_base &s3=MP_set::getEmpty(), const MP_set_base &s4=MP_set::getEmpty(), const MP_set_base &s5=MP_set::getEmpty())
	~MP_data ()
void	value (const double *d)
	Used to bind and deep copy data into the MP_data data structure. More...
	operator double ()
double &	operator() (int lcli1, int lcli2=0, int lcli3=0, int lcli4=0, int lcli5=0)
DataRef &	operator() (const MP_index_exp &lcli1=MP_index_exp::getEmpty(), const MP_index_exp &lcli2=MP_index_exp::getEmpty(), const MP_index_exp &lcli3=MP_index_exp::getEmpty(), const MP_index_exp &lcli4=MP_index_exp::getEmpty(), const MP_index_exp &lcli5=MP_index_exp::getEmpty())
void	display (std::string s="")
	For displaying data in a human readable format. More...
Public Member Functions inherited from flopc::RowMajor
int	size () const
Public Member Functions inherited from flopc::Named
std::string	getName () const
void	setName (const std::string &n)

Protected Attributes
std::vector< DataRef * >	myrefs
Protected Attributes inherited from flopc::RowMajor
int	size1
int	size2
int	size3
int	size4
int	size5
int	size_

Private Member Functions
	MP_data (const MP_data &)
MP_data &	operator= (const MP_data &)

Private Attributes
MP_index	i1
MP_index	i2
MP_index	i3
MP_index	i4
MP_index	i5
const MP_set_base &	S1
const MP_set_base &	S2
const MP_set_base &	S3
const MP_set_base &	S4
const MP_set_base &	S5
double *	v
bool	manageData

Static Private Attributes
static double	outOfBoundData = 0

Friends
class	MP_variable
class	DisplayData
class	DataRef
class	MP_model

Additional Inherited Members
Protected Member Functions inherited from flopc::RowMajor
	RowMajor (int s1, int s2, int s3, int s4, int s5)
int	f (int i1=0, int i2=0, int i3=0, int i4=0, int i5=0) const
Protected Member Functions inherited from flopc::Functor
	Functor ()
virtual	~Functor ()

Detailed Description

Input data set.

This is one of the main public interface classes. It is normally directly constructed given a set of indices (domain) over which it is valid. If the data is not bound at construction, either the value() or initialize() method must be called which (deep) copies in the actual data. If one wishes to refer to external data instead rather than doing a deep copy, use the constructor which takes the value pointer as an argument. This copies the original data pointer value (rather than a deep copy).
This is used for construction of :

• objective coefficients
• constraint coefficients
• 'right hand sides'

Definition at line 71 of file MP_data.hpp.

Constructor & Destructor Documentation

flopc::MP_data::MP_data ( const MP_set_base &  s1 = MP_set::getEmpty(), const MP_set_base &  s2 = MP_set::getEmpty(), const MP_set_base &  s3 = MP_set::getEmpty(), const MP_set_base &  s4 = MP_set::getEmpty(), const MP_set_base &  s5 = MP_set::getEmpty()  )

inline

Constructs the MP_data object, and allocates space for data, but does not initialize the data.

Definition at line 87 of file MP_data.hpp.

References initialize().

flopc::MP_data::MP_data ( double *  value, const MP_set_base &  s1 = MP_set::getEmpty(), const MP_set_base &  s2 = MP_set::getEmpty(), const MP_set_base &  s3 = MP_set::getEmpty(), const MP_set_base &  s4 = MP_set::getEmpty(), const MP_set_base &  s5 = MP_set::getEmpty()  )

inline

Construct the object, and uses the data in the original array (shallow copy)

Definition at line 102 of file MP_data.hpp.

flopc::MP_data::~MP_data ( )

inline

Todo:

determine cause of seg fault.

Definition at line 114 of file MP_data.hpp.

References manageData, and v.

flopc::MP_data::MP_data ( const MP_data &  )

private

Member Function Documentation

void MP_data::display

(

std::string

s = ""

)

For displaying data in a human readable format.

Definition at line 102 of file MP_data.cpp.

void flopc::MP_data::initialize ( double  d )

inline

similar to value() but copies the same value to all entries.

Definition at line 79 of file MP_data.hpp.

References flopc::RowMajor::size(), and v.

Referenced by flopc::MP_variable::binary(), MP_data(), and flopc::MP_variable::MP_variable().

flopc::MP_data::operator double ( )

inline

Todo:

purpose?

Definition at line 131 of file MP_data.hpp.

References operator()().

void MP_data::operator() ( ) const

virtual

Implements flopc::Functor.

Definition at line 92 of file MP_data.cpp.

References flopc::MP_set::getEmpty().

Referenced by operator double().

double& flopc::MP_data::operator() ( int  lcli1, int  lcli2 = 0, int  lcli3 = 0, int  lcli4 = 0, int  lcli5 = 0  )

inline

Looks up the data based on the index values passed in.

Note

this is used internally, but may also be useful for spot checking data or in other expressions.

Definition at line 139 of file MP_data.hpp.

References flopc::MP_set_base::check(), flopc::RowMajor::f(), flopc::outOfBound, outOfBoundData, S1, S2, S3, S4, S5, and v.

DataRef& flopc::MP_data::operator() ( const MP_index_exp &  lcli1 = MP_index_exp::getEmpty(), const MP_index_exp &  lcli2 = MP_index_exp::getEmpty(), const MP_index_exp &  lcli3 = MP_index_exp::getEmpty(), const MP_index_exp &  lcli4 = MP_index_exp::getEmpty(), const MP_index_exp &  lcli5 = MP_index_exp::getEmpty()  )

inline

returns a DataRef which refers into the MP_data.

Note

For internal use.

Todo:

can this be private?

Definition at line 158 of file MP_data.hpp.

References DataRef, and myrefs.

MP_data& flopc::MP_data::operator= ( const MP_data &  )

private

void flopc::MP_data::value ( const double *  d )

inline

Used to bind and deep copy data into the MP_data data structure.

Definition at line 124 of file MP_data.hpp.

References flopc::RowMajor::size(), and v.

Friends And Related Function Documentation

friend class DataRef

friend

Definition at line 74 of file MP_data.hpp.

Referenced by operator()(), and flopc::MP_stochastic_data::operator()().

friend class DisplayData

friend

Definition at line 73 of file MP_data.hpp.

friend class MP_model

friend

Definition at line 75 of file MP_data.hpp.

friend class MP_variable

friend

Definition at line 72 of file MP_data.hpp.

Member Data Documentation

MP_index flopc::MP_data::i1

private

Definition at line 180 of file MP_data.hpp.

MP_index flopc::MP_data::i2

private

Definition at line 180 of file MP_data.hpp.

MP_index flopc::MP_data::i3

private

Definition at line 180 of file MP_data.hpp.

MP_index flopc::MP_data::i4

private

Definition at line 180 of file MP_data.hpp.

MP_index flopc::MP_data::i5

private

Definition at line 180 of file MP_data.hpp.

bool flopc::MP_data::manageData

private

Definition at line 183 of file MP_data.hpp.

Referenced by ~MP_data().

std::vector<DataRef*> flopc::MP_data::myrefs

protected

Definition at line 173 of file MP_data.hpp.

Referenced by operator()(), and flopc::MP_stochastic_data::operator()().

double MP_data::outOfBoundData = 0

staticprivate

Definition at line 178 of file MP_data.hpp.

Referenced by operator()().

const MP_set_base& flopc::MP_data::S1

private

Definition at line 181 of file MP_data.hpp.

Referenced by operator()().

const MP_set_base & flopc::MP_data::S2

private

Definition at line 181 of file MP_data.hpp.

Referenced by operator()().

const MP_set_base & flopc::MP_data::S3

private

Definition at line 181 of file MP_data.hpp.

Referenced by operator()().

const MP_set_base & flopc::MP_data::S4

private

Definition at line 181 of file MP_data.hpp.

Referenced by operator()().

const MP_set_base & flopc::MP_data::S5

private

Definition at line 181 of file MP_data.hpp.

Referenced by operator()().

double* flopc::MP_data::v

private

Definition at line 182 of file MP_data.hpp.

Referenced by initialize(), operator()(), value(), and ~MP_data().

---

The documentation for this class was generated from the following files:

• MP_data.hpp
• MP_data.cpp
