Representation of a set for indexing into some other construct.This is one of the main public interface classes. One uses this when constructing MP_domains, and subsets. It is frequent that one would directly construct sets of indices, then use expressions to subset or slice the data. More...

#include <MP_set.hpp>

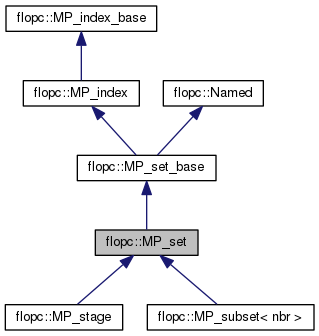

Inheritance diagram for flopc::MP_set:

[legend]

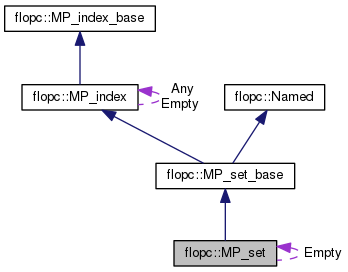

Collaboration diagram for flopc::MP_set:

[legend]

Public Member Functions
	MP_set (int i=0)
	constructs a set with specific cardinality. More...

MP_domain	operator() (const MP_index_exp &i) const
	Constructs an MP_domain on the stack given an index expression into the set. More...

	operator MP_domain () const
	constructs an MP_domain from the MP_set. More...

MP_domain	such_that (const MP_boolean &b)
	constructs a domain by subsetting this MP_set where the MP_boolean evaluates to 'true' More...

void	cyclic ()

virtual int	size () const
	getter for the cardinality of this MP_set. More...

int	last ()

Public Member Functions inherited from flopc::MP_set_base
	MP_set_base ()

void	display () const

int	check (int i) const

int	checkStage (int i) const

virtual int	isStage () const

Public Member Functions inherited from flopc::MP_index
	MP_index ()
	Default constructor. More...

int	evaluate () const

bool	isInstantiated () const

void	assign (int i)

void	unInstantiate ()

void	instantiate ()

MP_index *	getIndex () const

virtual MP_domain	getDomain (MP_set *s) const
	Getter for domain over which this index is applied. More...

Public Member Functions inherited from flopc::Named
std::string	getName () const

void	setName (const std::string &n)

Static Public Member Functions
static MP_set &	getEmpty ()
	gets the distinct 'empty' MP_set. More...

Static Public Member Functions inherited from flopc::MP_index
static MP_index &	getEmpty ()
	returns a reference to the distinct "empty" index. More...

Private Attributes
int	cardinality

Static Private Attributes
static MP_set	Empty = *new MP_set(1)

Additional Inherited Members
Public Attributes inherited from flopc::MP_set_base
bool	Cyclic

Static Public Attributes inherited from flopc::MP_index
static MP_index &	Any = *new MP_index()

Protected Member Functions inherited from flopc::MP_index_base
	MP_index_base ()

virtual	~MP_index_base ()

Detailed Description

Representation of a set for indexing into some other construct.

This is one of the main public interface classes. One uses this when constructing MP_domains, and subsets. It is frequent that one would directly construct sets of indices, then use expressions to subset or slice the data.

Note: term: cardinality is the number of elements in the set.; term: dimension is the number of indices used to reference into it.; there is a distince 'empty' MP_set

Definition at line 78 of file MP_set.hpp.

Constructor & Destructor Documentation

flopc::MP_set::MP_set ( int i = 0 )

inline

constructs a set with specific cardinality.

Definition at line 81 of file MP_set.hpp.

Member Function Documentation

void flopc::MP_set::cyclic ( )

inline

setter for 'cyclic' property

Todo:: better explain the use of cyclic.

Definition at line 102 of file MP_set.hpp.

References flopc::MP_set_base::Cyclic.

MP_set & flopc::MP_set::getEmpty ( )

static

gets the distinct 'empty' MP_set.

Definition at line 17 of file MP_set.cpp.

Referenced by flopc::MP_domain::getEmpty(), flopc::MP_data::operator()(), and flopc::MP_variable::operator()().

int flopc::MP_set::last ( )

inline

Definition at line 109 of file MP_set.hpp.

References cardinality.

flopc::MP_set::operator MP_domain ( ) const

inlinevirtual

constructs an MP_domain from the MP_set.

Implements flopc::MP_set_base.

Definition at line 90 of file MP_set.hpp.

MP_domain flopc::MP_set::operator() ( const MP_index_exp & i ) const

inlinevirtual

Constructs an MP_domain on the stack given an index expression into the set.

Todo:: is the internal use?

Implements flopc::MP_set_base.

Definition at line 86 of file MP_set.hpp.

virtual int flopc::MP_set::size ( ) const

inlinevirtual

getter for the cardinality of this MP_set.

Implements flopc::MP_set_base.

Reimplemented in flopc::MP_subset< nbr >.

Definition at line 106 of file MP_set.hpp.

References cardinality.

Referenced by flopc::MP_domain_set::operator()().

MP_domain flopc::MP_set::such_that ( const MP_boolean & b )

inline

constructs a domain by subsetting this MP_set where the MP_boolean evaluates to 'true'

Definition at line 96 of file MP_set.hpp.

References flopc::MP_domain::such_that().

Member Data Documentation

int flopc::MP_set::cardinality

private

Definition at line 116 of file MP_set.hpp.

Referenced by last(), and size().

MP_set flopc::MP_set::Empty = *new MP_set(1)

staticprivate

Definition at line 115 of file MP_set.hpp.

The documentation for this class was generated from the following files:
