#include <OSnLNode.h>

Inheritance diagram for OSnLMNodeMatrixLowerTriangle:

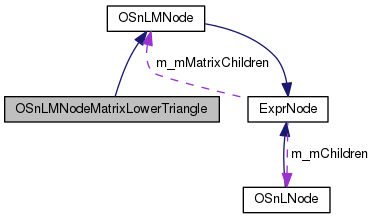

Collaboration diagram for OSnLMNodeMatrixLowerTriangle:

Public Member Functions
	OSnLMNodeMatrixLowerTriangle ()
	default constructor. More...

	~OSnLMNodeMatrixLowerTriangle ()
	default destructor. More...

virtual std::string	getTokenName ()

virtual std::string	getNonlinearExpressionInXML ()

virtual OSnLMNode *	cloneExprNode ()
	Create or clone a node of this type. More...

virtual OSnLMNode *	copyNodeAndDescendants ()
	make a copy of this node and all its descendants More...

virtual bool	IsEqual (OSnLMNodeMatrixLowerTriangle *that)
	A function to check for the equality of two objects. More...

Public Member Functions inherited from OSnLMNode
	OSnLMNode ()
	default constructor. More...

virtual	~OSnLMNode ()
	default destructor. More...

OSnLMNode *	createExpressionTreeFromPrefix (std::vector< ExprNode * > nlNodeVec)
	Take a vector of ExprNodes (OSnLNodes and OSnLMNodes) in prefix format and create a matrix-valued OSExpressionTree root node. More...

std::vector< ExprNode * >	getPrefixFromExpressionTree ()
	Get a vector of pointers to OSnLNodes and OSnLMNodes that correspond to the (matrix-valued) expression tree in prefix format. More...

std::vector< ExprNode * >	preOrderOSnLNodeTraversal (std::vector< ExprNode * > *prefixVector)
	Called by getPrefixFromExpressionTree(). More...

OSnLMNode *	createExpressionTreeFromPostfix (std::vector< ExprNode * > nlNodeVec)
	Take a vector of ExprNodes (OSnLNodes and OSnLMNodes) in postfix format and create a matrix-valued OSExpressionTree root node. More...

std::vector< ExprNode * >	getPostfixFromExpressionTree ()
	Get a vector of pointers to ExprNodes that correspond to the expression tree in postfix format. More...

std::vector< ExprNode * >	postOrderOSnLNodeTraversal (std::vector< ExprNode * > *postfixVector)
	Called by getPostfixFromExpressionTree(). More...

bool	IsEqual (OSnLMNode *that)
	A function to check for the equality of two objects. More...

Public Member Functions inherited from ExprNode
	ExprNode ()
	default constructor. More...

virtual	~ExprNode ()
	default destructor. More...

virtual std::string	getTokenNumber ()

virtual bool	IsEqual (ExprNode *that)
	A function to check for the equality of two objects. More...

Public Attributes
bool	includeDiagonal
	A boolean to express whether the diagonal is to be part of the upper triangle or not. More...

Public Attributes inherited from ExprNode
int	inodeInt
	inodeInt is the unique integer assigned to the OSnLNode or OSnLMNode in OSParameters.h. More...

int	inodeType
	inodeType essentially tracks whether the number of children are known or not. More...

unsigned int	inumberOfChildren
	inumberOfChildren is the number of OSnLNode child elements If this number is not fixed, e.g., for a sum node, it is temporarily set to 0 More...

unsigned int	inumberOfMatrixChildren
	inumberOfMatrixChildren is the number of OSnLMNode child elements If this number is not fixed, e.g., for a matrixProduct node, it is temporarily set to 0 More...

OSnLNode **	m_mChildren
	m_mChildren holds all the operands, that is, nodes that the current node operates on. More...

OSnLMNode **	m_mMatrixChildren
	m_mMatrixChildren holds all the matrix-valued operands, if any. More...

Detailed Description

Definition at line 2235 of file OSnLNode.h.

Constructor & Destructor Documentation

OSnLMNodeMatrixLowerTriangle::OSnLMNodeMatrixLowerTriangle ( )

default constructor.

Definition at line 3230 of file OSnLNode.cpp.

OSnLMNodeMatrixLowerTriangle::~OSnLMNodeMatrixLowerTriangle ( )

default destructor.

Definition at line 3241 of file OSnLNode.cpp.

Member Function Documentation

std::string OSnLMNodeMatrixLowerTriangle::getTokenName ( )

virtual

Returns: the value of operator name

Implements ExprNode.

Definition at line 3250 of file OSnLNode.cpp.

std::string OSnLMNodeMatrixLowerTriangle::getNonlinearExpressionInXML ( )

virtual

Returns: a string token that corresponds to the OSnLNode.; the OSiL XML for the OSnLMNode <matrix>.

Reimplemented from ExprNode.

Definition at line 3299 of file OSnLNode.cpp.

OSnLMNode * OSnLMNodeMatrixLowerTriangle::cloneExprNode ( )

virtual

Create or clone a node of this type.

This is an abstract method which is required to be implemented by the concrete operator nodes that derive or extend from this class.

Implements ExprNode.

Definition at line 3255 of file OSnLNode.cpp.

OSnLMNode * OSnLMNodeMatrixLowerTriangle::copyNodeAndDescendants ( )

virtual

make a copy of this node and all its descendants

Returns: a pointer to the duplicate node

Reimplemented from OSnLMNode.

Definition at line 3262 of file OSnLNode.cpp.

bool OSnLMNodeMatrixLowerTriangle::IsEqual ( OSnLMNodeMatrixLowerTriangle * that )

virtual

A function to check for the equality of two objects.

Definition at line 3313 of file OSnLNode.cpp.

Member Data Documentation

bool OSnLMNodeMatrixLowerTriangle::includeDiagonal

A boolean to express whether the diagonal is to be part of the upper triangle or not.

Definition at line 2241 of file OSnLNode.h.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSnLNode.h
/tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSnLNode.cpp
