A generic class from which we derive both OSnLNode and OSnLMNode. More...

#include <OSnLNode.h>

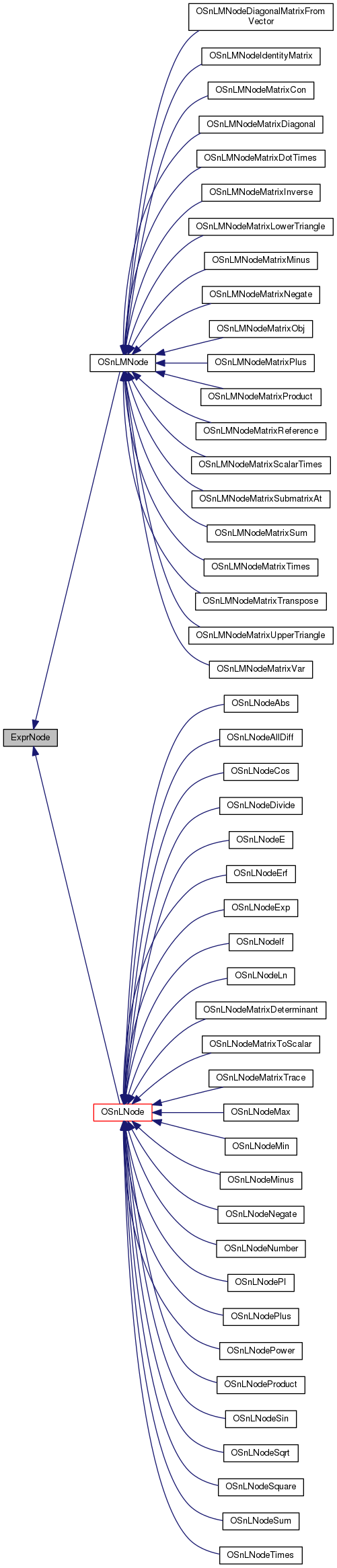

Inheritance diagram for ExprNode:

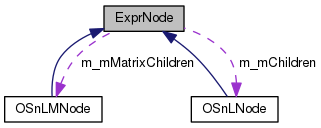

Collaboration diagram for ExprNode:

Public Member Functions
	ExprNode ()
	default constructor. More...

virtual	~ExprNode ()
	default destructor. More...

virtual std::string	getTokenNumber ()

virtual std::string	getTokenName ()=0

virtual std::string	getNonlinearExpressionInXML ()
	The following method writes an OSnLNode or OSnLMNode in OSiL format. More...

virtual std::vector< ExprNode * >	getPrefixFromExpressionTree ()
	Get a vector of pointers to OSnLNodes and OSnLMNodes that correspond to the (scalar-valued or matrix-valued) expression tree in prefix format. More...

virtual std::vector< ExprNode * >	preOrderOSnLNodeTraversal (std::vector< ExprNode * > *prefixVector)
	Called by getPrefixFromExpressionTree(). More...

virtual std::vector< ExprNode * >	getPostfixFromExpressionTree ()
	Get a vector of pointers to ExprNodes that correspond to the expression tree in postfix format. More...

virtual std::vector< ExprNode * >	postOrderOSnLNodeTraversal (std::vector< ExprNode * > *postfixVector)
	Called by getPostfixFromExpressionTree(). More...

virtual ExprNode *	cloneExprNode ()=0
	Create or clone a node of this type. More...

virtual bool	IsEqual (ExprNode *that)
	A function to check for the equality of two objects. More...

Public Attributes
int	inodeInt
	inodeInt is the unique integer assigned to the OSnLNode or OSnLMNode in OSParameters.h. More...

int	inodeType
	inodeType essentially tracks whether the number of children are known or not. More...

unsigned int	inumberOfChildren
	inumberOfChildren is the number of OSnLNode child elements If this number is not fixed, e.g., for a sum node, it is temporarily set to 0 More...

unsigned int	inumberOfMatrixChildren
	inumberOfMatrixChildren is the number of OSnLMNode child elements If this number is not fixed, e.g., for a matrixProduct node, it is temporarily set to 0 More...

OSnLNode **	m_mChildren
	m_mChildren holds all the operands, that is, nodes that the current node operates on. More...

OSnLMNode **	m_mMatrixChildren
	m_mMatrixChildren holds all the matrix-valued operands, if any. More...

Detailed Description

A generic class from which we derive both OSnLNode and OSnLMNode.

Author: Horand Gassmann, Jun Ma, Kipp Martin

Version: 2.9, 10/Sep/2014

Definition at line 56 of file OSnLNode.h.

Constructor & Destructor Documentation

ExprNode::ExprNode ( )

default constructor.

Definition at line 154 of file OSnLNode.cpp.

ExprNode::~ExprNode ( )

virtual

default destructor.

Definition at line 167 of file OSnLNode.cpp.

Member Function Documentation

std::string ExprNode::getTokenNumber ( )

virtual

Returns: the value of inodeInt

Reimplemented in OSnLMNodeMatrixCon, OSnLMNodeMatrixObj, OSnLMNodeMatrixVar, OSnLMNodeMatrixReference, OSnLNodeVariable, OSnLNodePI, OSnLNodeE, and OSnLNodeNumber.

Definition at line 208 of file OSnLNode.cpp.

virtual std::string ExprNode::getTokenName ( )

pure virtual

Returns: the value of the operator name

Implemented in OSnLMNodeMatrixProduct, OSnLMNodeMatrixCon, OSnLMNodeMatrixObj, OSnLMNodeMatrixVar, OSnLMNodeMatrixReference, OSnLMNodeMatrixSubmatrixAt, OSnLMNodeDiagonalMatrixFromVector, OSnLMNodeMatrixDiagonal, OSnLMNodeMatrixUpperTriangle, OSnLMNodeMatrixLowerTriangle, OSnLMNodeIdentityMatrix, OSnLMNodeMatrixDotTimes, OSnLMNodeMatrixScalarTimes, OSnLMNodeMatrixTranspose, OSnLMNodeMatrixInverse, OSnLMNodeMatrixTimes, OSnLMNodeMatrixNegate, OSnLMNodeMatrixMinus, OSnLMNodeMatrixSum, OSnLMNodeMatrixPlus, OSnLNodeMatrixToScalar, OSnLNodeMatrixTrace, OSnLNodeMatrixDeterminant, OSnLNodeAllDiff, OSnLNodeVariable, OSnLNodePI, OSnLNodeE, OSnLNodeNumber, OSnLNodeIf, OSnLNodeErf, OSnLNodeAbs, OSnLNodeExp, OSnLNodeSin, OSnLNodeCos, OSnLNodeSquare, OSnLNodeSqrt, OSnLNodeLn, OSnLNodeProduct, OSnLNodePower, OSnLNodeDivide, OSnLNodeTimes, OSnLNodeNegate, OSnLNodeMinus, OSnLNodeMin, OSnLNodeMax, OSnLNodeSum, and OSnLNodePlus.

std::string ExprNode::getNonlinearExpressionInXML ( )

virtual

The following method writes an OSnLNode or OSnLMNode in OSiL format.

It is used by OSiLWriter to assist in writing an OSiL file from a corresponding OSInstance.

Returns: the ExprNode and its children as an OSiL string.

Reimplemented in OSnLMNodeMatrixCon, OSnLMNodeMatrixObj, OSnLMNodeMatrixVar, OSnLMNodeMatrixReference, OSnLMNodeMatrixUpperTriangle, OSnLMNodeMatrixLowerTriangle, OSnLNodeVariable, OSnLNodePI, OSnLNodeE, and OSnLNodeNumber.

Definition at line 221 of file OSnLNode.cpp.

std::vector< ExprNode * > ExprNode::getPrefixFromExpressionTree ( )

virtual

Get a vector of pointers to OSnLNodes and OSnLMNodes that correspond to the (scalar-valued or matrix-valued) expression tree in prefix format.

Returns: the expression tree as a vector of ExprNodes in prefix.

Reimplemented in OSnLMNode, and OSnLNode.

Definition at line 259 of file OSnLNode.cpp.

std::vector< ExprNode * > ExprNode::preOrderOSnLNodeTraversal ( std::vector< ExprNode * > * prefixVector )

virtual

Called by getPrefixFromExpressionTree().

This method calls itself recursively and generates a vector of pointers to ExprNode in prefix

Parameters

a	pointer prefixVector to a vector of pointers of ExprNodes

Returns: a vector of pointers to ExprNode in prefix.

Reimplemented in OSnLMNode, and OSnLNode.

Definition at line 266 of file OSnLNode.cpp.

std::vector< ExprNode * > ExprNode::getPostfixFromExpressionTree ( )

virtual

Get a vector of pointers to ExprNodes that correspond to the expression tree in postfix format.

Returns: the expression tree as a vector of ExprNodes in postfix.

Reimplemented in OSnLMNode, and OSnLNode.

Definition at line 282 of file OSnLNode.cpp.

std::vector< ExprNode * > ExprNode::postOrderOSnLNodeTraversal ( std::vector< ExprNode * > * postfixVector )

virtual

Called by getPostfixFromExpressionTree().

This method calls itself recursively and generates a vector of pointers to ExprNodes in postfix.

Parameters

a	pointer postfixVector to a vector of pointers of ExprNodes

Returns: a vector of pointers to ExprNodes in postfix.

Reimplemented in OSnLMNode, and OSnLNode.

Definition at line 289 of file OSnLNode.cpp.

virtual ExprNode* ExprNode::cloneExprNode ( )

pure virtual

Create or clone a node of this type.

This is an abstract method which is required to be implemented by the concrete operator nodes that derive or extend from this class.

Implemented in OSnLMNodeMatrixProduct, OSnLMNodeMatrixCon, OSnLMNodeMatrixObj, OSnLMNodeMatrixVar, OSnLMNodeMatrixReference, OSnLMNodeMatrixSubmatrixAt, OSnLMNodeDiagonalMatrixFromVector, OSnLMNodeMatrixDiagonal, OSnLMNodeMatrixUpperTriangle, OSnLMNodeMatrixLowerTriangle, OSnLMNodeIdentityMatrix, OSnLMNodeMatrixDotTimes, OSnLMNodeMatrixScalarTimes, OSnLMNodeMatrixTranspose, OSnLMNodeMatrixInverse, OSnLMNodeMatrixTimes, OSnLMNodeMatrixNegate, OSnLMNodeMatrixMinus, OSnLMNodeMatrixSum, OSnLMNodeMatrixPlus, OSnLNodeMatrixToScalar, OSnLNodeMatrixTrace, OSnLNodeMatrixDeterminant, OSnLNodeAllDiff, OSnLNodeVariable, OSnLNodePI, OSnLNodeE, OSnLNodeNumber, OSnLNodeIf, OSnLNodeErf, OSnLNodeAbs, OSnLNodeExp, OSnLNodeSin, OSnLNodeCos, OSnLNodeSquare, OSnLNodeSqrt, OSnLNodeLn, OSnLNodeProduct, OSnLNodePower, OSnLNodeDivide, OSnLNodeTimes, OSnLNodeNegate, OSnLNodeMinus, OSnLNodeMin, OSnLNodeMax, OSnLNodeSum, and OSnLNodePlus.

bool ExprNode::IsEqual ( ExprNode * that )

virtual

A function to check for the equality of two objects.

Definition at line 308 of file OSnLNode.cpp.

Member Data Documentation

int ExprNode::inodeInt

inodeInt is the unique integer assigned to the OSnLNode or OSnLMNode in OSParameters.h.

Definition at line 62 of file OSnLNode.h.

int ExprNode::inodeType

inodeType essentially tracks whether the number of children are known or not.

For most nodes this is known, in which case inodeType is set to inumberOfChildren. For some nodes the number of children is not known a priori, e.g., a sum node, then inodeType is set to -1.

Definition at line 69 of file OSnLNode.h.

unsigned int ExprNode::inumberOfChildren

inumberOfChildren is the number of OSnLNode child elements If this number is not fixed, e.g., for a sum node, it is temporarily set to 0

Definition at line 74 of file OSnLNode.h.

unsigned int ExprNode::inumberOfMatrixChildren

inumberOfMatrixChildren is the number of OSnLMNode child elements If this number is not fixed, e.g., for a matrixProduct node, it is temporarily set to 0

Definition at line 79 of file OSnLNode.h.

OSnLNode** ExprNode::m_mChildren

m_mChildren holds all the operands, that is, nodes that the current node operates on.

Definition at line 84 of file OSnLNode.h.

OSnLMNode** ExprNode::m_mMatrixChildren

m_mMatrixChildren holds all the matrix-valued operands, if any.

Definition at line 89 of file OSnLNode.h.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSnLNode.h
/tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSnLNode.cpp
