#include <OSDecompSolver.h>

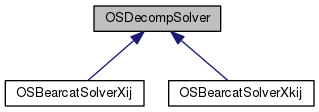

Inheritance diagram for OSDecompSolver:

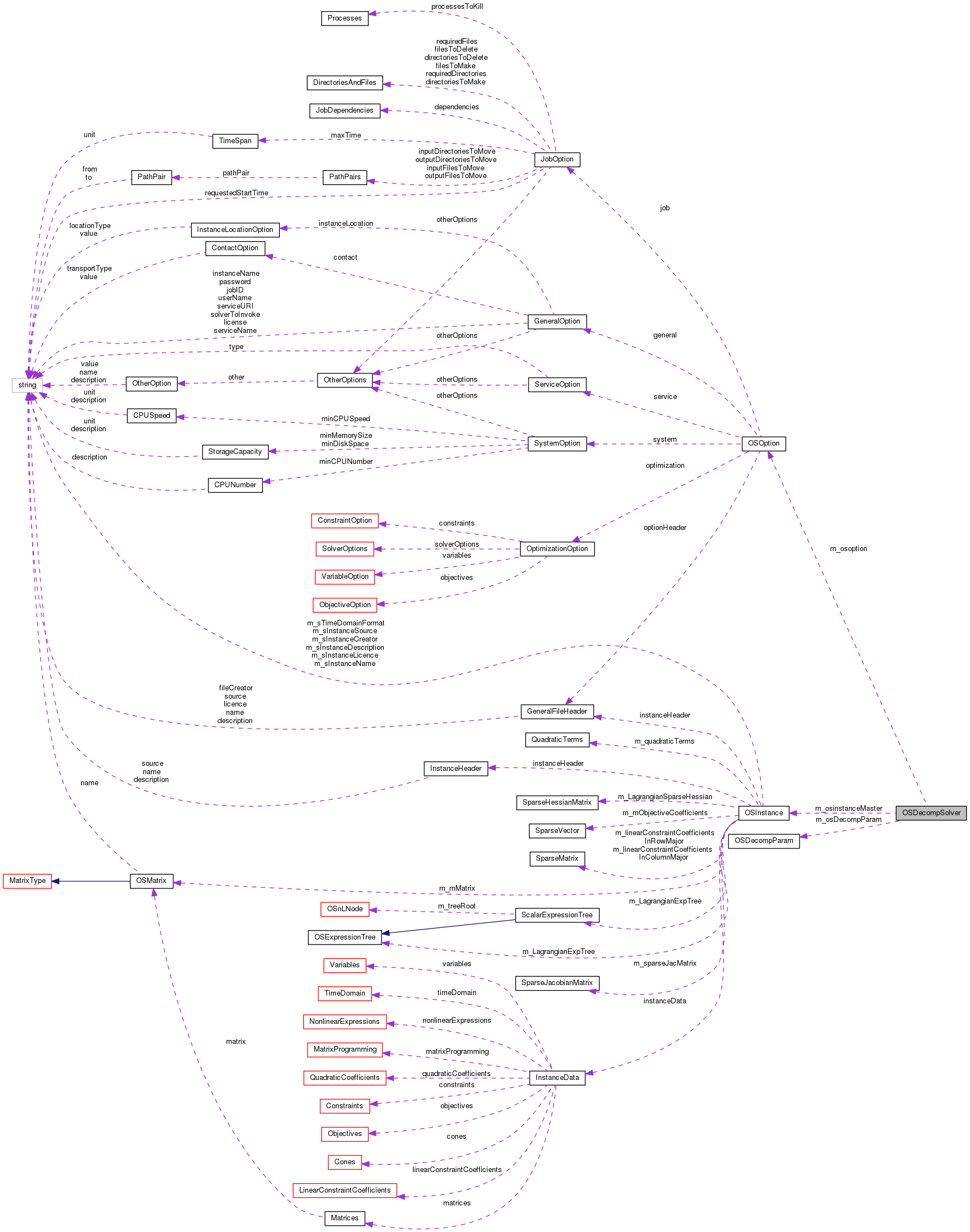

Collaboration diagram for OSDecompSolver:

Public Member Functions
virtual OSInstance *	getInitialRestrictedMaster ()=0

virtual void	getCutsTheta (const double thetaVar, const int numThetaVar, int &numNewRows, int &numNonz, int &colIdx, double &values, double &rowLB, double &rowUB)=0
	RETURN VALUES: More...

virtual void	getCutsMultiCommod (const double thetaVar, const int numThetaVar, int &numNewRows, int &numNonz, int &colIdx, double &values, double &rowLB, double &rowUB)=0
	This is the routine that generates the multi-item cuts. More...

virtual void	getColumns (const double yA, const int numARows, const double yB, const int numBRows, int &numNewColumns, int &numNonz, double &cost, int &rowIdx, double &values, double &lowerBound)=0
	RETURN VALUES: More...

virtual void	getBranchingCut (const double thetaVar, const int numThetaVar, const std::map< int, int > &varConMap, int &varIdx, int &numNonz, int &indexes, double *&values)=0
	Dense Version. More...

virtual void	getBranchingCut (const int thetaIdx, const double theta, const int numThetaVar, const std::map< int, int > &varConMap, int &varIdx, int &numNonz, int &indexes, double &values)=0
	Sparse Version. More...

virtual void	pauHana (std::vector< int > &m_zOptIndexes, std::vector< double > &m_zRootLPx_vals, int numNodes, int numColsGen, std::string message)=0

virtual void	resetMaster (std::map< int, int > &inVars, OsiSolverInterface *si)=0
	INPUT: More...

virtual void	initializeDataStructures ()=0
	allocate memory and initialize arrays More...

	OSDecompSolver ()
	Default Constructor. More...

	OSDecompSolver (OSOption *osoption)
	Constructor with OSOption Arg. More...

virtual	~OSDecompSolver ()=0
	Default destructor. More...

Public Attributes
OSInstance *	m_osinstanceMaster

int	m_multiCommodCutLimit

int	m_numMultCuts

OSDecompParam	m_osDecompParam
	share the parameters with the decomposition solver More...

double	m_bestIPValue

double	m_bestLPValue

double	m_rootLPValue

int *	m_thetaPnt

int *	m_thetaIndex

int	m_numThetaVar

int	m_numThetaNonz

int *	m_pntBmatrix

int *	m_BmatrixIdx

double *	m_BmatrixVal

std::set< std::pair< int, double > >	intVarSet
	intVarSet holds and std::pair where the first element is the index of an integer variable and the second is the variable upper bound More...

int	m_numHubs
	m_numHubs is the number of hubs/routes More...

int	m_numNodes
	m_numNodes is the number of nodes (both pickup and hub) in the model More...

int *	m_pntAmatrix

int *	m_Amatrix

int	m_numBmatrixCon
	m_numBmatrixCon is the number of constraints in B - 1, we have the -1 because: m_pntBmatrix[ k] points to the start of constraint k and m_pntBmatrix[ m_numBmatrixCon ] is equal to m_numBmatrixNonz More...

int	m_numBmatrixNonz

int	m_maxBmatrixNonz
	m_maxBmatrixNonz is the maximum number of nonzero elements in the B matrix constraints More...

int	m_maxBmatrixCon
	m_maxBmatrixCon is the maximum number of B matrix constraints it is the number of tour breaking constraints plus variable branch constraints More...

int	m_maxMasterColumns
	m_maxMasterColumns is the maximumn number of columns we allow in the master More...

int	m_maxMasterRows
	m_maxMasterColumns is the maximumn number of rows we allow in the master, in this application it is equal to m_maxBmatrixCon plus m_numNodes – we therefore do not need to read this from an option file as we might for other problems More...

std::string *	m_variableNames

OSOption *	m_osoption

Detailed Description

Definition at line 40 of file OSDecompSolver.h.

Constructor & Destructor Documentation

OSDecompSolver::OSDecompSolver ( )

Default Constructor.

Definition at line 16 of file OSDecompSolver.cpp.

OSDecompSolver::OSDecompSolver ( OSOption * osoption )

Constructor with OSOption Arg.

OSDecompSolver::~OSDecompSolver ( )

pure virtual

Default destructor.

Definition at line 19 of file OSDecompSolver.cpp.

Member Function Documentation

virtual OSInstance* OSDecompSolver::getInitialRestrictedMaster ( )

pure virtual

Implemented in OSBearcatSolverXij, and OSBearcatSolverXkij.

virtual void OSDecompSolver::getCutsTheta	(	const double *	thetaVar,
		const int	numThetaVar,
		int &	numNewRows,
		int *&	numNonz,
		int **&	colIdx,
		double **&	values,
		double *&	rowLB,
		double *&	rowUB
	)

pure virtual

RETURN VALUES:

Parameters

int	numNewRows – number of new rows generated
int*	numNonz – number of nonzeros in each row
int**	colIdx – vectors column indexes of new rows
double**	values – vectors of matrix coefficient values of new rows
double*	rowLB – vector of row lower bounds
double*	rowUB – vector of row upper bounds

INPUT:

Parameters

double*	thetaVar – the vector of primal master values
int	numThetaVar – size of master primal vector

Implemented in OSBearcatSolverXij, and OSBearcatSolverXkij.

virtual void OSDecompSolver::getCutsMultiCommod	(	const double *	thetaVar,
		const int	numThetaVar,
		int &	numNewRows,
		int *&	numNonz,
		int **&	colIdx,
		double **&	values,
		double *&	rowLB,
		double *&	rowUB
	)

pure virtual

This is the routine that generates the multi-item cuts.

RETURN VALUES: int numNewRows – number of new rows generated int* numNonz – number of nonzeros in each row int** colIdx – vectors column indexes of new rows double** values – vectors of matrix coefficient values of new rows double* rowLB – vector of row lower bounds double* rowUB – vector of row upper bounds

INPUT: double* thetaVar – the vector of primal master values int numThetaVar – size of master primal vector

Implemented in OSBearcatSolverXkij, and OSBearcatSolverXij.

virtual void OSDecompSolver::getColumns	(	const double *	yA,
		const int	numARows,
		const double *	yB,
		const int	numBRows,
		int &	numNewColumns,
		int *&	numNonz,
		double *&	cost,
		int **&	rowIdx,
		double **&	values,
		double &	lowerBound
	)

pure virtual

RETURN VALUES:

Parameters

iny	numNewColumns – number of new columns generated
int*	numNonz – number of nonzeros in each column
double*	cost – the objective function coefficient on each new column
double**	rowIdx – vectors row indexes of new columns
double**	values – vectors of matrix coefficient values of new columns lowerBound – the lowerBound

INPUT:

Parameters

double*	yA – the vector of dual values on the coupling constraints
int	numARows – size of the yA dual vector * yB – the vector of dual values on the tour breaking constaints
int	numBRows – size of the yA dual vector

Implemented in OSBearcatSolverXij, and OSBearcatSolverXkij.

virtual void OSDecompSolver::getBranchingCut	(	const double *	thetaVar,
		const int	numThetaVar,
		const std::map< int, int > &	varConMap,
		int &	varIdx,
		int &	numNonz,
		int *&	indexes,
		double *&	values
	)

pure virtual

Dense Version.

RETURN VALUES:

Parameters

varIdx	– the variable number x_{ij} for branching
numNonz	– number of theta indexes in the cut
indexes	– the indexes of the theta variables
values	– the number of times the theta indexed in indexes appears in the cut note – set numNonz to zero if the generated cut variable already appears in varConMap

INPUT: double* thetaVar – the vector of primal master values int numThetaVar – size of master primal vector varConMap – the map of variables in x_{ij} space to a consraint number

Implemented in OSBearcatSolverXij, and OSBearcatSolverXkij.

virtual void OSDecompSolver::getBranchingCut	(	const int *	thetaIdx,
		const double *	theta,
		const int	numThetaVar,
		const std::map< int, int > &	varConMap,
		int &	varIdx,
		int &	numNonz,
		int *&	indexes,
		double *&	values
	)

pure virtual

Sparse Version.

RETURN VALUES:

Parameters

varIdx	– the variable number x_{ij} for branching Nonz – number of theta indexes in the cut
indexes	– the indexes of the theta variables
values	– the number of times the theta indexed in indexes appears in the cut note – set numNonz to zero if the generated cut variable already appears in varConMap

INPUT:

Parameters

double*	theta – the vector of primal master values
int	numThetaVar – size of master primal vector – the map of variables in x_{ij} space to a consraint number

Implemented in OSBearcatSolverXij, and OSBearcatSolverXkij.

virtual void OSDecompSolver::pauHana	(	std::vector< int > &	m_zOptIndexes,
		std::vector< double > &	m_zRootLPx_vals,
		int	numNodes,
		int	numColsGen,
		std::string	message
	)

pure virtual

Implemented in OSBearcatSolverXij.

virtual void OSDecompSolver::resetMaster	(	std::map< int, int > &	inVars,
		OsiSolverInterface *	si
	)

pure virtual

INPUT:

Parameters

dstd::map<int,int>	&inVars – the mapping of variables, the first index is the variable number before resetting, the second index is the variable number after the reset
OsiSolverInterface	*si – the solver interface that corresponds to the master this is what gets rebuilt

Implemented in OSBearcatSolverXij, and OSBearcatSolverXkij.

virtual void OSDecompSolver::initializeDataStructures ( )

pure virtual

allocate memory and initialize arrays

Implemented in OSBearcatSolverXij, and OSBearcatSolverXkij.

Member Data Documentation

OSInstance* OSDecompSolver::m_osinstanceMaster

Definition at line 44 of file OSDecompSolver.h.

int OSDecompSolver::m_multiCommodCutLimit

Definition at line 46 of file OSDecompSolver.h.

int OSDecompSolver::m_numMultCuts

Definition at line 47 of file OSDecompSolver.h.

OSDecompParam OSDecompSolver::m_osDecompParam

share the parameters with the decomposition solver

Definition at line 53 of file OSDecompSolver.h.

double OSDecompSolver::m_bestIPValue

Definition at line 55 of file OSDecompSolver.h.

double OSDecompSolver::m_bestLPValue

Definition at line 56 of file OSDecompSolver.h.

double OSDecompSolver::m_rootLPValue

Definition at line 57 of file OSDecompSolver.h.

int* OSDecompSolver::m_thetaPnt

Definition at line 62 of file OSDecompSolver.h.

int* OSDecompSolver::m_thetaIndex

Definition at line 63 of file OSDecompSolver.h.

int OSDecompSolver::m_numThetaVar

Definition at line 64 of file OSDecompSolver.h.

int OSDecompSolver::m_numThetaNonz

Definition at line 65 of file OSDecompSolver.h.

int* OSDecompSolver::m_pntBmatrix

Definition at line 73 of file OSDecompSolver.h.

int* OSDecompSolver::m_BmatrixIdx

Definition at line 75 of file OSDecompSolver.h.

double* OSDecompSolver::m_BmatrixVal

Definition at line 77 of file OSDecompSolver.h.

std::set<std::pair<int, double> > OSDecompSolver::intVarSet

intVarSet holds and std::pair where the first element is the index of an integer variable and the second is the variable upper bound

Definition at line 84 of file OSDecompSolver.h.

int OSDecompSolver::m_numHubs

m_numHubs is the number of hubs/routes

Definition at line 87 of file OSDecompSolver.h.

int OSDecompSolver::m_numNodes

m_numNodes is the number of nodes (both pickup and hub) in the model

Definition at line 92 of file OSDecompSolver.h.

int* OSDecompSolver::m_pntAmatrix

Definition at line 100 of file OSDecompSolver.h.

int* OSDecompSolver::m_Amatrix

Definition at line 102 of file OSDecompSolver.h.

int OSDecompSolver::m_numBmatrixCon

m_numBmatrixCon is the number of constraints in B - 1, we have the -1 because: m_pntBmatrix[ k] points to the start of constraint k and m_pntBmatrix[ m_numBmatrixCon ] is equal to m_numBmatrixNonz

Definition at line 112 of file OSDecompSolver.h.

int OSDecompSolver::m_numBmatrixNonz

Definition at line 113 of file OSDecompSolver.h.

int OSDecompSolver::m_maxBmatrixNonz

m_maxBmatrixNonz is the maximum number of nonzero elements in the B matrix constraints

Definition at line 119 of file OSDecompSolver.h.

int OSDecompSolver::m_maxBmatrixCon

m_maxBmatrixCon is the maximum number of B matrix constraints it is the number of tour breaking constraints plus variable branch constraints

Definition at line 128 of file OSDecompSolver.h.

int OSDecompSolver::m_maxMasterColumns

m_maxMasterColumns is the maximumn number of columns we allow in the master

Definition at line 134 of file OSDecompSolver.h.

int OSDecompSolver::m_maxMasterRows

m_maxMasterColumns is the maximumn number of rows we allow in the master, in this application it is equal to m_maxBmatrixCon plus m_numNodes – we therefore do not need to read this from an option file as we might for other problems

Definition at line 143 of file OSDecompSolver.h.

std::string* OSDecompSolver::m_variableNames

Definition at line 148 of file OSDecompSolver.h.

OSOption* OSDecompSolver::m_osoption

Definition at line 151 of file OSDecompSolver.h.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/OS/applications/columnGen/code/OSDecompSolver.h
/tmp/OS-2.10.2/OS/applications/columnGen/code/OSDecompSolver.cpp
