OsiObject for complementarity constraints $x_1 x_2 \ge,\le,= 0$ . More...

#include <CouenneComplObject.hpp>

Inheritance diagram for Couenne::CouenneComplObject:

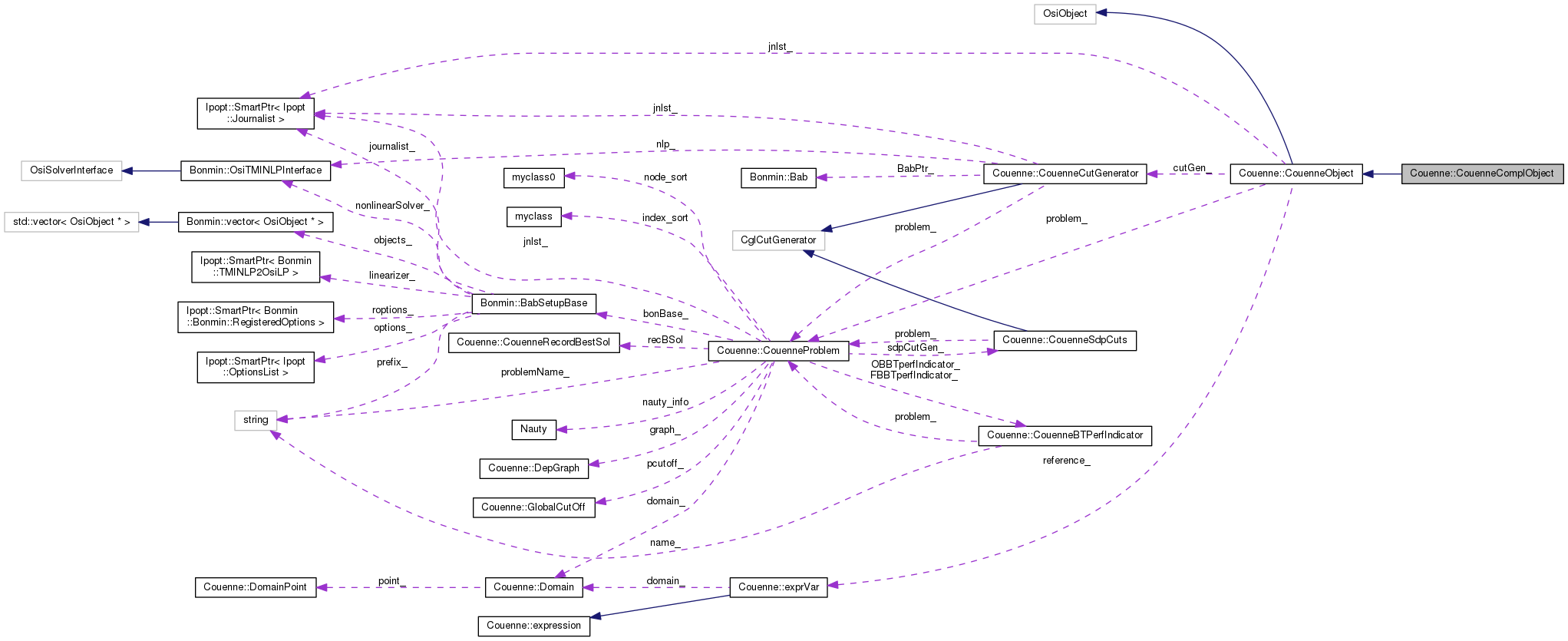

Collaboration diagram for Couenne::CouenneComplObject:

Public Member Functions
	CouenneComplObject (CouenneCutGenerator c, CouenneProblem p, exprVar ref, Bonmin::BabSetupBase base, JnlstPtr jnlst, int sign)
	Constructor with information for branching point selection strategy. More...

	CouenneComplObject (exprVar ref, Bonmin::BabSetupBase base, JnlstPtr jnlst, int sign)
	Constructor with lesser information, used for infeasibility only. More...

	~CouenneComplObject ()
	Destructor. More...

	CouenneComplObject (const CouenneComplObject &src)
	Copy constructor. More...

virtual CouenneObject *	clone () const
	Cloning method. More...

virtual double	infeasibility (const OsiBranchingInformation *info, int &way) const
	compute infeasibility of this variable, \|w - f(x)\| (where w is the auxiliary variable defined as w = f(x) More...

virtual double	checkInfeasibility (const OsiBranchingInformation *info) const
	compute infeasibility of this variable, \|w - f(x)\|, where w is the auxiliary variable defined as w = f(x) More...

virtual OsiBranchingObject *	createBranch (OsiSolverInterface , const OsiBranchingInformation , int way) const
	create CouenneBranchingObject or CouenneThreeWayBranchObj based on this object More...

Public Member Functions inherited from Couenne::CouenneObject
	CouenneObject ()
	empty constructor (for unused objects) More...

	CouenneObject (CouenneCutGenerator cutgen, CouenneProblem p, exprVar ref, Bonmin::BabSetupBase base, JnlstPtr jnlst)
	Constructor with information for branching point selection strategy. More...

	CouenneObject (exprVar ref, Bonmin::BabSetupBase base, JnlstPtr jnlst)
	Constructor with lesser information, used for infeasibility only. More...

	~CouenneObject ()
	Destructor. More...

	CouenneObject (const CouenneObject &src)
	Copy constructor. More...

void	setParameters (Bonmin::BabSetupBase *base)
	set object parameters by reading from command line More...

virtual double	feasibleRegion (OsiSolverInterface , const OsiBranchingInformation ) const
	fix (one of the) arguments of reference auxiliary variable More...

exprVar *	Reference () const
	return reference auxiliary variable More...

enum brSelStrat	Strategy () const
	return branching point selection strategy More...

CouNumber	getBrPoint (funtriplet ft, CouNumber x0, CouNumber l, CouNumber u, const OsiBranchingInformation info=NULL) const
	pick branching point based on current strategy More...

CouNumber	midInterval (CouNumber x, CouNumber l, CouNumber u, const OsiBranchingInformation *info=NULL) const
	returns a point "inside enough" a given interval, or x if it already is. More...

virtual double	downEstimate () const
	Return "down" estimate (for non-convex, distance old <–> new LP point) More...

virtual double	upEstimate () const
	Return "up" estimate (for non-convex, distance old <–> new LP point) More...

void	setEstimate (double est, int direction)
	set up/down estimate (0 for down, 1 for up). More...

void	setEstimates (const OsiBranchingInformation info, CouNumber infeasibility, CouNumber *brpt) const
	set up/down estimates based on branching information More...

virtual bool	isCuttable () const
	are we on the bad or good side of the expression? More...

virtual double	intInfeasibility (double value, double lb, double ub) const
	integer infeasibility: min {value - floor(value), ceil(value) - value} More...

CouNumber	lp_clamp () const
	Defines safe interval percentage for using LP point as a branching point. More...

virtual int	columnNumber () const
	Returns the column index. More...

Private Attributes
int	sign_
	-1 if object is for xi * xj <= 0 +1 if object is for xi * xj <= 0 0 if object is for xi * xj = 0 (classical) More...

Additional Inherited Members
Public Types inherited from Couenne::CouenneObject
enum	pseudocostMult { INFEASIBILITY, INTERVAL_LP, INTERVAL_LP_REV, INTERVAL_BR, INTERVAL_BR_REV, PROJECTDIST }
	type of up/down estimate to return for pseudocosts More...

enum	branch_obj { EXPR_OBJ, VAR_OBJ, VT_OBJ }
	type of object (for branching variable selection) More...

enum	brSelStrat { NO_STRATEGY, NO_BRANCH, MID_INTERVAL, MIN_AREA, BALANCED, LP_CENTRAL, LP_CLAMPED }
	strategy names More...

Protected Attributes inherited from Couenne::CouenneObject
CouenneCutGenerator *	cutGen_
	pointer to cut generator (not necessary, can be NULL) More...

CouenneProblem *	problem_
	pointer to Couenne problem More...

exprVar *	reference_
	The (auxiliary) variable this branching object refers to. More...

enum brSelStrat	strategy_
	Branching point selection strategy. More...

JnlstPtr	jnlst_
	SmartPointer to the Journalist. More...

CouNumber	alpha_
	Combination parameter for the mid-point branching point selection strategy. More...

CouNumber	lp_clamp_
	Defines safe interval percentage for using LP point as a branching point. More...

CouNumber	feas_tolerance_
	feasibility tolerance (equal to that of CouenneProblem) More...

bool	doFBBT_
	shall we do Feasibility based Bound Tightening (FBBT) at branching? More...

bool	doConvCuts_
	shall we add convexification cuts at branching? More...

double	downEstimate_
	down estimate (to be used in pseudocost) More...

double	upEstimate_
	up estimate (to be used in pseudocost) More...

enum pseudocostMult	pseudoMultType_
	multiplier type for pseudocost More...

Detailed Description

OsiObject for complementarity constraints $x_1 x_2 \ge,\le,= 0$ .

Associated with two variables $ x_1$ and $x_2$ , branches with either $x_1=0$ or $x_2=0$

Definition at line 22 of file CouenneComplObject.hpp.

Constructor & Destructor Documentation

CouenneComplObject::CouenneComplObject	(	CouenneCutGenerator *	c,
		CouenneProblem *	p,
		exprVar *	ref,
		Bonmin::BabSetupBase *	base,
		JnlstPtr	jnlst,
		int	sign
	)

Constructor with information for branching point selection strategy.

Definition at line 18 of file CouenneComplObject.cpp.

CouenneComplObject::CouenneComplObject	(	exprVar *	ref,
		Bonmin::BabSetupBase *	base,
		JnlstPtr	jnlst,
		int	sign
	)

Constructor with lesser information, used for infeasibility only.

Definition at line 30 of file CouenneComplObject.cpp.

Couenne::CouenneComplObject::~CouenneComplObject ( )

inline

Destructor.

Definition at line 37 of file CouenneComplObject.hpp.

CouenneComplObject::CouenneComplObject ( const CouenneComplObject & src )

Copy constructor.

Definition at line 37 of file CouenneComplObject.cpp.

Member Function Documentation

virtual CouenneObject* Couenne::CouenneComplObject::clone ( ) const

inlinevirtual

Cloning method.

Reimplemented from Couenne::CouenneObject.

Definition at line 43 of file CouenneComplObject.hpp.

double CouenneComplObject::infeasibility	(	const OsiBranchingInformation *	info,
		int &	way
	)		const

virtual

compute infeasibility of this variable, |w - f(x)| (where w is the auxiliary variable defined as w = f(x)

Reimplemented from Couenne::CouenneObject.

Definition at line 44 of file CouenneComplObject.cpp.

double CouenneComplObject::checkInfeasibility ( const OsiBranchingInformation * info ) const

virtual

compute infeasibility of this variable, |w - f(x)|, where w is the auxiliary variable defined as w = f(x)

Reimplemented from Couenne::CouenneObject.

Definition at line 95 of file CouenneComplObject.cpp.

OsiBranchingObject * CouenneComplObject::createBranch	(	OsiSolverInterface *	solver,
		const OsiBranchingInformation *	info,
		int	way
	)		const

virtual

create CouenneBranchingObject or CouenneThreeWayBranchObj based on this object

Reimplemented from Couenne::CouenneObject.

Definition at line 117 of file CouenneComplObject.cpp.

Member Data Documentation

int Couenne::CouenneComplObject::sign_

private

-1 if object is for xi * xj <= 0 +1 if object is for xi * xj <= 0 0 if object is for xi * xj = 0 (classical)

Definition at line 64 of file CouenneComplObject.hpp.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/Couenne/src/branch/CouenneComplObject.hpp
/tmp/OS-2.10.2/Couenne/src/branch/CouenneComplObject.cpp
