"Spatial" branching object. More...

#include <CouenneBranchingObject.hpp>

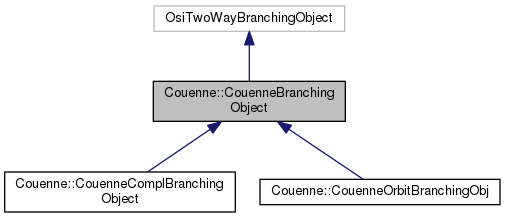

Inheritance diagram for Couenne::CouenneBranchingObject:

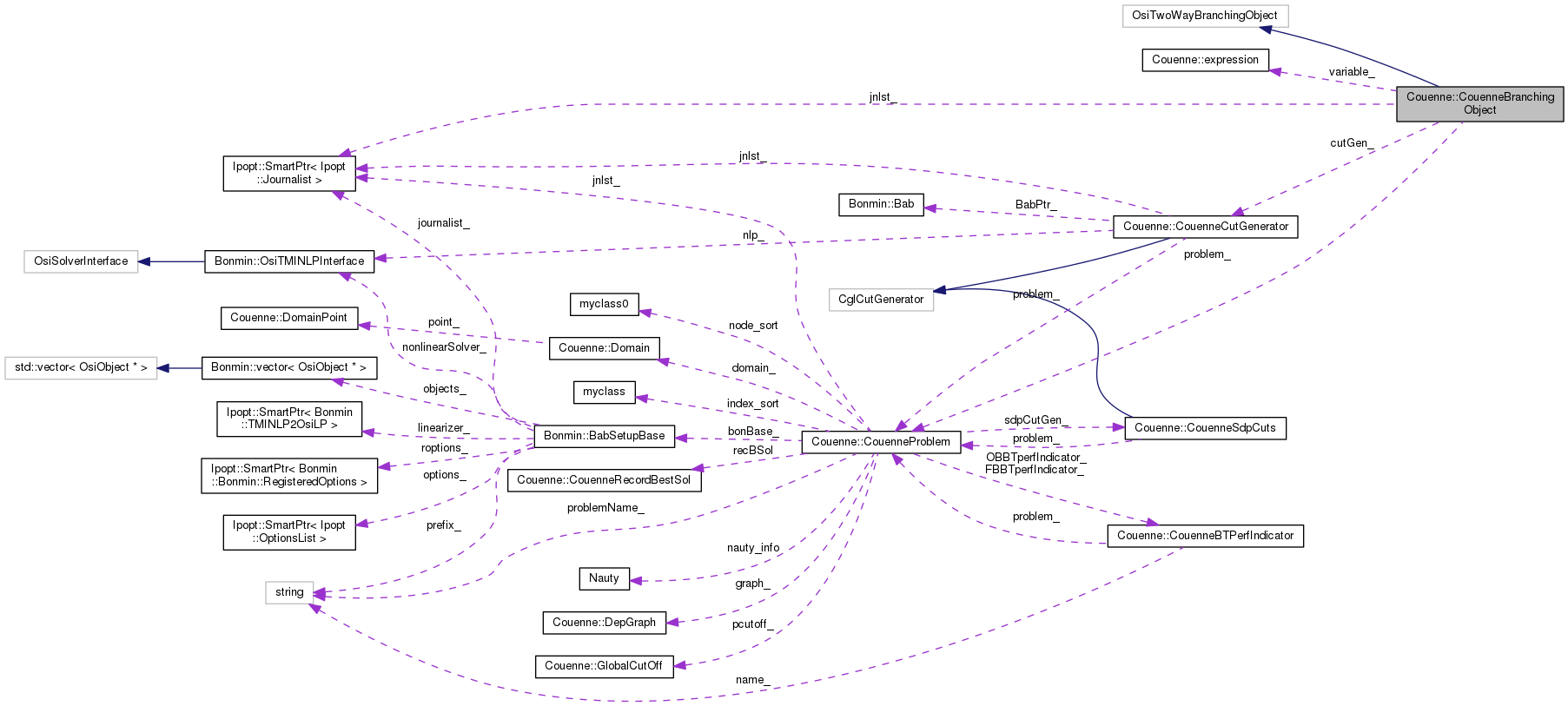

Collaboration diagram for Couenne::CouenneBranchingObject:

Public Member Functions
	CouenneBranchingObject (OsiSolverInterface solver, const OsiObject originalObject, JnlstPtr jnlst, CouenneCutGenerator c, CouenneProblem p, expression *var, int way, CouNumber brpoint, bool doFBBT, bool doConvCuts)
	Constructor. More...

	CouenneBranchingObject (const CouenneBranchingObject &src)
	Copy constructor. More...

virtual OsiBranchingObject *	clone () const
	cloning method More...

virtual double	branch (OsiSolverInterface *solver=NULL)
	Execute the actions required to branch, as specified by the current state of the branching object, and advance the object's state. More...

virtual bool	boundBranch () const
	does this branching object only change variable bounds? More...

void	setSimulate (bool s)
	set simulate_ field below More...

expression *	variable ()
	return branching variable More...

void	branchCore (OsiSolverInterface , int, int, bool, double, t_chg_bounds &)
	Perform branching step. More...

Static Public Attributes
static int	nOrbBr = 0

static int	maxDepthOrbBranch = -1

static int	nSGcomputations = 0

Protected Attributes
CouenneCutGenerator *	cutGen_
	Pointer to CouenneCutGenerator (if any); if not NULL, allows to do extra cut generation during branching. More...

CouenneProblem *	problem_
	Pointer to CouenneProblem (necessary to allow FBBT) More...

expression *	variable_
	The index of the variable this branching object refers to. More...

JnlstPtr	jnlst_
	SmartPointer to the Journalist. More...

bool	doFBBT_
	shall we do Feasibility based Bound Tightening (FBBT) at branching? More...

bool	doConvCuts_
	shall we add convexification cuts at branching? More...

double	downEstimate_
	down branch estimate (done at selectBranch with reduced costs) More...

double	upEstimate_
	up branch estimate More...

bool	simulate_
	are we currently in strong branching? More...

Detailed Description

"Spatial" branching object.

Branching can also be performed on continuous variables.

Definition at line 37 of file CouenneBranchingObject.hpp.

Constructor & Destructor Documentation

CouenneBranchingObject::CouenneBranchingObject	(	OsiSolverInterface *	solver,
		const OsiObject *	originalObject,
		JnlstPtr	jnlst,
		CouenneCutGenerator *	cutGen,
		CouenneProblem *	problem,
		expression *	var,
		int	way,
		CouNumber	brpoint,
		bool	doFBBT,
		bool	doConvCuts
	)

Constructor.

Get a variable as an argument and set value_ through a call to operator () of that exprAux.

Definition at line 35 of file CouenneBranchingObject.cpp.

Couenne::CouenneBranchingObject::CouenneBranchingObject ( const CouenneBranchingObject & src )

inline

Copy constructor.

Definition at line 54 of file CouenneBranchingObject.hpp.

Member Function Documentation

virtual OsiBranchingObject* Couenne::CouenneBranchingObject::clone ( ) const

inlinevirtual

cloning method

Reimplemented in Couenne::CouenneOrbitBranchingObj, and Couenne::CouenneComplBranchingObject.

Definition at line 68 of file CouenneBranchingObject.hpp.

double CouenneBranchingObject::branch ( OsiSolverInterface * solver = NULL )

virtual

Execute the actions required to branch, as specified by the current state of the branching object, and advance the object's state.

Returns change in guessed objective on next branch

Reimplemented in Couenne::CouenneOrbitBranchingObj, and Couenne::CouenneComplBranchingObject.

Definition at line 107 of file CouenneBranchingObject.cpp.

virtual bool Couenne::CouenneBranchingObject::boundBranch ( ) const

inlinevirtual

does this branching object only change variable bounds?

Reimplemented in Couenne::CouenneOrbitBranchingObj.

Definition at line 79 of file CouenneBranchingObject.hpp.

void Couenne::CouenneBranchingObject::setSimulate ( bool s )

inline

set simulate_ field below

Definition at line 83 of file CouenneBranchingObject.hpp.

expression* Couenne::CouenneBranchingObject::variable ( )

inline

return branching variable

Definition at line 87 of file CouenneBranchingObject.hpp.

void CouenneBranchingObject::branchCore	(	OsiSolverInterface *	solver,
		int	indVar,
		int	way,
		bool	integer,
		double	brpt,
		t_chg_bounds *&	chg_bds
	)

Perform branching step.

Execute the core of the branch — need to separate code because of include conflicts with other packages' config_*.h.

only perform orbital branching if

1) Nauty has been made available through configure 2) The orbital_branching option has been set to yes

plain (non-orbital) branching

Definition at line 29 of file BranchCore.cpp.

Member Data Documentation

int CouenneBranchingObject::nOrbBr = 0

static

Definition at line 94 of file CouenneBranchingObject.hpp.

int CouenneBranchingObject::maxDepthOrbBranch = -1

static

Definition at line 95 of file CouenneBranchingObject.hpp.

int CouenneBranchingObject::nSGcomputations = 0

static

Definition at line 96 of file CouenneBranchingObject.hpp.

CouenneCutGenerator* Couenne::CouenneBranchingObject::cutGen_

protected

Pointer to CouenneCutGenerator (if any); if not NULL, allows to do extra cut generation during branching.

Definition at line 102 of file CouenneBranchingObject.hpp.

CouenneProblem* Couenne::CouenneBranchingObject::problem_

protected

Pointer to CouenneProblem (necessary to allow FBBT)

Definition at line 105 of file CouenneBranchingObject.hpp.

expression* Couenne::CouenneBranchingObject::variable_

protected

The index of the variable this branching object refers to.

If the corresponding CouenneObject was created on w=f(x,y), it is either x or y, chosen previously with a call to getFixVar() expression *reference_;

Definition at line 111 of file CouenneBranchingObject.hpp.

JnlstPtr Couenne::CouenneBranchingObject::jnlst_

protected

SmartPointer to the Journalist.

Definition at line 114 of file CouenneBranchingObject.hpp.

bool Couenne::CouenneBranchingObject::doFBBT_

protected

shall we do Feasibility based Bound Tightening (FBBT) at branching?

Definition at line 117 of file CouenneBranchingObject.hpp.

bool Couenne::CouenneBranchingObject::doConvCuts_

protected

shall we add convexification cuts at branching?

Definition at line 120 of file CouenneBranchingObject.hpp.

double Couenne::CouenneBranchingObject::downEstimate_

protected

down branch estimate (done at selectBranch with reduced costs)

Definition at line 123 of file CouenneBranchingObject.hpp.

double Couenne::CouenneBranchingObject::upEstimate_

protected

up branch estimate

Definition at line 126 of file CouenneBranchingObject.hpp.

bool Couenne::CouenneBranchingObject::simulate_

protected

are we currently in strong branching?

Definition at line 129 of file CouenneBranchingObject.hpp.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/Couenne/src/branch/CouenneBranchingObject.hpp
/tmp/OS-2.10.2/Couenne/src/branch/BranchCore.cpp
/tmp/OS-2.10.2/Couenne/src/branch/CouenneBranchingObject.cpp
