Implements a solve method for the Coin solvers. More...

#include <OSCoinSolver.h>

Inheritance diagram for CoinSolver:

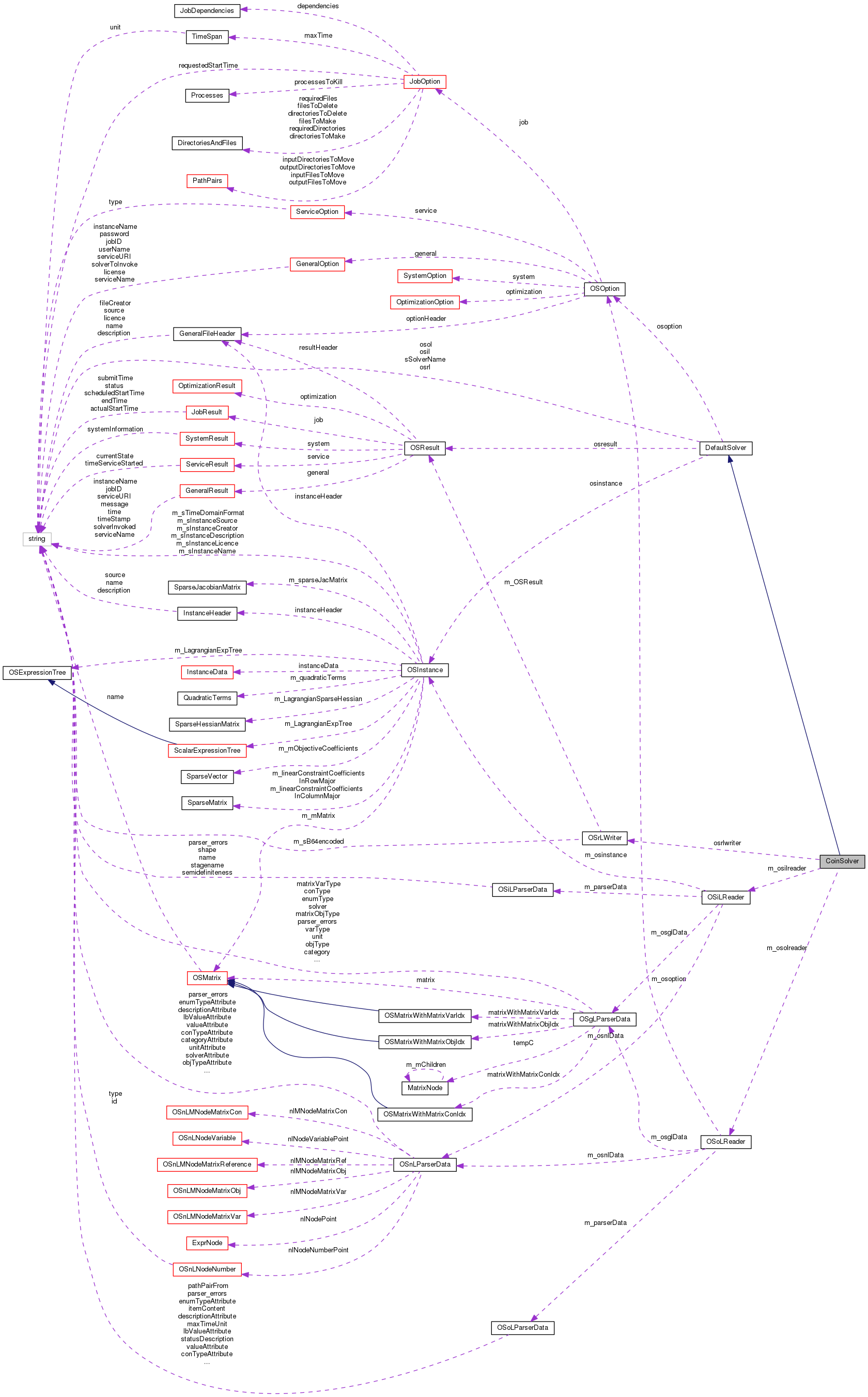

Collaboration diagram for CoinSolver:

Public Member Functions
	CoinSolver ()
	The class constructor. More...

	~CoinSolver ()
	The class destructor. More...

virtual void	solve () throw (ErrorClass)
	The implementation of the corresponding virtual function. More...

virtual void	buildSolverInstance () throw (ErrorClass)
	The implementation of the corresponding virtual function. More...

virtual void	setSolverOptions () throw (ErrorClass)
	The implementation of the corresponding virtual function. More...

bool	setCoinPackedMatrix ()
	Create a CoinPackedMatrix. More...

std::string	getCoinSolverType (std::string osol_)
	Get the solver type, e.g. clp or glpk. More...

void	dataEchoCheck ()
	Print out problem parameters. More...

void	writeResult (OsiSolverInterface *solver)

void	writeResult (CbcModel *model)

Public Member Functions inherited from DefaultSolver
	DefaultSolver ()
	default constructor. More...

virtual	~DefaultSolver ()=0
	default destructor. More...

Public Attributes
OsiSolverInterface *	osiSolver
	osiSolver is the osi solver object – in this case clp, glpk, cbc, cplex, symphony or dylp More...

OSiLReader *	m_osilreader
	m_osilreader is an OSiLReader object used to create an osinstance from an osil string if needed More...

OSoLReader *	m_osolreader
	m_osolreader is an OSoLReader object used to create an osoption from an osol string if needed More...

Public Attributes inherited from DefaultSolver
std::string	osil
	osil holds the problem instance as a std::string More...

std::string	osol
	osol holds the options for the solver More...

std::string	osrl
	osrl holds the solution or result of the model More...

OSInstance *	osinstance
	osinstance holds the problem instance in-memory as an OSInstance object More...

OSOption *	osoption
	osoption holds the solver options in-memory as an OSOption object More...

OSResult *	osresult
	osresult holds the solution or result of the model in-memory as an OSResult object More...

std::string	sSolverName
	sSolverName is the name of the Coin solver used, e.g. More...

bool	bCallbuildSolverInstance
	bCallbuildSolverInstance is set to true if buildSolverService has been called More...

bool	bSetSolverOptions
	bSetSolverOptions is set to true if setSolverOptions has been called, false otherwise More...

Private Attributes
CoinPackedMatrix *	m_CoinPackedMatrix
	m_CoinPackedMatrix is a Coin Packed Matrix ojbect More...

OSrLWriter *	osrlwriter
	osrlwriter object used to write osrl from an OSResult object More...

const char **	cbc_argv
	when Cbc is the solver, these are the arguments sent to Cbc Solve More...

int	num_cbc_argv
	the number of arguments in the argument list to the Cbc Solver More...

double	cpuTime

Detailed Description

Implements a solve method for the Coin solvers.

This class implements a solve method for the Coin solvers It reads an OSInstance object and puts into the Coin OSI format

Definition at line 37 of file OSCoinSolver.h.

Constructor & Destructor Documentation

CoinSolver::CoinSolver ( )

The class constructor.

Definition at line 96 of file OSCoinSolver.cpp.

CoinSolver::~CoinSolver ( )

The class destructor.

Definition at line 108 of file OSCoinSolver.cpp.

Member Function Documentation

void CoinSolver::solve	(		)
throw	(	ErrorClass
	)

virtual

The implementation of the corresponding virtual function.

Returns: void.

Implements DefaultSolver.

Definition at line 1100 of file OSCoinSolver.cpp.

void CoinSolver::buildSolverInstance	(		)
throw	(	ErrorClass
	)

virtual

The implementation of the corresponding virtual function.

Returns: void.

Implements DefaultSolver.

Definition at line 145 of file OSCoinSolver.cpp.

void CoinSolver::setSolverOptions	(		)
throw	(	ErrorClass
	)

virtual

The implementation of the corresponding virtual function.

Returns: void.

In this first pass through the options just see if the hintStrength was set

If the hintStrength was set, use it when processing the other options

Implements DefaultSolver.

Definition at line 464 of file OSCoinSolver.cpp.

bool CoinSolver::setCoinPackedMatrix ( )

Create a CoinPackedMatrix.

Returns: true if a CoinPackedMatrix successfully created.

Definition at line 1053 of file OSCoinSolver.cpp.

std::string CoinSolver::getCoinSolverType ( std::string osol_ )

Get the solver type, e.g. clp or glpk.

Parameters

a	string that is an instance of OSoL

Returns: a string which contains the value of clp or glpk.

Definition at line 1267 of file OSCoinSolver.cpp.

void CoinSolver::dataEchoCheck ( )

Print out problem parameters.

Returns: void

Definition at line 1309 of file OSCoinSolver.cpp.

void CoinSolver::writeResult ( OsiSolverInterface * solver )

Definition at line 1358 of file OSCoinSolver.cpp.

void CoinSolver::writeResult ( CbcModel * model )

Definition at line 1841 of file OSCoinSolver.cpp.

Member Data Documentation

OsiSolverInterface* CoinSolver::osiSolver

osiSolver is the osi solver object – in this case clp, glpk, cbc, cplex, symphony or dylp

Definition at line 93 of file OSCoinSolver.h.

OSiLReader* CoinSolver::m_osilreader

m_osilreader is an OSiLReader object used to create an osinstance from an osil string if needed

Definition at line 101 of file OSCoinSolver.h.

OSoLReader* CoinSolver::m_osolreader

m_osolreader is an OSoLReader object used to create an osoption from an osol string if needed

Definition at line 107 of file OSCoinSolver.h.

CoinPackedMatrix* CoinSolver::m_CoinPackedMatrix

private

m_CoinPackedMatrix is a Coin Packed Matrix ojbect

Definition at line 126 of file OSCoinSolver.h.

OSrLWriter* CoinSolver::osrlwriter

private

osrlwriter object used to write osrl from an OSResult object

Definition at line 129 of file OSCoinSolver.h.

const char** CoinSolver::cbc_argv

private

when Cbc is the solver, these are the arguments sent to Cbc Solve

Definition at line 134 of file OSCoinSolver.h.

int CoinSolver::num_cbc_argv

private

the number of arguments in the argument list to the Cbc Solver

Definition at line 138 of file OSCoinSolver.h.

double CoinSolver::cpuTime

private

Definition at line 140 of file OSCoinSolver.h.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/OS/src/OSSolverInterfaces/OSCoinSolver.h
/tmp/OS-2.10.2/OS/src/OSSolverInterfaces/OSCoinSolver.cpp
/tmp/OS-2.10.2/OS/v2.0/OSCoinSolver.cpp
