Used to read an OSiL string. More...

#include <OSiLReader.h>

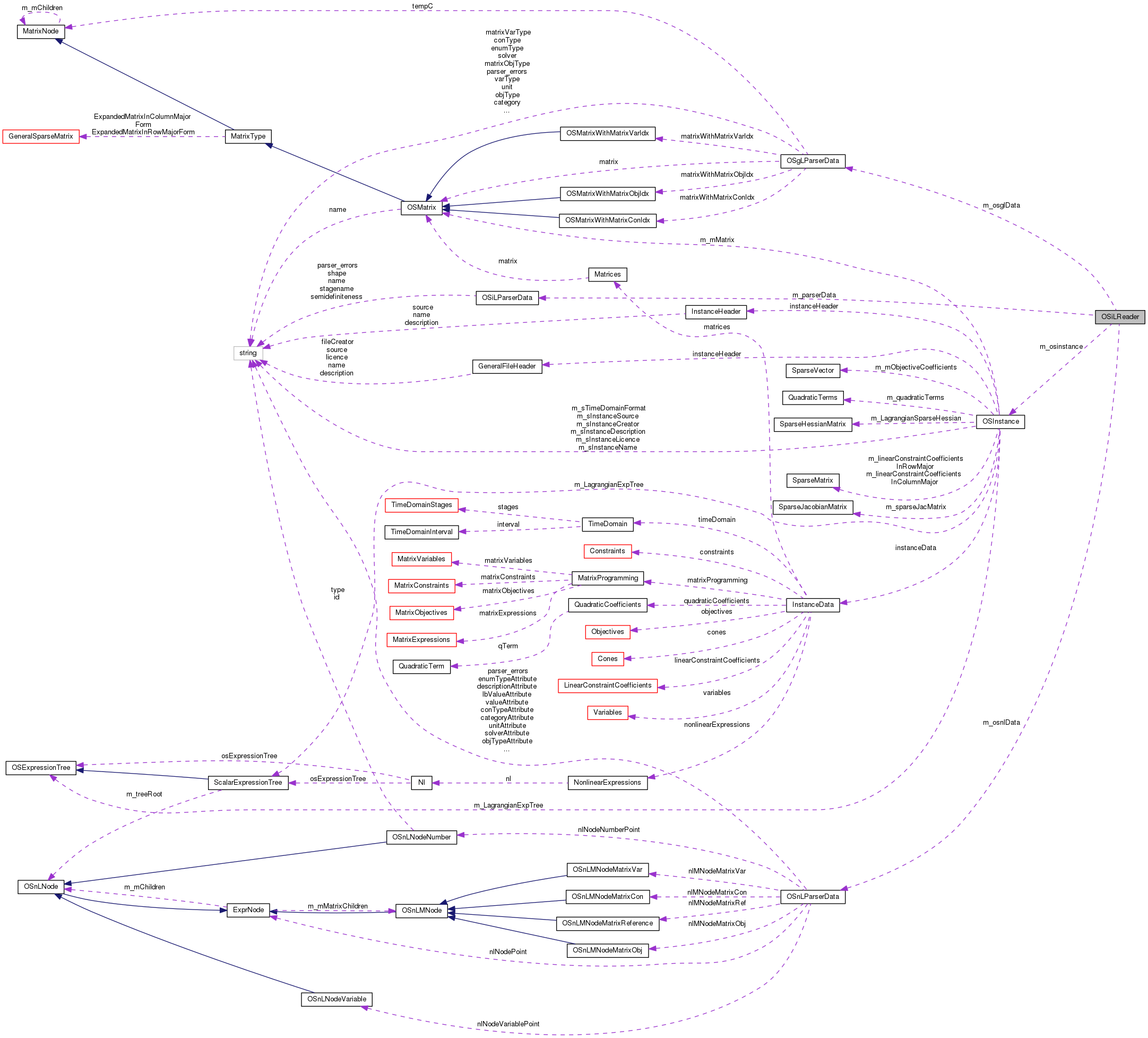

Collaboration diagram for OSiLReader:

Public Member Functions
	OSiLReader ()
	Default constructor. More...

	~OSiLReader ()
	Class destructor. More...

OSInstance *	readOSiL (const std::string &osil)
	parse the OSiL model instance. More...

Private Attributes
OSInstance *	m_osinstance
	m_osinstance is the OSInstance object returned by the OSiLReader More...

OSiLParserData *	m_parserData
	m_parserData is the object used in the parser to temporarily store data More...

OSgLParserData *	m_osglData
	m_osglData is the object used in the parser to temporarily store data from the OSgL schema elements. More...

OSnLParserData *	m_osnlData
	m_osnlData is the object used in the parser to temporarily store data from the OSnL schema elements. More...

Detailed Description

Used to read an OSiL string.

This class wraps around the OSiL parser and sends the parser an OSiL string and is returned an OSInstance object.

Definition at line 37 of file OSiLReader.h.

Constructor & Destructor Documentation

OSiLReader::OSiLReader ( )

Default constructor.

Definition at line 27 of file OSiLReader.cpp.

OSiLReader::~OSiLReader ( )

Class destructor.

Definition at line 39 of file OSiLReader.cpp.

OSInstance * OSiLReader::readOSiL ( const std::string & osil )

parse the OSiL model instance.

Parameters

osil	a string that holds the problem instance.

Definition at line 53 of file OSiLReader.cpp.

OSInstance* OSiLReader::m_osinstance

private

m_osinstance is the OSInstance object returned by the OSiLReader

Definition at line 71 of file OSiLReader.h.

OSiLParserData* OSiLReader::m_parserData

private

m_parserData is the object used in the parser to temporarily store data

Definition at line 75 of file OSiLReader.h.

OSgLParserData* OSiLReader::m_osglData

private

m_osglData is the object used in the parser to temporarily store data from the OSgL schema elements.

Definition at line 80 of file OSiLReader.h.

OSnLParserData* OSiLReader::m_osnlData

private

m_osnlData is the object used in the parser to temporarily store data from the OSnL schema elements.

Definition at line 85 of file OSiLReader.h.

The documentation for this class was generated from the following files:
