#include <BonBonminSetup.hpp>

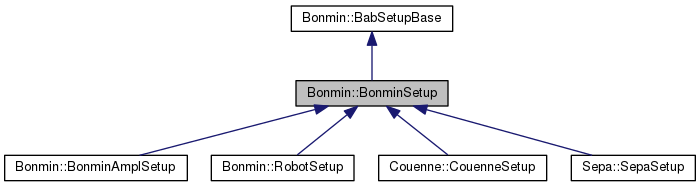

Inheritance diagram for Bonmin::BonminSetup:

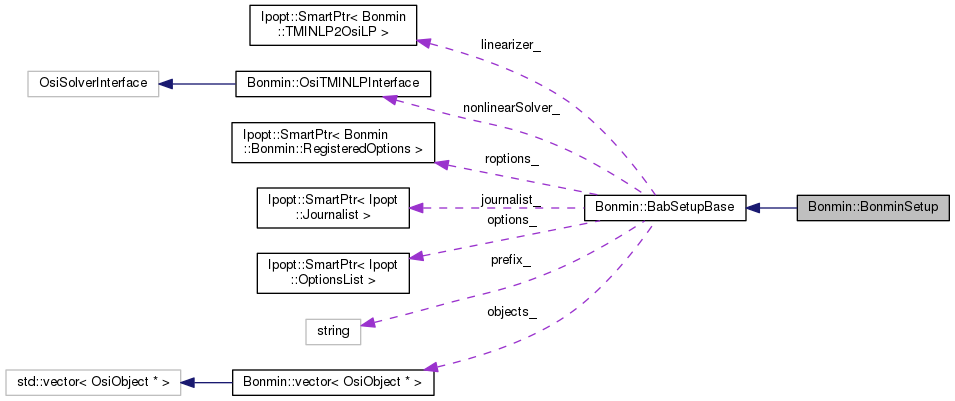

Collaboration diagram for Bonmin::BonminSetup:

Public Member Functions
	BonminSetup (const CoinMessageHandler *handler=NULL)
	Default constructor. More...

	BonminSetup (const BonminSetup &other)
	Copy constructor. More...

	BonminSetup (const BonminSetup &setup, OsiTMINLPInterface &nlp)
	Copy but uses an other nlp. More...

	BonminSetup (const BonminSetup &setup, OsiTMINLPInterface &nlp, const std::string &prefix)
	Copy but uses another nlp and algorithm. More...

virtual BabSetupBase *	clone () const
	virtual copy constructor. More...

BonminSetup *	clone (OsiTMINLPInterface &nlp) const
	Make a copy with solver replace by one passed . More...

BonminSetup *	clone (OsiTMINLPInterface &nlp, const std::string &prefix) const
	Make a copy but take options with different prefix. More...

virtual	~BonminSetup ()

void	initialize (Ipopt::SmartPtr< TMINLP > tminlp, bool createContinuousSolver=true)
	Initialize, read options and create appropriate bonmin setup. More...

void	initialize (const OsiTMINLPInterface &nlpSi, bool createContinuousSolver=true)
	Initialize, read options and create appropriate bonmin setup. More...

Bonmin::Algorithm	getAlgorithm ()
	Get the algorithm used. More...

void	addCutGenerator (CuttingMethod &cg)

Methods to instantiate: Registering and retrieving options and initializing everything.
virtual void	registerOptions ()
	Register all the options for this algorithm instance. More...

virtual void	setBabDefaultOptions (Ipopt::SmartPtr< Bonmin::RegisteredOptions > roptions)
	Setup the defaults options for this algorithm. More...

Public Member Functions inherited from Bonmin::BabSetupBase
void	gatherParametersValues ()
	Get the values of base parameters from the options stored. More...

void	gatherParametersValues (Ipopt::SmartPtr< Ipopt::OptionsList > options)
	Get the values of the base parameters from the passed options. More...

Ipopt::SmartPtr < Ipopt::Journalist >	journalist ()
	Acces storage of Journalist for output. More...

Ipopt::SmartPtr < Ipopt::OptionsList >	options ()
	Acces list of Options. More...

Ipopt::SmartPtr < Bonmin::RegisteredOptions >	roptions ()
	Access registered Options. More...

const vector< OsiObject * > &	objects () const
	Access to extra objects. More...

vector< OsiObject * > &	objects ()
	Access to extra objects. More...

void	addCutGenerator (CuttingMethod &cg)

void	set_linearizer (TMINLP2OsiLP *linearizer)

void	use (const OsiTMINLPInterface &nlp)
	use existing TMINLP interface (containing the options). More...

void	use (Ipopt::SmartPtr< TMINLP > tminlp)
	Read options (if not done before) and create interface using tminlp. More...

void	use (Ipopt::SmartPtr< TMINLP2TNLP > prob)
	use specific instanciation of a TMINLP2TNLP. More...

void	setNonlinearSolver (OsiTMINLPInterface *s)
	Set the non-linear solver used. More...

OsiTMINLPInterface *	nonlinearSolver ()
	Pointer to the non-linear solver used. More...

OsiSolverInterface *	continuousSolver ()
	Pointer to the continuous solver to use for relaxations. More...

CuttingMethods &	cutGenerators ()
	list of cutting planes methods to apply with their frequencies. More...

HeuristicMethods &	heuristics ()
	list of Heuristic methods to use. More...

OsiChooseVariable *	branchingMethod ()
	branching method to use. More...

NodeComparison &	nodeComparisonMethod ()
	Method used to compare nodes. More...

TreeTraversal	treeTraversalMethod ()
	Method used to traverse tree. More...

int	getIntParameter (const IntParameter &p) const
	Return value of integer parameter. More...

double	getDoubleParameter (const DoubleParameter &p) const
	Return value of double parameter. More...

void	setIntParameter (const IntParameter &p, const int v)
	Return value of integer parameter. More...

void	setDoubleParameter (const DoubleParameter &p, const double v)
	Return value of double parameter. More...

	BabSetupBase (const CoinMessageHandler *handler=NULL)
	Default constructor. More...

	BabSetupBase (Ipopt::SmartPtr< TMINLP > tminlp, const CoinMessageHandler *handler=NULL)
	Construct from existing tminlp. More...

	BabSetupBase (Ipopt::SmartPtr< TNLPSolver > app)
	Construct from existing application. More...

	BabSetupBase (const OsiTMINLPInterface &nlp)
	Construct from existing TMINLP interface. More...

	BabSetupBase (const BabSetupBase &setup, OsiTMINLPInterface &nlp)
	Copy but uses an other nlp. More...

	BabSetupBase (const BabSetupBase &setup, OsiTMINLPInterface &nlp, const std::string &prefix)
	Copy but uses an other nlp. More...

	BabSetupBase (const BabSetupBase &other)
	Copy constructor. More...

virtual	~BabSetupBase ()
	Virtual destructor. More...

virtual void	readOptionsFile ()
	Get the options from default text file (bonmin.opt) if don't already have them. More...

void	readOptionsFile (std::string fileName)
	Get the options from given fileName. More...

void	readOptionsString (std::string opt_string)
	Get the options from long string containing all. More...

void	readOptionsStream (std::istream &is)
	Get the options from stream. More...

void	mayPrintDoc ()
	May print documentation of options if options print_options_documentation is set to yes. More...

const char *	prefix () const
	Get prefix to use for options. More...

void	setOptionsAndJournalist (Ipopt::SmartPtr< Bonmin::RegisteredOptions > roptions, Ipopt::SmartPtr< Ipopt::OptionsList > options, Ipopt::SmartPtr< Ipopt::Journalist > journalist)
	Set the value for options, output... More...

void	initializeOptionsAndJournalist ()
	Initialize the options and the journalist. More...

Static Public Member Functions
static void	registerAllOptions (Ipopt::SmartPtr< Bonmin::RegisteredOptions > roptions)
	Register all bonmin type executable options. More...

Static Public Member Functions inherited from Bonmin::BabSetupBase
static void	registerAllOptions (Ipopt::SmartPtr< Bonmin::RegisteredOptions > roptions)
	Register all the options for this algorithm instance. More...

Protected Member Functions
void	addMilpCutGenerators ()
	Add milp cut generators according to options. More...

void	initializeBBB ()
	Initialize a plain branch-and-bound. More...

void	initializeBHyb (bool createContinuousSolver=false)
	Initialize a branch-and-cut with some OA. More...

Protected Member Functions inherited from Bonmin::BabSetupBase
void	setPriorities ()
	Set the priorities into OsiTMINLPInterface when needed. More...

void	addSos ()
	Add SOS constraints to OsiTMINLPInterface when needed. More...

Static Protected Member Functions
static void	registerMilpCutGenerators (Ipopt::SmartPtr< Bonmin::RegisteredOptions > roptions)
	Register standard MILP cut generators. More...

Private Attributes
Algorithm	algo_

Additional Inherited Members
Public Types inherited from Bonmin::BabSetupBase
enum	NodeComparison { bestBound = 0, DFS, BFS, dynamic, bestGuess }
	Strategies for comparing the nodes on the heap. More...

enum	TreeTraversal { HeapOnly =0, DiveFromBest, ProbedDive, DfsDiveFromBest, DfsDiveDynamic }
	Strategies for traversing the tree. More...

typedef std::list< CuttingMethod >	CuttingMethods

typedef std::list < HeuristicMethod >	HeuristicMethods

enum	VarSelectStra_Enum { MOST_FRACTIONAL =0, STRONG_BRANCHING, RELIABILITY_BRANCHING, QP_STRONG_BRANCHING, LP_STRONG_BRANCHING, NLP_STRONG_BRANCHING, OSI_SIMPLE, OSI_STRONG, RANDOM }
	Parameters represented by an integer. More...

enum	IntParameter { BabLogLevel = 0, BabLogInterval, MaxFailures, FailureBehavior, MaxInfeasible, NumberStrong, MinReliability, MaxNodes, MaxSolutions, MaxIterations, SpecialOption, DisableSos, NumCutPasses, NumCutPassesAtRoot, RootLogLevel, NumberIntParam }
	Parameters represented by an integer. More...

enum	DoubleParameter { CutoffDecr = 0, Cutoff, AllowableGap, AllowableFractionGap, IntTol, MaxTime, NumberDoubleParam }
	Parameters represented by a double. More...

Protected Attributes inherited from Bonmin::BabSetupBase
int	intParam_ [NumberIntParam]
	storage of integer parameters. More...

double	doubleParam_ [NumberDoubleParam]
	storage of double parameters. More...

OsiTMINLPInterface *	nonlinearSolver_
	Storage of the non-linear solver used. More...

OsiSolverInterface *	continuousSolver_
	Storage of continuous solver. More...

Ipopt::SmartPtr< TMINLP2OsiLP >	linearizer_
	Method to linearize MINLPs. More...

CuttingMethods	cutGenerators_
	Cut generation methods. More...

HeuristicMethods	heuristics_
	Heuristic methods. More...

OsiChooseVariable *	branchingMethod_
	Branching method. More...

NodeComparison	nodeComparisonMethod_
	Node comparison method. More...

TreeTraversal	treeTraversalMethod_
	Tree traversal method. More...

vector< OsiObject * >	objects_
	Extra object to add to Cbc (not OsiObjects). More...

Ipopt::SmartPtr < Ipopt::Journalist >	journalist_
	Storage of Journalist for output. More...

Ipopt::SmartPtr < Ipopt::OptionsList >	options_
	List of Options. More...

Ipopt::SmartPtr < Bonmin::RegisteredOptions >	roptions_
	Registered Options. More...

bool	readOptions_
	flag to say if option file was read. More...

CoinMessageHandler *	messageHandler_
	separate message handler. More...

std::string	prefix_
	Prefix to use when reading options. More...

Static Protected Attributes inherited from Bonmin::BabSetupBase
static int	defaultIntParam_ [NumberIntParam]
	default values for int parameters. More...

static double	defaultDoubleParam_ [NumberDoubleParam]
	default values for double parameters. More...

Detailed Description

Definition at line 25 of file BonBonminSetup.hpp.

Constructor & Destructor Documentation

Bonmin::BonminSetup::BonminSetup ( const CoinMessageHandler * handler = NULL )

Default constructor.

Definition at line 64 of file BonBonminSetup.cpp.

Bonmin::BonminSetup::BonminSetup ( const BonminSetup & other )

Copy constructor.

Definition at line 67 of file BonBonminSetup.cpp.

Bonmin::BonminSetup::BonminSetup	(	const BonminSetup &	setup,
		OsiTMINLPInterface &	nlp
	)

Copy but uses an other nlp.

Definition at line 71 of file BonBonminSetup.cpp.

Bonmin::BonminSetup::BonminSetup	(	const BonminSetup &	setup,
		OsiTMINLPInterface &	nlp,
		const std::string &	prefix
	)

Copy but uses another nlp and algorithm.

Definition at line 92 of file BonBonminSetup.cpp.

virtual Bonmin::BonminSetup::~BonminSetup ( )

inlinevirtual

Definition at line 58 of file BonBonminSetup.hpp.

Member Function Documentation

virtual BabSetupBase* Bonmin::BonminSetup::clone ( ) const

inlinevirtual

virtual copy constructor.

Implements Bonmin::BabSetupBase.

Reimplemented in Couenne::CouenneSetup, Bonmin::RobotSetup, and Sepa::SepaSetup.

Definition at line 42 of file BonBonminSetup.hpp.

BonminSetup* Bonmin::BonminSetup::clone ( OsiTMINLPInterface & nlp ) const

inlinevirtual

Make a copy with solver replace by one passed .

Reimplemented from Bonmin::BabSetupBase.

Definition at line 51 of file BonBonminSetup.hpp.

BonminSetup* Bonmin::BonminSetup::clone	(	OsiTMINLPInterface &	nlp,
		const std::string &	prefix
	)		const

inline

Make a copy but take options with different prefix.

Definition at line 55 of file BonBonminSetup.hpp.

void Bonmin::BonminSetup::registerOptions ( )

virtual

Register all the options for this algorithm instance.

Register all the Bonmin options.

Reimplemented from Bonmin::BabSetupBase.

Reimplemented in Couenne::CouenneSetup, Bonmin::RobotSetup, and Sepa::SepaSetup.

Definition at line 156 of file BonBonminSetup.cpp.

virtual void Bonmin::BonminSetup::setBabDefaultOptions ( Ipopt::SmartPtr< Bonmin::RegisteredOptions > roptions )

inlinevirtual

Setup the defaults options for this algorithm.

Reimplemented from Bonmin::BabSetupBase.

Definition at line 65 of file BonBonminSetup.hpp.

void Bonmin::BonminSetup::registerAllOptions ( Ipopt::SmartPtr< Bonmin::RegisteredOptions > roptions )

static

Register all bonmin type executable options.

Heursitics.

Definition at line 104 of file BonBonminSetup.cpp.

void Bonmin::BonminSetup::initialize	(	Ipopt::SmartPtr< TMINLP >	tminlp,
		bool	createContinuousSolver = `true`
	)

Initialize, read options and create appropriate bonmin setup.

Initialize, read options and create appropriate bonmin setup using initialized tminlp.

Definition at line 163 of file BonBonminSetup.cpp.

void Bonmin::BonminSetup::initialize	(	const OsiTMINLPInterface &	nlpSi,
		bool	createContinuousSolver = `true`
	)

Initialize, read options and create appropriate bonmin setup.

Initialize, read options and create appropriate bonmin setup using initialized tminlp.

Definition at line 177 of file BonBonminSetup.cpp.

Algorithm Bonmin::BonminSetup::getAlgorithm ( )

Get the algorithm used.

Definition at line 907 of file BonBonminSetup.cpp.

void Bonmin::BonminSetup::addCutGenerator ( CuttingMethod & cg )

inline

Definition at line 77 of file BonBonminSetup.hpp.

void Bonmin::BonminSetup::registerMilpCutGenerators ( Ipopt::SmartPtr< Bonmin::RegisteredOptions > roptions )

staticprotected

Register standard MILP cut generators.

Definition at line 190 of file BonBonminSetup.cpp.

void Bonmin::BonminSetup::addMilpCutGenerators ( )

protected

Add milp cut generators according to options.

Definition at line 269 of file BonBonminSetup.cpp.

void Bonmin::BonminSetup::initializeBBB ( )

protected

Initialize a plain branch-and-bound.

Definition at line 398 of file BonBonminSetup.cpp.

void Bonmin::BonminSetup::initializeBHyb ( bool createContinuousSolver = false )

protected

Initialize a branch-and-cut with some OA.

Definition at line 619 of file BonBonminSetup.cpp.

Member Data Documentation

Algorithm Bonmin::BonminSetup::algo_

private

Definition at line 90 of file BonBonminSetup.hpp.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/Bonmin/src/Algorithms/BonBonminSetup.hpp
/tmp/OS-2.10.2/Bonmin/src/Algorithms/BonBonminSetup.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
