This is a generic class for calling an NLP solver to solve a TNLP. More...

#include <BonTNLPSolver.hpp>

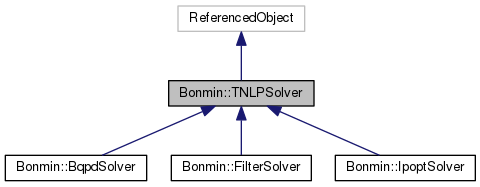

Inheritance diagram for Bonmin::TNLPSolver:

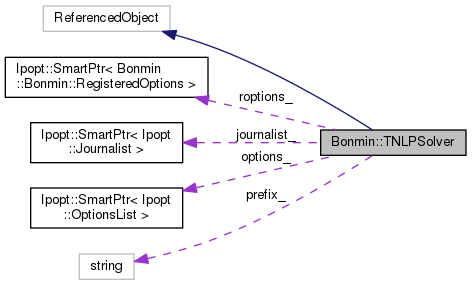

Collaboration diagram for Bonmin::TNLPSolver:

Classes
class	UnsolvedError
	We will throw this error when a problem is not solved. More...

Public Types
enum	ReturnStatus { iterationLimit = -3, timeLimit = 5, doesNotConverge = -8, computationError = -2, notEnoughFreedom = -1, illDefinedProblem = -4, illegalOption =-5, externalException =-6, exception =-7, solvedOptimal = 1, solvedOptimalTol =2, provenInfeasible =3, unbounded = 4, numReturnCodes }
	Standard return statuses for a solver. More...

Public Member Functions
virtual UnsolvedError *	newUnsolvedError (int num, Ipopt::SmartPtr< TMINLP2TNLP > problem, std::string name)=0

	TNLPSolver ()
	default Constructor More...

	TNLPSolver (Ipopt::SmartPtr< Bonmin::RegisteredOptions > roptions, Ipopt::SmartPtr< Ipopt::OptionsList > options, Ipopt::SmartPtr< Ipopt::Journalist > journalist, const std::string &prefix)
	Constructor with options initialization. More...

virtual Ipopt::SmartPtr < TNLPSolver >	clone ()=0
	virtual copy constructor More...

virtual	~TNLPSolver ()
	Virtual destructor. More...

virtual bool	Initialize (std::string params_file)=0
	Initialize the TNLPSolver (read options from params_file) More...

virtual bool	Initialize (std::istream &is)=0
	Initialize the TNLPSolver (read options from istream is) More...

Ipopt::SmartPtr < Ipopt::Journalist >	journalist ()
	Get a pointer to a journalist. More...

Ipopt::SmartPtr < Bonmin::RegisteredOptions >	roptions ()
	Get a pointer to RegisteredOptions (generally used to add new ones) More...

Ipopt::SmartPtr< const Ipopt::OptionsList >	options () const
	Get the options (for getting their values). More...

Ipopt::SmartPtr < Ipopt::OptionsList >	options ()
	Get the options (for getting and setting their values). More...

const char *	prefix ()
	Get the prefix. More...

virtual double	CPUTime ()=0
	Get the CpuTime of the last optimization. More...

virtual int	IterationCount ()=0
	Get the iteration count of the last optimization. More...

virtual void	setOutputToDefault ()=0
	turn off all output from the solver More...

virtual void	forceSolverOutput (int log_level)=0
	turn on all output from the solver More...

virtual std::string &	solverName ()=0
	Get the solver name. More...

bool	isRecoverable (ReturnStatus &r)
	Say if an optimization status for a problem which failed is recoverable (problem may be solvable). More...

void	setup_global_time_limit (double time_limit)
	Setup for a global time limit for solver. More...

bool	isError (ReturnStatus &r)
	Say if return status is an error. More...

virtual int	errorCode () const =0
	Error code (solver specific). More...

Solve methods
virtual ReturnStatus	OptimizeTNLP (const Ipopt::SmartPtr< Ipopt::TNLP > &tnlp)=0
	Solves a problem expresses as a TNLP. More...

virtual ReturnStatus	ReOptimizeTNLP (const Ipopt::SmartPtr< Ipopt::TNLP > &tnlp)=0
	Resolves a problem expresses as a TNLP. More...

virtual bool	setWarmStart (const CoinWarmStart *warm, Ipopt::SmartPtr< TMINLP2TNLP > tnlp)=0
	Set the warm start in the solver. More...

virtual CoinWarmStart *	getUsedWarmStart (Ipopt::SmartPtr< TMINLP2TNLP > tnlp) const =0
	Get warm start used in last optimization. More...

virtual CoinWarmStart *	getWarmStart (Ipopt::SmartPtr< TMINLP2TNLP > tnlp) const =0
	Get the warm start form the solver. More...

virtual CoinWarmStart *	getEmptyWarmStart () const =0
	Solves a problem expresses as a TNLP. More...

virtual bool	warmStartIsValid (const CoinWarmStart *ws) const =0
	Check that warm start object is valid. More...

virtual void	enableWarmStart ()=0
	Enable the warm start options in the solver. More...

virtual void	disableWarmStart ()=0
	Disable the warm start options in the solver. More...

Static Public Member Functions
static void	RegisterOptions (Ipopt::SmartPtr< Bonmin::RegisteredOptions > roptions)
	Register this solver options into passed roptions. More...

Protected Member Functions
bool	zeroDimension (const Ipopt::SmartPtr< Ipopt::TNLP > &tnlp, ReturnStatus &optimization_status)
	Determine if problem is of dimension zero and if it is check if solution is feasible. More...

void	initializeOptionsAndJournalist ()
	Initializes options and journalist. More...

	TNLPSolver (const TNLPSolver &other)
	Copy Constructor. More...

Protected Attributes
Ipopt::SmartPtr < Ipopt::Journalist >	journalist_
	Storage of Journalist for output. More...

Ipopt::SmartPtr < Ipopt::OptionsList >	options_
	List of Options. More...

Ipopt::SmartPtr < Bonmin::RegisteredOptions >	roptions_
	Registered Options. More...

std::string	prefix_
	Prefix to use for reading bonmin's options. More...

double	start_time_
	Global start time. More...

double	time_limit_
	Global time limit. More...

int	default_log_level_
	To record default log level. More...

Detailed Description

This is a generic class for calling an NLP solver to solve a TNLP.

A TNLPSolver is able to solve and resolve a problem, it has some options (stored with Ipopt OptionList structure and registeredOptions) it produces some statistics (in SolveStatisctics and sometimes some errorCodes.

Definition at line 26 of file BonTNLPSolver.hpp.

Member Enumeration Documentation

enum Bonmin::TNLPSolver::ReturnStatus

Standard return statuses for a solver.

Enumerator
iterationLimit
timeLimit
doesNotConverge
computationError
notEnoughFreedom
illDefinedProblem
illegalOption
externalException
exception
solvedOptimal
solvedOptimalTol
provenInfeasible
unbounded
numReturnCodes	Fake member to know size.

Definition at line 29 of file BonTNLPSolver.hpp.

Constructor & Destructor Documentation

Bonmin::TNLPSolver::TNLPSolver ( )

default Constructor

Definition at line 42 of file BonTNLPSolver.cpp.

Bonmin::TNLPSolver::TNLPSolver	(	Ipopt::SmartPtr< Bonmin::RegisteredOptions >	roptions,
		Ipopt::SmartPtr< Ipopt::OptionsList >	options,
		Ipopt::SmartPtr< Ipopt::Journalist >	journalist,
		const std::string &	prefix
	)

Constructor with options initialization.

Definition at line 49 of file BonTNLPSolver.cpp.

Bonmin::TNLPSolver::~TNLPSolver ( )

virtual

Virtual destructor.

Definition at line 73 of file BonTNLPSolver.cpp.

Bonmin::TNLPSolver::TNLPSolver ( const TNLPSolver & other )

protected

Copy Constructor.

Definition at line 62 of file BonTNLPSolver.cpp.

Member Function Documentation

virtual UnsolvedError* Bonmin::TNLPSolver::newUnsolvedError	(	int	num,
		Ipopt::SmartPtr< TMINLP2TNLP >	problem,
		std::string	name
	)

pure virtual

Implemented in Bonmin::BqpdSolver, Bonmin::FilterSolver, and Bonmin::IpoptSolver.

virtual Ipopt::SmartPtr<TNLPSolver> Bonmin::TNLPSolver::clone ( )

pure virtual

virtual copy constructor

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual bool Bonmin::TNLPSolver::Initialize ( std::string params_file )

pure virtual

Initialize the TNLPSolver (read options from params_file)

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual bool Bonmin::TNLPSolver::Initialize ( std::istream & is )

pure virtual

Initialize the TNLPSolver (read options from istream is)

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual ReturnStatus Bonmin::TNLPSolver::OptimizeTNLP ( const Ipopt::SmartPtr< Ipopt::TNLP > & tnlp )

pure virtual

Solves a problem expresses as a TNLP.

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual ReturnStatus Bonmin::TNLPSolver::ReOptimizeTNLP ( const Ipopt::SmartPtr< Ipopt::TNLP > & tnlp )

pure virtual

Resolves a problem expresses as a TNLP.

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual bool Bonmin::TNLPSolver::setWarmStart	(	const CoinWarmStart *	warm,
		Ipopt::SmartPtr< TMINLP2TNLP >	tnlp
	)

pure virtual

Set the warm start in the solver.

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual CoinWarmStart* Bonmin::TNLPSolver::getUsedWarmStart ( Ipopt::SmartPtr< TMINLP2TNLP > tnlp ) const

pure virtual

Get warm start used in last optimization.

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual CoinWarmStart* Bonmin::TNLPSolver::getWarmStart ( Ipopt::SmartPtr< TMINLP2TNLP > tnlp ) const

pure virtual

Get the warm start form the solver.

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual CoinWarmStart* Bonmin::TNLPSolver::getEmptyWarmStart ( ) const

pure virtual

Solves a problem expresses as a TNLP.

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual bool Bonmin::TNLPSolver::warmStartIsValid ( const CoinWarmStart * ws ) const

pure virtual

Check that warm start object is valid.

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual void Bonmin::TNLPSolver::enableWarmStart ( )

pure virtual

Enable the warm start options in the solver.

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual void Bonmin::TNLPSolver::disableWarmStart ( )

pure virtual

Disable the warm start options in the solver.

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

Ipopt::SmartPtr<Ipopt::Journalist> Bonmin::TNLPSolver::journalist ( )

inline

Get a pointer to a journalist.

Definition at line 155 of file BonTNLPSolver.hpp.

Ipopt::SmartPtr<Bonmin::RegisteredOptions> Bonmin::TNLPSolver::roptions ( )

inline

Get a pointer to RegisteredOptions (generally used to add new ones)

Definition at line 159 of file BonTNLPSolver.hpp.

Ipopt::SmartPtr<const Ipopt::OptionsList> Bonmin::TNLPSolver::options ( ) const

inline

Get the options (for getting their values).

Definition at line 163 of file BonTNLPSolver.hpp.

Ipopt::SmartPtr<Ipopt::OptionsList> Bonmin::TNLPSolver::options ( )

inline

Get the options (for getting and setting their values).

Definition at line 167 of file BonTNLPSolver.hpp.

const char* Bonmin::TNLPSolver::prefix ( )

inline

Get the prefix.

Definition at line 171 of file BonTNLPSolver.hpp.

static void Bonmin::TNLPSolver::RegisterOptions ( Ipopt::SmartPtr< Bonmin::RegisteredOptions > roptions )

inlinestatic

Register this solver options into passed roptions.

Definition at line 175 of file BonTNLPSolver.hpp.

virtual double Bonmin::TNLPSolver::CPUTime ( )

pure virtual

Get the CpuTime of the last optimization.

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual int Bonmin::TNLPSolver::IterationCount ( )

pure virtual

Get the iteration count of the last optimization.

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual void Bonmin::TNLPSolver::setOutputToDefault ( )

pure virtual

turn off all output from the solver

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual void Bonmin::TNLPSolver::forceSolverOutput ( int log_level )

pure virtual

turn on all output from the solver

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

virtual std::string& Bonmin::TNLPSolver::solverName ( )

pure virtual

Get the solver name.

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

bool Bonmin::TNLPSolver::isRecoverable ( ReturnStatus & r )

Say if an optimization status for a problem which failed is recoverable (problem may be solvable).

Definition at line 253 of file BonTNLPSolver.cpp.

void Bonmin::TNLPSolver::setup_global_time_limit ( double time_limit )

inline

Setup for a global time limit for solver.

Definition at line 196 of file BonTNLPSolver.hpp.

bool Bonmin::TNLPSolver::isError ( ReturnStatus & r )

inline

Say if return status is an error.

Definition at line 202 of file BonTNLPSolver.hpp.

virtual int Bonmin::TNLPSolver::errorCode ( ) const

pure virtual

Error code (solver specific).

Implemented in Bonmin::FilterSolver, Bonmin::BqpdSolver, and Bonmin::IpoptSolver.

bool Bonmin::TNLPSolver::zeroDimension	(	const Ipopt::SmartPtr< Ipopt::TNLP > &	tnlp,
		ReturnStatus &	optimization_status
	)

protected

Determine if problem is of dimension zero and if it is check if solution is feasible.

Definition at line 78 of file BonTNLPSolver.cpp.

void Bonmin::TNLPSolver::initializeOptionsAndJournalist ( )

protected

Initializes options and journalist.

Initialize the options and the journalist.

Definition at line 259 of file BonTNLPSolver.cpp.

Member Data Documentation

Ipopt::SmartPtr<Ipopt::Journalist> Bonmin::TNLPSolver::journalist_

protected

Storage of Journalist for output.

Definition at line 216 of file BonTNLPSolver.hpp.

Ipopt::SmartPtr<Ipopt::OptionsList> Bonmin::TNLPSolver::options_

protected

List of Options.

Definition at line 219 of file BonTNLPSolver.hpp.

Ipopt::SmartPtr<Bonmin::RegisteredOptions> Bonmin::TNLPSolver::roptions_

protected

Registered Options.

Definition at line 222 of file BonTNLPSolver.hpp.

std::string Bonmin::TNLPSolver::prefix_

protected

Prefix to use for reading bonmin's options.

Definition at line 225 of file BonTNLPSolver.hpp.

double Bonmin::TNLPSolver::start_time_

protected

Global start time.

Definition at line 227 of file BonTNLPSolver.hpp.

double Bonmin::TNLPSolver::time_limit_

protected

Global time limit.

Definition at line 230 of file BonTNLPSolver.hpp.

int Bonmin::TNLPSolver::default_log_level_

protected

To record default log level.

Definition at line 233 of file BonTNLPSolver.hpp.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/Bonmin/src/Interfaces/BonTNLPSolver.hpp
/tmp/OS-2.10.2/Bonmin/src/Interfaces/BonTNLPSolver.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
