#include <BCP_tm_node.hpp>

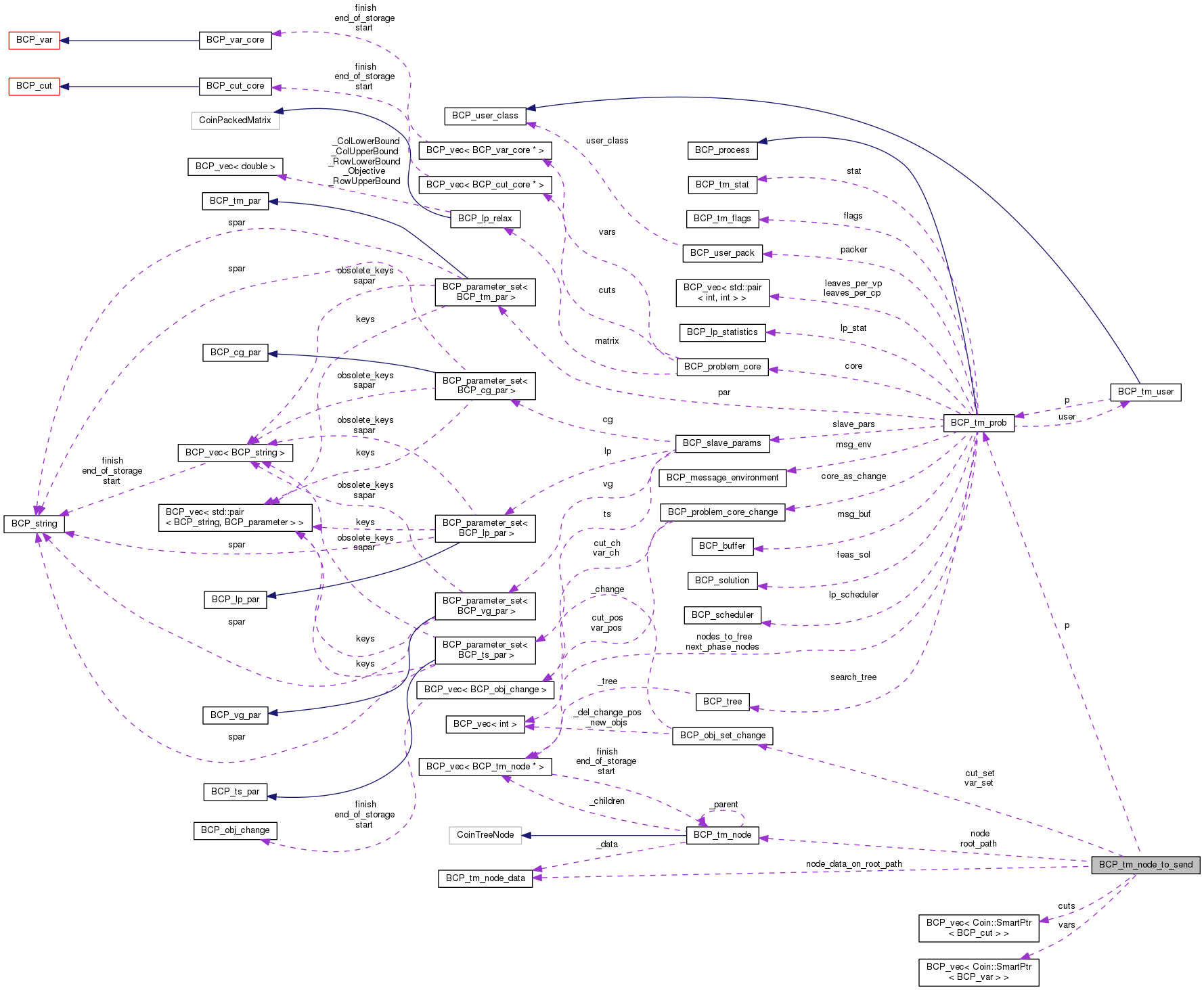

Collaboration diagram for BCP_tm_node_to_send:

Public Member Functions
	BCP_tm_node_to_send (BCP_tm_prob &p, const BCP_tm_node *node, const BCP_message_tag tag)

	~BCP_tm_node_to_send ()

bool	send ()
	return true or false depending on whether the node was really sent out or it's still waiting for some data More...

bool	receive_node_desc (BCP_buffer &buf)
	return true if has everything to send the thing off to the LP. More...

bool	receive_vars (BCP_buffer &buf)
	return true if has everything to send the thing off to the LP. More...

bool	receive_cuts (BCP_buffer &buf)
	return true if has everything to send the thing off to the LP. More...

Static Public Attributes
static std::map< int, BCP_tm_node_to_send * >	waiting

Private Attributes
BCP_tm_prob &	p

BCP_message_tag	msgtag
	the message tag to be used when finally the node is sent off More...

const int	ID
	An identifier of this object. More...

const BCP_tm_node *	node

const BCP_tm_node **	root_path
	the path to the root. More...

int *	child_index
	at each level the index of the child in the parent's list More...

BCP_tm_node_data *	node_data_on_root_path
	the node data on each level (well, up to the point where we have encountered an explicit description for all kind of data) More...

int	level
	the level of node to be sent More...

int	explicit_core_level
	where the various pieces start to be explicit (or wrt. More...

int	explicit_var_level

int	explicit_cut_level

int	explicit_ws_level

int	explicit_all_level

int	missing_desc_num
	-1/nonneg unset/value : how many desc is missing More...

int	missing_var_num
	-1/nonneg unset/value : how many var is missing More...

int	missing_cut_num
	-1/nonneg unset/value : how many cut is missing More...

BCP_obj_set_change	var_set
	The explicit description of the vars/cuts of the parent as a BCP_obj_set_change and the vars/cuts themselves (the change contains only indices!) More...

BCP_obj_set_change	cut_set

BCP_vec< Coin::SmartPtr < BCP_var > >	vars
	The list of vars/cuts of the node when the changes of the node are applied to `var_set` and `cut_set`. More...

BCP_vec< Coin::SmartPtr < BCP_cut > >	cuts

Detailed Description

Definition at line 241 of file BCP_tm_node.hpp.

Constructor & Destructor Documentation

BCP_tm_node_to_send::BCP_tm_node_to_send	(	BCP_tm_prob &	p,
		const BCP_tm_node *	node,
		const BCP_message_tag	tag
	)

Definition at line 30 of file BCP_tm_msg_node_send.cpp.

BCP_tm_node_to_send::~BCP_tm_node_to_send ( )

Definition at line 97 of file BCP_tm_msg_node_send.cpp.

Member Function Documentation

bool BCP_tm_node_to_send::send ( )

return true or false depending on whether the node was really sent out or it's still waiting for some data

Definition at line 173 of file BCP_tm_msg_node_send.cpp.

bool BCP_tm_node_to_send::receive_node_desc ( BCP_buffer & buf )

return true if has everything to send the thing off to the LP.

Actually, it sends it off, so if this method returns true then then object can be deleted

Definition at line 107 of file BCP_tm_msg_node_send.cpp.

bool BCP_tm_node_to_send::receive_vars ( BCP_buffer & buf )

return true if has everything to send the thing off to the LP.

Actually, it sends it off, so if this method returns true then then object can be deleted

Definition at line 133 of file BCP_tm_msg_node_send.cpp.

bool BCP_tm_node_to_send::receive_cuts ( BCP_buffer & buf )

return true if has everything to send the thing off to the LP.

Actually, it sends it off, so if this method returns true then then object can be deleted

Definition at line 153 of file BCP_tm_msg_node_send.cpp.

Member Data Documentation

std::map< int, BCP_tm_node_to_send * > BCP_tm_node_to_send::waiting

static

Definition at line 244 of file BCP_tm_node.hpp.

BCP_tm_prob& BCP_tm_node_to_send::p

private

Definition at line 247 of file BCP_tm_node.hpp.

BCP_message_tag BCP_tm_node_to_send::msgtag

private

the message tag to be used when finally the node is sent off

Definition at line 250 of file BCP_tm_node.hpp.

const int BCP_tm_node_to_send::ID

private

An identifier of this object.

It is the index of the node we want to send out

Definition at line 254 of file BCP_tm_node.hpp.

const BCP_tm_node* BCP_tm_node_to_send::node

private

Definition at line 256 of file BCP_tm_node.hpp.

const BCP_tm_node** BCP_tm_node_to_send::root_path

private

the path to the root.

The root is root_path[0], the node itself is in root_path[level]

Definition at line 259 of file BCP_tm_node.hpp.

int* BCP_tm_node_to_send::child_index

private

at each level the index of the child in the parent's list

Definition at line 261 of file BCP_tm_node.hpp.

BCP_tm_node_data* BCP_tm_node_to_send::node_data_on_root_path

private

the node data on each level (well, up to the point where we have encountered an explicit description for all kind of data)

Definition at line 264 of file BCP_tm_node.hpp.

int BCP_tm_node_to_send::level

private

the level of node to be sent

Definition at line 267 of file BCP_tm_node.hpp.

int BCP_tm_node_to_send::explicit_core_level

private

where the various pieces start to be explicit (or wrt.

root/core)

Definition at line 270 of file BCP_tm_node.hpp.

int BCP_tm_node_to_send::explicit_var_level

private

Definition at line 271 of file BCP_tm_node.hpp.

int BCP_tm_node_to_send::explicit_cut_level

private

Definition at line 272 of file BCP_tm_node.hpp.

int BCP_tm_node_to_send::explicit_ws_level

private

Definition at line 273 of file BCP_tm_node.hpp.

int BCP_tm_node_to_send::explicit_all_level

private

Definition at line 274 of file BCP_tm_node.hpp.

int BCP_tm_node_to_send::missing_desc_num

private

-1/nonneg unset/value : how many desc is missing

Definition at line 277 of file BCP_tm_node.hpp.

int BCP_tm_node_to_send::missing_var_num

private

-1/nonneg unset/value : how many var is missing

Definition at line 279 of file BCP_tm_node.hpp.

int BCP_tm_node_to_send::missing_cut_num

private

-1/nonneg unset/value : how many cut is missing

Definition at line 281 of file BCP_tm_node.hpp.

BCP_obj_set_change BCP_tm_node_to_send::var_set

private

The explicit description of the vars/cuts of the parent as a BCP_obj_set_change and the vars/cuts themselves (the change contains only indices!)

Definition at line 286 of file BCP_tm_node.hpp.

BCP_obj_set_change BCP_tm_node_to_send::cut_set

private

Definition at line 287 of file BCP_tm_node.hpp.

BCP_vec<Coin::SmartPtr<BCP_var> > BCP_tm_node_to_send::vars

private

The list of vars/cuts of the node when the changes of the node are applied to var_set and cut_set.

Definition at line 290 of file BCP_tm_node.hpp.

BCP_vec<Coin::SmartPtr<BCP_cut> > BCP_tm_node_to_send::cuts

private

Definition at line 291 of file BCP_tm_node.hpp.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/Bcp/src/include/BCP_tm_node.hpp
/tmp/OS-2.10.2/Bcp/src/TM/BCP_tm_msg_node_send.cpp
