Abstract base class that defines members common to all types of variables. More...

#include <BCP_var.hpp>

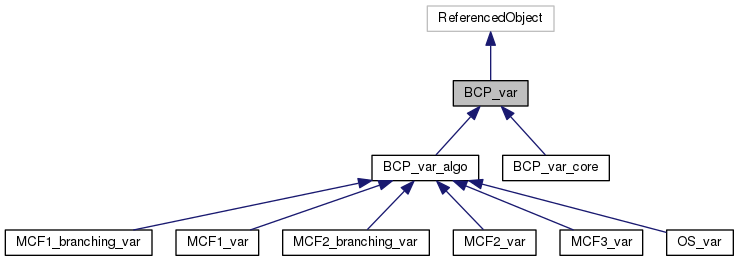

Inheritance diagram for BCP_var:

Collaboration diagram for BCP_var:

Public Member Functions
Constructor and destructor
Note that there is no default constructor. There is no such thing as "default variable".
	BCP_var (const BCP_var_t var_type, const double obj, const double lb, const double ub)
	The constructor sets the internal index of the variable to zero and the other data members to the given arguments. More...

virtual	~BCP_var ()
	The destructor is virtual so that the appropriate destructor is invoked for every variable. More...

Query methods
virtual BCP_object_t	obj_type () const =0
	Return the type of the variable. More...

BCP_var_t	var_type () const
	Return the integrality type of the variable. More...

double	obj () const
	Return the objective coefficient. More...

double	lb () const
	Return the lower bound. More...

double	ub () const
	Return the upper bound. More...

int	bcpind () const
	Return the internal index of the variable. More...

Query methods about the status of the variable
BCP_obj_status	status () const
	Return the status of the variable. More...

bool	dont_send_to_pool () const
	Return whether the variable should be sent to the Variable Pool process. More...

bool	is_fixed () const
	Return whether the variable is fixed or not. More...

bool	is_fixed_to_zero () const
	Return whether the variable is fixed to zero or not. More...

bool	is_non_removable () const
	Return whether the variable is marked NotRemovable. More...

bool	is_removable () const
	Return whether the variable is removable from the formulation at the time of the query. More...

bool	is_to_be_removed () const
	Return whether the variable must be removed from the formulation. More...

Modifying methods
void	test_inactive ()
	Test (and set) whether the var is fixed (inactive) More...

void	set_var_type (const BCP_var_t type)
	Set the integrality type of the variable. More...

void	set_obj (const double obj)
	Set the objective coefficient. More...

void	set_lb (const double lb)
	Set the lower bound. More...

void	set_ub (const double ub)
	Set the upper bound. More...

void	set_lb_ub (const double lb, const double ub)
	Set both lower and upper bounds. More...

void	change_lb_ub_st (const BCP_obj_change &change)
	Set the lower/upper bounds and the status of the variable simultaneously to the values given in the data members of the argument. More...

void	change_bounds (const double lb, const double ub)
	Change the lower and upper bounds to the given values. More...

void	set_bcpind (const int bcpind)
	Set the internal index of the variable. More...

void	set_bcpind_flip ()
	Flip the internal index of the variable to its negative. More...

Status modifying methods
void	set_status (const BCP_obj_status status)
	Set the status of the variable. More...

void	dont_send_to_pool (bool flag)
	Set/unset the flag controlling whether the variable could be sent to the Variable Pool process. More...

void	make_active ()
	Mark the variable as active. More...

void	make_non_removable ()
	Mark the variable as NotRemovable. More...

void	make_to_be_removed ()
	Mark the variable as ToBeRemoved. More...

Display
void	display (const double val) const
	Display the object type, internal index, and the value given in the argument. More...

Protected Attributes
Protected data members
BCP_var_t	_var_type
	The integrality type of the variable. More...

double	_obj
	The objective coefficient. More...

double	_lb
	Lower bound on the value the variable can take. More...

double	_ub
	Upper bound on the value the variable can take. More...

Private Member Functions
Disabled methods
	BCP_var ()
	The default constructor is declared but not defined to disable it. More...

	BCP_var (const BCP_var &)
	The copy constructor is declared but not defined to disable it. More...

BCP_var &	operator= (const BCP_var &)
	The assignment operator is declared but not defined to disable it. More...

Private Attributes
Private data members
These are used only by BCP, the user need not worry about them.
int	_bcpind
	The internal, unique index of the variable. More...

BCP_obj_status	_status
	The status of the variable. More...

Detailed Description

Abstract base class that defines members common to all types of variables.

Classes describing the three types of variables (core and algorithmic ) are derived from this class. No object of type BCP_var can exist (having purely virtual members in the class enforces this restriction).

Definition at line 28 of file BCP_var.hpp.

Constructor & Destructor Documentation

BCP_var::BCP_var ( )

private

The default constructor is declared but not defined to disable it.

(Just to make certain that the compiler doesn't generate it.)

BCP_var::BCP_var ( const BCP_var & )

private

The copy constructor is declared but not defined to disable it.

BCP_var::BCP_var	(	const BCP_var_t	var_type,
		const double	obj,
		const double	lb,
		const double	ub
	)

inline

The constructor sets the internal index of the variable to zero and the other data members to the given arguments.

Definition at line 71 of file BCP_var.hpp.

virtual BCP_var::~BCP_var ( )

inlinevirtual

The destructor is virtual so that the appropriate destructor is invoked for every variable.

Definition at line 77 of file BCP_var.hpp.

Member Function Documentation

BCP_var& BCP_var::operator= ( const BCP_var & )

private

The assignment operator is declared but not defined to disable it.

virtual BCP_object_t BCP_var::obj_type ( ) const

pure virtual

Return the type of the variable.

Implemented in BCP_var_algo, and BCP_var_core.

BCP_var_t BCP_var::var_type ( ) const

inline

Return the integrality type of the variable.

Definition at line 85 of file BCP_var.hpp.

double BCP_var::obj ( ) const

inline

Return the objective coefficient.

Definition at line 87 of file BCP_var.hpp.

double BCP_var::lb ( ) const

inline

Return the lower bound.

Definition at line 89 of file BCP_var.hpp.

double BCP_var::ub ( ) const

inline

Return the upper bound.

Definition at line 91 of file BCP_var.hpp.

int BCP_var::bcpind ( ) const

inline

Return the internal index of the variable.

Definition at line 93 of file BCP_var.hpp.

BCP_obj_status BCP_var::status ( ) const

inline

Return the status of the variable.

Definition at line 98 of file BCP_var.hpp.

bool BCP_var::dont_send_to_pool ( ) const

inline

Return whether the variable should be sent to the Variable Pool process.

(Assuming that it stays in the formulation long enough to qualify to be sent to the Variable Pool at all.

Definition at line 102 of file BCP_var.hpp.

bool BCP_var::is_fixed ( ) const

inline

Return whether the variable is fixed or not.

Definition at line 106 of file BCP_var.hpp.

bool BCP_var::is_fixed_to_zero ( ) const

inline

Return whether the variable is fixed to zero or not.

Definition at line 110 of file BCP_var.hpp.

bool BCP_var::is_non_removable ( ) const

inline

Return whether the variable is marked NotRemovable.

Examples of such variables include ???

Definition at line 115 of file BCP_var.hpp.

bool BCP_var::is_removable ( ) const

inline

Return whether the variable is removable from the formulation at the time of the query.

(It is if it is not non_removable and it is fixed to zero.)

Definition at line 121 of file BCP_var.hpp.

bool BCP_var::is_to_be_removed ( ) const

inline

Return whether the variable must be removed from the formulation.

There are very few circumstances when this flag is set; all of them are completely internal to BCP.

Definition at line 127 of file BCP_var.hpp.

void BCP_var::test_inactive ( )

inline

Test (and set) whether the var is fixed (inactive)

Definition at line 136 of file BCP_var.hpp.

void BCP_var::set_var_type ( const BCP_var_t type )

inline

Set the integrality type of the variable.

Definition at line 141 of file BCP_var.hpp.

void BCP_var::set_obj ( const double obj )

inline

Set the objective coefficient.

Definition at line 143 of file BCP_var.hpp.

void BCP_var::set_lb ( const double lb )

inline

Set the lower bound.

Definition at line 145 of file BCP_var.hpp.

void BCP_var::set_ub ( const double ub )

inline

Set the upper bound.

Definition at line 150 of file BCP_var.hpp.

void BCP_var::set_lb_ub	(	const double	lb,
		const double	ub
	)

inline

Set both lower and upper bounds.

Definition at line 155 of file BCP_var.hpp.

void BCP_var::change_lb_ub_st ( const BCP_obj_change & change )

inline

Set the lower/upper bounds and the status of the variable simultaneously to the values given in the data members of the argument.

Definition at line 163 of file BCP_var.hpp.

void BCP_var::change_bounds	(	const double	lb,
		const double	ub
	)

inline

Change the lower and upper bounds to the given values.

Definition at line 170 of file BCP_var.hpp.

void BCP_var::set_bcpind ( const int bcpind )

inline

Set the internal index of the variable.

Definition at line 176 of file BCP_var.hpp.

void BCP_var::set_bcpind_flip ( )

inline

Flip the internal index of the variable to its negative.

Definition at line 178 of file BCP_var.hpp.

void BCP_var::set_status ( const BCP_obj_status status )

inline

Set the status of the variable.

Definition at line 183 of file BCP_var.hpp.

void BCP_var::dont_send_to_pool ( bool flag )

inline

Set/unset the flag controlling whether the variable could be sent to the Variable Pool process.

Definition at line 186 of file BCP_var.hpp.

void BCP_var::make_active ( )

inline

Mark the variable as active.

Note that when this method is invoked the lp formulation must be modified as well: the original bounds of the variable must be reset.

Definition at line 195 of file BCP_var.hpp.

void BCP_var::make_non_removable ( )

inline

Mark the variable as NotRemovable.

Definition at line 199 of file BCP_var.hpp.

void BCP_var::make_to_be_removed ( )

inline

Mark the variable as ToBeRemoved.

It will actually be removed immediately after all variables that have to be marked this way are marked.

Definition at line 207 of file BCP_var.hpp.

void BCP_var::display ( const double val ) const

Display the object type, internal index, and the value given in the argument.

(This value is usually the variable's value in an LP solution.)

Definition at line 71 of file BCP_var.cpp.

Member Data Documentation

int BCP_var::_bcpind

private

The internal, unique index of the variable.

Definition at line 46 of file BCP_var.hpp.

BCP_obj_status BCP_var::_status

private

The status of the variable.

Definition at line 48 of file BCP_var.hpp.

BCP_var_t BCP_var::_var_type

protected

The integrality type of the variable.

Definition at line 55 of file BCP_var.hpp.

double BCP_var::_obj

protected

The objective coefficient.

Definition at line 57 of file BCP_var.hpp.

double BCP_var::_lb

protected

Lower bound on the value the variable can take.

Definition at line 59 of file BCP_var.hpp.

double BCP_var::_ub

protected

Upper bound on the value the variable can take.

Definition at line 61 of file BCP_var.hpp.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/Bcp/src/include/BCP_var.hpp
/tmp/OS-2.10.2/Bcp/src/Member/BCP_var.cpp
