gamsFunc Class Reference

#include <gams.h>

Inheritance diagram for gamsFunc:

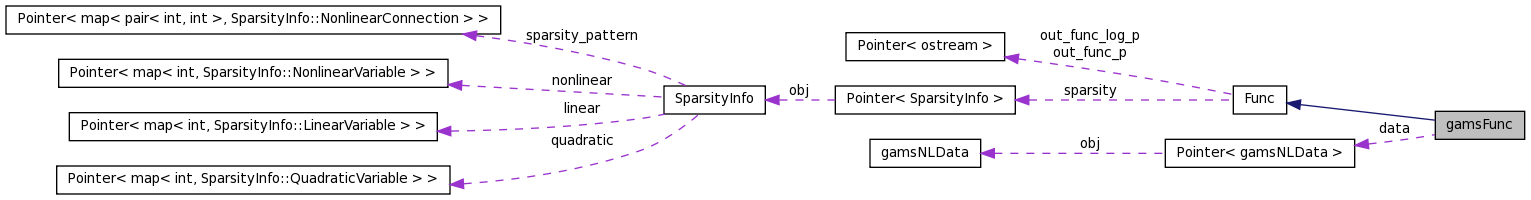

Collaboration diagram for gamsFunc:

Public Member Functions
	gamsFunc (int n, int connr_, Pointer< gamsNLData > data_, Pointer< SparsityInfo > sparsity_=NULL)
double	eval (const UserVector< double > &x) const
	Computes the value of this function for a UserVector<double>.
double	eval (const double *x) const
int	valgrad (double &val, UserVector< double > &g, const UserVector< double > &x) const
	Computes the (sub)gradient and the value of this function for a UserVector<double>.
int	valgrad (double &val, double g, const double x) const
void	grad (UserVector< double > &g, const UserVector< double > &x) const
	Computes the (sub)gradient for a UserVector<double>.
void	grad (dvector &g, const dvector &x) const
void	grad (double g, const double x) const
void	HessMult (UserVector< double > &y, const UserVector< double > &x, const UserVector< double > &z) const
	Evaluates the product of the Hessian and a UserVector<double>.
void	HessMult (dvector &y, const dvector &x, const dvector &z) const
void	HessMult (double y, const double x, const double *z) const
void	set_curvature (CurvatureType ct)
CurvatureType	get_curvature () const
void	print (ostream &out) const
	Print's out the dimension.
Private Attributes
Pointer< gamsNLData >	data
int	connr
Func::CurvatureType	curv_type

Detailed Description

Definition at line 169 of file gams.h.

Constructor & Destructor Documentation

gamsFunc::gamsFunc	(	int	n,
		int	connr_,
		Pointer< gamsNLData >	data_,
		Pointer< SparsityInfo >	sparsity_ = `NULL`
	)			`[inline]`

Definition at line 178 of file gams.h.

Member Function Documentation

double gamsFunc::eval ( const UserVector< double > & x ) const [inline, virtual]

Computes the value of this function for a UserVector<double>.

Abstract.

Parameters:

x

The UserVector<double> to compute the value for.

Returns:: The value this(x) as double.

Implements Func.

Definition at line 182 of file gams.h.

double gamsFunc::eval ( const double * x ) const

int gamsFunc::valgrad	(	double &	val,
		UserVector< double > &	g,
		const UserVector< double > &	x
	)			const `[inline, virtual]`

Computes the (sub)gradient and the value of this function for a UserVector<double>.

Parameters:

	val	The double to store the value this(x).
	g	The UserVector<double> to store the gradient.
	x	The UserVector<double> to compute the gradient and value for.

Returns:: 0, if all went right.

See also:: grad(UserVector<double>&, const UserVector<double>&); add_grad(UserVector<double>&, const UserVector<double>&); add_valgrad(UserVector<double>&, UserVector<double>&, const UserVector<double>&)

Reimplemented from Func.

Definition at line 188 of file gams.h.

int gamsFunc::valgrad	(	double &	val,
		double *	g,
		const double *	x
	)			const

void gamsFunc::grad	(	UserVector< double > &	g,
		const UserVector< double > &	x
	)			const `[inline, virtual]`

Computes the (sub)gradient for a UserVector<double>.

Abstract.

Parameters:

	g	The UserVector<double> to store the result in.
	x	The UserVector<double> to compute the gradient for.

See also:: grad(const dvector&); valgrad(double&, UserVector<double>&, const UserVector<double>&); add_grad(UserVector<double>&, UserVector<double>&); add_valgrad(double&, UserVector<double>&, UserVector<double>&)

Implements Func.

Definition at line 197 of file gams.h.

void gamsFunc::grad	(	dvector &	g,
		const dvector &	x
	)			const `[inline]`

Definition at line 204 of file gams.h.

void gamsFunc::grad	(	double *	g,
		const double *	x
	)			const `[inline]`

Definition at line 209 of file gams.h.

void gamsFunc::HessMult	(	UserVector< double > &	y,
		const UserVector< double > &	x,
		const UserVector< double > &	z
	)			const `[inline, virtual]`

Evaluates the product of the Hessian and a UserVector<double>.

Abstract.

Parameters:

	y	The UserVector<double> to store the result in: $y = \nabla^2 f(x) \cdot z$ .
	x	The UserVector<double> to evaluate the Hessian for.
	z	The UserVector<double> to multiply with the Hessian.

See also:: HessMult(const UserVector<double>&, const UserVector<double>&)

Implements Func.

Definition at line 215 of file gams.h.

void gamsFunc::HessMult	(	dvector &	y,
		const dvector &	x,
		const dvector &	z
	)			const `[inline]`

Definition at line 221 of file gams.h.

void gamsFunc::HessMult	(	double *	y,
		const double *	x,
		const double *	z
	)			const

void gamsFunc::set_curvature ( CurvatureType ct ) [inline, virtual]

Implements Func.

Definition at line 236 of file gams.h.

CurvatureType gamsFunc::get_curvature ( ) const [inline, virtual]

Implements Func.

Definition at line 237 of file gams.h.

void gamsFunc::print ( ostream & out ) const [inline, virtual]

Print's out the dimension.

Parameters:

out

The ostream to print to.

See also:: dim()

Reimplemented from Func.

Definition at line 239 of file gams.h.

Member Data Documentation

Pointer<gamsNLData> gamsFunc::data [private]

Definition at line 171 of file gams.h.

int gamsFunc::connr [private]

Definition at line 173 of file gams.h.

Func::CurvatureType gamsFunc::curv_type [private]

Definition at line 175 of file gams.h.

The documentation for this class was generated from the following file:

gams.h
