UserVector< Type > Class Template Reference

Abstract class for a UserVector. More...

#include <uservector.h>

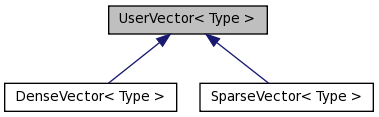

Inheritance diagram for UserVector< Type >:

Public Member Functions
	UserVector ()
	Standard-Constructor.
virtual	~UserVector ()
	Virtual Destructor.
virtual Pointer< UserVector < Type > >	getemptycopy (int n) const =0
	Gives an empty UserVector of this type.
virtual Pointer< UserVector < Type > >	getemptycopy () const
	Gives an empty UserVector of this type and dimension.
virtual Pointer< UserVector < Type > >	getcopy () const
	Gives a copy of this UserVector.
virtual Pointer< UserVector < Type > >	getcopy (const UserVector< int > &block) const
	Gives a Pointer to a copy of one block of this UserVector.
virtual int	dim () const =0
	The dimension.
int	size () const
	The size.
virtual void	resize (const int n)
	Tests the new size.
virtual Type &	operator[] (const int i)=0
	Gives a reference to one component of this UserVector.
virtual Type	operator[] (const int i) const
	Gives one element of this UserVector.
virtual Type	operator() (const int i) const =0
	Gives a copy of one component of this UserVector.
virtual DenseVector< Type >	operator() (const UserVector< int > &block) const
	Gives a block form this UserVector as DenseVector.
virtual DenseVector< Type >	operator() (const int low, const int up) const
	Gives one part of this UserVector as DenseVector.
virtual void	SetElement (const int i, const Type &v)
	Sets one element of this UserVector.
virtual void	set_block (const UserVector< Type > &v, const UserVector< int > &block)
	Sets one block of this UserVector.
virtual	operator const Pointer< Type > () const =0
	Cast-Operator to a const Pointer of Type.
virtual UserVector< Type > &	operator= (const UserVector< Type > &v)=0
	Assign-Operator for a UserVector.
virtual UserVector< Type > &	operator= (const Type &v)=0
	Assign-Operator for a value from type Type.
virtual void	set (const Type *v, int n)
	Assign-Operator for a Type*.
void	set (const Type *v)
	Sets this UserVector to the values of v.
virtual UserVector< Type > &	AddMult (Type a, const UserVector< Type > &v)
	Adds a UserVector, multiplied by a Type, to this UserVector.
virtual UserVector< Type > &	operator+= (const UserVector< Type > &v)=0
	Adds a UserVector to this one.
virtual UserVector< Type > &	operator-= (const UserVector< Type > &v)=0
	Substracts a UserVector from this one.
virtual UserVector< Type > &	operator*= (const Type &v)=0
	Multiplies all components with a value from type Type.
virtual UserVector< Type > &	operator/= (const Type &v)=0
	Divides all components through a value from type Type.
virtual bool	operator>= (const Type &v) const
	Compares each element of this UserVector with a value of type Type.
virtual bool	operator== (const Type &v) const
	Compares each element of this UserVector with a value of type Type.
virtual bool	operator== (const UserVector< Type > &v) const
	Compares this UserVector with another one.
virtual Type	operator* (const UserVector< Type > &v) const
	Computes the scalar product of this UserVector and another one.
virtual DenseVector< Type >	operator* (const Type &v) const
	Computes the product of this UserVector and a value from type v.
virtual DenseVector< Type >	operator+ (const UserVector< Type > &v) const
	Computes the sum of this UserVector and another UserVector.
virtual const UserVector< Type > &	operator+ () const
	Computes nothing.
virtual UserVector< Type > &	operator+ ()
	Computes nothing.
virtual DenseVector< Type >	operator- (const UserVector< Type > &v) const
	Computes the difference between this UserVector and another one.
virtual DenseVector< Type >	operator- () const
	Calculates this UserVector multiplied with -1.
virtual void	diagmult (UserVector< Type > &y, const UserVector< Type > &v) const
	Calculates the diagonal-multiplication.
virtual DenseVector< Type >	diagmult (const UserVector< Type > &v) const
	Calculates the diagonal-multiplication.
virtual Type	sq_norm2 () const
	Square of 2-Norm.
virtual Type	dist (const UserVector< Type > &v) const
virtual Type	mean_value () const
	Calculates the mean value of the elements.
virtual Type	standard_deviation () const
	Calculates the standard deviation.
void	set_random (const Type lb, const Type ub)
	Sets this vector to random values.
void	set_random (const UserVector< Type > &low, const UserVector< Type > &up)
	Sets this vector to random values.
void	set_random (const Type lb, const Type ub, const double sparsity)
	Sets this vector to random values with a specific sparsity.
virtual void	print (ostream &out) const
	Prints this UserVector.
Friends
ostream &	operator<< (ostream &out, const UserVector< Type > &v)
	Outputs the components of this UserVector.
void	operator>> (const UserVector< Type > &v, Type *out)
istream &	operator>> (istream &in, UserVector< Type > &v)
DenseVector< Type >	operator* (const Type &v1, const UserVector< Type > &v2)
	Computes the product of a value from type Type and a UserVector.

Detailed Description

template<class Type>
class UserVector< Type >

Abstract class for a UserVector.

You need to implement the following method:

UserVector<Type>* getemptycopy(int=dim()) const
int dim() const
Type& operator[](int)
Type& operator()(int) const
UserVector<Type>& operator=(const UserVector<Type>&)
UserVector<Type>& operator=(const Type&)
UserVector<Type>& operator+=(const UserVector<Type>&)
UserVector<Type>& operator-=(const UserVector<Type>&)
UserVector<Type>& operator*=(const Type&)
UserVector<Type>& operator/=(const Type&)
operator const Pointer<Type>() const

Definition at line 32 of file uservector.h.

Constructor & Destructor Documentation

template<class Type>

UserVector< Type >::UserVector ( ) [inline]

Standard-Constructor.

See also:: dim()

Definition at line 58 of file uservector.h.

template<class Type>

virtual UserVector< Type >::~UserVector ( ) [inline, virtual]

Virtual Destructor.

Definition at line 62 of file uservector.h.

Member Function Documentation

template<class Type>

virtual Pointer<UserVector<Type> > UserVector< Type >::getemptycopy ( int n ) const [pure virtual]

Gives an empty UserVector of this type.

Abstract.

Parameters:

n

The size of the new UserVector.

Returns:: A Pointer to a new UserVector with size n.

Implemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

template<class Type>

virtual Pointer<UserVector<Type> > UserVector< Type >::getemptycopy ( ) const [inline, virtual]

Gives an empty UserVector of this type and dimension.

Returns:: A Pointer to a new UserVector with the size of this one.

See also:: getemptycopy(int)

Reimplemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

Definition at line 75 of file uservector.h.

template<class Type>

virtual Pointer<UserVector<Type> > UserVector< Type >::getcopy ( ) const [inline, virtual]

Gives a copy of this UserVector.

Returns:: A Pointer to a new UserVector, which is a copy of this one.

Reimplemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

Definition at line 82 of file uservector.h.

template<class Type>

virtual Pointer<UserVector<Type> > UserVector< Type >::getcopy ( const UserVector< int > & block ) const [inline, virtual]

Gives a Pointer to a copy of one block of this UserVector.

Parameters:

block

The block-describtion.

Returns:: A Pointer to a copy of the block, described in block.

Reimplemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< interval< double > >, and SparseVector< double >.

Definition at line 92 of file uservector.h.

template<class Type>

virtual int UserVector< Type >::dim ( ) const [pure virtual]

The dimension.

Abstract.

Returns:: The dimension of this UserVector.

Implemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

template<class Type>

int UserVector< Type >::size ( ) const [inline]

The size.

Returns:: The dimension.

See also:: dim()

Definition at line 108 of file uservector.h.

template<class Type>

virtual void UserVector< Type >::resize ( const int n ) [inline, virtual]

Tests the new size.

Parameters:

n

The new size.

Reimplemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

Definition at line 113 of file uservector.h.

template<class Type>

virtual Type& UserVector< Type >::operator[] ( const int i ) [pure virtual]

Gives a reference to one component of this UserVector.

Abstract. Use operator(int), when you want to read a component only!

Parameters:

i

The index of the element.

Returns:: A reference to the component at the i-th index.

See also:: operator[](const int)

Implemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

template<class Type>

virtual Type UserVector< Type >::operator[] ( const int i ) const [inline, virtual]

Gives one element of this UserVector.

Parameters:

i

The index of the element.

Returns:: The element at index i, not a reference to it.

See also:: operator[](int)

Reimplemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

Definition at line 131 of file uservector.h.

template<class Type>

virtual Type UserVector< Type >::operator() ( const int i ) const [pure virtual]

Gives a copy of one component of this UserVector.

Use this one, when you want to read a component only! Abstract

Parameters:

i

The index of the element.

Returns:: A copy of the the component at the i-th index.

See also:: operator[](const int)

Implemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

template<class Type>

virtual DenseVector<Type> UserVector< Type >::operator() ( const UserVector< int > & block ) const [inline, virtual]

Gives a block form this UserVector as DenseVector.

Parameters:

block

The block structure.

Returns:: The block of this UserVector, which was described in block.

See also:: DenseVector<Type>::DenseVector(const UserVector<Type>&, UserVector<int>&)

Reimplemented in DenseVector< Type >, DenseVector< double >, and DenseVector< interval< double > >.

Definition at line 149 of file uservector.h.

template<class Type>

virtual DenseVector<Type> UserVector< Type >::operator()	(	const int	low,
		const int	up
	)			const `[inline, virtual]`

Gives one part of this UserVector as DenseVector.

Parameters:

	low	The lower index.
	up	The upper index.

Returns:: The elements low to up as new UserVector.

See also:: DenseVector<Type>::DenseVector(const UserVector<Type>&, const int, const up)

Reimplemented in DenseVector< Type >, DenseVector< double >, DenseVector< int >, and DenseVector< interval< double > >.

Definition at line 159 of file uservector.h.

template<class Type>

virtual void UserVector< Type >::SetElement	(	const int	i,
		const Type &	v
	)			`[inline, virtual]`

Sets one element of this UserVector.

Parameters:

	i	The index of the element.
	v	The value to set.

See also:: operator[](const int i)

Reimplemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

Definition at line 168 of file uservector.h.

template<class Type>

virtual void UserVector< Type >::set_block	(	const UserVector< Type > &	v,
		const UserVector< int > &	block
	)			`[inline, virtual]`

Sets one block of this UserVector.

Parameters:

	v	The UserVector to set.
	block	The block-describtion.

Definition at line 176 of file uservector.h.

template<class Type>

virtual UserVector< Type >::operator const Pointer< Type > ( ) const [pure virtual]

Cast-Operator to a const Pointer of Type.

Implemented in DenseVector< Type >, SparseVector< Type >, DenseVector< interval< double > >, DenseVector< int >, DenseVector< double >, and SparseVector< double >.

template<class Type>

virtual UserVector<Type>& UserVector< Type >::operator= ( const UserVector< Type > & v ) [pure virtual]

Assign-Operator for a UserVector.

Abstract.

Parameters:

v

The UserVector to assign to this UserVector.

Returns:: This UserVector.

Implemented in DenseVector< Type >, SparseVector< Type >, IntervalVector, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

template<class Type>

virtual UserVector<Type>& UserVector< Type >::operator= ( const Type & v ) [pure virtual]

Assign-Operator for a value from type Type.

Abstract.

Parameters:

v

The value to assign to all elements of this vector.

Returns:: This UserVector.

Implemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

template<class Type>

virtual void UserVector< Type >::set	(	const Type *	v,
		int	n
	)			`[inline, virtual]`

Assign-Operator for a Type*.

Parameters:

	v	The Type*.
	n	The length of v.

Returns:: This UserVector.

Reimplemented in SparseVector< Type >, and SparseVector< double >.

Definition at line 203 of file uservector.h.

template<class Type>

void UserVector< Type >::set ( const Type * v ) [inline]

Sets this UserVector to the values of v.

Be careful with this one. v needs to have the length dim().

Parameters:

v

The Type*.

Returns:: This UserVector.

Reimplemented in SparseVector< Type >, and SparseVector< double >.

Definition at line 212 of file uservector.h.

template<class Type>

virtual UserVector<Type>& UserVector< Type >::AddMult	(	Type	a,
		const UserVector< Type > &	v
	)			`[inline, virtual]`

Adds a UserVector, multiplied by a Type, to this UserVector.

Parameters:

	a	The Type to multiply v with.
	v	The UserVector to add, after multiplication with a.

Returns:: This UserVector

Reimplemented in SparseVector< Type >, and SparseVector< double >.

Definition at line 219 of file uservector.h.

template<class Type>

virtual UserVector<Type>& UserVector< Type >::operator+= ( const UserVector< Type > & v ) [pure virtual]

Adds a UserVector to this one.

Abstract.

Parameters:

v

The UserVector to add.

Returns:: This UserVector.

Implemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

template<class Type>

virtual UserVector<Type>& UserVector< Type >::operator-= ( const UserVector< Type > & v ) [pure virtual]

Substracts a UserVector from this one.

Abstract.

Parameters:

v

The UserVector to substract.

Returns:: This UserVector.

Implemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

template<class Type>

virtual UserVector<Type>& UserVector< Type >::operator*= ( const Type & v ) [pure virtual]

Multiplies all components with a value from type Type.

Abstract.

Parameters:

v

The value to multiply with.

Returns:: This UserVector.

Implemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

template<class Type>

virtual UserVector<Type>& UserVector< Type >::operator/= ( const Type & v ) [pure virtual]

Divides all components through a value from type Type.

Abstract.

Parameters:

v

The value to divide.

Returns:: This UserVector.

Implemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

template<class Type>

virtual bool UserVector< Type >::operator>= ( const Type & v ) const [inline, virtual]

Compares each element of this UserVector with a value of type Type.

Parameters:

v

The value to compare with.

Returns:: True, if all elements are greater-equal v. False else.

Reimplemented in SparseVector< Type >, and SparseVector< double >.

Definition at line 255 of file uservector.h.

template<class Type>

virtual bool UserVector< Type >::operator== ( const Type & v ) const [inline, virtual]

Compares each element of this UserVector with a value of type Type.

Parameters:

v

The value to compare with.

Returns:: True, if all elements are equal to v. False else.

Reimplemented in SparseVector< Type >, and SparseVector< double >.

Definition at line 264 of file uservector.h.

template<class Type>

virtual bool UserVector< Type >::operator== ( const UserVector< Type > & v ) const [inline, virtual]

Compares this UserVector with another one.

Parameters:

v

The UserVector to compare with.

Returns:: True, if this UserVectors is equal to v. False else.

Definition at line 273 of file uservector.h.

template<class Type>

virtual Type UserVector< Type >::operator* ( const UserVector< Type > & v ) const [inline, virtual]

Computes the scalar product of this UserVector and another one.

Parameters:

v

The UserVector to multiply with.

Returns:: The scalar product *this * v.

Reimplemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

Definition at line 283 of file uservector.h.

template<class Type>

virtual DenseVector<Type> UserVector< Type >::operator* ( const Type & v ) const [inline, virtual]

Computes the product of this UserVector and a value from type v.

Parameters:

v

The value to multiply with.

Returns:: A new DenseVector, which is this one multiplied by v.

Reimplemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

Definition at line 294 of file uservector.h.

template<class Type>

virtual DenseVector<Type> UserVector< Type >::operator+ ( const UserVector< Type > & v ) const [inline, virtual]

Computes the sum of this UserVector and another UserVector.

Parameters:

v

The UserVector to add.

Returns:: A new DenseVector, which is the sum of this one and v.

See also:: operator+=(const UserVector<Type>&)

Reimplemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

Definition at line 313 of file uservector.h.

template<class Type>

virtual const UserVector<Type>& UserVector< Type >::operator+ ( ) const [inline, virtual]

Computes nothing.

Returns:: This UserVector as const.

Reimplemented in DenseVector< Type >, DenseVector< double >, DenseVector< int >, and DenseVector< interval< double > >.

Definition at line 320 of file uservector.h.

template<class Type>

virtual UserVector<Type>& UserVector< Type >::operator+ ( ) [inline, virtual]

Computes nothing.

Returns:: This UserVector.

Definition at line 327 of file uservector.h.

template<class Type>

virtual DenseVector<Type> UserVector< Type >::operator- ( const UserVector< Type > & v ) const [inline, virtual]

Computes the difference between this UserVector and another one.

Parameters:

v

The UserVector to substract.

Returns:: The difference *this - v as a new DenseVector.

See also:: operator-=(UserVector<Type>&)

Reimplemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

Definition at line 336 of file uservector.h.

template<class Type>

virtual DenseVector<Type> UserVector< Type >::operator- ( ) const [inline, virtual]

Calculates this UserVector multiplied with -1.

Abstract.

Returns:: A new DenseVector, which is this one, multiplied by -1.

Reimplemented in DenseVector< Type >, DenseVector< double >, DenseVector< int >, and DenseVector< interval< double > >.

Definition at line 344 of file uservector.h.

template<class Type>

virtual void UserVector< Type >::diagmult	(	UserVector< Type > &	y,
		const UserVector< Type > &	v
	)			const `[inline, virtual]`

Calculates the diagonal-multiplication.

Multiplies each component of this UserVector with the corresponding component of v.

This vector is not altered.

Parameters:

	y	The UserVector to store the result in.
	v	The UserVector to "multiply" with.

Definition at line 355 of file uservector.h.

template<class Type>

virtual DenseVector<Type> UserVector< Type >::diagmult ( const UserVector< Type > & v ) const [inline, virtual]

Calculates the diagonal-multiplication.

Multiplies each component of this UserVector with the corresponding component of v.

This vector is not altered.

Parameters:

v

The UserVector to "multiply" with.

Returns:: A new DenseVector, which is the diagonal-product of this one and v.

Reimplemented in DenseVector< Type >, DenseVector< double >, DenseVector< int >, and DenseVector< interval< double > >.

Definition at line 366 of file uservector.h.

template<class Type>

virtual Type UserVector< Type >::sq_norm2 ( ) const [inline, virtual]

Square of 2-Norm.

Returns:: The square of the 2-norm of this UserVector.

Reimplemented in SparseVector< Type >, and SparseVector< double >.

Definition at line 373 of file uservector.h.

template<class Type>

virtual Type UserVector< Type >::dist ( const UserVector< Type > & v ) const [inline, virtual]

Definition at line 379 of file uservector.h.

template<class Type>

virtual Type UserVector< Type >::mean_value ( ) const [inline, virtual]

Calculates the mean value of the elements.

Returns:: The arithmetic mean value.

Definition at line 386 of file uservector.h.

template<class Type>

virtual Type UserVector< Type >::standard_deviation ( ) const [inline, virtual]

Calculates the standard deviation.

Returns:: The standard deviation.

See also:: mean_value()

Definition at line 397 of file uservector.h.

template<class Type>

void UserVector< Type >::set_random	(	const Type	lb,
		const Type	ub
	)			`[inline]`

Sets this vector to random values.

Parameters:

	lb	The lower bound of the random values.
	ub	The upper bound of the random values.

Definition at line 409 of file uservector.h.

template<class Type>

void UserVector< Type >::set_random	(	const UserVector< Type > &	low,
		const UserVector< Type > &	up
	)			`[inline]`

Sets this vector to random values.

Parameters:

	low	The lower bound of the random vector.
	up	The upper bound of the random vector.

Definition at line 418 of file uservector.h.

template<class Type>

void UserVector< Type >::set_random	(	const Type	lb,
		const Type	ub,
		const double	sparsity
	)			`[inline]`

Sets this vector to random values with a specific sparsity.

Parameters:

	lb	The lower bound of the random values.
	ub	The upper bound of the random values.
	sparsity	The sparsity, between 0 and 1.

Definition at line 427 of file uservector.h.

template<class Type>

virtual void UserVector< Type >::print ( ostream & out ) const [inline, virtual]

Prints this UserVector.

Prints all elements of this UserVector.

Parameters:

out

The ostream to print to.

Reimplemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

Definition at line 440 of file uservector.h.

Friends And Related Function Documentation

template<class Type>

ostream& operator<<	(	ostream &	out,
		const UserVector< Type > &	v
	)			`[friend]`

Outputs the components of this UserVector.

Calls a.print(out).

Parameters:

	out	An output-stream to print to.
	v	The UserVector to print.

Returns:: The ostream out.

See also:: print(ostream&)

Definition at line 40 of file uservector.h.

template<class Type>

void operator>>	(	const UserVector< Type > &	v,
		Type *	out
	)			`[friend]`

Definition at line 45 of file uservector.h.

template<class Type>

istream& operator>>	(	istream &	in,
		UserVector< Type > &	v
	)			`[friend]`

Definition at line 49 of file uservector.h.

template<class Type>

DenseVector<Type> operator*	(	const Type &	v1,
		const UserVector< Type > &	v2
	)			`[friend]`

Computes the product of a value from type Type and a UserVector.

Parameters:

	v1	The value of type Type.
	v2	The UserVector to multiply with.

Returns:: A new DenseVector, which is the product of v1 and v2.

See also:: operator*(const Type&)

Reimplemented in DenseVector< Type >, SparseVector< Type >, DenseVector< double >, DenseVector< int >, DenseVector< interval< double > >, and SparseVector< double >.

Definition at line 304 of file uservector.h.

The documentation for this class was generated from the following file:

uservector.h

UserVector< Type > Class Template Reference

Public Member Functions

Friends

Detailed Description

template<class Type> class UserVector< Type >

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

template<class Type>
class UserVector< Type >
