amplCon Class Reference

Class for an AMPL-constraints-function. More...

#include <ampl.h>

Inheritance diagram for amplCon:

[legend]

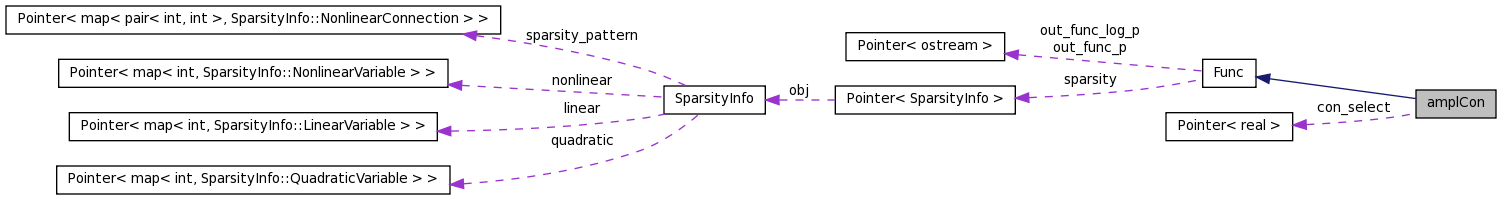

Collaboration diagram for amplCon:

[legend]

List of all members.

Public Member Functions
	amplCon (int connr_, int dim_=0, Pointer< SparsityInfo > sparsity_=NULL, Pointer< ostream > out_func_p_=out_out_p, Pointer< ostream > out_func_log_p_=out_log_p)
	Constructor for the number of the constraint and the dimension of the function.
double	eval (const UserVector< double > &x) const
	Evaluates a constraint for a UserVector<double>.
void	grad (dvector &g, const dvector &x) const
	Computes the gradient of a constraint for a dvector.
void	grad (UserVector< double > &g, const UserVector< double > &x) const
	Computes the (sub)gradient for a UserVector<double>.
void	HessMult (dvector &y, const dvector &x, const dvector &z) const
	Computes the product of a Hessian and a dvector.
void	HessMult (UserVector< double > &y, const UserVector< double > &x, const UserVector< double > &z) const
	Evaluates the product of the Hessian and a UserVector<double>.
void	set_curvature (CurvatureType ct)
CurvatureType	get_curvature () const
void	print (ostream &out) const
	Prints some information about this function.
Private Attributes
fint	connr
	The number of the constraint, this function represents.
Pointer< real >	con_select
	Array for Hessain-Multiplication, to select the constraint, which Hessian should be computed.
Func::CurvatureType	curv_type

---

Detailed Description

Class for an AMPL-constraints-function.

Definition at line 169 of file ampl.h.

---

Constructor & Destructor Documentation

amplCon::amplCon	(	int	connr_,
		int	dim_ = 0,
		Pointer< SparsityInfo >	sparsity_ = NULL,
		Pointer< ostream >	out_func_p_ = out_out_p,
		Pointer< ostream >	out_func_log_p_ = out_log_p
	)			[inline]

Constructor for the number of the constraint and the dimension of the function.

Parameters:

	connr_	The number of the constraint, this function represents.
	dim_	The dimension.
	conv_	Indicates, whether the function is convex, default is false.
	out_func_p_	An ostream to print function-related output to, default is out_out_p.
	out_func_log_p_	An ostream to print function-related logging-output to, default is out_func_p.

See also:

amplCon(int)

Definition at line 189 of file ampl.h.

---

Member Function Documentation

double amplCon::eval

(

const UserVector< double > &

x

)

const [inline, virtual]

Evaluates a constraint for a UserVector<double>.

Calls conival(connr, ...) from the AMPL/Solver Interface Library (ASL).

Parameters:

x

The UserVector<double> to evaluate.

Returns:

The value of the connr-th constraint.

Implements Func.

Definition at line 201 of file ampl.h.

void amplCon::grad	(	dvector &	g,
		const dvector &	x
	)			const [inline]

Computes the gradient of a constraint for a dvector.

Calls congrd(connr, ...) from the AMPL/Solver Interface Library (ASL).

Parameters:

	g	The dvector to store the connr-th gradient in.
	x	The dvector to compute the gradient for.

Definition at line 220 of file ampl.h.

void amplCon::grad	(	UserVector< double > &	g,
		const UserVector< double > &	x
	)			const [inline, virtual]

Computes the (sub)gradient for a UserVector<double>.

Abstract.

Parameters:

	g	The UserVector<double> to store the result in.
	x	The UserVector<double> to compute the gradient for.

See also:

grad(const dvector&)

valgrad(double&, UserVector<double>&, const UserVector<double>&)

add_grad(UserVector<double>&, UserVector<double>&)

add_valgrad(double&, UserVector<double>&, UserVector<double>&)

Implements Func.

Definition at line 234 of file ampl.h.

void amplCon::HessMult	(	dvector &	y,
		const dvector &	x,
		const dvector &	z
	)			const [inline]

Computes the product of a Hessian and a dvector.

Parameters:

	y	The dvector to store the result in.
	x	The dvector to compute the Hessian for.
	z	The dvector to multiply with the Hessian.

Definition at line 258 of file ampl.h.

void amplCon::HessMult	(	UserVector< double > &	y,
		const UserVector< double > &	x,
		const UserVector< double > &	z
	)			const [inline, virtual]

Evaluates the product of the Hessian and a UserVector<double>.

Abstract.

Parameters:

	y	The UserVector<double> to store the result in: .
	x	The UserVector<double> to evaluate the Hessian for.
	z	The UserVector<double> to multiply with the Hessian.

See also:

HessMult(const UserVector<double>&, const UserVector<double>&)

Implements Func.

Definition at line 263 of file ampl.h.

void amplCon::set_curvature

(

CurvatureType

ct

)

[inline, virtual]

Implements Func.

Definition at line 273 of file ampl.h.

CurvatureType amplCon::get_curvature

(

)

const [inline, virtual]

Implements Func.

Definition at line 274 of file ampl.h.

void amplCon::print

(

ostream &

out

)

const [inline, virtual]

Prints some information about this function.

Prints the dimension and constraint-number.

Parameters:

out

The ostream to print to.

Reimplemented from Func.

Definition at line 280 of file ampl.h.

---

Member Data Documentation

fint amplCon::connr [private]

The number of the constraint, this function represents.

Definition at line 173 of file ampl.h.

Pointer<real> amplCon::con_select [private]

Array for Hessain-Multiplication, to select the constraint, which Hessian should be computed.

Definition at line 177 of file ampl.h.

Func::CurvatureType amplCon::curv_type [private]

Definition at line 179 of file ampl.h.

---

The documentation for this class was generated from the following file:

• ampl.h
