SumFunc Class Reference

A function to represent the sum of two functions with optional multiplicators. More...

#include <func.h>

Inheritance diagram for SumFunc:

[legend]

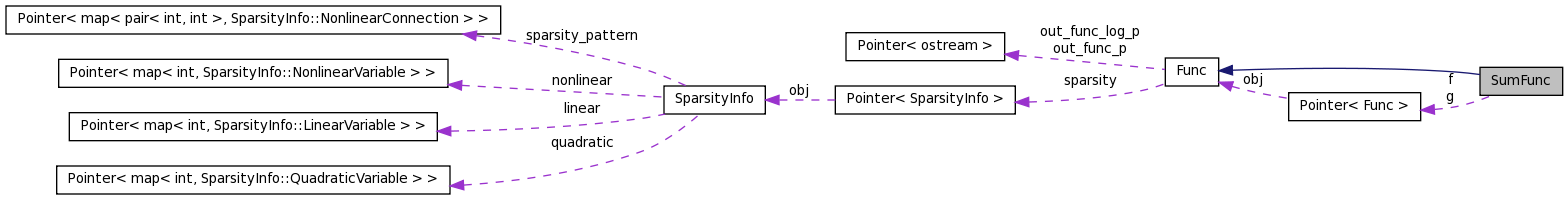

Collaboration diagram for SumFunc:

[legend]

List of all members.

Public Member Functions
	SumFunc (Pointer< Func > f_, Pointer< Func > g_, double a_=1., double b_=1., Pointer< ostream > out_func_p_=out_out_p, Pointer< ostream > out_func_log_p_=out_log_p)
	Constructor for two functions and optional multiplicators.
virtual bool	sparsity_available () const
	To check, whether the sparsity information is set.
virtual const SparsityInfo &	get_sparsity () const
	Gives the sparsity information with read-permissions.
virtual bool	compute_sparsity_pattern (const vector< dvector > &sample_set)
double	eval (const UserVector< double > &x) const
	Evaluates the function.
void	grad (UserVector< double > &y, const UserVector< double > &x) const
	Computes the gradient.
int	valgrad (double &val, UserVector< double > &y, const UserVector< double > &x) const
	Computes the value and the gradient.
void	HessMult (UserVector< double > &y, const UserVector< double > &x, const UserVector< double > &z) const
	Computes the product of the Hessian and a UserVector.
Func::CurvatureType	get_curvature () const
void	set_curvature (Func::CurvatureType ct)
void	print (ostream &out) const
	Prints some information.
Private Member Functions
SparsityInfo &	get_sparsity ()
Private Attributes
Pointer< Func >	f
	First function in sum.
Pointer< Func >	g
	Second function in sum.
double	a
	Multiplicators for the functions.
double	b
Func::CurvatureType	curv_type

---

Detailed Description

A function to represent the sum of two functions with optional multiplicators.

this == a * f(x) + b * g(x), where a and b are double's and f and g are Func's. f or g can also be NULL, but not both.

Definition at line 620 of file func.h.

---

Constructor & Destructor Documentation

SumFunc::SumFunc	(	Pointer< Func >	f_,
		Pointer< Func >	g_,
		double	a_ = 1.,
		double	b_ = 1.,
		Pointer< ostream >	out_func_p_ = out_out_p,
		Pointer< ostream >	out_func_log_p_ = out_log_p
	)			[inline]

Constructor for two functions and optional multiplicators.

Asserts, that f_ or g_ is not NULL.

Parameters:

	f_	The first function.
	g_	The second function.
	a_	The multiplicator for the first function.
	b_	The multiplicator for the second function.

Definition at line 648 of file func.h.

---

Member Function Documentation

SparsityInfo& SumFunc::get_sparsity

(

)

[inline, private, virtual]

Reimplemented from Func.

Definition at line 634 of file func.h.

virtual bool SumFunc::sparsity_available

(

)

const [inline, virtual]

To check, whether the sparsity information is set.

Returns:

True, if sparsity information is available. False, else.

Reimplemented from Func.

Definition at line 657 of file func.h.

virtual const SparsityInfo& SumFunc::get_sparsity

(

)

const [inline, virtual]

Gives the sparsity information with read-permissions.

Reimplemented from Func.

Definition at line 663 of file func.h.

virtual bool SumFunc::compute_sparsity_pattern

(

const vector< dvector > &

sample_set

)

[virtual]

Reimplemented from Func.

double SumFunc::eval

(

const UserVector< double > &

x

)

const [inline, virtual]

Evaluates the function.

Parameters:

x

The vector to evaluate the function for.

Returns:

The value of the function a * f(x) + b * g(x).

See also:

valgrad(double&, UserVector<double>&, UserVector<double>&)

Implements Func.

Definition at line 676 of file func.h.

void SumFunc::grad	(	UserVector< double > &	y,
		const UserVector< double > &	x
	)			const [virtual]

Computes the gradient.

Parameters:

	y	The vector to store the gradient in.
	x	The vector to compute the gradient for.

See also:

valgrad(double&, UserVector<double>&, UserVector<double>&)

Implements Func.

int SumFunc::valgrad	(	double &	val,
		UserVector< double > &	y,
		const UserVector< double > &	x
	)			const [virtual]

Computes the value and the gradient.

Parameters:

	val	A double to store the value in.
	y	A UserVector to store the gradient in.
	x	The UserVector to compute.

See also:

eval(UserVector<double>&)

grad(UserVector<double>&, UserVector<double>&)

Reimplemented from Func.

void SumFunc::HessMult	(	UserVector< double > &	y,
		const UserVector< double > &	x,
		const UserVector< double > &	z
	)			const [virtual]

Computes the product of the Hessian and a UserVector.

Parameters:

	y	The UserVector<double> to store the result in.
	x	The UserVector<double> to compute the Hessian for.
	z	The UserVector<double> to multiply the Hession with.

Implements Func.

Func::CurvatureType SumFunc::get_curvature

(

)

const [inline, virtual]

Implements Func.

Definition at line 719 of file func.h.

void SumFunc::set_curvature

(

Func::CurvatureType

ct

)

[inline, virtual]

Implements Func.

Definition at line 720 of file func.h.

void SumFunc::print

(

ostream &

out

)

const [inline, virtual]

Prints some information.

Prints a, b, f and g.

Parameters:

out

The ostream to print to.

Reimplemented from Func.

Definition at line 726 of file func.h.

---

Member Data Documentation

Pointer<Func> SumFunc::f [private]

First function in sum.

Definition at line 624 of file func.h.

Pointer<Func> SumFunc::g [private]

Second function in sum.

Definition at line 627 of file func.h.

double SumFunc::a [private]

Multiplicators for the functions.

Definition at line 630 of file func.h.

double SumFunc::b [private]

Definition at line 630 of file func.h.

Func::CurvatureType SumFunc::curv_type [private]

Definition at line 632 of file func.h.

---

The documentation for this class was generated from the following file:

• func.h
