SplitFunc Class Reference

Represents a function, which relates only to a subset of the variables of another function. More...

#include <decomp.h>

Inheritance diagram for SplitFunc:

[legend]

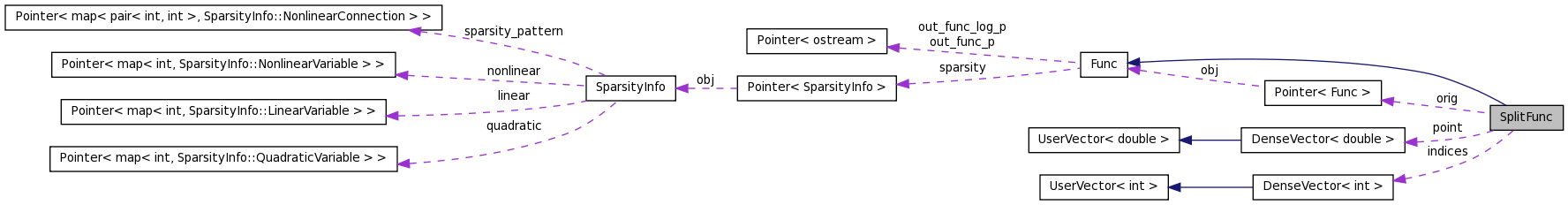

Collaboration diagram for SplitFunc:

[legend]

List of all members.

Public Member Functions
	SplitFunc (const Pointer< Func > &orig_, const ivector &indices_, const dvector &point_, const vector< int > &ignore_=vector< int >(0))
	Constructor.
	SplitFunc (const Pointer< Func > &orig_, const ivector &indices_, const dvector &point_, const set< int > &ignore_, Pointer< SparsityInfo > si=NULL)
void	set_point (const UserVector< double > &x) const
	Sets point to value of x for variables, we represent and don't ignore.
double	eval (const UserVector< double > &x) const
	Computes the value of this function for a UserVector<double>.
void	grad (UserVector< double > &g, const UserVector< double > &x) const
	Computes the (sub)gradient for a UserVector<double>.
void	HessMult (UserVector< double > &y, const UserVector< double > &x, const UserVector< double > &z) const
	Evaluates the product of the Hessian and a UserVector<double>.
virtual void	set_curvature (CurvatureType ct)
virtual CurvatureType	get_curvature () const
void	print (ostream &out) const
	Print's out the dimension.
Public Attributes
vector< bool >	ignore
	Variables, we relate to, but we ignore at evaluation.
Private Attributes
const Pointer< Func >	orig
	Pointer to original function.
ivector	indices
	The indices of the variables of original function, this function relates on.
dvector	point
	A point, we can use to evaluate the original function.
Func::CurvatureType	curv_type

---

Detailed Description

Represents a function, which relates only to a subset of the variables of another function.

Definition at line 108 of file decomp.h.

---

Constructor & Destructor Documentation

SplitFunc::SplitFunc	(	const Pointer< Func > &	orig_,
		const ivector &	indices_,
		const dvector &	point_,
		const vector< int > &	ignore_ = vector<int>(0)
	)			[inline]

Constructor.

Parameters:

	orig_	The original function.
	indices_	The set of indices, for which this function represents the original one.
	point_	The point, where we take the other values from.
	ignore_	Indices of variables (of this function, not the original one) which should be ignored.

Definition at line 135 of file decomp.h.

SplitFunc::SplitFunc	(	const Pointer< Func > &	orig_,
		const ivector &	indices_,
		const dvector &	point_,
		const set< int > &	ignore_,
		Pointer< SparsityInfo >	si = NULL
	)			[inline]

Definition at line 141 of file decomp.h.

---

Member Function Documentation

void SplitFunc::set_point

(

const UserVector< double > &

x

)

const [inline]

Sets point to value of x for variables, we represent and don't ignore.

Parameters:

x

The UserVector to take to values from.

Definition at line 151 of file decomp.h.

double SplitFunc::eval

(

const UserVector< double > &

x

)

const [inline, virtual]

Computes the value of this function for a UserVector<double>.

Abstract.

Parameters:

x

The UserVector<double> to compute the value for.

Returns:

The value this(x) as double.

Implements Func.

Definition at line 156 of file decomp.h.

void SplitFunc::grad	(	UserVector< double > &	g,
		const UserVector< double > &	x
	)			const [inline, virtual]

Computes the (sub)gradient for a UserVector<double>.

Abstract.

Parameters:

	g	The UserVector<double> to store the result in.
	x	The UserVector<double> to compute the gradient for.

See also:

grad(const dvector&)

valgrad(double&, UserVector<double>&, const UserVector<double>&)

add_grad(UserVector<double>&, UserVector<double>&)

add_valgrad(double&, UserVector<double>&, UserVector<double>&)

Implements Func.

Definition at line 162 of file decomp.h.

void SplitFunc::HessMult	(	UserVector< double > &	y,
		const UserVector< double > &	x,
		const UserVector< double > &	z
	)			const [inline, virtual]

Evaluates the product of the Hessian and a UserVector<double>.

Abstract.

Parameters:

	y	The UserVector<double> to store the result in: .
	x	The UserVector<double> to evaluate the Hessian for.
	z	The UserVector<double> to multiply with the Hessian.

See also:

HessMult(const UserVector<double>&, const UserVector<double>&)

Implements Func.

Definition at line 173 of file decomp.h.

virtual void SplitFunc::set_curvature

(

CurvatureType

ct

)

[inline, virtual]

Implements Func.

Definition at line 223 of file decomp.h.

virtual CurvatureType SplitFunc::get_curvature

(

)

const [inline, virtual]

Implements Func.

Definition at line 224 of file decomp.h.

void SplitFunc::print

(

ostream &

out

)

const [virtual]

Print's out the dimension.

Parameters:

out

The ostream to print to.

See also:

dim()

Reimplemented from Func.

---

Member Data Documentation

const Pointer<Func> SplitFunc::orig [private]

Pointer to original function.

Definition at line 112 of file decomp.h.

ivector SplitFunc::indices [private]

The indices of the variables of original function, this function relates on.

Definition at line 116 of file decomp.h.

dvector SplitFunc::point [mutable, private]

A point, we can use to evaluate the original function.

Definition at line 120 of file decomp.h.

Func::CurvatureType SplitFunc::curv_type [private]

Definition at line 122 of file decomp.h.

vector<bool> SplitFunc::ignore

Variables, we relate to, but we ignore at evaluation.

Definition at line 127 of file decomp.h.

---

The documentation for this class was generated from the following file:

• decomp.h
