ShiftMatrix Class Reference

Wrapper class to shift a matrix. More...

#include <usermatrix.h>

Inheritance diagram for ShiftMatrix:

[legend]

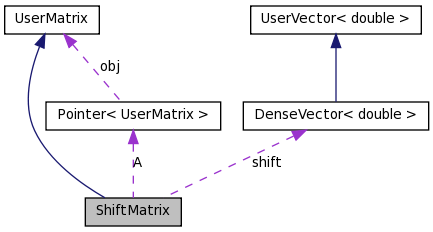

Collaboration diagram for ShiftMatrix:

[legend]

List of all members.

Public Member Functions
	ShiftMatrix (Pointer< UserMatrix > A_, const dvector &shift_)
	Constructor for a UserMatrix and a shift-value.
	ShiftMatrix (int n, const dvector &shift_)
	Constructor for a dimension and a shift-value.
void	MultV (UserVector< double > &y, const UserVector< double > &x) const
	Computes the product of this matrix with a UserVector<double>.
void	MultV (double *y, const double *x) const
	Multiplies the matrix with a double*.
double	yAx (const UserVector< double > &y, const UserVector< double > &x) const
	Multiplies from left and from right with UserVector<double>.
void	print (ostream &out) const
	Prints information about this matrix.
Protected Attributes
Pointer< UserMatrix >	A
	The matrix to shift.
dvector	shift
	The shift-value.

---

Detailed Description

Wrapper class to shift a matrix.

this == *A + diag(shift).

Definition at line 318 of file usermatrix.h.

---

Constructor & Destructor Documentation

ShiftMatrix::ShiftMatrix	(	Pointer< UserMatrix >	A_,
		const dvector &	shift_
	)			[inline]

Constructor for a UserMatrix and a shift-value.

Parameters:

	A_	The UserMatrix to shift.
	shift_	The shift-value.

Definition at line 333 of file usermatrix.h.

ShiftMatrix::ShiftMatrix	(	int	n,
		const dvector &	shift_
	)			[inline]

Constructor for a dimension and a shift-value.

So, this is the matrix diag(shift_).

Parameters:

	n	The dimension.
	shift_	The shift value.

Definition at line 342 of file usermatrix.h.

---

Member Function Documentation

void ShiftMatrix::MultV	(	UserVector< double > &	y,
		const UserVector< double > &	x
	)			const [inline, virtual]

Computes the product of this matrix with a UserVector<double>.

Parameters:

	y	The UserVector<double> to store the result in: y = A*x + diag(shift)*x.
	x	The UserVector<double> to multiply with the matrix.

Implements UserMatrix.

Definition at line 350 of file usermatrix.h.

void ShiftMatrix::MultV	(	double *	y,
		const double *	x
	)			const [inline, virtual]

Multiplies the matrix with a double*.

Parameters:

	y	The double* to store the result in: y = A*x + diag(shift)*x.
	x	The double* to multiply with this matrix.

See also:

MultV(dvector&, const dvector&)

Reimplemented from UserMatrix.

Definition at line 361 of file usermatrix.h.

double ShiftMatrix::yAx	(	const UserVector< double > &	y,
		const UserVector< double > &	x
	)			const [inline, virtual]

Multiplies from left and from right with UserVector<double>.

Parameters:

	y	The UserVector<double> to multiply with from left.
	x	The UserVector<double> to multiply with from right.

Returns:

The double value y*A*x + y*diag(shift)*x.

Reimplemented from UserMatrix.

Definition at line 374 of file usermatrix.h.

void ShiftMatrix::print

(

ostream &

out

)

const [inline, virtual]

Prints information about this matrix.

Prints the shift-value and the wrapped matrix.

Parameters:

out

The ostream to print to.

Reimplemented from UserMatrix.

Definition at line 382 of file usermatrix.h.

---

Member Data Documentation

Pointer<UserMatrix> ShiftMatrix::A [protected]

The matrix to shift.

Definition at line 322 of file usermatrix.h.

dvector ShiftMatrix::shift [protected]

The shift-value.

Definition at line 326 of file usermatrix.h.

---

The documentation for this class was generated from the following file:

• usermatrix.h
