MinusMatrix Class Reference

Wrapper class to multiply a matrix with -1. More...

#include <usermatrix.h>

Inheritance diagram for MinusMatrix:

[legend]

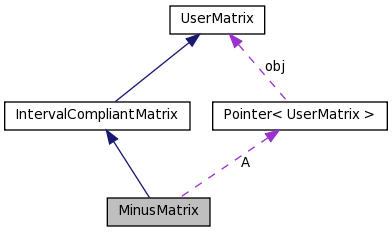

Collaboration diagram for MinusMatrix:

[legend]

List of all members.

Public Member Functions
	MinusMatrix (Pointer< UserMatrix > A_)
	Constructor for a UserMatrix.
void	MultV (UserVector< double > &y, const UserVector< double > &x) const
	Computes the product of this matrix with a dvector.
void	MultV (double *y, const double *x) const
	Multiplies the matrix with a double*.
double	yAx (const UserVector< double > &y, const UserVector< double > &x) const
	Multiplies from left and from right with UserVector<double>'s.
virtual void	MultV (IntervalVector &y, const IntervalVector &x) const
virtual interval< double >	yAx (const IntervalVector &y, const IntervalVector &x) const
void	print (ostream &out) const
	Prints information about this matrix.
Protected Attributes
Pointer< UserMatrix >	A
	The matrix to multiply with -1.

---

Detailed Description

Wrapper class to multiply a matrix with -1.

this == - *A.

Definition at line 391 of file usermatrix.h.

---

Constructor & Destructor Documentation

MinusMatrix::MinusMatrix

(

Pointer< UserMatrix >

A_

)

[inline]

Constructor for a UserMatrix.

Parameters:

A_

The UserMatrix to wrap.

Definition at line 407 of file usermatrix.h.

---

Member Function Documentation

void MinusMatrix::MultV	(	UserVector< double > &	y,
		const UserVector< double > &	x
	)			const [inline, virtual]

Computes the product of this matrix with a dvector.

Parameters:

	y	The dvector to store the result in: y = - A*x.
	x	The dvector to multiply with the matrix.

Implements UserMatrix.

Definition at line 421 of file usermatrix.h.

void MinusMatrix::MultV	(	double *	y,
		const double *	x
	)			const [inline, virtual]

Multiplies the matrix with a double*.

Parameters:

	y	The double* to store the result in.
	x	The double* to multiply with this matrix.

See also:

MultV(dvector&, const dvector&)

Reimplemented from UserMatrix.

Definition at line 431 of file usermatrix.h.

double MinusMatrix::yAx	(	const UserVector< double > &	y,
		const UserVector< double > &	x
	)			const [inline, virtual]

Multiplies from left and from right with UserVector<double>'s.

Parameters:

	y	The UserVector<double> to multiply with from left.
	x	The UserVector<double> to multiply with from right.

Returns:

The double value -y*this*x.

Reimplemented from UserMatrix.

Definition at line 441 of file usermatrix.h.

virtual void MinusMatrix::MultV	(	IntervalVector &	y,
		const IntervalVector &	x
	)			const [inline, virtual]

Implements IntervalCompliantMatrix.

Definition at line 446 of file usermatrix.h.

virtual interval<double> MinusMatrix::yAx	(	const IntervalVector &	y,
		const IntervalVector &	x
	)			const [inline, virtual]

Reimplemented from IntervalCompliantMatrix.

Definition at line 452 of file usermatrix.h.

void MinusMatrix::print

(

ostream &

out

)

const [inline, virtual]

Prints information about this matrix.

Prints the wrapped matrix.

Parameters:

out

The ostream to print to.

Reimplemented from UserMatrix.

Definition at line 464 of file usermatrix.h.

---

Member Data Documentation

Pointer<UserMatrix> MinusMatrix::A [protected]

The matrix to multiply with -1.

Definition at line 401 of file usermatrix.h.

---

The documentation for this class was generated from the following file:

• usermatrix.h
