MINLP::ObjConView< ObjOrCon > Class Template Reference

Inheritance diagram for MINLP::ObjConView< ObjOrCon >:

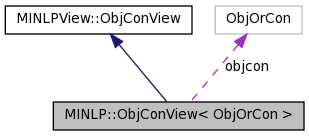

Collaboration diagram for MINLP::ObjConView< ObjOrCon >:

Public Member Functions
	ObjConView (const ObjOrCon &objcon_)
int	dim () const
const string &	name () const
SepQcFunc::ftype	functype () const
Func::CurvatureType	curvature () const
double	evaluate (const UserVector< double > &x) const
	Evaluates the constraint.
void	gradient (UserVector< double > &grad, const UserVector< double > &x) const
	Computes the gradient of the constraint.
double	evaluate_and_gradient (UserVector< double > &grad, const UserVector< double > &x) const
	Evaluates the constraint and computes is gradient.
void	hessianmult (UserVector< double > &prod, const UserVector< double > &x, const UserVector< double > &factor) const
	Computes the product of the hessian with a vector.
Protected Attributes
const ObjOrCon &	objcon

Detailed Description

template<class ObjOrCon>
class MINLP::ObjConView< ObjOrCon >

Definition at line 18 of file MINLP.h.

Constructor & Destructor Documentation

template<class ObjOrCon>

MINLP::ObjConView< ObjOrCon >::ObjConView ( const ObjOrCon & objcon_ ) [inline]

Definition at line 22 of file MINLP.h.

Member Function Documentation

template<class ObjOrCon>

int MINLP::ObjConView< ObjOrCon >::dim ( ) const [inline, virtual]

Implements MINLPView::ObjConView.

Reimplemented in MINLP::ConstraintView, and MINLP::ObjectiveView.

Definition at line 26 of file MINLP.h.

template<class ObjOrCon>

const string& MINLP::ObjConView< ObjOrCon >::name ( ) const [inline, virtual]

Implements MINLPView::ObjConView.

Reimplemented in MINLP::ConstraintView, and MINLP::ObjectiveView.

Definition at line 27 of file MINLP.h.

template<class ObjOrCon>

SepQcFunc::ftype MINLP::ObjConView< ObjOrCon >::functype ( ) const [inline, virtual]

Implements MINLPView::ObjConView.

Reimplemented in MINLP::ConstraintView, and MINLP::ObjectiveView.

Definition at line 28 of file MINLP.h.

template<class ObjOrCon>

Func::CurvatureType MINLP::ObjConView< ObjOrCon >::curvature ( ) const [inline, virtual]

Implements MINLPView::ObjConView.

Reimplemented in MINLP::ConstraintView, and MINLP::ObjectiveView.

Definition at line 29 of file MINLP.h.

template<class ObjOrCon>

double MINLP::ObjConView< ObjOrCon >::evaluate ( const UserVector< double > & x ) const [inline, virtual]

Evaluates the constraint.

TODO: Can throw an evaluation exception.

Parameters:

x

The point where to evaluate the constraint.

Returns:: The value of the constraint in x.

Implements MINLPView::ObjConView.

Reimplemented in MINLP::ConstraintView, and MINLP::ObjectiveView.

Definition at line 31 of file MINLP.h.

template<class ObjOrCon>

void MINLP::ObjConView< ObjOrCon >::gradient	(	UserVector< double > &	grad,
		const UserVector< double > &	x
	)			const `[inline, virtual]`

Computes the gradient of the constraint.

TODO: Can throw an evaluation exception.

Parameters:

	grad	The vector to store the gradient in.
	x	The point where to compute the gradient.

Implements MINLPView::ObjConView.

Reimplemented in MINLP::ConstraintView, and MINLP::ObjectiveView.

Definition at line 35 of file MINLP.h.

template<class ObjOrCon>

double MINLP::ObjConView< ObjOrCon >::evaluate_and_gradient	(	UserVector< double > &	grad,
		const UserVector< double > &	x
	)			const `[inline, virtual]`

Evaluates the constraint and computes is gradient.

TODO: Can throw an evaluation exception.

Parameters:

	grad	The vector where the gradient is stored.
	x	The point where to evaluate the constraint and to compute the gradient.

Returns:: The value of the constraint.

Reimplemented from MINLPView::ObjConView.

Reimplemented in MINLP::ConstraintView, and MINLP::ObjectiveView.

Definition at line 39 of file MINLP.h.

template<class ObjOrCon>

void MINLP::ObjConView< ObjOrCon >::hessianmult	(	UserVector< double > &	prod,
		const UserVector< double > &	x,
		const UserVector< double > &	factor
	)			const `[inline, virtual]`
