HessMatrix Class Reference

Represantation of a Hessian Matrix for a function. More...

#include <func.h>

Inheritance diagram for HessMatrix:

[legend]

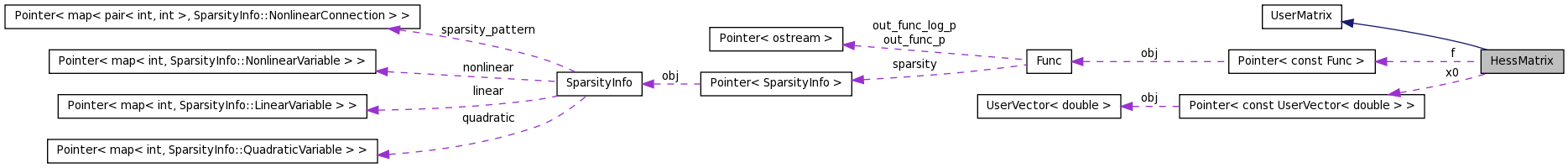

Collaboration diagram for HessMatrix:

[legend]

List of all members.

Public Member Functions
	HessMatrix (Pointer< const Func > f_, Pointer< const UserVector< double > > x0_)
	Constructor for a function and a dvector.
	HessMatrix (const Func &f_, const UserVector< double > &x0_)
void	MultV (UserVector< double > &y, const UserVector< double > &x) const
	Computes the product of the Hessian and a UserVector<double>.
void	print (ostream &out) const
	Prints some information about this matrix.
Protected Attributes
Pointer< const UserVector < double > >	x0
	The UserVector<double> to compute the Hessian for.
Pointer< const Func >	f
	The function to compute the Hessian for.

---

Detailed Description

Represantation of a Hessian Matrix for a function.

So it's like a wrapper-class for Func::HessMult(...)

See also:

Func::HessMult(dvector&, const dvector&, const dvector&)

Definition at line 456 of file func.h.

---

Constructor & Destructor Documentation

HessMatrix::HessMatrix	(	Pointer< const Func >	f_,
		Pointer< const UserVector< double > >	x0_
	)			[inline]

Constructor for a function and a dvector.

Parameters:

	f_	The function, which Hessian should be computed.
	x0_	The UserVector<double> to compute the Hessian of f_ for.

Definition at line 471 of file func.h.

HessMatrix::HessMatrix	(	const Func &	f_,
		const UserVector< double > &	x0_
	)			[inline]

Definition at line 475 of file func.h.

---

Member Function Documentation

void HessMatrix::MultV	(	UserVector< double > &	y,
		const UserVector< double > &	x
	)			const [inline, virtual]

Computes the product of the Hessian and a UserVector<double>.

Parameters:

	y	The UserVector<double> to store the result in: .
	x	The UserVector<double> to multiply with the Hessian.

See also:

Func::HessMult(dvector&, const dvector&, const dvector&)

Implements UserMatrix.

Definition at line 484 of file func.h.

void HessMatrix::print

(

ostream &

out

)

const [inline, virtual]

Prints some information about this matrix.

Prints the dvector x0 and the function.

Parameters:

out

The ostream to print to.

Reimplemented from UserMatrix.

Definition at line 494 of file func.h.

---

Member Data Documentation

Pointer<const UserVector<double> > HessMatrix::x0 [protected]

The UserVector<double> to compute the Hessian for.

Definition at line 460 of file func.h.

Pointer<const Func> HessMatrix::f [protected]

The function to compute the Hessian for.

Definition at line 464 of file func.h.

---

The documentation for this class was generated from the following file:

• func.h
