DiagMatrix Class Reference

A diagonal matrix. More...

#include <usermatrix.h>

Inheritance diagram for DiagMatrix:

[legend]

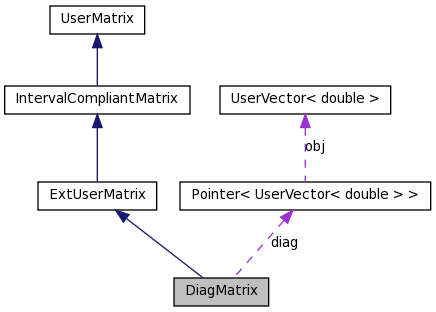

Collaboration diagram for DiagMatrix:

[legend]

List of all members.

Public Member Functions
	DiagMatrix (Pointer< UserVector< double > > b_)
	Constructor for a Pointer to a UserVector<double>.
void	MultV (UserVector< double > &y, const UserVector< double > &x) const
	Computes the diagonal-multiplication of this matrix with a UserVector<double>.
void	MultV (IntervalVector &y, const IntervalVector &x) const
double	yAx (const UserVector< double > &y, const UserVector< double > &x) const
	Multiplies this matrix form left and right with UserVector<double>'s.
double	operator() (int row, int col) const
	Operator to read one element of the matrix.
void	print (ostream &out) const
	Print's out information about this matrix.
Public Attributes
bool	one
	Indicates, whether the matrix is an unitary-matrix.
Pointer< UserVector< double > >	diag
	A Pointer to the diagonal elements.

---

Detailed Description

A diagonal matrix.

Definition at line 581 of file usermatrix.h.

---

Constructor & Destructor Documentation

DiagMatrix::DiagMatrix

(

Pointer< UserVector< double > >

b_

)

[inline]

Constructor for a Pointer to a UserVector<double>.

Sets the Pointer to the diagonal elements to the given Pointer.

Parameters:

b

The diagonal elements.

Definition at line 595 of file usermatrix.h.

---

Member Function Documentation

void DiagMatrix::MultV	(	UserVector< double > &	y,
		const UserVector< double > &	x
	)			const [inline, virtual]

Computes the diagonal-multiplication of this matrix with a UserVector<double>.

Parameters:

	y	The UserVector<double> to store the result in: y=diag.diagmult(x)
	x	The UserVector<double> to multiply with.

Implements UserMatrix.

Definition at line 603 of file usermatrix.h.

void DiagMatrix::MultV	(	IntervalVector &	y,
		const IntervalVector &	x
	)			const [inline, virtual]

Implements IntervalCompliantMatrix.

Definition at line 610 of file usermatrix.h.

double DiagMatrix::yAx	(	const UserVector< double > &	y,
		const UserVector< double > &	x
	)			const [inline, virtual]

Multiplies this matrix form left and right with UserVector<double>'s.

Parameters:

	y	The UserVector<double> to multiply with from left.
	x	The UserVector<double> to multiply with from right.

Returns:

The result x*this*y.

Reimplemented from UserMatrix.

Definition at line 627 of file usermatrix.h.

double DiagMatrix::operator()	(	int	row,
		int	col
	)			const [inline, virtual]

Operator to read one element of the matrix.

Abstract.

Parameters:

	row	The row of the element to read.
	col	The col of the element to read.

Returns:

The element at index (row, col).

Implements ExtUserMatrix.

Definition at line 640 of file usermatrix.h.

void DiagMatrix::print

(

ostream &

out

)

const [inline, virtual]

Print's out information about this matrix.

Print's the dimension and the diagonal elements.

Parameters:

out

The ostream to print to.

Reimplemented from UserMatrix.

Definition at line 651 of file usermatrix.h.

---

Member Data Documentation

bool DiagMatrix::one

Indicates, whether the matrix is an unitary-matrix.

Definition at line 585 of file usermatrix.h.

Pointer<UserVector<double> > DiagMatrix::diag

A Pointer to the diagonal elements.

Definition at line 589 of file usermatrix.h.

---

The documentation for this class was generated from the following file:

• usermatrix.h
