Ipopt::RestoFilterConvergenceCheck Class Reference

This is the implementation of the restoration convergence check is the original algorithm used the filter globalization mechanism. More...

#include <IpRestoFilterConvCheck.hpp>

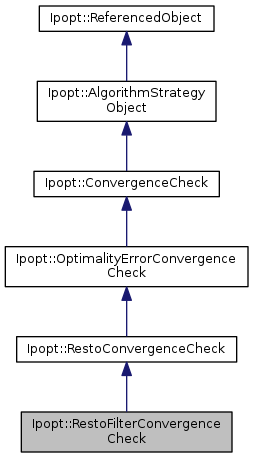

+ Inheritance diagram for Ipopt::RestoFilterConvergenceCheck:

Public Member Functions

void SetOrigLSAcceptor (const BacktrackingLSAcceptor &orig_ls_acceptor)
 Set the object for the original filter line search. More...

virtual bool InitializeImpl (const OptionsList &options, const std::string &prefix)
 overloaded from AlgorithmStrategyObject More...

Constructors/Destructors
 RestoFilterConvergenceCheck ()
 Default Constructor. More...

virtual ~RestoFilterConvergenceCheck ()
 Default destructor. More...

- Public Member Functions inherited from Ipopt::RestoConvergenceCheck
virtual ConvergenceStatus CheckConvergence (bool call_intermediate_callback=true)
 overloaded from ConvergenceCheck More...

 RestoConvergenceCheck ()
 Default Constructor. More...

virtual ~RestoConvergenceCheck ()
 Default destructor. More...

- Public Member Functions inherited from Ipopt::OptimalityErrorConvergenceCheck
virtual bool CurrentIsAcceptable ()
 Auxilliary function for testing whether current iterate satisfies the acceptable level of optimality. More...

 OptimalityErrorConvergenceCheck ()
 Default Constructor. More...

virtual ~OptimalityErrorConvergenceCheck ()
 Default destructor. More...

- Public Member Functions inherited from Ipopt::ConvergenceCheck
 ConvergenceCheck ()
 Constructor. More...

virtual ~ConvergenceCheck ()
 Default destructor. More...

- Public Member Functions inherited from Ipopt::AlgorithmStrategyObject
bool Initialize (const Journalist &jnlst, IpoptNLP &ip_nlp, IpoptData &ip_data, IpoptCalculatedQuantities &ip_cq, const OptionsList &options, const std::string &prefix)
 This method is called every time the algorithm starts again - it is used to reset any internal state. More...

bool ReducedInitialize (const Journalist &jnlst, const OptionsList &options, const std::string &prefix)
 Reduced version of the Initialize method, which does not require special Ipopt information. More...

 AlgorithmStrategyObject ()
 Default Constructor. More...

virtual ~AlgorithmStrategyObject ()
 Default Destructor. More...

- Public Member Functions inherited from Ipopt::ReferencedObject
 ReferencedObject ()

virtual ~ReferencedObject ()

Index ReferenceCount () const

void AddRef (const Referencer *referencer) const

void ReleaseRef (const Referencer *referencer) const


Static Public Member Functions

static void RegisterOptions (SmartPtr< RegisteredOptions > roptions)
 Methods used by IpoptType. More...

- Static Public Member Functions inherited from Ipopt::RestoConvergenceCheck
static void RegisterOptions (SmartPtr< RegisteredOptions > roptions)
 Methods used by IpoptType. More...

- Static Public Member Functions inherited from Ipopt::OptimalityErrorConvergenceCheck
static void RegisterOptions (SmartPtr< RegisteredOptions > roptions)
 Methods for IpoptType. More...


Private Member Functions

virtual ConvergenceStatus TestOrigProgress (Number orig_trial_barr, Number orig_trial_theta)
 Method for checking progress with original filter globalization mechanism. More...

Default Compiler Generated Methods (Hidden to avoid

implicit creation/calling).

These methods are not implemented and we do not want the compiler to implement them for us, so we declare them private and do not define them. This ensures that they will not be implicitly created/called.

 RestoFilterConvergenceCheck (const RestoFilterConvergenceCheck &)
 Copy Constructor. More...

void operator= (const RestoFilterConvergenceCheck &)
 Overloaded Equals Operator. More...


Private Attributes

const FilterLSAcceptororig_filter_ls_acceptor_
 Strategy object for the filter line search method for the original NLP. More...


Additional Inherited Members

- Public Types inherited from Ipopt::ConvergenceCheck
enum  ConvergenceStatus {
  CONTINUE, CONVERGED, CONVERGED_TO_ACCEPTABLE_POINT, MAXITER_EXCEEDED,
  CPUTIME_EXCEEDED, DIVERGING, USER_STOP, FAILED
}
 Convergence return enum. More...

- Protected Member Functions inherited from Ipopt::AlgorithmStrategyObject
const JournalistJnlst () const

IpoptNLPIpNLP () const

IpoptDataIpData () const

IpoptCalculatedQuantitiesIpCq () const

bool HaveIpData () const

- Protected Attributes inherited from Ipopt::OptimalityErrorConvergenceCheck
Index max_iterations_
 Maximal number of iterations. More...

Number dual_inf_tol_
 Tolerance on unscaled dual infeasibility. More...

Number constr_viol_tol_
 Tolerance on unscaled constraint violation. More...

Number compl_inf_tol_
 Tolerance on unscaled complementarity. More...

Index acceptable_iter_
 Number of iterations with acceptable level of accuracy, after which the algorithm terminates. More...

Number acceptable_tol_
 Acceptable tolerance for the problem to terminate earlier if algorithm seems stuck or cycling. More...

Number acceptable_dual_inf_tol_
 Acceptable tolerance on unscaled dual infeasibility. More...

Number acceptable_constr_viol_tol_
 Acceptable tolerance on unscaled constraint violation. More...

Number acceptable_compl_inf_tol_
 Acceptable tolerance on unscaled complementarity. More...

Number acceptable_obj_change_tol_
 Acceptable tolerance for relative objective function change from iteratoin to iteration. More...

Number diverging_iterates_tol_
 Threshold for primal iterates for divergence test. More...

Number mu_target_
 Desired value of the barrier parameter. More...

Number max_cpu_time_
 Upper bound on CPU time. More...


Detailed Description

This is the implementation of the restoration convergence check is the original algorithm used the filter globalization mechanism.

Definition at line 24 of file IpRestoFilterConvCheck.hpp.

Constructor & Destructor Documentation

Ipopt::RestoFilterConvergenceCheck::RestoFilterConvergenceCheck ( )

Default Constructor.

virtual Ipopt::RestoFilterConvergenceCheck::~RestoFilterConvergenceCheck ( )
virtual

Default destructor.

Ipopt::RestoFilterConvergenceCheck::RestoFilterConvergenceCheck ( const RestoFilterConvergenceCheck )
private

Copy Constructor.

Member Function Documentation

void Ipopt::RestoFilterConvergenceCheck::SetOrigLSAcceptor ( const BacktrackingLSAcceptor orig_ls_acceptor)
virtual

Set the object for the original filter line search.

Here, orig_filter_ls_acceptor must be the same strategy object to which the restoration phase object with this object is given. This method must be called to finish the definition of the algorithm, before Initialize is called.

Implements Ipopt::RestoConvergenceCheck.

virtual bool Ipopt::RestoFilterConvergenceCheck::InitializeImpl ( const OptionsList options,
const std::string &  prefix
)
virtual

overloaded from AlgorithmStrategyObject

Reimplemented from Ipopt::RestoConvergenceCheck.

static void Ipopt::RestoFilterConvergenceCheck::RegisterOptions ( SmartPtr< RegisteredOptions roptions)
static

Methods used by IpoptType.

void Ipopt::RestoFilterConvergenceCheck::operator= ( const RestoFilterConvergenceCheck )
private

Overloaded Equals Operator.

virtual ConvergenceStatus Ipopt::RestoFilterConvergenceCheck::TestOrigProgress ( Number  orig_trial_barr,
Number  orig_trial_theta
)
privatevirtual

Method for checking progress with original filter globalization mechanism.

Overloaded from RestoConvergenceCheck.

Implements Ipopt::RestoConvergenceCheck.

Member Data Documentation

const FilterLSAcceptor* Ipopt::RestoFilterConvergenceCheck::orig_filter_ls_acceptor_
private

Strategy object for the filter line search method for the original NLP.

CAREFUL: We must not hold on to this object with a SmartPtr, because have otherwise circular references that prevent the destructor of the line search object to be called!

Definition at line 77 of file IpRestoFilterConvCheck.hpp.


The documentation for this class was generated from the following file:
