Symantic representation of a variable.This is one of the main public interface classes. It should be directly declared by clients of the FlopC++. The parametersof construction are MP_set s which specify the indexes over which the variable is defined. More...

#include <MP_variable.hpp>

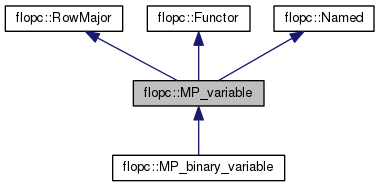

Inheritance diagram for flopc::MP_variable:

[legend]

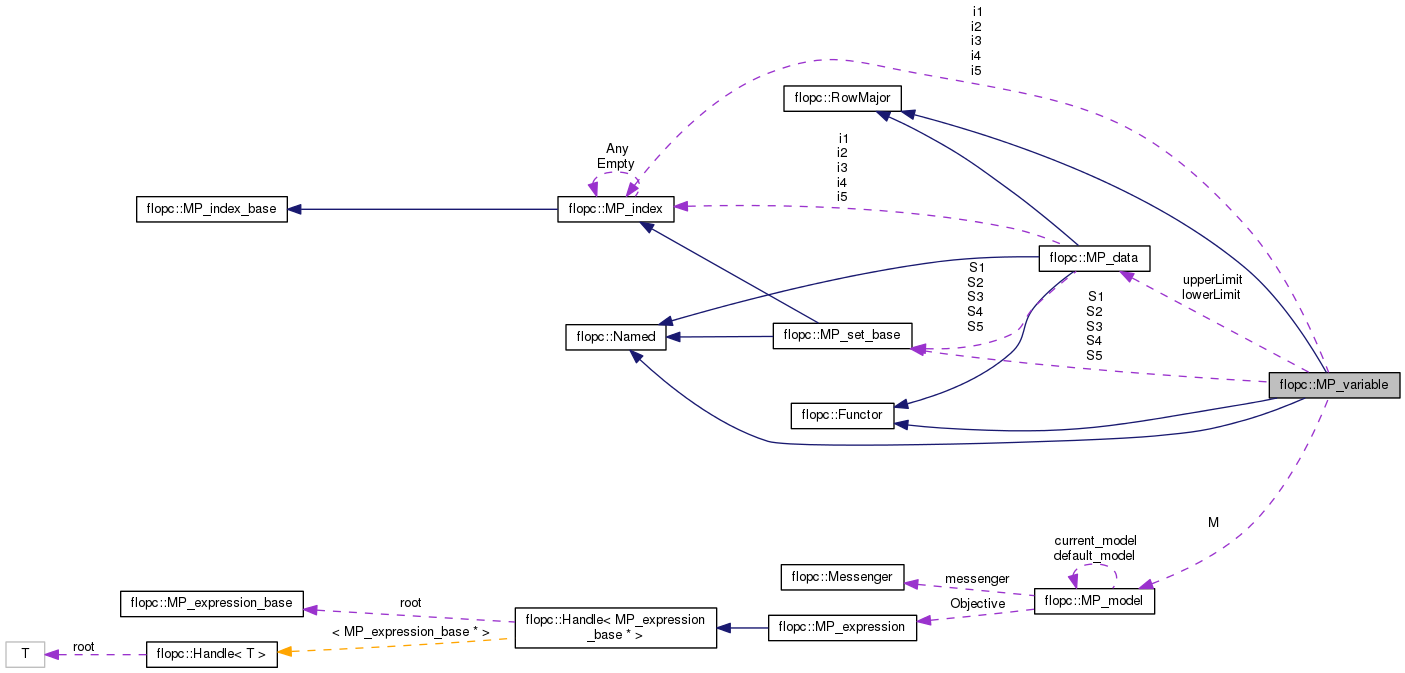

Collaboration diagram for flopc::MP_variable:

[legend]

Public Member Functions
	MP_variable (const MP_set_base &s1=MP_set::getEmpty(), const MP_set_base &s2=MP_set::getEmpty(), const MP_set_base &s3=MP_set::getEmpty(), const MP_set_base &s4=MP_set::getEmpty(), const MP_set_base &s5=MP_set::getEmpty())

void	display (const std::string &s="")

	~MP_variable ()

double	level (int i1=0, int i2=0, int i3=0, int i4=0, int i5=0)
	Returns the value of the variable given the specific index values. More...

const VariableRef &	operator() (const MP_index_exp &d1=MP_index_exp::getEmpty(), const MP_index_exp &d2=MP_index_exp::getEmpty(), const MP_index_exp &d3=MP_index_exp::getEmpty(), const MP_index_exp &d4=MP_index_exp::getEmpty(), const MP_index_exp &d5=MP_index_exp::getEmpty())
	Interal use only. More...

void	binary ()
	Call this method to turn the variable into a binary variable. More...

void	integer ()
	Call this method to turn the MP_variable into an integer variable. More...

Public Member Functions inherited from flopc::RowMajor
int	size () const

Public Member Functions inherited from flopc::Named
std::string	getName () const

void	setName (const std::string &n)

Public Attributes
MP_data	upperLimit
	Upper bound on the variable value. More...

MP_data	lowerLimit
	Lower bound on the variable value. More...

Private Member Functions
void	operator() () const

Private Attributes
const MP_set_base *	S1

const MP_set_base *	S2

const MP_set_base *	S3

const MP_set_base *	S4

const MP_set_base *	S5

MP_index	i1

MP_index	i2

MP_index	i3

MP_index	i4

MP_index	i5

MP_model *	M

variableType	type

int	offset

Friends
class	MP_model

class	DisplayVariable

class	VariableRef

Additional Inherited Members
Protected Member Functions inherited from flopc::RowMajor
	RowMajor (int s1, int s2, int s3, int s4, int s5)

int	f (int i1=0, int i2=0, int i3=0, int i4=0, int i5=0) const

Protected Member Functions inherited from flopc::Functor
	Functor ()

virtual	~Functor ()

Protected Attributes inherited from flopc::RowMajor
int	size1

int	size2

int	size3

int	size4

int	size5

int	size_

Detailed Description

Symantic representation of a variable.

This is one of the main public interface classes. It should be directly declared by clients of the FlopC++. The parametersof construction are MP_set s which specify the indexes over which the variable is defined.

Definition at line 75 of file MP_variable.hpp.

Constructor & Destructor Documentation

MP_variable::MP_variable	(	const MP_set_base &	s1 = `MP_set::getEmpty()`,
		const MP_set_base &	s2 = `MP_set::getEmpty()`,
		const MP_set_base &	s3 = `MP_set::getEmpty()`,
		const MP_set_base &	s4 = `MP_set::getEmpty()`,
		const MP_set_base &	s5 = `MP_set::getEmpty()`
	)

Definition at line 64 of file MP_variable.cpp.

References flopc::continuous, flopc::MP_model::getDefaultModel(), flopc::MP_data::initialize(), lowerLimit, type, and upperLimit.

flopc::MP_variable::~MP_variable ( )

inline

Definition at line 88 of file MP_variable.hpp.

Member Function Documentation

void flopc::MP_variable::binary ( )

inline

Call this method to turn the variable into a binary variable.

Definition at line 108 of file MP_variable.hpp.

References flopc::discrete, flopc::MP_data::initialize(), type, and upperLimit.

Referenced by flopc::MP_binary_variable::MP_binary_variable().

void MP_variable::display ( const std::string & s = "" )

Definition at line 98 of file MP_variable.cpp.

References i1, i2, i3, i4, i5, offset, S2, S3, S4, and S5.

void flopc::MP_variable::integer ( )

inline

Call this method to turn the MP_variable into an integer variable.

Definition at line 114 of file MP_variable.hpp.

References flopc::discrete, and type.

double MP_variable::level	(	int	i1 = `0`,
		int	i2 = `0`,
		int	i3 = `0`,
		int	i4 = `0`,
		int	i5 = `0`
	)

Returns the value of the variable given the specific index values.

Definition at line 80 of file MP_variable.cpp.

References flopc::RowMajor::f(), M, offset, and flopc::MP_model::solution.

const VariableRef& flopc::MP_variable::operator()	(	const MP_index_exp &	d1 = `MP_index_exp::getEmpty()`,
		const MP_index_exp &	d2 = `MP_index_exp::getEmpty()`,
		const MP_index_exp &	d3 = `MP_index_exp::getEmpty()`,
		const MP_index_exp &	d4 = `MP_index_exp::getEmpty()`,
		const MP_index_exp &	d5 = `MP_index_exp::getEmpty()`
	)
