This is the anchor point for all constructs in a FlopC++ model.The constructors take an OsiSolverInterface, and (optionally) a replacemente for the Messenger class. There are some built-in changes to the verbosity for output.
The main methods to use are: More...

#include <MP_model.hpp>

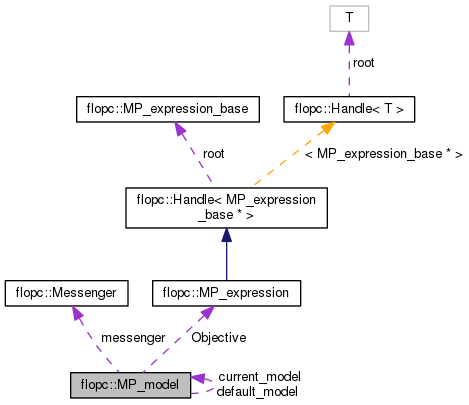

Collaboration diagram for flopc::MP_model:

[legend]

Public Types
enum	MP_direction { MINIMIZE =1, MAXIMIZE =-1 }
	used when calling the solve() method. More...

enum	MP_status { OPTIMAL, PRIMAL_INFEASIBLE, DUAL_INFEASIBLE, ABANDONED, SOLVER_ONLY, ATTACHED, DETACHED }
	Reflects the state of the solution from solve() More...

Public Member Functions
	MP_model (OsiSolverInterface s, Messenger m=new NormalMessenger)
	Constructs an MP_model from an OsiSolverInterface *. More...

	~MP_model ()

MP_status	getStatus () const
	Returns the current status of the model-solver interaction. This method will return the current understanding of the model in regard to the solver's state. More...

void	silent ()
	used to silence FlopC++ More...

void	verbose ()
	used to help understanding and debugging FlopC++'s behavior. More...

void	setSolver (OsiSolverInterface *s)
	allows for replacement of the solver used. More...

OsiSolverInterface *	operator-> ()
	allows access to the OsiSolverInterface * More...

MP_model &	add (MP_constraint &c)
	Adds a constrataint block to the model. More...

void	maximize ()

void	maximize (const MP_expression &obj)

void	minimize ()

void	minimize (const MP_expression &obj)

void	minimize_max (MP_set &d, const MP_expression &obj)

void	setObjective (const MP_expression &o)
	sets the "current objective" to the parameter o More...

void	attach (OsiSolverInterface *solver=NULL)
	attaches the symantic representation of a model and data to a particular OsiSolverInterface More...

void	detach ()
	detaches an OsiSolverInterface object from the model. In essence, this will clean up any intermediate storage. A model may then be attached to another solverInterface. More...

MP_model::MP_status	solve (const MP_model::MP_direction &dir)

double	getInfinity () const

void	add (MP_variable *v)
	Adds a variable to the MP_model. More...

void	addRow (const Constraint &c)
	Adds a constraint to the MP_model. More...

Messenger *	getMessenger ()

Static Public Member Functions
static MP_model &	getDefaultModel ()

static MP_model *	getCurrentModel ()

Public Attributes
const double *	solution

const double *	reducedCost

const double *	rowPrice

const double *	rowActivity

OsiSolverInterface *	Solver

Private Types
typedef std::set< MP_variable * > ::iterator	varIt

typedef std::set < MP_constraint * >::iterator	conIt

Private Member Functions
	MP_model (const MP_model &)

MP_model &	operator= (const MP_model &)

void	add (MP_constraint *c)

Static Private Member Functions
static void	assemble (std::vector< Coef > &v, std::vector< Coef > &av)

Private Attributes
Messenger *	messenger

MP_expression	Objective

std::set< MP_constraint * >	Constraints

std::set< MP_variable * >	Variables

int	m

int	n

int	nz

int *	Cst

int *	Clg

int *	Rnr

double *	Elm

double *	bl

double *	bu

double *	c

double *	l

double *	u

MP_status	mSolverState

Static Private Attributes
static MP_model &	default_model = *new MP_model(0)

static MP_model *	current_model = &MP_model::default_model

Friends
class	MP_constraint

Detailed Description

This is the anchor point for all constructs in a FlopC++ model.

The constructors take an OsiSolverInterface, and (optionally) a replacemente for the Messenger class. There are some built-in changes to the verbosity for output.
The main methods to use are:

add(MP_constraint & c)
add(MP_variable* v)
maximize() and minimize()
The main ideas are to construct a model, construct domains where things are defined over, then construct variables, constraints, and add them in. Finally, one attaches data and the model is "complete". Then minimize is called, the model is attached and the OsiSolverInterface is called.
Note
There are variations on adding objectives and maximize/minimize

See Also
verbose()

silent().

Messenger

Definition at line 89 of file MP_model.hpp.

Member Typedef Documentation

typedef std::set<MP_constraint* >::iterator flopc::MP_model::conIt

private

Definition at line 240 of file MP_model.hpp.

typedef std::set<MP_variable* >::iterator flopc::MP_model::varIt

private

Definition at line 239 of file MP_model.hpp.

Member Enumeration Documentation

enum flopc::MP_model::MP_direction

used when calling the solve() method.

Enumerator
MINIMIZE
MAXIMIZE

Definition at line 93 of file MP_model.hpp.

enum flopc::MP_model::MP_status

Reflects the state of the solution from solve()

Enumerator
OPTIMAL	if the solve method is called and the optimal solution found.
PRIMAL_INFEASIBLE	if solve is called and solver finds model primal infeasible.
DUAL_INFEASIBLE	if solve is called and solver finds the model dual infeasible.
ABANDONED	if solve is called and solver abandons the problem (time?, iter limit?)
SOLVER_ONLY	A solver is placed in the constructor, but it is not yet attached or solved.
ATTACHED	A solver is attached, but not yet solved.
DETACHED	No solver is attached.

Definition at line 97 of file MP_model.hpp.

Constructor & Destructor Documentation

MP_model::MP_model	(	OsiSolverInterface *	s,
		Messenger *	m = `new NormalMessenger`
	)

Constructs an MP_model from an OsiSolverInterface *.

Definition at line 61 of file MP_model.cpp.

References current_model.

flopc::MP_model::~MP_model ( )

inline

Definition at line 119 of file MP_model.hpp.

References messenger.

flopc::MP_model::MP_model ( const MP_model & )

private

Member Function Documentation

MP_model & MP_model::add ( MP_constraint & c )

Adds a constrataint block to the model.

Definition at line 68 of file MP_model.cpp.

References Constraints.

Referenced by attach(), minimize_max(), and flopc::MP_constraint::MP_constraint().

void MP_model::add ( MP_variable * v )

Adds a variable to the MP_model.

Definition at line 87 of file MP_model.cpp.

References flopc::MP_variable::M, n, flopc::MP_variable::offset, and flopc::RowMajor::size().

void MP_model::add ( MP_constraint * c )

private

Definition at line 73 of file MP_model.cpp.

References flopc::MP_constraint::M, m, flopc::MP_constraint::offset, and flopc::RowMajor::size().

void MP_model::addRow ( const Constraint & c )

Adds a constraint to the MP_model.

Definition at line 93 of file MP_model.cpp.

References flopc::EQ, flopc::GE, flopc::MP_domain::getEmpty(), flopc::LE, flopc::Constraint::left, flopc::Constraint::right, flopc::Constraint::sense, and Solver.

void MP_model::assemble	(	std::vector< Coef > &	v,
		std::vector< Coef > &	av
	)

staticprivate

Definition at line 159 of file MP_model.cpp.

References c.

Referenced by attach().

void MP_model::attach ( OsiSolverInterface * solver = NULL )

attaches the symantic representation of a model and data to a particular OsiSolverInterface

Note: this is called as a part of minimize(), maximize(), and minimize_max(); This takes the symantic representation of the model, generates coefficients for the matrices and adds them into the OsiSolverInterface. The OsiSolverInterface may be specified at construction time, or as late as the call to attach()

Definition at line 219 of file MP_model.cpp.

References add(), assemble(), ATTACHED, bl, bu, c, Clg, flopc::Messenger::constraintDebug(), Constraints, Cst, detach(), DETACHED, flopc::discrete, Elm, flopc::EQ, flopc::GE, flopc::Messenger::generationTime(), flopc::MP_domain::getEmpty(), l, flopc::LE, m, messenger, mSolverState, n, nz, Objective, flopc::Messenger::objectiveDebug(), Rnr, Solver, flopc::Messenger::statistics(), u, and Variables.

Referenced by maximize(), and minimize().

void MP_model::detach ( )

detaches an OsiSolverInterface object from the model. In essence, this will clean up any intermediate storage. A model may then be attached to another solverInterface.

Note: a solver may only be attached to one solver at a time

Todo:: verify that on "attach", old solver is detached.

Todo:: strip all data out of the solver.

Definition at line 412 of file MP_model.cpp.

References DETACHED, mSolverState, and Solver.

Referenced by attach().

MP_model * MP_model::getCurrentModel ( )

static

Can be used to get the current model

Todo:: explain the default and current model concepts.

Definition at line 26 of file MP_model.cpp.

Referenced by flopc::MP_domain_base::display().

MP_model & MP_model::getDefaultModel ( )

static

Can be used to get the default model

Todo:: explain the default and current model concepts.

Definition at line 25 of file MP_model.cpp.

Referenced by flopc::maximize(), flopc::minimize(), flopc::minimize_max(), and flopc::MP_variable::MP_variable().

double MP_model::getInfinity ( ) const

Useful for getting an appropriate value to pass in as "infinity"

Note: some solvers may be more or less sensitive to the value.

Definition at line 79 of file MP_model.cpp.

References Solver.

Messenger* flopc::MP_model::getMessenger ( )

inline

Gets the current messenger.

Definition at line 235 of file MP_model.hpp.

References messenger.

Referenced by flopc::MP_domain_base::display().

MP_status flopc::MP_model::getStatus ( ) const

inline

Returns the current status of the model-solver interaction. This method will return the current understanding of the model in regard to the solver's state.

Note: It is not kept up to date if a call is made directly to the solver. Only if the MP_model interface is used.

See Also: MP_status

Definition at line 130 of file MP_model.hpp.

References mSolverState.

void MP_model::maximize ( )

Binds the data and calls the solver to maximize the current objective expression

Definition at line 181 of file MP_model.cpp.

References attach(), MAXIMIZE, solve(), and Solver.

Referenced by flopc::maximize().

void MP_model::maximize ( const MP_expression & obj )

Binds the data and calls the solver to maximize the parameter obj objective expression

Definition at line 190 of file MP_model.cpp.

References attach(), MAXIMIZE, Objective, solve(), and Solver.

void MP_model::minimize ( )

Binds the data and calls the solver to minimize the current objective expression

Definition at line 200 of file MP_model.cpp.

References attach(), MINIMIZE, solve(), and Solver.

Referenced by flopc::minimize(), and minimize_max().

void MP_model::minimize ( const MP_expression & obj )

Binds the data and calls the solver to minimize the parameter obj objective expression

Definition at line 209 of file MP_model.cpp.

References attach(), MINIMIZE, Objective, solve(), and Solver.

void MP_model::minimize_max	(	MP_set &	d,
		const MP_expression &	obj
	)

Binds the data and calls the solver to minimize maximum value of the parameter obj objective expression

Definition at line 137 of file MP_model.cpp.

References add(), and minimize().

Referenced by flopc::minimize_max().

OsiSolverInterface* flopc::MP_model::operator-> ( )

inline

allows access to the OsiSolverInterface *

Definition at line 150 of file MP_model.hpp.

References Solver.

MP_model& flopc::MP_model::operator= ( const MP_model & )

private

void MP_model::setObjective ( const MP_expression & o )

sets the "current objective" to the parameter o

Definition at line 133 of file MP_model.cpp.

References Objective.

void flopc::MP_model::setSolver ( OsiSolverInterface * s )

inline

allows for replacement of the solver used.

Definition at line 145 of file MP_model.hpp.

References Solver.

void flopc::MP_model::silent ( )

inline

used to silence FlopC++

Definition at line 134 of file MP_model.hpp.

References messenger.

MP_model::MP_status MP_model::solve ( const MP_model::MP_direction & dir )

calls the appropriate solving methods in the OsiSolverInterface.

Note: this is called as a part of minimize(), maximize(), and minimize_max() It expects that the object function is already set and only the direction is to be specified.

Todo:: should the direction be defaulted?

Definition at line 420 of file MP_model.cpp.

References ABANDONED, DETACHED, flopc::discrete, DUAL_INFEASIBLE, mSolverState, OPTIMAL, PRIMAL_INFEASIBLE, reducedCost, rowActivity, rowPrice, solution, Solver, SOLVER_ONLY, and Variables.

Referenced by maximize(), and minimize().

void flopc::MP_model::verbose ( )

inline

used to help understanding and debugging FlopC++'s behavior.

Definition at line 139 of file MP_model.hpp.

References messenger.

Friends And Related Function Documentation

friend class MP_constraint

friend

Definition at line 90 of file MP_model.hpp.

Member Data Documentation

double* flopc::MP_model::bl

private

Definition at line 265 of file MP_model.hpp.

Referenced by attach(), and flopc::MP_constraint::display().

double* flopc::MP_model::bu

private

Definition at line 266 of file MP_model.hpp.

Referenced by attach(), and flopc::MP_constraint::display().

double* flopc::MP_model::c

private

Definition at line 267 of file MP_model.hpp.

Referenced by assemble(), and attach().

int* flopc::MP_model::Clg

private

Definition at line 262 of file MP_model.hpp.

Referenced by attach().

std::set<MP_constraint *> flopc::MP_model::Constraints

private

Definition at line 252 of file MP_model.hpp.

Referenced by add(), and attach().

int* flopc::MP_model::Cst

private

Definition at line 261 of file MP_model.hpp.

Referenced by attach().

MP_model * MP_model::current_model = &MP_model::default_model

staticprivate

Definition at line 242 of file MP_model.hpp.

Referenced by flopc::MP_constraint::MP_constraint(), and MP_model().

MP_model & MP_model::default_model = *new MP_model(0)

staticprivate

Definition at line 241 of file MP_model.hpp.

double* flopc::MP_model::Elm

private

Definition at line 264 of file MP_model.hpp.

Referenced by attach().

double* flopc::MP_model::l

private

Definition at line 268 of file MP_model.hpp.

Referenced by attach().

int flopc::MP_model::m

private

Definition at line 258 of file MP_model.hpp.

Referenced by add(), and attach().

Messenger* flopc::MP_model::messenger

private

Definition at line 246 of file MP_model.hpp.

Referenced by attach(), getMessenger(), silent(), verbose(), and ~MP_model().

MP_status flopc::MP_model::mSolverState

private

Definition at line 270 of file MP_model.hpp.

Referenced by attach(), detach(), getStatus(), and solve().

int flopc::MP_model::n

private

Definition at line 259 of file MP_model.hpp.

Referenced by add(), and attach().

int flopc::MP_model::nz

private

Definition at line 260 of file MP_model.hpp.

Referenced by attach().

MP_expression flopc::MP_model::Objective

private

Definition at line 251 of file MP_model.hpp.

Referenced by attach(), maximize(), minimize(), and setObjective().

const double* flopc::MP_model::reducedCost

Definition at line 212 of file MP_model.hpp.

Referenced by solve().

int* flopc::MP_model::Rnr

private

Definition at line 263 of file MP_model.hpp.

Referenced by attach().

const double* flopc::MP_model::rowActivity

Definition at line 214 of file MP_model.hpp.

Referenced by flopc::MP_constraint::display(), and solve().

const double* flopc::MP_model::rowPrice

Definition at line 213 of file MP_model.hpp.

Referenced by flopc::MP_constraint::display(), and solve().

const double* flopc::MP_model::solution

Accessors for the results after a call to maximize()/minimize()

Todo:

should these be private with accessors? What if not set yet?

what if not a complete result? What if only one LP in the IP?

Definition at line 211 of file MP_model.hpp.

Referenced by flopc::VariableRef::level(), flopc::MP_variable::level(), flopc::MP_variable::operator()(), and solve().

OsiSolverInterface* flopc::MP_model::Solver

Todo:: should this be private?

Definition at line 256 of file MP_model.hpp.

Referenced by addRow(), attach(), detach(), getInfinity(), maximize(), minimize(), operator->(), setSolver(), and solve().

double* flopc::MP_model::u

private

Definition at line 269 of file MP_model.hpp.

Referenced by attach().

std::set<MP_variable *> flopc::MP_model::Variables

private

Definition at line 253 of file MP_model.hpp.

Referenced by attach(), and solve().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
