This class contains the data pertaining to a particular subtree in the search tree. More...

#include <AlpsSubTree.h>

Inheritance diagram for AlpsSubTree:

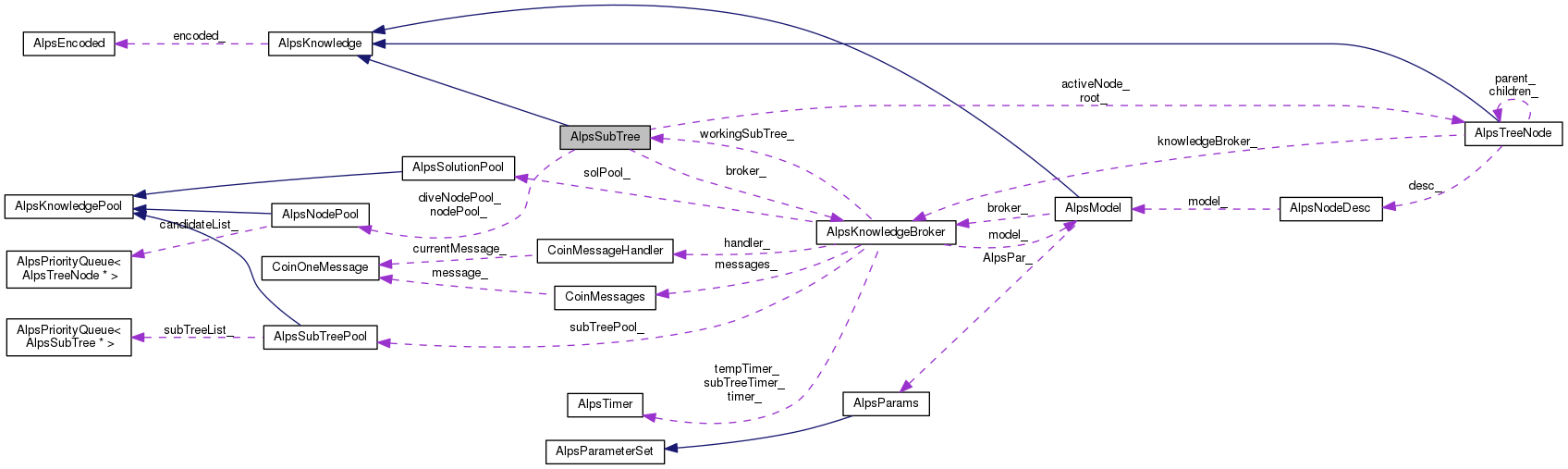

Collaboration diagram for AlpsSubTree:

Public Member Functions
	AlpsSubTree ()
	Default constructor. More...

	AlpsSubTree (AlpsKnowledgeBroker *kb)
	Useful constructor. More...

virtual	~AlpsSubTree ()
	Destructor. More...

AlpsTreeNode *	activeNode ()
	Get pointer to active node. More...

void	setActiveNode (AlpsTreeNode *activeNode)
	Set pointer to active node. More...

void	createChildren (AlpsTreeNode parent, std::vector< CoinTriple< AlpsNodeDesc , AlpsNodeStatus, double > > &children, AlpsNodePool *kidNodePool=NULL)
	Create children nodes from the given parent node. More...

AlpsSubTree *	splitSubTree (int &returnSize, int size=10)
	The function split the subtree and return a subtree of the specified size or available size. More...

virtual AlpsReturnStatus	exploreSubTree (AlpsTreeNode *root, int nodeLimit, double timeLimit, int &numNodesProcessed, int &numNodesBranched, int &numNodesDiscarded, int &numNodesPartial, int &depth)
	Explore the subtree from `root` as the root of the subtree for given number of nodes or time, depending on which one reach first. More...

AlpsReturnStatus	exploreUnitWork (bool leaveAsIt, int unitWork, double unitTime, AlpsExitStatus &solStatus, int &numNodesProcessed, int &numNodesBranched, int &numNodesDiscarded, int &numNodesPartial, int &depth, bool &betterSolution)
	Explore the subtree for certain amount of work/time. More...

virtual int	rampUp (int minNumNodes, int requiredNumNodes, int &depth, AlpsTreeNode *root=NULL)
	Generate required number (specified by a parameter) of nodes. More...

virtual AlpsEncoded *	encode () const
	This method should encode the content of the subtree and return a pointer to the encoded form. More...

virtual AlpsKnowledge *	decode (AlpsEncoded &encoded) const
	This method should decode and return a pointer to a brand new object, i.e., the method must create a new object on the heap from the decoded data instead of filling up the object for which the method was invoked. More...

virtual AlpsSubTree *	newSubTree () const
	Create a AlpsSubtree object dynamically. More...

void	clearNodePools ()
	Remove nodes in pools in the subtree. More...

void	nullRootActiveNode ()
	Set root and active node to null. More...

bool	doDive ()
	Check whether we should keep diving or not. More...

void	reset ()
	Move nodes in node pool, null active node. More...

query and set member functions
AlpsTreeNode *	getRoot () const
	Get the root node of this subtree. More...

void	setRoot (AlpsTreeNode *r)
	Set the root node of this subtree. More...

AlpsNodePool *	nodePool ()
	Access the node pool. More...

AlpsNodePool *	diveNodePool ()
	Access the node pool. More...

void	setNodePool (AlpsNodePool *np)
	Set node pool. More...

void	changeNodePool (AlpsNodePool *np)
	Set node pool. More...

double	getBestKnowledgeValue () const
	Get the quality of the best node in the subtree. More...

AlpsTreeNode *	getBestNode () const
	Get the "best" node in the subtree. More...

AlpsKnowledgeBroker *	getKnowledgeBroker () const
	Get the knowledge broker. More...

void	setKnowledgeBroker (AlpsKnowledgeBroker *kb)
	Set a pointer to the knowledge broker. More...

double	getQuality () const
	Get the quality of this subtree. More...

double	getSolEstimate () const
	Get the emtimated quality of this subtree. More...

double	calculateQuality ()
	Calcuate and return the quality of this subtree, which is measured by the quality of the specified number of nodes. More...

int	nextIndex ()
	Get the root node of this subtree. More...

int	getNextIndex () const
	Get the index of the next generated node. More...

void	setNextIndex (int next)
	Set the index of the next generated node. More...

int	getNumNodes () const
	Return the number of nodes on this subtree. More...

void	setNodeSelection (AlpsSearchStrategy< AlpsTreeNode * > *nc)
	Set the node comparision rule. More...

Public Member Functions inherited from AlpsKnowledge
	AlpsKnowledge ()

virtual	~AlpsKnowledge ()

KnowledgeType	getType ()

void	setType (KnowledgeType t)

virtual AlpsReturnStatus	encode (AlpsEncoded *encoded)
	Pack into a encode object. More...

AlpsEncoded *	getEncoded () const
	Get/set encoded. More...

void	setEncoded (AlpsEncoded *e)

Protected Member Functions
void	removeDeadNodes (AlpsTreeNode *&node)
	The purpose of this method is to remove nodes that are not needed in the description of the subtree. More...

void	replaceNode (AlpsTreeNode oldNode, AlpsTreeNode newNode)
	This function replaces `oldNode` with `newNode` in the tree. More...

void	fathomAllNodes ()
	Fathom all nodes on this subtree. More...

Protected Attributes
AlpsTreeNode *	root_
	The root of the sub tree. More...

AlpsNodePool *	nodePool_
	A node pool containing the leaf nodes awaiting processing. More...

AlpsNodePool *	diveNodePool_
	A node pool used when diving. More...

AlpsSearchStrategy < AlpsTreeNode * > *	diveNodeRule_
	Diving node comparing rule. More...

AlpsTreeNode *	activeNode_
	The next index to be assigned to a new search tree node. More...

double	quality_
	A quantity indicating how good this subtree is. More...

AlpsKnowledgeBroker *	broker_
	A pointer to the knowledge broker of the process where this subtree is processed. More...

Protected Attributes inherited from AlpsKnowledge
KnowledgeType	type_

Detailed Description

This class contains the data pertaining to a particular subtree in the search tree.

In order to improve scalability, we will try to deal with entire subtrees as much as possible. They will be the basic unit of work that will be passed between processes.

Definition at line 47 of file AlpsSubTree.h.

Constructor & Destructor Documentation

AlpsSubTree::AlpsSubTree ( )

Default constructor.

AlpsSubTree::AlpsSubTree ( AlpsKnowledgeBroker * kb )

Useful constructor.

virtual AlpsSubTree::~AlpsSubTree ( )

virtual

Destructor.

Member Function Documentation

void AlpsSubTree::removeDeadNodes ( AlpsTreeNode *& node )

protected

The purpose of this method is to remove nodes that are not needed in the description of the subtree.

The argument node must have status fathomed. First, the argument node is removed, and then the parent is examined to determine whether it has any children left. If it has none, then this function is called recursively on the parent. This removes all nodes that are no longer needed.

void AlpsSubTree::replaceNode	(	AlpsTreeNode *	oldNode,
		AlpsTreeNode *	newNode
	)

protected

This function replaces oldNode with newNode in the tree.

void AlpsSubTree::fathomAllNodes ( )

protected

Fathom all nodes on this subtree.

Set activeNode_ and root_ to NULL.

AlpsTreeNode* AlpsSubTree::activeNode ( )

inline

Get pointer to active node.

Definition at line 110 of file AlpsSubTree.h.

void AlpsSubTree::setActiveNode ( AlpsTreeNode * activeNode )

inline

Set pointer to active node.

Definition at line 113 of file AlpsSubTree.h.

void AlpsSubTree::createChildren	(	AlpsTreeNode *	parent,
		std::vector< CoinTriple< AlpsNodeDesc *, AlpsNodeStatus, double > > &	children,
		AlpsNodePool *	kidNodePool = `NULL`
	)

Create children nodes from the given parent node.

AlpsTreeNode* AlpsSubTree::getRoot ( ) const

inline

Get the root node of this subtree.

Definition at line 126 of file AlpsSubTree.h.

void AlpsSubTree::setRoot ( AlpsTreeNode * r )

inline

Set the root node of this subtree.

Definition at line 129 of file AlpsSubTree.h.

AlpsNodePool* AlpsSubTree::nodePool ( )

inline

Access the node pool.

Definition at line 132 of file AlpsSubTree.h.

AlpsNodePool* AlpsSubTree::diveNodePool ( )

inline

Access the node pool.

Definition at line 135 of file AlpsSubTree.h.

void AlpsSubTree::setNodePool ( AlpsNodePool * np )

inline

Set node pool.

Delete previous node pool and nodes in pool if exit.

Definition at line 138 of file AlpsSubTree.h.

void AlpsSubTree::changeNodePool ( AlpsNodePool * np )

inline

Set node pool.

Delete previous node pool, but not the nodes in pool.

Definition at line 147 of file AlpsSubTree.h.

double AlpsSubTree::getBestKnowledgeValue ( ) const

Get the quality of the best node in the subtree.

AlpsTreeNode* AlpsSubTree::getBestNode ( ) const

Get the "best" node in the subtree.

AlpsKnowledgeBroker* AlpsSubTree::getKnowledgeBroker ( ) const

inline

Get the knowledge broker.

Definition at line 166 of file AlpsSubTree.h.

void AlpsSubTree::setKnowledgeBroker ( AlpsKnowledgeBroker * kb )

inline

Set a pointer to the knowledge broker.

Definition at line 169 of file AlpsSubTree.h.

double AlpsSubTree::getQuality ( ) const

inline

Get the quality of this subtree.

Definition at line 175 of file AlpsSubTree.h.

double AlpsSubTree::getSolEstimate ( ) const

inline

Get the emtimated quality of this subtree.

Definition at line 178 of file AlpsSubTree.h.

double AlpsSubTree::calculateQuality ( )

Calcuate and return the quality of this subtree, which is measured by the quality of the specified number of nodes.

int AlpsSubTree::nextIndex ( )

Get the root node of this subtree.

int AlpsSubTree::getNextIndex ( ) const

Get the index of the next generated node.

void AlpsSubTree::setNextIndex ( int next )

Set the index of the next generated node.

int AlpsSubTree::getNumNodes ( ) const

inline

Return the number of nodes on this subtree.

Definition at line 202 of file AlpsSubTree.h.

void AlpsSubTree::setNodeSelection ( AlpsSearchStrategy< AlpsTreeNode * > * nc )

inline

Set the node comparision rule.

Definition at line 216 of file AlpsSubTree.h.

AlpsSubTree* AlpsSubTree::splitSubTree	(	int &	returnSize,
		int	size = `10`
	)

The function split the subtree and return a subtree of the specified size or available size.

virtual AlpsReturnStatus AlpsSubTree::exploreSubTree	(	AlpsTreeNode *	root,
		int	nodeLimit,
		double	timeLimit,
		int &	numNodesProcessed,
		int &	numNodesBranched,
		int &	numNodesDiscarded,
		int &	numNodesPartial,
		int &	depth
	)

virtual

Explore the subtree from root as the root of the subtree for given number of nodes or time, depending on which one reach first.

Only for serial code.

AlpsReturnStatus AlpsSubTree::exploreUnitWork	(	bool	leaveAsIt,
		int	unitWork,
		double	unitTime,
		AlpsExitStatus &	solStatus,
		int &	numNodesProcessed,
		int &	numNodesBranched,
		int &	numNodesDiscarded,
		int &	numNodesPartial,
		int &	depth,
		bool &	betterSolution
	)

Explore the subtree for certain amount of work/time.

leaveAsIt means exit immediately after reseach limits: do not put activeNode_ in pool, do not move nodes in divePool_ in regular pool.

virtual int AlpsSubTree::rampUp	(	int	minNumNodes,
		int	requiredNumNodes,
		int &	depth,
		AlpsTreeNode *	root = `NULL`
	)

virtual

Generate required number (specified by a parameter) of nodes.

This function is used by master and hubs.

virtual AlpsEncoded* AlpsSubTree::encode ( ) const

virtual

This method should encode the content of the subtree and return a pointer to the encoded form.

Only parallel code need this function.

Reimplemented from AlpsKnowledge.

virtual AlpsKnowledge* AlpsSubTree::decode ( AlpsEncoded & encoded ) const

virtual

This method should decode and return a pointer to a brand new object, i.e., the method must create a new object on the heap from the decoded data instead of filling up the object for which the method was invoked.

Only parallel code need this function.

Reimplemented from AlpsKnowledge.

virtual AlpsSubTree* AlpsSubTree::newSubTree ( ) const

inlinevirtual

Create a AlpsSubtree object dynamically.

Only parallel code need this function.

Definition at line 273 of file AlpsSubTree.h.

void AlpsSubTree::clearNodePools ( )

inline

Remove nodes in pools in the subtree.

Do not free memory.

Definition at line 278 of file AlpsSubTree.h.

void AlpsSubTree::nullRootActiveNode ( )

inline

Set root and active node to null.

Definition at line 288 of file AlpsSubTree.h.

bool AlpsSubTree::doDive ( )

inline

Check whether we should keep diving or not.

Definition at line 294 of file AlpsSubTree.h.

void AlpsSubTree::reset ( )

inline

Move nodes in node pool, null active node.

Definition at line 299 of file AlpsSubTree.h.

Member Data Documentation

AlpsTreeNode* AlpsSubTree::root_

protected

The root of the sub tree.

Definition at line 52 of file AlpsSubTree.h.

AlpsNodePool* AlpsSubTree::nodePool_

protected

A node pool containing the leaf nodes awaiting processing.

Definition at line 55 of file AlpsSubTree.h.

AlpsNodePool* AlpsSubTree::diveNodePool_

protected

A node pool used when diving.

Definition at line 58 of file AlpsSubTree.h.

AlpsSearchStrategy<AlpsTreeNode*>* AlpsSubTree::diveNodeRule_

protected

Diving node comparing rule.

Definition at line 61 of file AlpsSubTree.h.

AlpsTreeNode* AlpsSubTree::activeNode_

protected

The next index to be assigned to a new search tree node.

This is the node that is currently being processed. Note that since this is the worker, there is only one.

Definition at line 68 of file AlpsSubTree.h.

double AlpsSubTree::quality_

protected

A quantity indicating how good this subtree is.

Definition at line 71 of file AlpsSubTree.h.

AlpsKnowledgeBroker* AlpsSubTree::broker_

protected

A pointer to the knowledge broker of the process where this subtree is processed.

Definition at line 76 of file AlpsSubTree.h.

The documentation for this class was generated from the following file:

/tmp/CHiPPS-Alps-1.5.6/Alps/src/AlpsSubTree.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
