The base class of knowledge broker class. More...

#include <AlpsKnowledgeBroker.h>

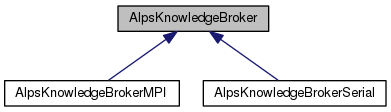

Inheritance diagram for AlpsKnowledgeBroker:

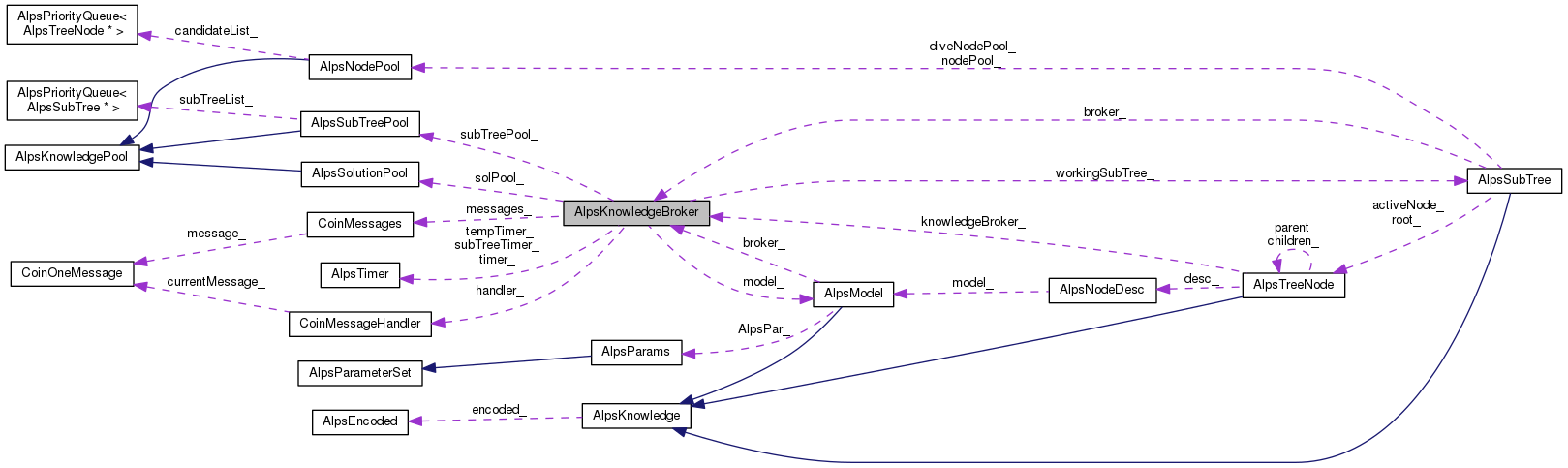

Collaboration diagram for AlpsKnowledgeBroker:

Public Member Functions
	AlpsKnowledgeBroker ()
	Default constructor. More...

virtual	~AlpsKnowledgeBroker ()
	Destructor. More...

int	getTreeDepth ()
	Get tree depth. More...

void	setPeakMemory (double size)
	Set peak memory usage. More...

double	getPeakMemory ()
	Get peak memory usage. More...

int	getLargeSize () const

virtual int	getProcRank () const
	Qeury the global rank of process. More...

virtual int	getMasterRank () const
	Query the global rank of the Master. More...

virtual AlpsProcessType	getProcType () const
	Query the type (master, hub, or worker) of the process. More...

Funcitons related to register knowledge.
void	registerClass (int name, AlpsKnowledge *userKnowledge)
	Every user derived knowledge class must register. More...

const AlpsKnowledge *	decoderObject (int name)
	This method returns the pointer to an empty object of the registered class `name`. More...

Funcitons related to exploring subtree.
virtual void	initializeSearch (int argc, char *argv[], AlpsModel &model)=0
	Do some initialization for search. More...

virtual void	rootSearch (AlpsTreeNode *root)=0
	Explore the tree rooted as the given root. More...

virtual void	search (AlpsModel *model)
	Search best solution for a given model. More...

Get/set phase.
AlpsPhase	getPhase ()

void	setPhase (AlpsPhase ph)

AlpsModel *	getModel ()

void	setModel (AlpsModel *m)

Interface with the knowledge pools
void	setupKnowledgePools ()
	Set up knowledge pools for this broker. More...

void	addKnowledgePool (AlpsKnowledgeType kt, AlpsKnowledgePool *kp)
	Add a knowledge pool into the Knowledge pools. More...

AlpsKnowledgePool *	getKnowledgePool (AlpsKnowledgeType kt) const
	Retrieve a knowledge pool in the Knowledge base. More...

virtual int	getNumKnowledges (AlpsKnowledgeType kt) const
	Query the number of knowledge in the given type of a knowledge pool. More...

virtual int	getMaxNumKnowledges (AlpsKnowledgeType kt) const
	Query the max number of knowledge can be stored in a given type of knowledge pools. More...

virtual void	setMaxNumKnowledges (AlpsKnowledgeType kt, int num)
	Set the max number of knowledge can be stored in a given type o fknowledge pools. More...

virtual bool	hasKnowledge (AlpsKnowledgeType kt) const
	Query whether there are knowledges in the given type of knowledge pools. More...

virtual std::pair < AlpsKnowledge *, double >	getKnowledge (AlpsKnowledgeType kt) const
	Get a knowledge, but doesn't remove it from the pool. More...

virtual void	popKnowledge (AlpsKnowledgeType kt)
	Remove the a knowledge from the given type of knowledge pools. More...

virtual std::pair < AlpsKnowledge *, double >	getBestKnowledge (AlpsKnowledgeType kt) const
	Get the best knowledge in the given type of knowledge pools. More...

virtual void	getAllKnowledges (AlpsKnowledgeType kt, std::vector< std::pair< AlpsKnowledge *, double > > &kls) const
	Get all knowledges in the given type of knowledge pools. More...

virtual void	addKnowledge (AlpsKnowledgeType kt, AlpsKnowledge *kl, double value)
	Add a knowledge in the given type of knowledge pools. More...

Querty and set statistics
int	getNumNodesProcessed () const
	Query the number of node processed by this process. More...

int	getNumNodesBranched () const
	Query the number of node processed by this process. More...

int	getNumNodesDiscarded () const
	Query the number of node processed by this process. More...

int	getNumNodesPartial () const
	Query the number of node in the queue that are pregnant. More...

int	getNumNodesProcessedSystem () const
	Query the number of node processed by the system. More...

virtual int	updateNumNodesLeft ()
	Update the number of left nodes on this process. More...

virtual AlpsTreeNode *	getBestNode () const
	Query the best node in the subtree pool. More...

AlpsExitStatus	getSolStatus () const
	Query search termination status. More...

void	setExitStatus (AlpsExitStatus status)
	Set terminate status. More...

AlpsTimer &	timer ()
	Query timer. More...

AlpsTimer &	subTreeTimer ()
	Query subtree timer. More...

AlpsTimer &	tempTimer ()
	Query secondary timer. More...

virtual void	searchLog ()=0
	Search statistics log. More...

Query and set the approximate memory size of a tree node
int	getNodeMemSize ()

void	setNodeMemSize (int ms)

Query and set the approximate node processing time
double	getNodeProcessingTime ()

void	setNodeProcessingTime (double npTime)

Report the best result
virtual double	getIncumbentValue () const =0
	The process queries the objective value of the incumbent that it stores. More...

virtual double	getBestQuality () const =0
	The process (serial) / the master (parallel) queries the quality of the best solution that it knows. More...

virtual double	getBestEstimateQuality ()
	Get best estimalted quality in system. More...

virtual int	getNumNodeLeftSystem ()
	The process queries the objective value of the incumbent that it stores. More...

virtual void	printBestSolution (char *outputFile=0) const =0
	The process (serial) / the master (parallel) outputs the best solution that it knows to a file or std::out. More...

Query and set node index
AlpsNodeIndex_t	nextNodeIndex ()
	Query the next index assigned to a newly created node, and then increment the nextIndex_ by 1. More...

AlpsNodeIndex_t	getNextNodeIndex () const
	Query the next index assigned to a newly created node. More...

void	setNextNodeIndex (AlpsNodeIndex_t s)
	Set nextIndex_. More...

AlpsNodeIndex_t	getMaxNodeIndex () const
	Queriy the upper bound of node indices. More...

void	setMaxNodeIndex (AlpsNodeIndex_t s)
	Set the upper bound of node indices. More...

Query and set comparision
AlpsSearchStrategy < AlpsSubTree * > *	getSubTreeSelection () const

void	setSubTreeSelection (AlpsSearchStrategy< AlpsSubTree * > *tc)

AlpsSearchStrategy < AlpsTreeNode * > *	getNodeSelection () const

void	setNodeSelection (AlpsSearchStrategy< AlpsTreeNode * > *nc)

AlpsSearchStrategy < AlpsTreeNode * > *	getRampUpNodeSelection () const

void	setRampUpNodeSelection (AlpsSearchStrategy< AlpsTreeNode * > *nc)

Message and log file handling
void	passInMessageHandler (CoinMessageHandler *handler)
	Pass in Message handler (not deleted at end). More...

void	newLanguage (CoinMessages::Language language)
	Set language. More...

void	setLanguage (CoinMessages::Language language)
	Pass in Message handler (not deleted at end). More...

CoinMessageHandler *	messageHandler () const
	Return handler. More...

CoinMessages	messages ()
	Return messages. More...

CoinMessages *	messagesPointer ()
	Return pointer to messages. More...

int	getMsgLevel ()
	Return msg level. More...

int	getHubMsgLevel ()
	Return msg level. More...

int	getMasterMsgLevel ()
	Return msg level. More...

int	getlogFileLevel ()
	Return log file level. More...

int	getNumNodeLog () const
	Get times that node log has been printed. More...

void	setNumNodeLog (int num)
	Get times that node log has been printed. More...

Protected Attributes
std::string	instanceName_
	The instance name. More...

AlpsModel *	model_
	Pointer to model. More...

AlpsPhase	phase_
	Alps phase. More...

int	nodeMemSize_
	The approximate memory size (bytes) of a node with full description. More...

double	nodeProcessingTime_
	The approximately CPU time to process a node. More...

int	largeSize_
	The size of largest message buffer can be sent or received. More...

bool	userBalancePeriod_
	Has user input balance period. More...

int	numNodeLog_
	Times that node log is printed. More...

knowledge pools
AlpsSubTreePool *	subTreePool_
	A subtree pool holding a collection of subtrees. More...

AlpsSolutionPool *	solPool_
	A solution pool containing the solutions found. More...

std::map< AlpsKnowledgeType, AlpsKnowledgePool * > *	pools_
	The collection of pools managed by the knowledge broker. More...

Exploring subtree
AlpsSubTree *	workingSubTree_
	Point to the subtree that being explored. More...

bool	needWorkingSubTree_
	Indicate whether need a new subtree. More...

AlpsNodeIndex_t	nextIndex_
	The index to be assigned to a new search tree node. More...

AlpsNodeIndex_t	maxIndex_
	The maximum index can been assigned on this process. More...

Statistics
AlpsTimer	timer_
	Main timer. More...

AlpsTimer	subTreeTimer_
	Subtree timer. More...

AlpsTimer	tempTimer_
	Secondary timer. More...

int	solNum_
	The number of solutions found. More...

int	nodeProcessedNum_
	The number of nodes that have been processed. More...

int	nodeBranchedNum_
	The number of nodes that have been branched. More...

int	nodeDiscardedNum_
	The number of nodes that have been discarded before processing. More...

int	nodePartialNum_
	The number of nodes that are pregnant. More...

int	systemNodeProcessed_
	To record how many nodes processed by the system (used in parallel code). More...

int	nodeLeftNum_
	The number of nodes left. More...

int	treeDepth_
	The depth of the tree. More...

int	bestSolNode_
	The number of nodes pocessed to find the solution. More...

double	peakMemory_
	Peak memory usage. More...

AlpsExitStatus	exitStatus_
	The status of search when terminated. More...

Search strategy
AlpsSearchStrategy < AlpsSubTree * > *	treeSelection_
	Tree selection criterion. More...

AlpsSearchStrategy < AlpsTreeNode * > *	nodeSelection_
	Node selection criterion. More...

AlpsSearchStrategy < AlpsTreeNode * > *	rampUpNodeSelection_
	Node selection criterion. More...

message handling
CoinMessageHandler *	handler_
	Message handler. More...

CoinMessages	messages_
	Alps messages. More...

int	msgLevel_
	The leve of printing message to screen of the master and general message. More...

int	hubMsgLevel_
	The leve of printing message to screen of hubs. More...

int	workerMsgLevel_
	The leve of printing message to screen of workers. More...

int	logFileLevel_
	The degree of log file. More...

std::string	logfile_
	The log file. More...

Private Member Functions
	AlpsKnowledgeBroker (const AlpsKnowledgeBroker &)

AlpsKnowledgeBroker &	operator= (const AlpsKnowledgeBroker &)

Private Attributes
std::map< int, AlpsKnowledge * >	decodeMap_
	Stores registered knowledge. More...

Detailed Description

The base class of knowledge broker class.

Definition at line 48 of file AlpsKnowledgeBroker.h.

Constructor & Destructor Documentation

AlpsKnowledgeBroker::AlpsKnowledgeBroker ( const AlpsKnowledgeBroker & )

private

AlpsKnowledgeBroker::AlpsKnowledgeBroker ( )

Default constructor.

virtual AlpsKnowledgeBroker::~AlpsKnowledgeBroker ( )

virtual

Destructor.

Member Function Documentation

AlpsKnowledgeBroker& AlpsKnowledgeBroker::operator= ( const AlpsKnowledgeBroker & )

private

void AlpsKnowledgeBroker::registerClass	(	int	name,
		AlpsKnowledge *	userKnowledge
	)

inline

Every user derived knowledge class must register.

The register methods register the decode method of the class so that later on we can decode objects from buffers. Invoking this registration for class foo is a single line:
foo().registerClass(name, userKnowledge). NOTE: take over user knowledge's memory ownership, user doesn't need free memory.

Definition at line 230 of file AlpsKnowledgeBroker.h.

const AlpsKnowledge* AlpsKnowledgeBroker::decoderObject ( int name )

inline

This method returns the pointer to an empty object of the registered class name.

Then the decode() method of that object can be used to decode a new object of the same type from the buffer. This method will be invoked as follows to decode an object whose type is name:
obj = AlpsKnowledge::decoderObject(name)->decode(buf)

Definition at line 253 of file AlpsKnowledgeBroker.h.

virtual void AlpsKnowledgeBroker::initializeSearch	(	int	argc,
		char *	argv[],
		AlpsModel &	model
	)

pure virtual

Do some initialization for search.

Implemented in AlpsKnowledgeBrokerMPI, and AlpsKnowledgeBrokerSerial.

virtual void AlpsKnowledgeBroker::rootSearch ( AlpsTreeNode * root )

pure virtual

Explore the tree rooted as the given root.

Implemented in AlpsKnowledgeBrokerMPI, and AlpsKnowledgeBrokerSerial.

virtual void AlpsKnowledgeBroker::search ( AlpsModel * model )

inlinevirtual

Search best solution for a given model.

Reimplemented in AlpsKnowledgeBrokerMPI.

Definition at line 273 of file AlpsKnowledgeBroker.h.

AlpsPhase AlpsKnowledgeBroker::getPhase ( )

inline

Definition at line 285 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setPhase ( AlpsPhase ph )

inline

Definition at line 286 of file AlpsKnowledgeBroker.h.

AlpsModel* AlpsKnowledgeBroker::getModel ( )

inline

Definition at line 290 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setModel ( AlpsModel * m )

inline

Definition at line 291 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::getTreeDepth ( )

inline

Get tree depth.

Definition at line 295 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setPeakMemory ( double size )

inline

Set peak memory usage.

Definition at line 298 of file AlpsKnowledgeBroker.h.

double AlpsKnowledgeBroker::getPeakMemory ( )

inline

Get peak memory usage.

Definition at line 301 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setupKnowledgePools ( )

Set up knowledge pools for this broker.

void AlpsKnowledgeBroker::addKnowledgePool	(	AlpsKnowledgeType	kt,
		AlpsKnowledgePool *	kp
	)

inline

Add a knowledge pool into the Knowledge pools.

Definition at line 311 of file AlpsKnowledgeBroker.h.

AlpsKnowledgePool* AlpsKnowledgeBroker::getKnowledgePool ( AlpsKnowledgeType kt ) const

inline

Retrieve a knowledge pool in the Knowledge base.

Definition at line 324 of file AlpsKnowledgeBroker.h.

virtual int AlpsKnowledgeBroker::getNumKnowledges ( AlpsKnowledgeType kt ) const

virtual

Query the number of knowledge in the given type of a knowledge pool.

virtual int AlpsKnowledgeBroker::getMaxNumKnowledges ( AlpsKnowledgeType kt ) const

inlinevirtual

Query the max number of knowledge can be stored in a given type of knowledge pools.

Definition at line 339 of file AlpsKnowledgeBroker.h.

virtual void AlpsKnowledgeBroker::setMaxNumKnowledges	(	AlpsKnowledgeType	kt,
		int	num
	)

inlinevirtual

Set the max number of knowledge can be stored in a given type o fknowledge pools.

Definition at line 351 of file AlpsKnowledgeBroker.h.

virtual bool AlpsKnowledgeBroker::hasKnowledge ( AlpsKnowledgeType kt ) const

inlinevirtual

Query whether there are knowledges in the given type of knowledge pools.

Definition at line 363 of file AlpsKnowledgeBroker.h.

virtual std::pair<AlpsKnowledge*, double> AlpsKnowledgeBroker::getKnowledge ( AlpsKnowledgeType kt ) const

inlinevirtual

Get a knowledge, but doesn't remove it from the pool.

Definition at line 373 of file AlpsKnowledgeBroker.h.

virtual void AlpsKnowledgeBroker::popKnowledge ( AlpsKnowledgeType kt )

inlinevirtual

Remove the a knowledge from the given type of knowledge pools.

Definition at line 384 of file AlpsKnowledgeBroker.h.

virtual std::pair<AlpsKnowledge*, double> AlpsKnowledgeBroker::getBestKnowledge ( AlpsKnowledgeType kt ) const

virtual

Get the best knowledge in the given type of knowledge pools.

virtual void AlpsKnowledgeBroker::getAllKnowledges	(	AlpsKnowledgeType	kt,
		std::vector< std::pair< AlpsKnowledge *, double > > &	kls
	)		const

inlinevirtual

Get all knowledges in the given type of knowledge pools.

Definition at line 399 of file AlpsKnowledgeBroker.h.

virtual void AlpsKnowledgeBroker::addKnowledge	(	AlpsKnowledgeType	kt,
		AlpsKnowledge *	kl,
		double	value
	)

inlinevirtual

Add a knowledge in the given type of knowledge pools.

Definition at line 412 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::getNumNodesProcessed ( ) const

inline

Query the number of node processed by this process.

Definition at line 429 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::getNumNodesBranched ( ) const

inline

Query the number of node processed by this process.

Definition at line 434 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::getNumNodesDiscarded ( ) const

inline

Query the number of node processed by this process.

Definition at line 439 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::getNumNodesPartial ( ) const

inline

Query the number of node in the queue that are pregnant.

Definition at line 444 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::getNumNodesProcessedSystem ( ) const

inline

Query the number of node processed by the system.

Definition at line 449 of file AlpsKnowledgeBroker.h.

virtual int AlpsKnowledgeBroker::updateNumNodesLeft ( )

virtual

Update the number of left nodes on this process.

virtual AlpsTreeNode* AlpsKnowledgeBroker::getBestNode ( ) const

virtual

Query the best node in the subtree pool.

Return NULL if no node exits.

AlpsExitStatus AlpsKnowledgeBroker::getSolStatus ( ) const

inline

Query search termination status.

Definition at line 460 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setExitStatus ( AlpsExitStatus status )

inline

Set terminate status.

Definition at line 465 of file AlpsKnowledgeBroker.h.

AlpsTimer& AlpsKnowledgeBroker::timer ( )

inline

Query timer.

Definition at line 470 of file AlpsKnowledgeBroker.h.

AlpsTimer& AlpsKnowledgeBroker::subTreeTimer ( )

inline

Query subtree timer.

Definition at line 475 of file AlpsKnowledgeBroker.h.

AlpsTimer& AlpsKnowledgeBroker::tempTimer ( )

inline

Query secondary timer.

Definition at line 480 of file AlpsKnowledgeBroker.h.

virtual void AlpsKnowledgeBroker::searchLog ( )

pure virtual

Search statistics log.

Implemented in AlpsKnowledgeBrokerMPI, and AlpsKnowledgeBrokerSerial.

int AlpsKnowledgeBroker::getNodeMemSize ( )

inline

Definition at line 492 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setNodeMemSize ( int ms )

inline

Definition at line 493 of file AlpsKnowledgeBroker.h.

double AlpsKnowledgeBroker::getNodeProcessingTime ( )

inline

Definition at line 500 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setNodeProcessingTime ( double npTime )

inline

Definition at line 501 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::getLargeSize ( ) const

inline

Definition at line 504 of file AlpsKnowledgeBroker.h.

virtual double AlpsKnowledgeBroker::getIncumbentValue ( ) const

pure virtual

The process queries the objective value of the incumbent that it stores.

Implemented in AlpsKnowledgeBrokerMPI, and AlpsKnowledgeBrokerSerial.

virtual double AlpsKnowledgeBroker::getBestQuality ( ) const

pure virtual

The process (serial) / the master (parallel) queries the quality of the best solution that it knows.

Implemented in AlpsKnowledgeBrokerMPI, and AlpsKnowledgeBrokerSerial.

virtual double AlpsKnowledgeBroker::getBestEstimateQuality ( )

inlinevirtual

Get best estimalted quality in system.

Reimplemented in AlpsKnowledgeBrokerMPI.

Definition at line 519 of file AlpsKnowledgeBroker.h.

virtual int AlpsKnowledgeBroker::getNumNodeLeftSystem ( )

inlinevirtual

The process queries the objective value of the incumbent that it stores.

Reimplemented in AlpsKnowledgeBrokerMPI.

Definition at line 521 of file AlpsKnowledgeBroker.h.

virtual void AlpsKnowledgeBroker::printBestSolution ( char * outputFile = 0 ) const

pure virtual

The process (serial) / the master (parallel) outputs the best solution that it knows to a file or std::out.

Implemented in AlpsKnowledgeBrokerMPI, and AlpsKnowledgeBrokerSerial.

virtual int AlpsKnowledgeBroker::getProcRank ( ) const

inlinevirtual

Qeury the global rank of process.

Note: not useful for serial code.

Reimplemented in AlpsKnowledgeBrokerMPI.

Definition at line 529 of file AlpsKnowledgeBroker.h.

virtual int AlpsKnowledgeBroker::getMasterRank ( ) const

inlinevirtual

Query the global rank of the Master.

Reimplemented in AlpsKnowledgeBrokerMPI.

Definition at line 532 of file AlpsKnowledgeBroker.h.

virtual AlpsProcessType AlpsKnowledgeBroker::getProcType ( ) const

inlinevirtual

Query the type (master, hub, or worker) of the process.

Reimplemented in AlpsKnowledgeBrokerMPI.

Definition at line 535 of file AlpsKnowledgeBroker.h.

AlpsNodeIndex_t AlpsKnowledgeBroker::nextNodeIndex ( )

inline

Query the next index assigned to a newly created node, and then increment the nextIndex_ by 1.

Definition at line 544 of file AlpsKnowledgeBroker.h.

AlpsNodeIndex_t AlpsKnowledgeBroker::getNextNodeIndex ( ) const

inline

Query the next index assigned to a newly created node.

Definition at line 547 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setNextNodeIndex ( AlpsNodeIndex_t s )

inline

Set nextIndex_.

Definition at line 550 of file AlpsKnowledgeBroker.h.

AlpsNodeIndex_t AlpsKnowledgeBroker::getMaxNodeIndex ( ) const

inline

Queriy the upper bound of node indices.

Definition at line 553 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setMaxNodeIndex ( AlpsNodeIndex_t s )

inline

Set the upper bound of node indices.

Definition at line 556 of file AlpsKnowledgeBroker.h.

AlpsSearchStrategy<AlpsSubTree*>* AlpsKnowledgeBroker::getSubTreeSelection ( ) const

inline

Definition at line 563 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setSubTreeSelection ( AlpsSearchStrategy< AlpsSubTree * > * tc )

inline

Definition at line 566 of file AlpsKnowledgeBroker.h.

AlpsSearchStrategy<AlpsTreeNode*>* AlpsKnowledgeBroker::getNodeSelection ( ) const

inline

Definition at line 571 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setNodeSelection ( AlpsSearchStrategy< AlpsTreeNode * > * nc )

inline

Definition at line 574 of file AlpsKnowledgeBroker.h.

AlpsSearchStrategy<AlpsTreeNode*>* AlpsKnowledgeBroker::getRampUpNodeSelection ( ) const

inline

Definition at line 578 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setRampUpNodeSelection ( AlpsSearchStrategy< AlpsTreeNode * > * nc )

inline

Definition at line 581 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::passInMessageHandler ( CoinMessageHandler * handler )

Pass in Message handler (not deleted at end).

void AlpsKnowledgeBroker::newLanguage ( CoinMessages::Language language )

Set language.

void AlpsKnowledgeBroker::setLanguage ( CoinMessages::Language language )

inline

Pass in Message handler (not deleted at end).

Definition at line 594 of file AlpsKnowledgeBroker.h.

CoinMessageHandler* AlpsKnowledgeBroker::messageHandler ( ) const

inline

Return handler.

Definition at line 598 of file AlpsKnowledgeBroker.h.

CoinMessages AlpsKnowledgeBroker::messages ( )

inline

Return messages.

Definition at line 601 of file AlpsKnowledgeBroker.h.

CoinMessages* AlpsKnowledgeBroker::messagesPointer ( )

inline

Return pointer to messages.

Definition at line 604 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::getMsgLevel ( )

inline

Return msg level.

Definition at line 607 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::getHubMsgLevel ( )

inline

Return msg level.

Definition at line 610 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::getMasterMsgLevel ( )

inline

Return msg level.

Definition at line 613 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::getlogFileLevel ( )

inline

Return log file level.

Definition at line 616 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::getNumNodeLog ( ) const

inline

Get times that node log has been printed.

Definition at line 619 of file AlpsKnowledgeBroker.h.

void AlpsKnowledgeBroker::setNumNodeLog ( int num )

inline

Get times that node log has been printed.

Definition at line 622 of file AlpsKnowledgeBroker.h.

Member Data Documentation

std::map<int, AlpsKnowledge*> AlpsKnowledgeBroker::decodeMap_

private

Stores registered knowledge.

Definition at line 56 of file AlpsKnowledgeBroker.h.

std::string AlpsKnowledgeBroker::instanceName_

protected

The instance name.

Definition at line 61 of file AlpsKnowledgeBroker.h.

AlpsModel* AlpsKnowledgeBroker::model_

protected

Pointer to model.

Definition at line 64 of file AlpsKnowledgeBroker.h.

AlpsPhase AlpsKnowledgeBroker::phase_

protected

Alps phase.

(RAMPUP, SEARCH, RAMPDOWN)

Definition at line 67 of file AlpsKnowledgeBroker.h.

AlpsSubTreePool* AlpsKnowledgeBroker::subTreePool_

protected

A subtree pool holding a collection of subtrees.

For serial version, there is only one subtree in the pool.

Definition at line 75 of file AlpsKnowledgeBroker.h.

AlpsSolutionPool* AlpsKnowledgeBroker::solPool_

protected

A solution pool containing the solutions found.

Definition at line 78 of file AlpsKnowledgeBroker.h.

std::map<AlpsKnowledgeType, AlpsKnowledgePool*>* AlpsKnowledgeBroker::pools_

protected

The collection of pools managed by the knowledge broker.

Definition at line 81 of file AlpsKnowledgeBroker.h.

AlpsSubTree* AlpsKnowledgeBroker::workingSubTree_

protected

Point to the subtree that being explored.

Definition at line 89 of file AlpsKnowledgeBroker.h.

bool AlpsKnowledgeBroker::needWorkingSubTree_

protected

Indicate whether need a new subtree.

Definition at line 92 of file AlpsKnowledgeBroker.h.

AlpsNodeIndex_t AlpsKnowledgeBroker::nextIndex_

protected

The index to be assigned to a new search tree node.

Definition at line 95 of file AlpsKnowledgeBroker.h.

AlpsNodeIndex_t AlpsKnowledgeBroker::maxIndex_

protected

The maximum index can been assigned on this process.

Definition at line 98 of file AlpsKnowledgeBroker.h.

AlpsTimer AlpsKnowledgeBroker::timer_

protected

Main timer.

Do not touch.

Definition at line 107 of file AlpsKnowledgeBroker.h.

AlpsTimer AlpsKnowledgeBroker::subTreeTimer_

protected

Subtree timer.

Do not touch.

Definition at line 110 of file AlpsKnowledgeBroker.h.

AlpsTimer AlpsKnowledgeBroker::tempTimer_

protected

Secondary timer.

Definition at line 113 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::solNum_

protected

The number of solutions found.

Definition at line 116 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::nodeProcessedNum_

protected

The number of nodes that have been processed.

Definition at line 119 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::nodeBranchedNum_

protected

The number of nodes that have been branched.

Definition at line 122 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::nodeDiscardedNum_

protected

The number of nodes that have been discarded before processing.

Definition at line 125 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::nodePartialNum_

protected

The number of nodes that are pregnant.

Definition at line 128 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::systemNodeProcessed_

protected

To record how many nodes processed by the system (used in parallel code).

Definition at line 132 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::nodeLeftNum_

protected

The number of nodes left.

Definition at line 135 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::treeDepth_

protected

The depth of the tree.

Definition at line 138 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::bestSolNode_

protected

The number of nodes pocessed to find the solution.

Definition at line 141 of file AlpsKnowledgeBroker.h.

double AlpsKnowledgeBroker::peakMemory_

protected

Peak memory usage.

Definition at line 144 of file AlpsKnowledgeBroker.h.

AlpsExitStatus AlpsKnowledgeBroker::exitStatus_

protected

The status of search when terminated.

Definition at line 147 of file AlpsKnowledgeBroker.h.

AlpsSearchStrategy<AlpsSubTree*>* AlpsKnowledgeBroker::treeSelection_

protected

Tree selection criterion.

Definition at line 155 of file AlpsKnowledgeBroker.h.

AlpsSearchStrategy<AlpsTreeNode*>* AlpsKnowledgeBroker::nodeSelection_

protected

Node selection criterion.

Definition at line 158 of file AlpsKnowledgeBroker.h.

AlpsSearchStrategy<AlpsTreeNode*>* AlpsKnowledgeBroker::rampUpNodeSelection_

protected

Node selection criterion.

Definition at line 161 of file AlpsKnowledgeBroker.h.

CoinMessageHandler* AlpsKnowledgeBroker::handler_

protected

Message handler.

Definition at line 169 of file AlpsKnowledgeBroker.h.

CoinMessages AlpsKnowledgeBroker::messages_

protected

Alps messages.

Definition at line 172 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::msgLevel_

protected

The leve of printing message to screen of the master and general message.

(0: no; 1: basic; 2: moderate, 3: verbose)

Definition at line 176 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::hubMsgLevel_

protected

The leve of printing message to screen of hubs.

(0: no; 1: basic; 2: moderate, 3: verbose)

Definition at line 180 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::workerMsgLevel_

protected

The leve of printing message to screen of workers.

(0: no; 1: basic; 2: moderate, 3: verbose)

Definition at line 184 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::logFileLevel_

protected

The degree of log file.

(0: no; 1: basic; 2: moderate, 3: verbose)

Definition at line 188 of file AlpsKnowledgeBroker.h.

std::string AlpsKnowledgeBroker::logfile_

protected

The log file.

Definition at line 191 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::nodeMemSize_

protected

The approximate memory size (bytes) of a node with full description.

Definition at line 195 of file AlpsKnowledgeBroker.h.

double AlpsKnowledgeBroker::nodeProcessingTime_

protected

The approximately CPU time to process a node.

Definition at line 198 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::largeSize_

protected

The size of largest message buffer can be sent or received.

Definition at line 201 of file AlpsKnowledgeBroker.h.

bool AlpsKnowledgeBroker::userBalancePeriod_

protected

Has user input balance period.

Definition at line 204 of file AlpsKnowledgeBroker.h.

int AlpsKnowledgeBroker::numNodeLog_

protected

Times that node log is printed.

Definition at line 207 of file AlpsKnowledgeBroker.h.

The documentation for this class was generated from the following file:

/tmp/CHiPPS-Alps-1.5.6/Alps/src/AlpsKnowledgeBroker.h

Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
