Model class for ALPS Branch and Cut. More...

#include <AbcModel.h>

Inheritance diagram for AbcModel:

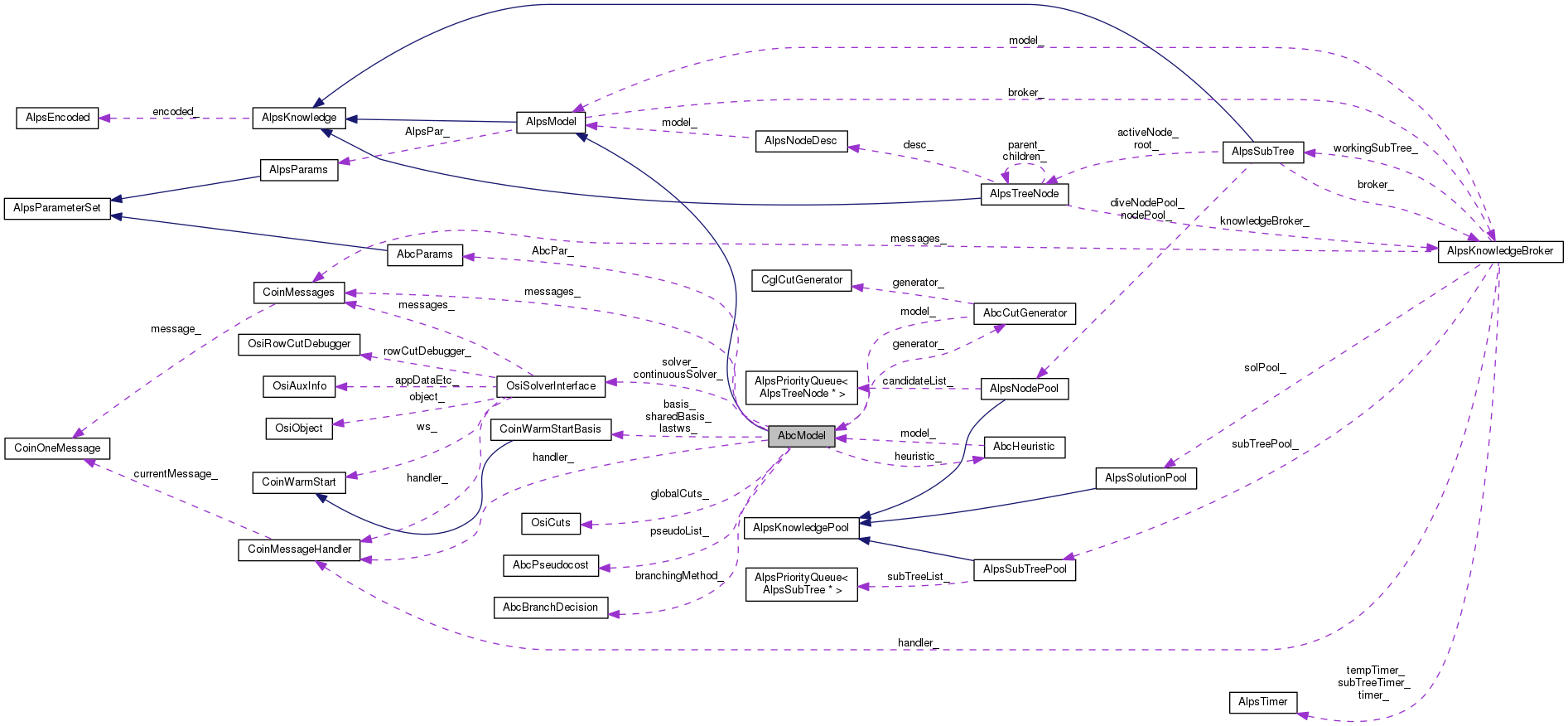

Collaboration diagram for AbcModel:

Public Types
enum	AbcIntParam { AbcMaxNumNode =0, AbcMaxNumSol, AbcFathomDiscipline, AbcLastIntParam }

enum	AbcDblParam { AbcIntegerTolerance = 0, AbcInfeasibilityWeight, AbcCutoffIncrement, AbcAllowableGap, AbcMaximumSeconds, AbcLastDblParam }

Public Member Functions
	AbcModel ()

	AbcModel (const OsiSolverInterface &rhs)

	~AbcModel ()

void	init ()
	Initialize member data. More...

virtual void	readInstance (const char *dataFile)
	Read in the problem data. More...

void	readParameters (const int argnum, const char const arglist)
	Read in Alps and Abc parameters. More...

AbcParams *	AbcPar ()

OsiSolverInterface *	solver () const
	Returns solver - has current state. More...

void	assignSolver (OsiSolverInterface *&solver)
	Assign a solver to the model (model assumes ownership) On return, `solver` will be NULL. More...

CoinWarmStartBasis *	getEmptyBasis (int ns=0, int na=0) const
	Return an empty basis object of the specified size A useful utility when constructing a basis for a subproblem from scratch. More...

int	numberIntegers () const
	Number of integers in problem. More...

const int *	integerVariable () const
	Integer variables. More...

bool	checkInteger (double value) const

void	findIntegers (bool startAgain)
	Identify integer variables and create corresponding objects. More...

void	addCutGenerator (CglCutGenerator generator, int howOften=1, const char name=NULL, bool normal=true, bool atSolution=false, bool infeasible=false)
	Add one generator - up to user to delete generators. More...

void	reducedCostFix ()
	Perform reduced cost fixing Fixes integer variables at their current value based on reduced cost penalties. More...

void	takeOffCuts ()
	Remove inactive cuts from the model. More...

bool	setIntParam (AbcIntParam key, int value)
	Set an integer parameter. More...

bool	setDblParam (AbcDblParam key, double value)
	Set a double parameter. More...

int	getIntParam (AbcIntParam key) const
	Get an integer parameter. More...

double	getDblParam (AbcDblParam key) const
	Get a double parameter. More...

void	setCutoff (double value)
	Set cutoff bound on the objective function. When using strict comparison, the bound is adjusted by a tolerance to avoid accidentally cutting off the optimal solution. More...

double	getCutoff () const
	Get the cutoff bound on the objective function - always as minimize. More...

bool	setMaximumNodes (int value)
	Set the maximum node limit . More...

int	getMaximumNodes () const
	Get the maximum node limit . More...

bool	setMaximumSolutions (int value)
	Set the maximum number of solutions desired. More...

int	getMaximumSolutions () const
	Get the maximum number of solutions desired. More...

bool	setIntegerTolerance (double value)
	Set the integrality tolerance . More...

double	getIntegerTolerance () const
	Get the integrality tolerance . More...

bool	setInfeasibilityWeight (double value)
	Set the weight per integer infeasibility . More...

double	getInfeasibilityWeight () const
	Get the weight per integer infeasibility . More...

bool	setAllowableGap (double value)
	Set the allowable gap between the best known solution and the best possible solution. More...

double	getAllowableGap () const
	Get the allowable gap between the best known solution and the best possible solution. More...

void	setMinimumDrop (double value)
	Set the minimum drop to continue cuts. More...

double	getMinimumDrop () const
	Get the minimum drop to continue cuts. More...

virtual bool	setupSelf ()
	Do necessary work to make model usable. More...

int	numberStrong () const

void	setNumberStrong (int number)

const int *	priority () const
	Priorities. More...

int	priority (int sequence) const
	Returns priority level for an object (or 1000 if no priorities exist) More...

virtual AlpsEncoded *	encode () const
	The method that encodes the model into a encoded object. More...

virtual void	decodeToSelf (AlpsEncoded &)
	The method that decodes the model from a encoded object. More...

Solve methods
void	initialSolve ()
	Solve the initial LP relaxation Invoke the solver's initialSolve() method. More...

bool	solveWithCuts (OsiCuts &cuts, int numberTries, AbcTreeNode node, int &numberOldActiveCuts, int &numberNewCuts, int &maximumWhich, int &whichGenerator, const bool cutDuringRampup, int &found)
	Evaluate a subproblem using cutting planes and heuristics The method invokes a main loop which generates cuts, applies heuristics, and reoptimises using the solver's native resolve() method. More...

bool	resolve ()
	Reoptimise an LP relaxation Invoke the solver's resolve() method. More...

Methods returning info on how the solution process terminated
bool	isAbandoned () const
	Are there a numerical difficulties? More...

bool	isProvenOptimal () const
	Is optimality proven? More...

bool	isProvenInfeasible () const
	Is infeasiblity proven (or none better than cutoff)? More...

bool	isNodeLimitReached () const
	Node limit reached? More...

bool	isSolutionLimitReached () const
	Solution limit reached? More...

int	getIterationCount () const
	Get how many iterations it took to solve the problem. More...

int	getNodeCount () const
	Get how many Nodes it took to solve the problem. More...

void	incrementNodeCount (int s=1)
	Increment the count of nodes. More...

int	status () const
	Final status of problem 0 finished, 1 stopped, 2 difficulties. More...

Problem information methods
These methods call the solver's query routines to return information about the problem referred to by the current object. Querying a problem that has no data associated with it result in zeros for the number of rows and columns, and NULL pointers from the methods that return vectors. Const pointers returned from any data-query method are valid as long as the data is unchanged and the solver is not called.
int	numberRowsAtContinuous () const
	Number of rows in continuous (root) problem. More...

void	setNumberRowsAtContinous (const int value)
	Number of rows in continuous (root) problem. More...

int	getNumCols () const
	Get number of columns. More...

int	getNumRows () const
	Get number of rows. More...

int	getNumElements () const
	Get number of nonzero elements. More...

const double *	getColLower () const
	Get pointer to array[getNumCols()] of column lower bounds. More...

const double *	getColUpper () const
	Get pointer to array[getNumCols()] of column upper bounds. More...

const char *	getRowSense () const
	Get pointer to array[getNumRows()] of row constraint senses. More...

const double *	getRightHandSide () const
	Get pointer to array[getNumRows()] of rows right-hand sides. More...

const double *	getRowRange () const
	Get pointer to array[getNumRows()] of row ranges. More...

const double *	getRowLower () const
	Get pointer to array[getNumRows()] of row lower bounds. More...

const double *	getRowUpper () const
	Get pointer to array[getNumRows()] of row upper bounds. More...

const double *	getObjCoefficients () const
	Get pointer to array[getNumCols()] of objective function coefficients. More...

double	getObjSense () const
	Get objective function sense (1 for min (default), -1 for max) More...

AbcPseudocost **	getPseudoList ()
	Number of rows in continuous (root) problem. More...

int *	getPseudoIndices ()
	Number of rows in continuous (root) problem. More...

bool	isContinuous (int colIndex) const
	Return true if variable is continuous. More...

bool	isBinary (int colIndex) const
	Return true if variable is binary. More...

bool	isInteger (int colIndex) const
	Return true if column is integer. More...

bool	isIntegerNonBinary (int colIndex) const
	Return true if variable is general integer. More...

bool	isFreeBinary (int colIndex) const
	Return true if variable is binary and not fixed at either bound. More...

const CoinPackedMatrix *	getMatrixByRow () const
	Get pointer to row-wise copy of matrix. More...

const CoinPackedMatrix *	getMatrixByCol () const
	Get pointer to column-wise copy of matrix. More...

double	getInfinity () const
	Get solver's value for infinity. More...

Methods related to querying the solution
double	checkSolution (double cutoff, const double *solution, bool fixVariables)
	Call this to really test if a valid solution can be feasible Solution is number columns in size. More...

bool	setBestSolution (ABC_Message how, double &objectiveValue, const double *solution, bool fixVariables=false)
	Record a new incumbent solution and update objectiveValue. More...

bool	feasibleSolution (int &numberIntegerInfeasibilities)
	Test the current solution for feasiblility. More...

double *	currentSolution () const
	Solution to the most recent lp relaxation. More...

const double *	getColSolution () const
	Get pointer to array[getNumCols()] of primal solution vector. More...

const double *	getRowPrice () const
	Get pointer to array[getNumRows()] of dual prices. More...

const double *	getReducedCost () const
	Get a pointer to array[getNumCols()] of reduced costs. More...

const double *	getRowActivity () const
	Get pointer to array[getNumRows()] of row activity levels. More...

double	getCurrentObjValue () const
	Get current objective function value. More...

double	getObjValue () const
	Get best objective function value. More...

void	setObjValue (double obj)
	Set the best objective value. More...

const double *	bestSolution () const
	The best solution to the integer programming problem. More...

int	getSolutionCount () const
	Get number of solutions. More...

void	setSolutionCount (int value)
	Set number of solutions (so heuristics will be different) More...

int	getNumberHeuristicSolutions () const
	Get number of heuristic solutions. More...

void	setObjSense (double s)
	Set objective function sense (1 for min (default), -1 for max,) More...

void	setMaximumCutPassesAtRoot (int value)
	Set the maximum number of cut passes at root node (default 20) Minimum drop can also be used for fine tuning. More...

int	getMaximumCutPassesAtRoot () const
	Get the maximum number of cut passes at root node. More...

void	setMaximumCutPasses (int value)
	Set the maximum number of cut passes at other nodes (default 10) Minimum drop can also be used for fine tuning. More...

int	getMaximumCutPasses () const
	Get the maximum number of cut passes at other nodes (default 10) More...

int	currentNumberCuts () const
	Number of entries in the list returned by #addedCuts() More...

void	setCurrentNumberCuts (int value)
	Call this to really test if a valid solution can be feasible Solution is number columns in size. More...

Branching Decisions
See the AbcBranchDecision class for additional information.
AbcBranchDecision *	branchingMethod () const
	Get the current branching decision method. More...

void	setBranchingMethod (AbcBranchDecision *method)
	Set the branching decision method. More...

void	setBranchingMethod (AbcBranchDecision &method)
	Set the branching method This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...

Message handling
void	passInMessageHandler (CoinMessageHandler *handler)
	Pass in Message handler (not deleted at end) More...

void	newLanguage (CoinMessages::Language language)
	Set language. More...

void	setLanguage (CoinMessages::Language language)
	Pass in Message handler (not deleted at end) More...

CoinMessageHandler *	messageHandler () const
	Return handler. More...

CoinMessages	messages ()
	Return messages. More...

CoinMessages *	messagesPointer ()
	Return pointer to messages. More...

Heuristics and priorities
void	addHeuristic (AbcHeuristic *generator)
	Add one heuristic. More...

Public Member Functions inherited from AlpsModel
	AlpsModel ()
	Default construtor. More...

virtual	~AlpsModel ()
	Destructor. More...

AlpsKnowledgeBroker *	getKnowledgeBroker ()
	Get knowledge broker. More...

void	setKnowledgeBroker (AlpsKnowledgeBroker *b)
	Set knowledge broker. More...

std::string	getDataFile () const
	Get the input file. More...

void	setDataFile (std::string infile)
	Set the data file. More...

AlpsParams *	AlpsPar ()
	Access Alps Parameters. More...

void	writeParameters (std::ostream &outstream) const
	Write out parameters. More...

virtual void	preprocess ()
	Preprocessing the model. More...

virtual void	postprocess ()
	Postprocessing results. More...

virtual AlpsTreeNode *	createRoot ()
	Create the root node. More...

virtual void	modelLog ()
	Problem specific log. More...

virtual void	nodeLog (AlpsTreeNode *node, bool force)
	Node log. More...

virtual bool	fathomAllNodes ()
	Return true if all nodes on this process can be fathomed. More...

AlpsReturnStatus	encodeAlps (AlpsEncoded *encoded) const
	Pack Alps portion of node into an encoded object. More...

AlpsReturnStatus	decodeAlps (AlpsEncoded &encoded)
	Unpack Alps portion of node from an encoded object. More...

virtual void	registerKnowledge ()
	Register knowledge class. More...

virtual void	sendGeneratedKnowledge ()
	Send generated knowledge. More...

virtual void	receiveGeneratedKnowledge ()
	Receive generated knowledge. More...

virtual AlpsEncoded *	packSharedKnowlege ()
	Pack knowledge to be shared with others into an encoded object. More...

virtual void	unpackSharedKnowledge (AlpsEncoded &)
	Unpack and store shared knowledge from an encoded object. More...

Public Member Functions inherited from AlpsKnowledge
	AlpsKnowledge ()

virtual	~AlpsKnowledge ()

KnowledgeType	getType ()

void	setType (KnowledgeType t)

virtual AlpsReturnStatus	encode (AlpsEncoded *encoded)
	Pack into a encode object. More...

virtual AlpsKnowledge *	decode (AlpsEncoded &encoded) const
	This method should decode and return a pointer to a brand new object, i.e., the method must create a new object on the heap from the decoded data instead of filling up the object for which the method was invoked. More...

AlpsEncoded *	getEncoded () const
	Get/set encoded. More...

void	setEncoded (AlpsEncoded *e)

Private Attributes
CoinMessageHandler *	handler_
	Message handler. More...

bool	defaultHandler_
	Flag to say if handler_ is the default handler. More...

CoinMessages	messages_
	Abc messages. More...

int	intParam_ [AbcLastIntParam]
	Array for integer parameters. More...

double	dblParam_ [AbcLastDblParam]
	Array for double parameters. More...

OsiSolverInterface *	solver_
	The solver associated with this model. More...

bool	ourSolver_
	Ownership of the solver object The convention is that AbcModel owns the null solver. More...

OsiSolverInterface *	continuousSolver_
	A copy of the solver, taken at the continuous (root) node. More...

CoinWarmStartBasis *	basis_
	Pointer to a warm start basis. More...

CoinWarmStartBasis *	lastws_
	Pointer to last warm basis. More...

double	minimumDrop_
	Minimum degradation in objective value to continue cut generation. More...

double	bestObjective_
	Best objective. More...

double *	bestSolution_
	Array holding the incumbent (best) solution. More...

double *	currentSolution_
	Array holding the current solution. More...

OsiCuts	globalCuts_
	Global cuts. More...

int	numberNodes_
	Cumulative number of nodes. More...

int	numberIterations_
	Cumulative number of iterations. More...

int	status_
	Status of problem - 0 finished, 1 stopped, 2 difficulties. More...

int	currentNumberCuts_
	Number of entries in #addedCuts_. More...

int	maximumNumberCuts_
	Maximum number of cuts. More...

int	howOftenGlobalScan_
	How often to scan global cuts. More...

int	maximumDepth_
	Current limit on search tree depth. More...

int	numberStrong_
	Maximum number of candidates to consider for strong branching. More...

int	numberCutGenerators_
	Number of cut generators. More...

AbcCutGenerator **	generator_

int	numberHeuristics_
	Number of heuristics. More...

AbcHeuristic **	heuristic_

int	maximumCutPassesAtRoot_
	Maximum number of cut passes at root. More...

int	maximumCutPasses_
	Maximum number of cut passes. More...

AbcBranchDecision *	branchingMethod_
	Variable selection function. More...

int	numberSolutions_
	Number of solutions. More...

int	numberHeuristicSolutions_
	Number of heuristic solutions. More...

int *	priority_
	Priorities. More...

AbcPseudocost **	pseudoList_

int *	pseudoIndices_

AbcParams *	AbcPar_
	Abc parameters. More...

Shared problem data
int	numberRowsAtContinuous_
	Number of rows at continuous. More...

int	numberIntegers_
	Number of integers in problem. More...

int *	integerVariable_
	Indices of integer variables. More...

CoinWarmStartBasis *	sharedBasis_
	Pointer to a warm start basis. More...

Additional Inherited Members
Protected Attributes inherited from AlpsModel
AlpsKnowledgeBroker *	broker_
	Knowledge broker. More...

std::string	dataFile_
	Data file. More...

AlpsParams *	AlpsPar_
	The parameter set that is used in Alps. More...

Protected Attributes inherited from AlpsKnowledge
KnowledgeType	type_

Detailed Description

Model class for ALPS Branch and Cut.

Definition at line 55 of file AbcModel.h.

Member Enumeration Documentation

enum AbcModel::AbcIntParam

Enumerator
AbcMaxNumNode	The maximum number of nodes before terminating.
AbcMaxNumSol	The maximum number of solutions before terminating.
AbcFathomDiscipline	Fathoming discipline Controls objective function comparisons for purposes of fathoming by bound or determining monotonic variables. If 1, action is taken only when the current objective is strictly worse than the target. Implementation is handled by adding a small tolerance to the target.
AbcLastIntParam	Just a marker, so that a static sized array can store parameters.

Definition at line 58 of file AbcModel.h.

enum AbcModel::AbcDblParam

Enumerator
AbcIntegerTolerance	The maximum amount the value of an integer variable can vary from integer and still be considered feasible.
AbcInfeasibilityWeight	The objective is assumed to worsen by this amount for each integer infeasibility.
AbcCutoffIncrement	The amount by which to tighten the objective function cutoff when a new solution is discovered.
AbcAllowableGap	Stop when the gap between the objective value of the best known solution and the best bound on the objective of any solution is less than this. This is an absolute value. Conversion from a percentage is left to the client.
AbcMaximumSeconds	The maximum number of seconds before terminating. A double should be adequate!
AbcLastDblParam	Just a marker, so that a static sized array can store parameters.

Definition at line 75 of file AbcModel.h.

Constructor & Destructor Documentation

AbcModel::AbcModel ( )

inline

Definition at line 222 of file AbcModel.h.

AbcModel::AbcModel ( const OsiSolverInterface & rhs )

inline

Definition at line 227 of file AbcModel.h.

AbcModel::~AbcModel ( )

inline

Definition at line 258 of file AbcModel.h.

Member Function Documentation

void AbcModel::init ( )

inline

Initialize member data.

Definition at line 329 of file AbcModel.h.

virtual void AbcModel::readInstance ( const char * dataFile )

inlinevirtual

Read in the problem data.

Reimplemented from AlpsModel.

Definition at line 382 of file AbcModel.h.

void AbcModel::readParameters	(	const int	argnum,
		const char const	arglist
	)

inlinevirtual

Read in Alps and Abc parameters.

Reimplemented from AlpsModel.

Definition at line 388 of file AbcModel.h.

AbcParams* AbcModel::AbcPar ( )

inline

Definition at line 395 of file AbcModel.h.

OsiSolverInterface* AbcModel::solver ( ) const

inline

Returns solver - has current state.

Definition at line 398 of file AbcModel.h.

void AbcModel::assignSolver ( OsiSolverInterface *& solver )

Assign a solver to the model (model assumes ownership) On return, solver will be NULL.

Note: Parameter settings in the outgoing solver are not inherited by the incoming solver.

CoinWarmStartBasis* AbcModel::getEmptyBasis	(	int	ns = `0`,
		int	na = `0`
	)		const

Return an empty basis object of the specified size A useful utility when constructing a basis for a subproblem from scratch.

The object returned will be of the requested capacity and appropriate for the solver attached to the model.

int AbcModel::numberIntegers ( ) const

inline

Number of integers in problem.

Definition at line 414 of file AbcModel.h.

const int* AbcModel::integerVariable ( ) const

inline

Integer variables.

Definition at line 418 of file AbcModel.h.

void AbcModel::initialSolve ( )

Solve the initial LP relaxation Invoke the solver's initialSolve() method.

bool AbcModel::solveWithCuts	(	OsiCuts &	cuts,
		int	numberTries,
		AbcTreeNode *	node,
		int &	numberOldActiveCuts,
		int &	numberNewCuts,
		int &	maximumWhich,
		int *&	whichGenerator,
		const bool	cutDuringRampup,
		int &	found
	)

Evaluate a subproblem using cutting planes and heuristics The method invokes a main loop which generates cuts, applies heuristics, and reoptimises using the solver's native resolve() method.

It returns true if the subproblem remains feasible at the end of the evaluation.

bool AbcModel::resolve ( )

Reoptimise an LP relaxation Invoke the solver's resolve() method.

bool AbcModel::isAbandoned ( ) const

Are there a numerical difficulties?

bool AbcModel::isProvenOptimal ( ) const

Is optimality proven?

bool AbcModel::isProvenInfeasible ( ) const

Is infeasiblity proven (or none better than cutoff)?

bool AbcModel::isNodeLimitReached ( ) const

Node limit reached?

bool AbcModel::isSolutionLimitReached ( ) const

Solution limit reached?

int AbcModel::getIterationCount ( ) const

inline

Get how many iterations it took to solve the problem.

Definition at line 461 of file AbcModel.h.

int AbcModel::getNodeCount ( ) const

inline

Get how many Nodes it took to solve the problem.

Definition at line 464 of file AbcModel.h.

void AbcModel::incrementNodeCount ( int s = 1 )

inline

Increment the count of nodes.

Definition at line 467 of file AbcModel.h.

int AbcModel::status ( ) const

inline

Final status of problem 0 finished, 1 stopped, 2 difficulties.

Definition at line 473 of file AbcModel.h.

int AbcModel::numberRowsAtContinuous ( ) const

inline

Number of rows in continuous (root) problem.

Definition at line 491 of file AbcModel.h.

void AbcModel::setNumberRowsAtContinous ( const int value )

inline

Number of rows in continuous (root) problem.

Definition at line 494 of file AbcModel.h.

int AbcModel::getNumCols ( ) const

inline

Get number of columns.

Definition at line 501 of file AbcModel.h.

int AbcModel::getNumRows ( ) const

inline

Get number of rows.

Definition at line 505 of file AbcModel.h.

int AbcModel::getNumElements ( ) const

inline

Get number of nonzero elements.

Definition at line 509 of file AbcModel.h.

const double* AbcModel::getColLower ( ) const

inline

Get pointer to array[getNumCols()] of column lower bounds.

Definition at line 513 of file AbcModel.h.

const double* AbcModel::getColUpper ( ) const

inline

Get pointer to array[getNumCols()] of column upper bounds.

Definition at line 517 of file AbcModel.h.

const char* AbcModel::getRowSense ( ) const

inline

Get pointer to array[getNumRows()] of row constraint senses.

'L': <= constraint
'E': = constraint
'G': >= constraint
'R': ranged constraint
'N': free constraint

Definition at line 529 of file AbcModel.h.

const double* AbcModel::getRightHandSide ( ) const

inline

Get pointer to array[getNumRows()] of rows right-hand sides.

if rowsense()[i] == 'L' then rhs()[i] == rowupper()[i]
if rowsense()[i] == 'G' then rhs()[i] == rowlower()[i]
if rowsense()[i] == 'R' then rhs()[i] == rowupper()[i]
if rowsense()[i] == 'N' then rhs()[i] == 0.0

Definition at line 540 of file AbcModel.h.

const double* AbcModel::getRowRange ( ) const

inline

Get pointer to array[getNumRows()] of row ranges.

if rowsense()[i] == 'R' then rowrange()[i] == rowupper()[i] - rowlower()[i]
if rowsense()[i] != 'R' then rowrange()[i] is 0.0

Definition at line 551 of file AbcModel.h.

const double* AbcModel::getRowLower ( ) const

inline

Get pointer to array[getNumRows()] of row lower bounds.

Definition at line 555 of file AbcModel.h.

const double* AbcModel::getRowUpper ( ) const

inline

Get pointer to array[getNumRows()] of row upper bounds.

Definition at line 559 of file AbcModel.h.

const double* AbcModel::getObjCoefficients ( ) const

inline

Get pointer to array[getNumCols()] of objective function coefficients.

Definition at line 563 of file AbcModel.h.

double AbcModel::getObjSense ( ) const

inline

Get objective function sense (1 for min (default), -1 for max)

Definition at line 567 of file AbcModel.h.

AbcPseudocost** AbcModel::getPseudoList ( )

inline

Number of rows in continuous (root) problem.

Definition at line 570 of file AbcModel.h.

int* AbcModel::getPseudoIndices ( )

inline

Number of rows in continuous (root) problem.

Definition at line 573 of file AbcModel.h.

bool AbcModel::isContinuous ( int colIndex ) const

inline

Return true if variable is continuous.

Definition at line 576 of file AbcModel.h.

bool AbcModel::isBinary ( int colIndex ) const

inline

Return true if variable is binary.

Definition at line 580 of file AbcModel.h.

bool AbcModel::isInteger ( int colIndex ) const

inline

Return true if column is integer.

Note: This function returns true if the the column is binary or a general integer.

Definition at line 587 of file AbcModel.h.

bool AbcModel::isIntegerNonBinary ( int colIndex ) const

inline

Return true if variable is general integer.

Definition at line 591 of file AbcModel.h.

bool AbcModel::isFreeBinary ( int colIndex ) const

inline

Return true if variable is binary and not fixed at either bound.

Definition at line 595 of file AbcModel.h.

const CoinPackedMatrix* AbcModel::getMatrixByRow ( ) const

inline

Get pointer to row-wise copy of matrix.

Definition at line 599 of file AbcModel.h.

const CoinPackedMatrix* AbcModel::getMatrixByCol ( ) const

inline

Get pointer to column-wise copy of matrix.

Definition at line 603 of file AbcModel.h.

double AbcModel::getInfinity ( ) const

inline

Get solver's value for infinity.

Definition at line 607 of file AbcModel.h.

double AbcModel::checkSolution	(	double	cutoff,
		const double *	solution,
		bool	fixVariables
	)

Call this to really test if a valid solution can be feasible Solution is number columns in size.

If fixVariables true then bounds of continuous solver updated. Returns objective value (worse than cutoff if not feasible)

bool AbcModel::setBestSolution	(	ABC_Message	how,
		double &	objectiveValue,
		const double *	solution,
		bool	fixVariables = `false`
	)

Record a new incumbent solution and update objectiveValue.

bool AbcModel::feasibleSolution ( int & numberIntegerInfeasibilities )

Test the current solution for feasiblility.

Scan all objects for indications of infeasibility. This is broken down into simple integer infeasibility (numberIntegerInfeasibilities) and all other reports of infeasibility ().

double* AbcModel::currentSolution ( ) const

inline

Solution to the most recent lp relaxation.

The solver's solution to the most recent lp relaxation.

Definition at line 639 of file AbcModel.h.

const double* AbcModel::getColSolution ( ) const

inline

Get pointer to array[getNumCols()] of primal solution vector.

Definition at line 643 of file AbcModel.h.

const double* AbcModel::getRowPrice ( ) const

inline

Get pointer to array[getNumRows()] of dual prices.

Definition at line 647 of file AbcModel.h.

const double* AbcModel::getReducedCost ( ) const

inline

Get a pointer to array[getNumCols()] of reduced costs.

Definition at line 651 of file AbcModel.h.

const double* AbcModel::getRowActivity ( ) const

inline

Get pointer to array[getNumRows()] of row activity levels.

Definition at line 655 of file AbcModel.h.

double AbcModel::getCurrentObjValue ( ) const

inline

Get current objective function value.

Definition at line 659 of file AbcModel.h.

double AbcModel::getObjValue ( ) const

inline

Get best objective function value.

Definition at line 663 of file AbcModel.h.

void AbcModel::setObjValue ( double obj )

inline

Set the best objective value.

It is not necessary the value from the bestSolution_. It can be get from other processes.

Definition at line 668 of file AbcModel.h.

const double* AbcModel::bestSolution ( ) const

inline

The best solution to the integer programming problem.

The best solution to the integer programming problem found during the search. If no solution is found, the method returns null.

Definition at line 676 of file AbcModel.h.

int AbcModel::getSolutionCount ( ) const

inline

Get number of solutions.

Definition at line 680 of file AbcModel.h.

void AbcModel::setSolutionCount ( int value )

inline

Set number of solutions (so heuristics will be different)

Definition at line 684 of file AbcModel.h.

int AbcModel::getNumberHeuristicSolutions ( ) const

inline

Get number of heuristic solutions.

Definition at line 688 of file AbcModel.h.

void AbcModel::setObjSense ( double s )

inline

Set objective function sense (1 for min (default), -1 for max,)

Definition at line 692 of file AbcModel.h.

void AbcModel::setMaximumCutPassesAtRoot ( int value )

inline

Set the maximum number of cut passes at root node (default 20) Minimum drop can also be used for fine tuning.

Definition at line 696 of file AbcModel.h.

int AbcModel::getMaximumCutPassesAtRoot ( ) const

inline

Get the maximum number of cut passes at root node.

Definition at line 699 of file AbcModel.h.

void AbcModel::setMaximumCutPasses ( int value )

inline

Set the maximum number of cut passes at other nodes (default 10) Minimum drop can also be used for fine tuning.

Definition at line 704 of file AbcModel.h.

int AbcModel::getMaximumCutPasses ( ) const

inline

Get the maximum number of cut passes at other nodes (default 10)

Definition at line 707 of file AbcModel.h.

int AbcModel::currentNumberCuts ( ) const

inline

Number of entries in the list returned by #addedCuts()

Definition at line 710 of file AbcModel.h.

void AbcModel::setCurrentNumberCuts ( int value )

inline

Call this to really test if a valid solution can be feasible Solution is number columns in size.

If fixVariables true then bounds of continuous solver updated. Returns objective value (worse than cutoff if not feasible)

Definition at line 712 of file AbcModel.h.

AbcBranchDecision* AbcModel::branchingMethod ( ) const

inline

Get the current branching decision method.

Definition at line 727 of file AbcModel.h.

void AbcModel::setBranchingMethod ( AbcBranchDecision * method )

inline

Set the branching decision method.

Definition at line 730 of file AbcModel.h.

void AbcModel::setBranchingMethod ( AbcBranchDecision & method )

inline

Set the branching method This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 735 of file AbcModel.h.

void AbcModel::passInMessageHandler ( CoinMessageHandler * handler )

inline

Pass in Message handler (not deleted at end)

Definition at line 744 of file AbcModel.h.

void AbcModel::newLanguage ( CoinMessages::Language language )

inline

Set language.

Definition at line 755 of file AbcModel.h.

void AbcModel::setLanguage ( CoinMessages::Language language )

inline

Pass in Message handler (not deleted at end)

Definition at line 757 of file AbcModel.h.

CoinMessageHandler* AbcModel::messageHandler ( ) const

inline

Return handler.

Definition at line 760 of file AbcModel.h.

CoinMessages AbcModel::messages ( )

inline

Return messages.

Definition at line 763 of file AbcModel.h.

CoinMessages* AbcModel::messagesPointer ( )

inline

Return pointer to messages.

Definition at line 766 of file AbcModel.h.

bool AbcModel::checkInteger ( double value ) const

inline

Definition at line 772 of file AbcModel.h.

void AbcModel::findIntegers ( bool startAgain )

Identify integer variables and create corresponding objects.

Record integer variables and create an integer object for each one. If startAgain is true, a new scan is forced, overwriting any existing integer variable information.

void AbcModel::addCutGenerator	(	CglCutGenerator *	generator,
		int	howOften = `1`,
		const char *	name = `NULL`,
		bool	normal = `true`,
		bool	atSolution = `false`,
		bool	infeasible = `false`
	)

Add one generator - up to user to delete generators.

howoften affects how generator is used. 0 or 1 means always, >1 means every that number of nodes. Negative values have same meaning as positive but they may be switched off (-> -100) by code if not many cuts generated at continuous. -99 is just done at root. Name is just for printout

void AbcModel::addHeuristic ( AbcHeuristic * generator )

Add one heuristic.

void AbcModel::reducedCostFix ( )

Perform reduced cost fixing Fixes integer variables at their current value based on reduced cost penalties.

void AbcModel::takeOffCuts ( )

Remove inactive cuts from the model.

An OsiSolverInterface is expected to maintain a valid basis, but not a valid solution, when loose cuts are deleted. Restoring a valid solution requires calling the solver to reoptimise. If it's certain the solution will not be required, set allowResolve to false to suppress reoptimisation.

bool AbcModel::setIntParam	(	AbcIntParam	key,
		int	value
	)

inline

Set an integer parameter.

Definition at line 828 of file AbcModel.h.

bool AbcModel::setDblParam	(	AbcDblParam	key,
		double	value
	)

inline

Set a double parameter.

Definition at line 834 of file AbcModel.h.

int AbcModel::getIntParam ( AbcIntParam key ) const

inline

Get an integer parameter.

Definition at line 840 of file AbcModel.h.

double AbcModel::getDblParam ( AbcDblParam key ) const

inline

Get a double parameter.

Definition at line 845 of file AbcModel.h.

void AbcModel::setCutoff ( double value )

Set cutoff bound on the objective function. When using strict comparison, the bound is adjusted by a tolerance to avoid accidentally cutting off the optimal solution.

double AbcModel::getCutoff ( ) const

inline

Get the cutoff bound on the objective function - always as minimize.

Definition at line 856 of file AbcModel.h.

bool AbcModel::setMaximumNodes ( int value )

inline

Set the maximum node limit .

Definition at line 864 of file AbcModel.h.

int AbcModel::getMaximumNodes ( ) const

inline

Get the maximum node limit .

Definition at line 868 of file AbcModel.h.

bool AbcModel::setMaximumSolutions ( int value )

inline

Set the maximum number of solutions desired.

Definition at line 875 of file AbcModel.h.

int AbcModel::getMaximumSolutions ( ) const

inline

Get the maximum number of solutions desired.

Definition at line 882 of file AbcModel.h.

bool AbcModel::setIntegerTolerance ( double value )

inline

Set the integrality tolerance .

Definition at line 889 of file AbcModel.h.

double AbcModel::getIntegerTolerance ( ) const

inline

Get the integrality tolerance .

Definition at line 895 of file AbcModel.h.

bool AbcModel::setInfeasibilityWeight ( double value )

inline

Set the weight per integer infeasibility .

Definition at line 903 of file AbcModel.h.

double AbcModel::getInfeasibilityWeight ( ) const

inline

Get the weight per integer infeasibility .

Definition at line 910 of file AbcModel.h.

bool AbcModel::setAllowableGap ( double value )

inline

Set the allowable gap between the best known solution and the best possible solution.

Definition at line 917 of file AbcModel.h.

double AbcModel::getAllowableGap ( ) const

inline

Get the allowable gap between the best known solution and the best possible solution.

Definition at line 923 of file AbcModel.h.

void AbcModel::setMinimumDrop ( double value )

inline

Set the minimum drop to continue cuts.

Definition at line 928 of file AbcModel.h.

double AbcModel::getMinimumDrop ( ) const

inline

Get the minimum drop to continue cuts.

Definition at line 931 of file AbcModel.h.

virtual bool AbcModel::setupSelf ( )

virtual

Do necessary work to make model usable.

Return success or not.

Reimplemented from AlpsModel.

int AbcModel::numberStrong ( ) const

inline

Definition at line 939 of file AbcModel.h.

void AbcModel::setNumberStrong ( int number )

inline

Definition at line 942 of file AbcModel.h.

const int* AbcModel::priority ( ) const

inline

Priorities.

Definition at line 951 of file AbcModel.h.

int AbcModel::priority ( int sequence ) const

inline

Returns priority level for an object (or 1000 if no priorities exist)

Definition at line 954 of file AbcModel.h.

virtual AlpsEncoded* AbcModel::encode ( ) const

virtual

The method that encodes the model into a encoded object.

Reimplemented from AlpsKnowledge.

virtual void AbcModel::decodeToSelf ( AlpsEncoded & )

virtual

The method that decodes the model from a encoded object.

Reimplemented from AlpsModel.

Member Data Documentation

int AbcModel::numberRowsAtContinuous_

private

Number of rows at continuous.

Definition at line 105 of file AbcModel.h.

int AbcModel::numberIntegers_

private

Number of integers in problem.

Definition at line 107 of file AbcModel.h.

int* AbcModel::integerVariable_

private

Indices of integer variables.

Definition at line 109 of file AbcModel.h.

CoinWarmStartBasis* AbcModel::sharedBasis_

private

Pointer to a warm start basis.

Definition at line 111 of file AbcModel.h.

CoinMessageHandler* AbcModel::handler_

private

Message handler.

Definition at line 115 of file AbcModel.h.

bool AbcModel::defaultHandler_

private

Flag to say if handler_ is the default handler.

The default handler is deleted when the model is deleted. Other handlers (supplied by the client) will not be deleted.

Definition at line 121 of file AbcModel.h.

CoinMessages AbcModel::messages_

private

Abc messages.

Definition at line 124 of file AbcModel.h.

int AbcModel::intParam_[AbcLastIntParam]

private

Array for integer parameters.

Definition at line 127 of file AbcModel.h.

double AbcModel::dblParam_[AbcLastDblParam]

private

Array for double parameters.

Definition at line 130 of file AbcModel.h.

OsiSolverInterface* AbcModel::solver_

private

The solver associated with this model.

Definition at line 133 of file AbcModel.h.

bool AbcModel::ourSolver_

private

Ownership of the solver object The convention is that AbcModel owns the null solver.

Currently there is no public method to give AbcModel a solver without giving ownership, but the hook is here.

Definition at line 139 of file AbcModel.h.

OsiSolverInterface* AbcModel::continuousSolver_

private

A copy of the solver, taken at the continuous (root) node.

Definition at line 142 of file AbcModel.h.

CoinWarmStartBasis* AbcModel::basis_

private

Pointer to a warm start basis.

Definition at line 145 of file AbcModel.h.

CoinWarmStartBasis* AbcModel::lastws_

private

Pointer to last warm basis.

Definition at line 148 of file AbcModel.h.

double AbcModel::minimumDrop_

private

Minimum degradation in objective value to continue cut generation.

Definition at line 151 of file AbcModel.h.

double AbcModel::bestObjective_

private

Best objective.

Definition at line 154 of file AbcModel.h.

double* AbcModel::bestSolution_

private

Array holding the incumbent (best) solution.

Definition at line 157 of file AbcModel.h.

double* AbcModel::currentSolution_

private

Array holding the current solution.

This array is used more as a temporary.

Definition at line 162 of file AbcModel.h.

OsiCuts AbcModel::globalCuts_

private

Global cuts.

Definition at line 165 of file AbcModel.h.

int AbcModel::numberNodes_

private

Cumulative number of nodes.

Definition at line 168 of file AbcModel.h.

int AbcModel::numberIterations_

private

Cumulative number of iterations.

Definition at line 170 of file AbcModel.h.

int AbcModel::status_

private

Status of problem - 0 finished, 1 stopped, 2 difficulties.

Definition at line 172 of file AbcModel.h.

int AbcModel::currentNumberCuts_

private

Number of entries in #addedCuts_.

Definition at line 174 of file AbcModel.h.

int AbcModel::maximumNumberCuts_

private

Maximum number of cuts.

Definition at line 176 of file AbcModel.h.

int AbcModel::howOftenGlobalScan_

private

How often to scan global cuts.

Definition at line 178 of file AbcModel.h.

int AbcModel::maximumDepth_

private

Current limit on search tree depth.

The allocated size of #walkback_. Increased as needed.

Definition at line 184 of file AbcModel.h.

int AbcModel::numberStrong_

private

Maximum number of candidates to consider for strong branching.

To disable storng branching and use pseudocost branching, set this to 0.

Definition at line 190 of file AbcModel.h.

int AbcModel::numberCutGenerators_

private

Number of cut generators.

Definition at line 192 of file AbcModel.h.

AbcCutGenerator** AbcModel::generator_

private

Definition at line 194 of file AbcModel.h.

int AbcModel::numberHeuristics_

private

Number of heuristics.

Definition at line 196 of file AbcModel.h.

AbcHeuristic** AbcModel::heuristic_

private

Definition at line 198 of file AbcModel.h.

int AbcModel::maximumCutPassesAtRoot_

private

Maximum number of cut passes at root.

Definition at line 201 of file AbcModel.h.

int AbcModel::maximumCutPasses_

private

Maximum number of cut passes.

Definition at line 203 of file AbcModel.h.

AbcBranchDecision* AbcModel::branchingMethod_

private

Variable selection function.

Definition at line 206 of file AbcModel.h.

int AbcModel::numberSolutions_

private

Number of solutions.

Definition at line 208 of file AbcModel.h.

int AbcModel::numberHeuristicSolutions_

private

Number of heuristic solutions.

Definition at line 210 of file AbcModel.h.

int* AbcModel::priority_

private

Priorities.

Definition at line 212 of file AbcModel.h.

AbcPseudocost** AbcModel::pseudoList_

private

Definition at line 214 of file AbcModel.h.

int* AbcModel::pseudoIndices_

private

Definition at line 216 of file AbcModel.h.

AbcParams* AbcModel::AbcPar_

private

Abc parameters.

Definition at line 219 of file AbcModel.h.

The documentation for this class was generated from the following file:

/tmp/CHiPPS-Alps-1.5.6/Alps/examples/Abc/AbcModel.h

Public Types

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
