flopc::MP_variable Class Reference
[Public interface]

Symantic representation of a variable. More...

#include <MP_variable.hpp>

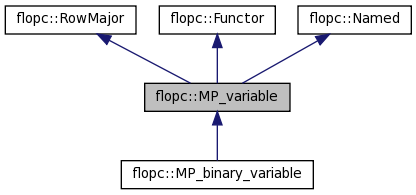

Inheritance diagram for flopc::MP_variable:

[legend]

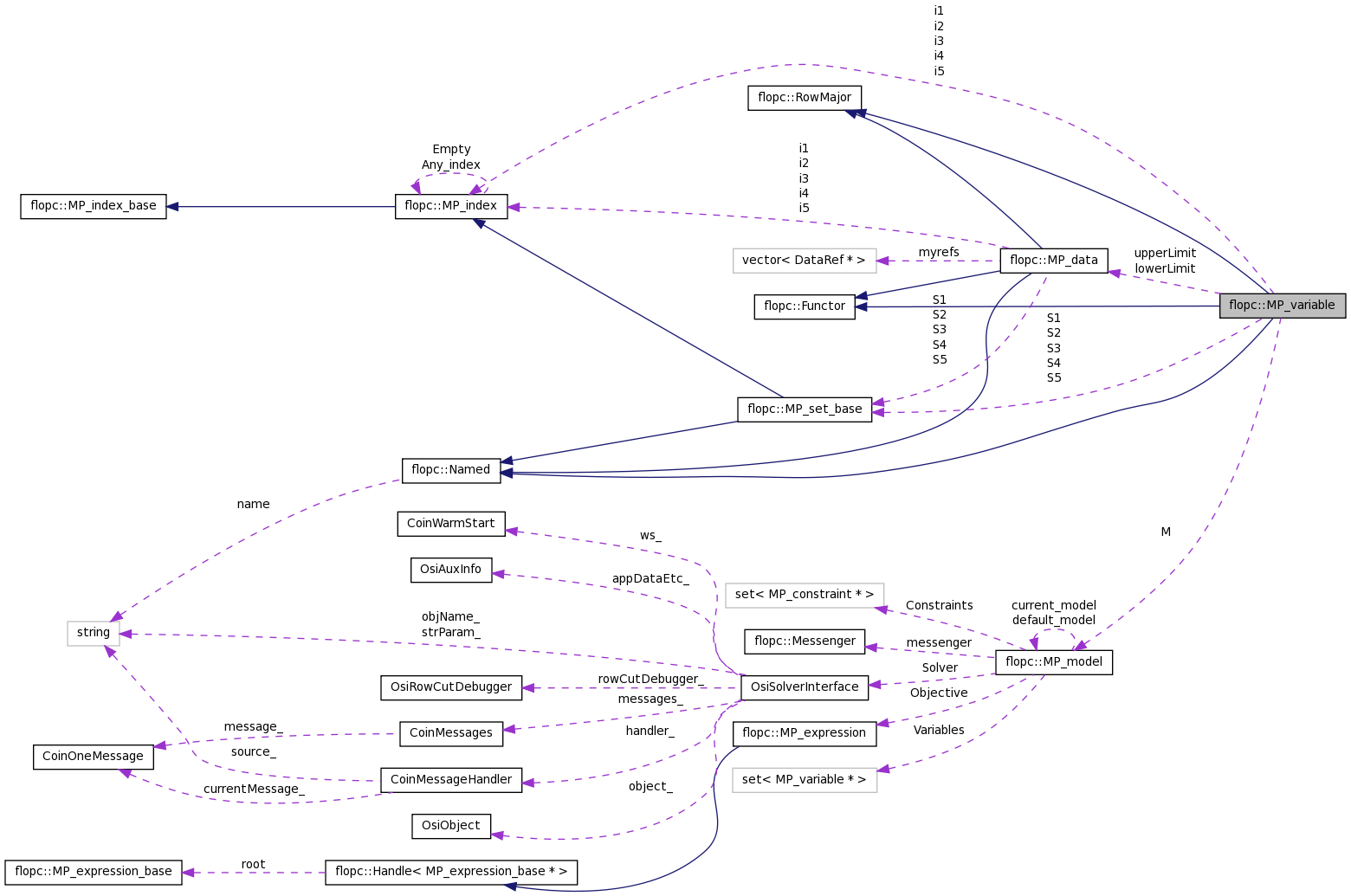

Collaboration diagram for flopc::MP_variable:

[legend]

List of all members.

Public Member Functions
	MP_variable (const MP_set_base &s1=MP_set::getEmpty(), const MP_set_base &s2=MP_set::getEmpty(), const MP_set_base &s3=MP_set::getEmpty(), const MP_set_base &s4=MP_set::getEmpty(), const MP_set_base &s5=MP_set::getEmpty())
void	display (const std::string &s="")
	~MP_variable ()
double	level (int i1=0, int i2=0, int i3=0, int i4=0, int i5=0)
	Returns the value of the variable given the specific index values.
const VariableRef &	operator() (const MP_index_exp &d1=MP_index_exp::getEmpty(), const MP_index_exp &d2=MP_index_exp::getEmpty(), const MP_index_exp &d3=MP_index_exp::getEmpty(), const MP_index_exp &d4=MP_index_exp::getEmpty(), const MP_index_exp &d5=MP_index_exp::getEmpty())
	Interal use only.
void	binary ()
	Call this method to turn the variable into a binary variable.
void	integer ()
	Call this method to turn the MP_variable into an integer variable.
Public Attributes
MP_data	upperLimit
	Upper bound on the variable value.
MP_data	lowerLimit
	Lower bound on the variable value.
Private Member Functions
void	operator() () const
Private Attributes
const MP_set_base *	S1
const MP_set_base *	S2
const MP_set_base *	S3
const MP_set_base *	S4
const MP_set_base *	S5
MP_index	i1
MP_index	i2
MP_index	i3
MP_index	i4
MP_index	i5
MP_model *	M
variableType	type
int	offset
Friends
class	MP_model
class	DisplayVariable
class	VariableRef

Detailed Description

Symantic representation of a variable.

This is one of the main public interface classes. It should be directly declared by clients of the FlopC++. The parametersof construction are MP_set s which specify the indexes over which the variable is defined.

Definition at line 35 of file MP_variable.hpp.

Constructor & Destructor Documentation

flopc::MP_variable::MP_variable	(	const MP_set_base &	s1 = `MP_set::getEmpty()`,
		const MP_set_base &	s2 = `MP_set::getEmpty()`,
		const MP_set_base &	s3 = `MP_set::getEmpty()`,
		const MP_set_base &	s4 = `MP_set::getEmpty()`,
		const MP_set_base &	s5 = `MP_set::getEmpty()`
	)

flopc::MP_variable::~MP_variable ( ) [inline]

Definition at line 48 of file MP_variable.hpp.

Member Function Documentation

void flopc::MP_variable::display ( const std::string & s = "" )

double flopc::MP_variable::level	(	int	i1 = `0`,
		int	i2 = `0`,
		int	i3 = `0`,
		int	i4 = `0`,
		int	i5 = `0`
	)

Returns the value of the variable given the specific index values.

const VariableRef& flopc::MP_variable::operator()	(	const MP_index_exp &	d1 = `MP_index_exp::getEmpty()`,
		const MP_index_exp &	d2 = `MP_index_exp::getEmpty()`,
		const MP_index_exp &	d3 = `MP_index_exp::getEmpty()`,
		const MP_index_exp &	d4 = `MP_index_exp::getEmpty()`,
		const MP_index_exp &	d5 = `MP_index_exp::getEmpty()`
	)			`[inline]`
