Ipopt::WsmpSolverInterface Class Reference

Interface to the linear solver Wsmp, derived from SparseSymLinearSolverInterface. More...

#include <IpWsmpSolverInterface.hpp>

Inheritance diagram for Ipopt::WsmpSolverInterface:
Inheritance graph
[legend]

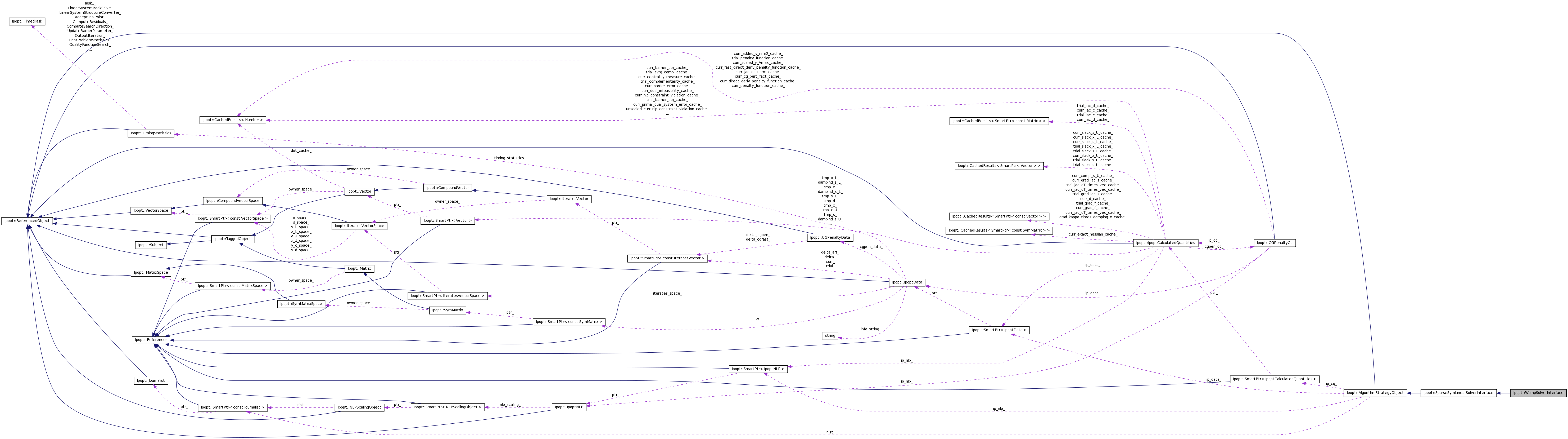

Collaboration diagram for Ipopt::WsmpSolverInterface:
Collaboration graph
[legend]

List of all members.

Public Member Functions

bool InitializeImpl (const OptionsList &options, const std::string &prefix)
 overloaded from AlgorithmStrategyObject
virtual bool ProvidesDegeneracyDetection () const
 Query whether the indices of linearly dependent rows/columns can be determined by this linear solver.
virtual ESymSolverStatus DetermineDependentRows (const Index *ia, const Index *ja, std::list< Index > &c_deps)
 This method determines the list of row indices of the linearly dependent rows.
Constructor/Destructor



 WsmpSolverInterface ()
 Constructor.
virtual ~WsmpSolverInterface ()
 Destructor.
Methods for requesting solution of the linear system.



virtual ESymSolverStatus InitializeStructure (Index dim, Index nonzeros, const Index *ia, const Index *ja)
 Method for initializing internal stuctures.
virtual double * GetValuesArrayPtr ()
 Method returing an internal array into which the nonzero elements are to be stored.
virtual ESymSolverStatus MultiSolve (bool new_matrix, const Index *ia, const Index *ja, Index nrhs, double *rhs_vals, bool check_NegEVals, Index numberOfNegEVals)
 Solve operation for multiple right hand sides.
virtual Index NumberOfNegEVals () const
 Number of negative eigenvalues detected during last factorization.

Private Member Functions

Default Compiler Generated Methods

(Hidden to avoid implicit creation/calling).

These methods are not implemented and we do not want the compiler to implement them for us, so we declare them private and do not define them. This ensures that they will not be implicitly created/called.



 WsmpSolverInterface (const WsmpSolverInterface &)
 Copy Constructor.
void operator= (const WsmpSolverInterface &)
 Overloaded Equals Operator.
Internal functions



ESymSolverStatus SymbolicFactorization (const Index *ia, const Index *ja)
 Call Wsmp to do the analysis phase.
ESymSolverStatus InternalSymFact (const Index *ia, const Index *ja)
 Call Wsmp to really do the analysis phase.
ESymSolverStatus Factorization (const Index *ia, const Index *ja, bool check_NegEVals, Index numberOfNegEVals)
 Call Wsmp to factorize the Matrix.
ESymSolverStatus Solve (const Index *ia, const Index *ja, Index nrhs, double *rhs_vals)
 Call Wsmpx to do the Solve.

Private Attributes

Index matrix_file_number_
 Counter for matrix file numbers.
Information about the matrix



Index dim_
 Number of rows and columns of the matrix.
double * a_
 Array for storing the values of the matrix.
Solver specific options



Index wsmp_num_threads_
 Option that controls the matching strategy.
Index wsmp_ordering_option_
 Ordering option for WSSMP (is IPARM(16)).
Number wsmp_pivtol_
 Pivol tolerance.
Number wsmp_pivtolmax_
 Maximal pivot tolerance.
Index wsmp_scaling_
 Indicating which of WSMP's scaling methods should be used.
Number wsmp_singularity_threshold_
 WSMP's singularity threshold.
Index wsmp_write_matrix_iteration_
 iteration number in which matrices are to be written out
Information about most recent factorization/solve



Index negevals_
 Number of negative eigenvalues.
Initialization flags



bool initialized_
 Flag indicating if internal data is initialized.
bool pivtol_changed_
 Flag indicating if the matrix has to be refactorized because the pivot tolerance has been changed.
bool have_symbolic_factorization_
 Flag indicating whether symbolic factorization and order has already been performed.
Solver specific information



ipfint * IPARM_
 Integer parameter array for WSSMP.
double * DPARM_
 Double precision parameter array for WSSMP.
ipfint * PERM_
 WSSMP's permutation vector.
ipfint * INVP_
 WSSMP's inverse permutation vector.
ipfint * MRP_
 WSSMP's internal MRP array.



virtual bool IncreaseQuality ()
 Request to increase quality of solution for next solve.
virtual bool ProvidesInertia () const
 Query whether inertia is computed by linear solver.
EMatrixFormat MatrixFormat () const
 Query of requested matrix type that the linear solver understands.
static void RegisterOptions (SmartPtr< RegisteredOptions > roptions)
 Methods for IpoptType.

Detailed Description

Interface to the linear solver Wsmp, derived from SparseSymLinearSolverInterface.

For details, see description of SparseSymLinearSolverInterface base class.

Definition at line 22 of file IpWsmpSolverInterface.hpp.

Constructor & Destructor Documentation

Ipopt::WsmpSolverInterface::WsmpSolverInterface (  )

Constructor.

virtual Ipopt::WsmpSolverInterface::~WsmpSolverInterface (  )  [virtual]

Destructor.

Ipopt::WsmpSolverInterface::WsmpSolverInterface ( const WsmpSolverInterface &   )  [private]

Copy Constructor.

Member Function Documentation

bool Ipopt::WsmpSolverInterface::InitializeImpl ( const OptionsList &  options,
const std::string &  prefix
) [virtual]

overloaded from AlgorithmStrategyObject

Implements Ipopt::SparseSymLinearSolverInterface.

virtual ESymSolverStatus Ipopt::WsmpSolverInterface::InitializeStructure ( Index  dim,
Index  nonzeros,
const Index *  ia,
const Index *  ja
) [virtual]

Method for initializing internal stuctures.

Implements Ipopt::SparseSymLinearSolverInterface.

virtual double* Ipopt::WsmpSolverInterface::GetValuesArrayPtr (  )  [virtual]

Method returing an internal array into which the nonzero elements are to be stored.

Implements Ipopt::SparseSymLinearSolverInterface.

virtual ESymSolverStatus Ipopt::WsmpSolverInterface::MultiSolve ( bool  new_matrix,
const Index *  ia,
const Index *  ja,
Index  nrhs,
double *  rhs_vals,
bool  check_NegEVals,
Index  numberOfNegEVals
) [virtual]

Solve operation for multiple right hand sides.

Implements Ipopt::SparseSymLinearSolverInterface.

virtual Index Ipopt::WsmpSolverInterface::NumberOfNegEVals (  )  const [virtual]

Number of negative eigenvalues detected during last factorization.

Implements Ipopt::SparseSymLinearSolverInterface.

virtual bool Ipopt::WsmpSolverInterface::IncreaseQuality (  )  [virtual]

Request to increase quality of solution for next solve.

Implements Ipopt::SparseSymLinearSolverInterface.

virtual bool Ipopt::WsmpSolverInterface::ProvidesInertia (  )  const [inline, virtual]

Query whether inertia is computed by linear solver.

Returns true, if linear solver provides inertia.

Implements Ipopt::SparseSymLinearSolverInterface.

Definition at line 74 of file IpWsmpSolverInterface.hpp.

EMatrixFormat Ipopt::WsmpSolverInterface::MatrixFormat (  )  const [inline, virtual]

Query of requested matrix type that the linear solver understands.

Implements Ipopt::SparseSymLinearSolverInterface.

Definition at line 81 of file IpWsmpSolverInterface.hpp.

static void Ipopt::WsmpSolverInterface::RegisterOptions ( SmartPtr< RegisteredOptions >  roptions  )  [static]

Methods for IpoptType.

virtual bool Ipopt::WsmpSolverInterface::ProvidesDegeneracyDetection (  )  const [virtual]

Query whether the indices of linearly dependent rows/columns can be determined by this linear solver.

Reimplemented from Ipopt::SparseSymLinearSolverInterface.

virtual ESymSolverStatus Ipopt::WsmpSolverInterface::DetermineDependentRows ( const Index *  ia,
const Index *  ja,
std::list< Index > &  c_deps
) [virtual]

This method determines the list of row indices of the linearly dependent rows.

Reimplemented from Ipopt::SparseSymLinearSolverInterface.

void Ipopt::WsmpSolverInterface::operator= ( const WsmpSolverInterface &   )  [private]

Overloaded Equals Operator.

Reimplemented from Ipopt::AlgorithmStrategyObject.

ESymSolverStatus Ipopt::WsmpSolverInterface::SymbolicFactorization ( const Index *  ia,
const Index *  ja
) [private]

Call Wsmp to do the analysis phase.

ESymSolverStatus Ipopt::WsmpSolverInterface::InternalSymFact ( const Index *  ia,
const Index *  ja
) [private]

Call Wsmp to really do the analysis phase.

ESymSolverStatus Ipopt::WsmpSolverInterface::Factorization ( const Index *  ia,
const Index *  ja,
bool  check_NegEVals,
Index  numberOfNegEVals
) [private]

Call Wsmp to factorize the Matrix.

ESymSolverStatus Ipopt::WsmpSolverInterface::Solve ( const Index *  ia,
const Index *  ja,
Index  nrhs,
double *  rhs_vals
) [private]

Call Wsmpx to do the Solve.

Member Data Documentation

Index Ipopt::WsmpSolverInterface::dim_ [private]

Number of rows and columns of the matrix.

Definition at line 121 of file IpWsmpSolverInterface.hpp.

double* Ipopt::WsmpSolverInterface::a_ [private]

Array for storing the values of the matrix.

Definition at line 124 of file IpWsmpSolverInterface.hpp.

Index Ipopt::WsmpSolverInterface::wsmp_num_threads_ [private]

Option that controls the matching strategy.

Definition at line 130 of file IpWsmpSolverInterface.hpp.

Index Ipopt::WsmpSolverInterface::wsmp_ordering_option_ [private]

Ordering option for WSSMP (is IPARM(16)).

Definition at line 132 of file IpWsmpSolverInterface.hpp.

Number Ipopt::WsmpSolverInterface::wsmp_pivtol_ [private]

Pivol tolerance.

Definition at line 134 of file IpWsmpSolverInterface.hpp.

Number Ipopt::WsmpSolverInterface::wsmp_pivtolmax_ [private]

Maximal pivot tolerance.

Definition at line 136 of file IpWsmpSolverInterface.hpp.

Index Ipopt::WsmpSolverInterface::wsmp_scaling_ [private]

Indicating which of WSMP's scaling methods should be used.

Definition at line 138 of file IpWsmpSolverInterface.hpp.

Number Ipopt::WsmpSolverInterface::wsmp_singularity_threshold_ [private]

WSMP's singularity threshold.

The smaller this value the less likely a matrix is declared singular.

Definition at line 141 of file IpWsmpSolverInterface.hpp.

Index Ipopt::WsmpSolverInterface::wsmp_write_matrix_iteration_ [private]

iteration number in which matrices are to be written out

Definition at line 143 of file IpWsmpSolverInterface.hpp.

Index Ipopt::WsmpSolverInterface::matrix_file_number_ [private]

Counter for matrix file numbers.

Definition at line 147 of file IpWsmpSolverInterface.hpp.

Index Ipopt::WsmpSolverInterface::negevals_ [private]

Number of negative eigenvalues.

Definition at line 152 of file IpWsmpSolverInterface.hpp.

bool Ipopt::WsmpSolverInterface::initialized_ [private]

Flag indicating if internal data is initialized.

For initialization, this object needs to have seen a matrix

Definition at line 159 of file IpWsmpSolverInterface.hpp.

bool Ipopt::WsmpSolverInterface::pivtol_changed_ [private]

Flag indicating if the matrix has to be refactorized because the pivot tolerance has been changed.

Definition at line 162 of file IpWsmpSolverInterface.hpp.

bool Ipopt::WsmpSolverInterface::have_symbolic_factorization_ [private]

Flag indicating whether symbolic factorization and order has already been performed.

Definition at line 165 of file IpWsmpSolverInterface.hpp.

ipfint* Ipopt::WsmpSolverInterface::IPARM_ [private]

Integer parameter array for WSSMP.

Definition at line 171 of file IpWsmpSolverInterface.hpp.

double* Ipopt::WsmpSolverInterface::DPARM_ [private]

Double precision parameter array for WSSMP.

Definition at line 173 of file IpWsmpSolverInterface.hpp.

ipfint* Ipopt::WsmpSolverInterface::PERM_ [private]

WSSMP's permutation vector.

Definition at line 175 of file IpWsmpSolverInterface.hpp.

ipfint* Ipopt::WsmpSolverInterface::INVP_ [private]

WSSMP's inverse permutation vector.

Definition at line 177 of file IpWsmpSolverInterface.hpp.

ipfint* Ipopt::WsmpSolverInterface::MRP_ [private]

WSSMP's internal MRP array.

Definition at line 179 of file IpWsmpSolverInterface.hpp.

The documentation for this class was generated from the following file:
