Ipopt::DenseVector Class Reference

Dense Vector Implementation. More...

#include <IpDenseVector.hpp>

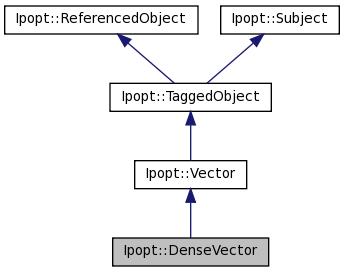

Inheritance diagram for Ipopt::DenseVector:

[legend]

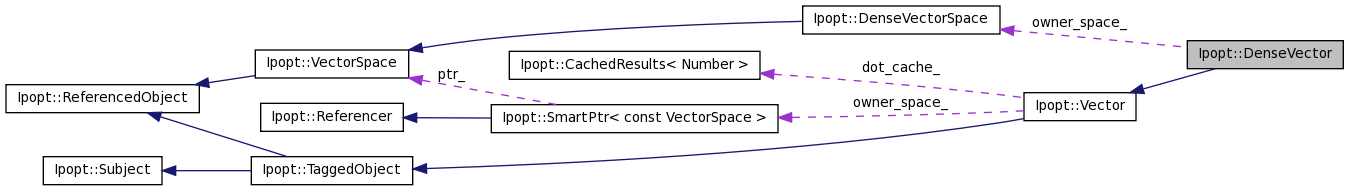

Collaboration diagram for Ipopt::DenseVector:

[legend]

List of all members.

Public Member Functions
Constructors / Destructors

	DenseVector (const DenseVectorSpace *owner_space)
	Default Constructor.
virtual	~DenseVector ()
	Destructor.
Additional public methods not in Vector base class.

SmartPtr< DenseVector >	MakeNewDenseVector () const
	Create a new DenseVector from same VectorSpace.
void	SetValues (const Number *x)
	Set elements in the vector to the Number array x.
Number *	Values ()
	Obtain pointer to the internal Number array with vector elements with the indention to change the vector data (USE WITH CARE!).
const Number *	Values () const
	Obtain pointer to the internal Number array with vector elements without the intention to change the vector data (USE WITH CARE!).
const Number *	ExpandedValues () const
	The same as the const version of Values, but we ensure that we always return a valid array, even if IsHomogeneous returns true.
Number *	ExpandedValues ()
	This is the same as Values, but we add it here so that ExpandedValues can also be used for the non-const case.
bool	IsHomogeneous () const
	Indicates if the vector is homogeneous (i.e., all entries have the value Scalar().
Number	Scalar () const
	Scalar value of all entries in a homogeneous vector.
Modifying subranges of the vector.

void	CopyToPos (Index Pos, const Vector &x)
	Copy the data in x into the subrange of this vector starting at position Pos in this vector.
void	CopyFromPos (Index Pos, Vector &x) const
	Copy the data in this vector's subrange starting at position Pos to Vector x.
Protected Member Functions
Overloaded methods from Vector base class

virtual void	CopyImpl (const Vector &x)
	Copy the data of the vector x into this vector (DCOPY).
virtual void	ScalImpl (Number alpha)
	Scales the vector by scalar alpha (DSCAL).
virtual void	AxpyImpl (Number alpha, const Vector &x)
	Add the multiple alpha of vector x to this vector (DAXPY).
virtual Number	DotImpl (const Vector &x) const
	Computes inner product of vector x with this (DDOT).
virtual Number	Nrm2Impl () const
	Computes the 2-norm of this vector (DNRM2).
virtual Number	AsumImpl () const
	Computes the 1-norm of this vector (DASUM).
virtual Number	AmaxImpl () const
	Computes the max-norm of this vector (based on IDAMAX).
virtual void	SetImpl (Number value)
	Set each element in the vector to the scalar alpha.
virtual void	ElementWiseDivideImpl (const Vector &x)
	Element-wise division $y_i \gets y_i/x_i$ .
virtual void	ElementWiseMultiplyImpl (const Vector &x)
	Element-wise multiplication $y_i \gets y_i*x_i$ .
virtual void	ElementWiseMaxImpl (const Vector &x)
	Set entry to max of itself and the corresponding element in x.
virtual void	ElementWiseMinImpl (const Vector &x)
	Set entry to min of itself and the corresponding element in x.
virtual void	ElementWiseReciprocalImpl ()
	reciprocates the elements of the vector
virtual void	ElementWiseAbsImpl ()
	take abs of the elements of the vector
virtual void	ElementWiseSqrtImpl ()
	take square-root of the elements of the vector
virtual void	ElementWiseSgnImpl ()
	Changes each entry in the vector to its sgn value.
virtual void	AddScalarImpl (Number scalar)
	Add scalar to every component of the vector.
virtual Number	MaxImpl () const
	Max value in the vector.
virtual Number	MinImpl () const
	Min value in the vector.
virtual Number	SumImpl () const
	Computes the sum of the lements of vector.
virtual Number	SumLogsImpl () const
	Computes the sum of the logs of the elements of vector.
Implemented specialized functions

void	AddTwoVectorsImpl (Number a, const Vector &v1, Number b, const Vector &v2, Number c)
	Add two vectors (a * v1 + b * v2).
Number	FracToBoundImpl (const Vector &delta, Number tau) const
	Fraction to the boundary parameter.
void	AddVectorQuotientImpl (Number a, const Vector &z, const Vector &s, Number c)
	Add the quotient of two vectors, y = a * z/s + c * y.
Output methods

virtual void	PrintImpl (const Journalist &jnlst, EJournalLevel level, EJournalCategory category, const std::string &name, Index indent, const std::string &prefix) const
	Print the entire vector.
Private Member Functions
Number *	values_allocated ()
	Method of getting the internal values array, making sure that memory has been allocated.
void	set_values_from_scalar ()
	Auxilliary method for setting explicitly all elements in values_ to the current scalar value.
Default Compiler Generated Methods
(Hidden to avoid implicit creation/calling). These methods are not implemented and we do not want the compiler to implement them for us, so we declare them private and do not define them. This ensures that they will not be implicitly created/called.
	DenseVector ()
	Default Constructor.
	DenseVector (const DenseVector &)
	Copy Constructor.
void	operator= (const DenseVector &)
	Overloaded Equals Operator.
Private Attributes
const DenseVectorSpace *	owner_space_
	Copy of the owner_space ptr as a DenseVectorSpace instead of a VectorSpace.
Number *	values_
	Dense Number array of vector values.
Number *	expanded_values_
	Dense Number array pointer that is used for ExpandedValues.
bool	initialized_
	Flag for Initialization.
bool	homogeneous_
	Flag indicating whether the vector is currently homogeneous (that is, all elements have the same value).
Number	scalar_
	Homogeneous value of all elements if the vector is currently homogenous.

Detailed Description

Dense Vector Implementation.

This is the default Vector class in Ipopt. It stores vectors in contiguous Number arrays, unless the vector has the same value in all entires. In the latter case, we call the vector "homogeneous", and we store only the values that is repeated in all elements. If you want to obtain the values of vector, use the IsHomogeneous() method to find out what status the vector is in, and then use either Values() const or Scalar() const methods to get the values. To set the values of a homogeneous method, use the Set method. To set the values of a non-homogeneous vector, use the SetValues method, or use the non-const Values method to get an array that you can overwrite. In the latter case, storage is ensured.

Definition at line 34 of file IpDenseVector.hpp.

Constructor & Destructor Documentation

Ipopt::DenseVector::DenseVector ( const DenseVectorSpace * owner_space )

Default Constructor.

virtual Ipopt::DenseVector::~DenseVector ( ) [virtual]

Destructor.

Ipopt::DenseVector::DenseVector ( ) [private]

Default Constructor.

Ipopt::DenseVector::DenseVector ( const DenseVector & ) [private]

Copy Constructor.

Member Function Documentation

SmartPtr< DenseVector > Ipopt::DenseVector::MakeNewDenseVector ( ) const [inline]

Create a new DenseVector from same VectorSpace.

Definition at line 353 of file IpDenseVector.hpp.

void Ipopt::DenseVector::SetValues ( const Number * x )

Set elements in the vector to the Number array x.

Number * Ipopt::DenseVector::Values ( ) [inline]

Obtain pointer to the internal Number array with vector elements with the indention to change the vector data (USE WITH CARE!).

This does not produce a copy, and lifetime is not guaranteed!.

Definition at line 304 of file IpDenseVector.hpp.

const Number * Ipopt::DenseVector::Values ( ) const [inline]

Obtain pointer to the internal Number array with vector elements without the intention to change the vector data (USE WITH CARE!).

This does not produce a copy, and lifetime is not guaranteed! IMPORTANT: If this method is currently homogeneous (i.e. IsHomogeneous returns true), then you cannot call this method. Instead, you need to use the Scalar() method.

Definition at line 321 of file IpDenseVector.hpp.

const Number* Ipopt::DenseVector::ExpandedValues ( ) const

The same as the const version of Values, but we ensure that we always return a valid array, even if IsHomogeneous returns true.

Number* Ipopt::DenseVector::ExpandedValues ( ) [inline]

This is the same as Values, but we add it here so that ExpandedValues can also be used for the non-const case.

Definition at line 81 of file IpDenseVector.hpp.

bool Ipopt::DenseVector::IsHomogeneous ( ) const [inline]

Indicates if the vector is homogeneous (i.e., all entries have the value Scalar().

Definition at line 88 of file IpDenseVector.hpp.

Number Ipopt::DenseVector::Scalar ( ) const [inline]

Scalar value of all entries in a homogeneous vector.

Definition at line 94 of file IpDenseVector.hpp.

void Ipopt::DenseVector::CopyToPos	(	Index	Pos,
		const Vector &	x
	)

Copy the data in x into the subrange of this vector starting at position Pos in this vector.

Position count starts at 0.

void Ipopt::DenseVector::CopyFromPos	(	Index	Pos,
		Vector &	x
	)			const

Copy the data in this vector's subrange starting at position Pos to Vector x.

Position count starts at 0.

virtual void Ipopt::DenseVector::CopyImpl ( const Vector & x ) [protected, virtual]

Copy the data of the vector x into this vector (DCOPY).

virtual void Ipopt::DenseVector::ScalImpl ( Number alpha ) [protected, virtual]

Scales the vector by scalar alpha (DSCAL).

virtual void Ipopt::DenseVector::AxpyImpl	(	Number	alpha,
		const Vector &	x
	)			`[protected, virtual]`

void Ipopt::DenseVector::AddTwoVectorsImpl	(	Number	a,
		const Vector &	v1,
		Number	b,
		const Vector &	v2,
		Number	c
	)			`[protected]`

Number Ipopt::DenseVector::FracToBoundImpl	(	const Vector &	delta,
		Number	tau
	)			const `[protected]`

void Ipopt::DenseVector::AddVectorQuotientImpl	(	Number	a,
		const Vector &	z,
		const Vector &	s,
		Number	c
	)			`[protected]`

virtual void Ipopt::DenseVector::PrintImpl	(	const Journalist &	jnlst,
		EJournalLevel	level,
		EJournalCategory	category,
		const std::string &	name,
		Index	indent,
		const std::string &	prefix
	)			const `[protected, virtual]`
