ClpPrimalColumnPivot Class Reference

Primal Column Pivot Abstract Base Class. More...

#include <ClpPrimalColumnPivot.hpp>

Inheritance diagram for ClpPrimalColumnPivot:

[legend]

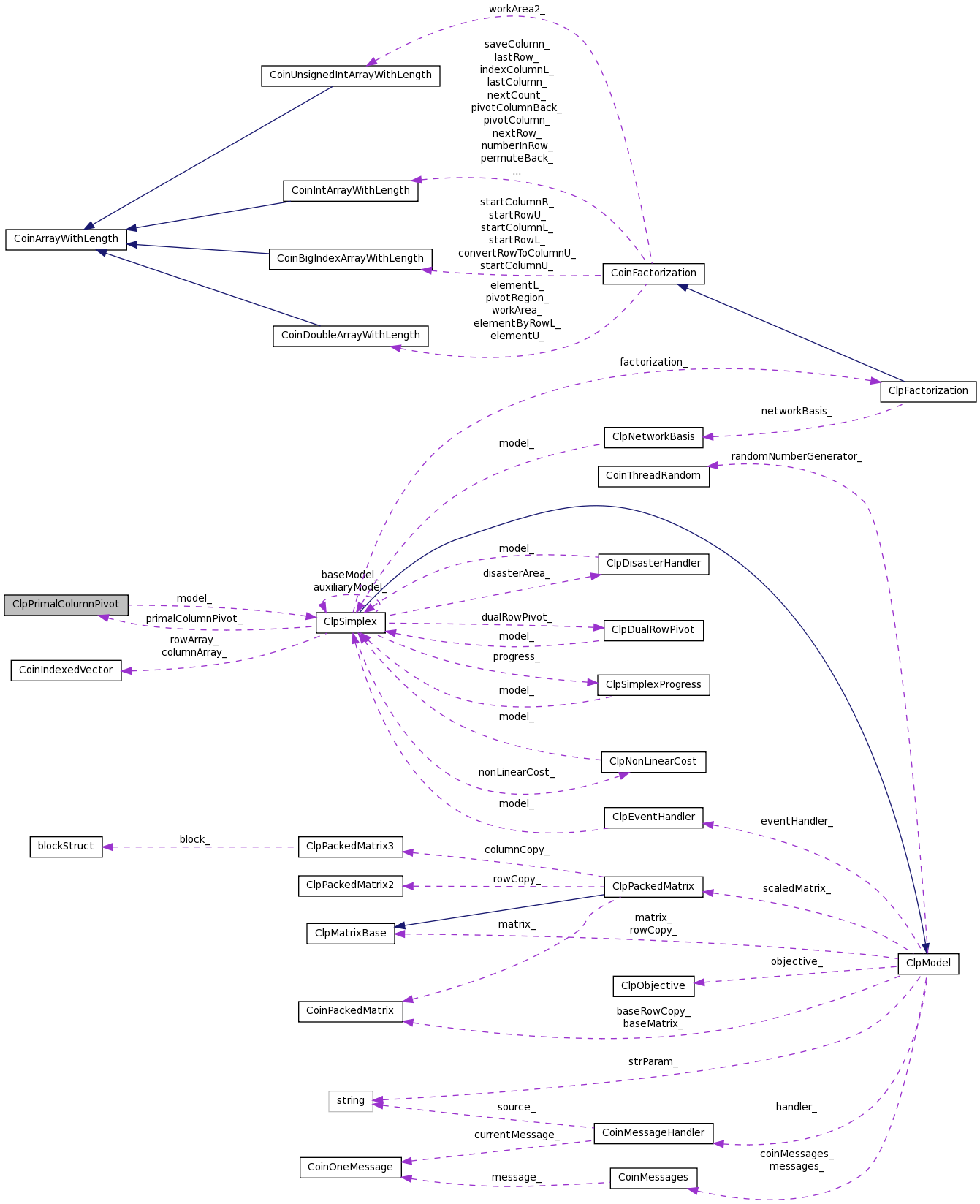

Collaboration diagram for ClpPrimalColumnPivot:

[legend]

List of all members.

Public Member Functions
Algorithmic methods

virtual int	pivotColumn (CoinIndexedVector updates, CoinIndexedVector spareRow1, CoinIndexedVector spareRow2, CoinIndexedVector spareColumn1, CoinIndexedVector *spareColumn2)=0
	Returns pivot column, -1 if none.
virtual void	updateWeights (CoinIndexedVector *input)
	Updates weights - part 1 (may be empty).
virtual void	saveWeights (ClpSimplex *model, int mode)=0
	Saves any weights round factorization as pivot rows may change Will be empty unless steepest edge (will save model) May also recompute infeasibility stuff 1) before factorization 2) after good factorization (if weights empty may initialize) 3) after something happened but no factorization (e.g.
virtual int	pivotRow (double &way)
	Signals pivot row choice: -2 (default) - use normal pivot row choice -1 to numberRows-1 - use this (will be checked) way should be -1 to go to lower bound, +1 to upper bound.
virtual void	clearArrays ()
	Gets rid of all arrays (may be empty).
virtual bool	looksOptimal () const
	Returns true if would not find any column.
virtual void	setLooksOptimal (bool flag)
	Sets optimality flag (for advanced use).
Constructors and destructors

	ClpPrimalColumnPivot ()
	Default Constructor.
	ClpPrimalColumnPivot (const ClpPrimalColumnPivot &)
	Copy constructor.
ClpPrimalColumnPivot &	operator= (const ClpPrimalColumnPivot &rhs)
	Assignment operator.
virtual	~ClpPrimalColumnPivot ()
	Destructor.
virtual ClpPrimalColumnPivot *	clone (bool copyData=true) const =0
	Clone.
Other

ClpSimplex *	model ()
	Returns model.
int	type ()
	Returns type (above 63 is extra information).
virtual int	numberSprintColumns (int &numberIterations) const
	Returns number of extra columns for sprint algorithm - 0 means off.
virtual void	switchOffSprint ()
	Switch off sprint idea.
virtual void	maximumPivotsChanged ()
	Called when maximum pivots changes.
Protected Attributes
Protected member data

ClpSimplex *	model_
	Pointer to model.
int	type_
	Type of column pivot algorithm.
bool	looksOptimal_
	Says if looks optimal (normally computed).

Detailed Description

Primal Column Pivot Abstract Base Class.

Abstract Base Class for describing an interface to an algorithm to choose column pivot in primal simplex algorithm. For some algorithms e.g. Dantzig choice then some functions may be null. For Dantzig the only one of any importance is pivotColumn.

If you wish to inherit from this look at ClpPrimalColumnDantzig.cpp as that is simplest version.

Definition at line 22 of file ClpPrimalColumnPivot.hpp.

Constructor & Destructor Documentation

ClpPrimalColumnPivot::ClpPrimalColumnPivot ( )

Default Constructor.

ClpPrimalColumnPivot::ClpPrimalColumnPivot ( const ClpPrimalColumnPivot & )

Copy constructor.

virtual ClpPrimalColumnPivot::~ClpPrimalColumnPivot ( ) [virtual]

Destructor.

Member Function Documentation

virtual int ClpPrimalColumnPivot::pivotColumn	(	CoinIndexedVector *	updates,
		CoinIndexedVector *	spareRow1,
		CoinIndexedVector *	spareRow2,
		CoinIndexedVector *	spareColumn1,
		CoinIndexedVector *	spareColumn2
	)			`[pure virtual]`

Returns pivot column, -1 if none.

Normally updates reduced costs using result of last iteration before selecting incoming column.

The Packed CoinIndexedVector updates has cost updates - for normal LP that is just +-weight where a feasibility changed. It also has reduced cost from last iteration in pivot row

Inside pivotColumn the pivotRow_ and reduced cost from last iteration are also used.

So in the simplest case i.e. feasible we compute the row of the tableau corresponding to last pivot and add a multiple of this to current reduced costs.

We can use other arrays to help updates

Implemented in ClpPrimalColumnDantzig, ClpPrimalColumnSteepest, and ClpPrimalQuadraticDantzig.

virtual void ClpPrimalColumnPivot::updateWeights ( CoinIndexedVector * input ) [virtual]

Updates weights - part 1 (may be empty).

Reimplemented in ClpPrimalColumnSteepest.

virtual void ClpPrimalColumnPivot::saveWeights	(	ClpSimplex *	model,
		int	mode
	)			`[pure virtual]`

Saves any weights round factorization as pivot rows may change Will be empty unless steepest edge (will save model) May also recompute infeasibility stuff 1) before factorization 2) after good factorization (if weights empty may initialize) 3) after something happened but no factorization (e.g.

check for infeasible) 4) as 2 but restore weights from previous snapshot 5) forces some initialization e.g. weights Also sets model

Implemented in ClpPrimalColumnDantzig, ClpPrimalColumnSteepest, and ClpPrimalQuadraticDantzig.

virtual int ClpPrimalColumnPivot::pivotRow ( double & way ) [inline, virtual]

Signals pivot row choice: -2 (default) - use normal pivot row choice -1 to numberRows-1 - use this (will be checked) way should be -1 to go to lower bound, +1 to upper bound.

Definition at line 73 of file ClpPrimalColumnPivot.hpp.

virtual void ClpPrimalColumnPivot::clearArrays ( ) [virtual]

Gets rid of all arrays (may be empty).

Reimplemented in ClpPrimalColumnSteepest.

virtual bool ClpPrimalColumnPivot::looksOptimal ( ) const [inline, virtual]

Returns true if would not find any column.

Reimplemented in ClpPrimalColumnSteepest.

Definition at line 78 of file ClpPrimalColumnPivot.hpp.

virtual void ClpPrimalColumnPivot::setLooksOptimal ( bool flag ) [inline, virtual]

Sets optimality flag (for advanced use).

Definition at line 81 of file ClpPrimalColumnPivot.hpp.

ClpPrimalColumnPivot& ClpPrimalColumnPivot::operator= ( const ClpPrimalColumnPivot & rhs )
