CbcCbcParam Class Reference

Class for control parameters that act on a CbcModel object. More...

#include <CbcGenCbcParam.hpp>

Inheritance diagram for CbcCbcParam:

[legend]

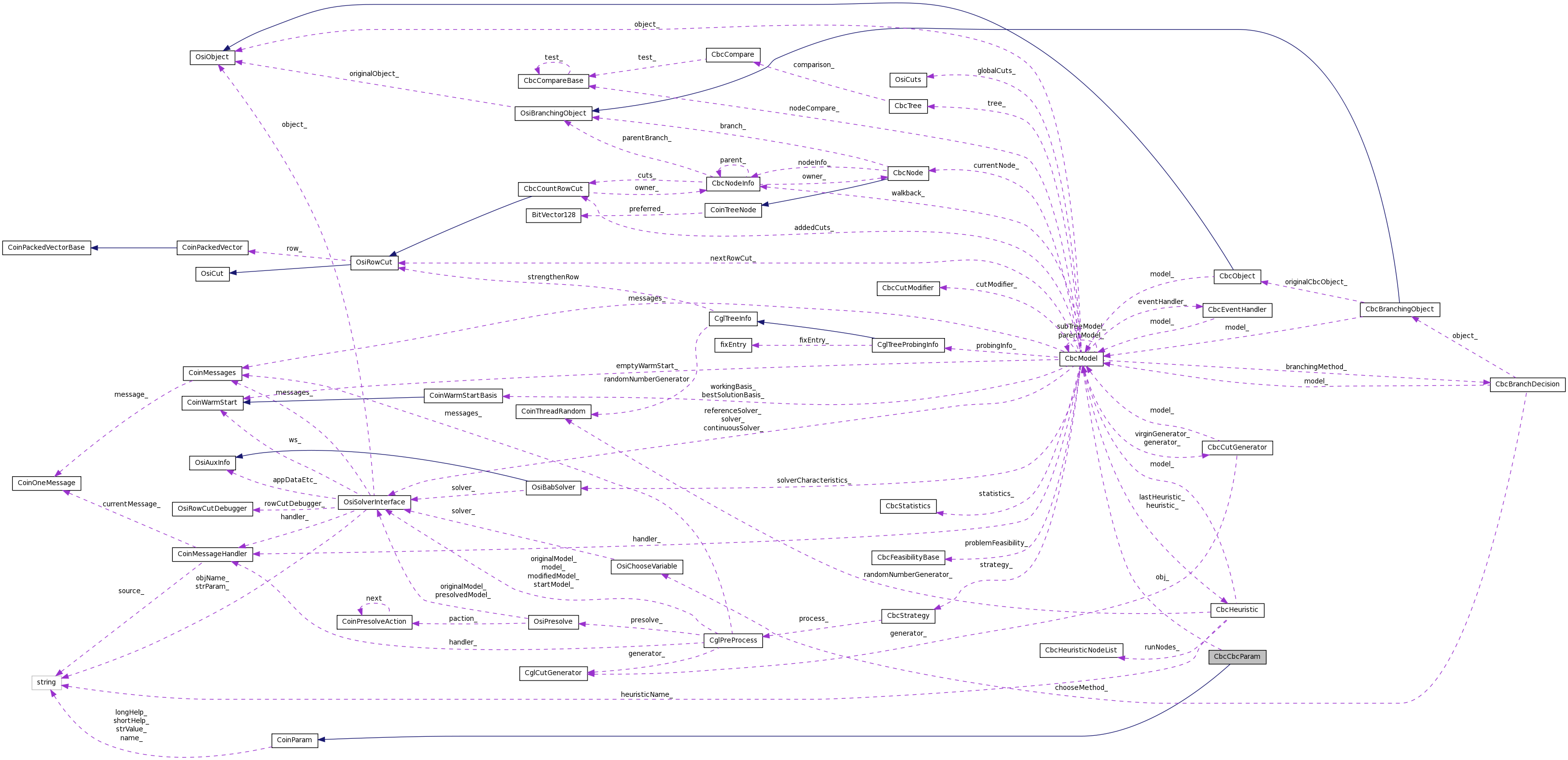

Collaboration diagram for CbcCbcParam:

[legend]

List of all members.

Public Types
Subtypes

enum	CbcCbcParamCode { CBCCBC_FIRSTPARAM = CbcGenParam::CBCGEN_LASTPARAM+1, ALLOWABLEGAP, COSTSTRATEGY, CUTDEPTH, CUTOFF, CUTPASS, DIRECTION, GAPRATIO, INCREMENT, INFEASIBILITYWEIGHT, INTEGERTOLERANCE, LOGLEVEL, MAXIMIZE, MAXNODES, MINIMIZE, MIPOPTIONS, MOREMIPOPTIONS, NUMBERANALYZE, NUMBERBEFORE, NUMBERMINI, STRONGBRANCHING, TIMELIMIT_BAB, CBCCBC_LASTPARAM }
	Enumeration for parameters that control a CbcModel object. More...
Public Member Functions
Constructors and Destructors
Be careful how you specify parameters for the constructors! There's great potential for confusion.
	CbcCbcParam ()
	Default constructor.
	CbcCbcParam (CbcCbcParamCode code, std::string name, std::string help, double lower, double upper, double dflt=0.0, bool display=true)
	Constructor for a parameter with a double value.
	CbcCbcParam (CbcCbcParamCode code, std::string name, std::string help, int lower, int upper, int dflt=0, bool display=true)
	Constructor for a parameter with an integer value.
	CbcCbcParam (CbcCbcParamCode code, std::string name, std::string help, std::string firstValue, int dflt, bool display=true)
	Constructor for a parameter with keyword values.
	CbcCbcParam (CbcCbcParamCode code, std::string name, std::string help, std::string dflt, bool display=true)
	Constructor for a string parameter.
	CbcCbcParam (CbcCbcParamCode code, std::string name, std::string help, bool display=true)
	Constructor for an action parameter.
	CbcCbcParam (const CbcCbcParam &orig)
	Copy constructor.
CbcCbcParam *	clone ()
	Clone.
CbcCbcParam &	operator= (const CbcCbcParam &rhs)
	Assignment.
	~CbcCbcParam ()
	Destructor.
Methods to query and manipulate a parameter object

CbcCbcParamCode	paramCode () const
	Get the parameter code.
void	setParamCode (CbcCbcParamCode code)
	Set the parameter code.
CbcModel *	obj () const
	Get the underlying CbcModel object.
void	setObj (CbcModel *obj)
	Set the underlying CbcModel object.
Private Attributes
Data

CbcCbcParamCode	paramCode_
	Parameter code.
CbcModel *	obj_
	CbcModel object.

Detailed Description

Class for control parameters that act on a CbcModel object.

Adds parameter type codes and push/pull functions to the generic parameter object.

Definition at line 26 of file CbcGenCbcParam.hpp.

Member Enumeration Documentation

enum CbcCbcParam::CbcCbcParamCode

Enumeration for parameters that control a CbcModel object.

These are parameters that control the operation of a CbcModel object. CBCCBC_FIRSTPARAM and CBCCBC_LASTPARAM are markers to allow convenient separation of parameter groups.

Enumerator:

CBCCBC_FIRSTPARAM
ALLOWABLEGAP
COSTSTRATEGY
CUTDEPTH
CUTOFF
CUTPASS
DIRECTION
GAPRATIO
INCREMENT
INFEASIBILITYWEIGHT
INTEGERTOLERANCE
LOGLEVEL
MAXIMIZE
MAXNODES
MINIMIZE
MIPOPTIONS
MOREMIPOPTIONS
NUMBERANALYZE
NUMBERBEFORE
NUMBERMINI
STRONGBRANCHING
TIMELIMIT_BAB
CBCCBC_LASTPARAM

Definition at line 41 of file CbcGenCbcParam.hpp.

Constructor & Destructor Documentation

CbcCbcParam::CbcCbcParam ( )

Default constructor.

CbcCbcParam::CbcCbcParam	(	CbcCbcParamCode	code,
		std::string	name,
		std::string	help,
		double	lower,
		double	upper,
		double	dflt = `0.0`,
		bool	display = `true`
	)

Constructor for a parameter with a double value.

The default value is 0.0. Be careful to clearly indicate that lower and upper are real (double) values to distinguish this constructor from the constructor for an integer parameter.

CbcCbcParam::CbcCbcParam	(	CbcCbcParamCode	code,
		std::string	name,
		std::string	help,
		int	lower,
		int	upper,
		int	dflt = `0`,
		bool	display = `true`
	)

Constructor for a parameter with an integer value.

The default value is 0.

CbcCbcParam::CbcCbcParam	(	CbcCbcParamCode	code,
		std::string	name,
		std::string	help,
		std::string	firstValue,
		int	dflt,
		bool	display = `true`
	)

Constructor for a parameter with keyword values.

The string supplied as firstValue becomes the first keyword. Additional keywords can be added using appendKwd(). Keywords are numbered from zero. It's necessary to specify both the first keyword (firstValue) and the default keyword index (dflt) in order to distinguish this constructor from the string and action parameter constructors.

CbcCbcParam::CbcCbcParam	(	CbcCbcParamCode	code,
		std::string	name,
		std::string	help,
		std::string	dflt,
		bool	display = `true`
	)

Constructor for a string parameter.

The default string value must be specified explicitly to distinguish a string constructor from an action parameter constructor.

CbcCbcParam::CbcCbcParam	(	CbcCbcParamCode	code,
		std::string	name,
		std::string	help,
		bool	display = `true`
	)

Constructor for an action parameter.

CbcCbcParam::CbcCbcParam ( const CbcCbcParam & orig )

Copy constructor.

CbcCbcParam::~CbcCbcParam ( )

Destructor.

Member Function Documentation

CbcCbcParam* CbcCbcParam::clone ( ) [virtual]

Clone.

Reimplemented from CoinParam.

CbcCbcParam& CbcCbcParam::operator= ( const CbcCbcParam & rhs )

Assignment.

Reimplemented from CoinParam.

CbcCbcParamCode CbcCbcParam::paramCode ( ) const [inline]

Get the parameter code.

Definition at line 136 of file CbcGenCbcParam.hpp.

void CbcCbcParam::setParamCode ( CbcCbcParamCode code ) [inline]

Set the parameter code.

Definition at line 140 of file CbcGenCbcParam.hpp.

CbcModel* CbcCbcParam::obj ( ) const [inline]

Get the underlying CbcModel object.

Definition at line 144 of file CbcGenCbcParam.hpp.

void CbcCbcParam::setObj ( CbcModel * obj ) [inline]

Set the underlying CbcModel object.

Definition at line 148 of file CbcGenCbcParam.hpp.

Member Data Documentation

CbcCbcParamCode CbcCbcParam::paramCode_ [private]

Parameter code.

Definition at line 158 of file CbcGenCbcParam.hpp.

CbcModel* CbcCbcParam::obj_ [private]

CbcModel object.

Definition at line 161 of file CbcGenCbcParam.hpp.

The documentation for this class was generated from the following file:

/home/coin/svn-release/OptimizationSuite-1.1.0/Cbc/src/CbcGenCbcParam.hpp
