SOSVariableBranchingWeights Class Reference

the SOSVariableBranchingWeights class. More...

#include <OSOption.h>

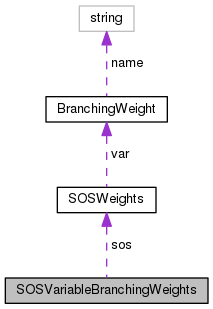

Collaboration diagram for SOSVariableBranchingWeights:

Public Member Functions
	SOSVariableBranchingWeights ()
	Default constructor. More...
	~SOSVariableBranchingWeights ()
	Class destructor. More...
bool	IsEqual (SOSVariableBranchingWeights *that)
	A function to check for the equality of two objects. More...
bool	setRandom (double density, bool conformant)
	A function to make a random instance of this class. More...
bool	deepCopyFrom (SOSVariableBranchingWeights *that)
	A function to make a deep copy of an instance of this class. More...
bool	setSOS (int numberOfSOS, SOSWeights **sos)
	A function to set an array of <sos> elements. More...
bool	addSOS (int sosIdx, int nvar, double weight, int *idx, double *value, std::string *name)
	A function to add an <sos> element. More...

Public Attributes
int	numberOfSOS
	number of <sos> children More...
SOSWeights **	sos
	branching weights for the SOS More...

Detailed Description

the SOSVariableBranchingWeights class.

Author

Robert Fourer, Horand Gassmann, Jun Ma, Kipp Martin

Version

1.0, 21/11/2008

Since

OS 1.1

Remarks

A data structure class that corresponds to an xml element in the OSoL schema.

Definition at line 1853 of file OSOption.h.

Constructor & Destructor Documentation

SOSVariableBranchingWeights::SOSVariableBranchingWeights

(

)

Default constructor.

Definition at line 645 of file OSOption.cpp.

SOSVariableBranchingWeights::~SOSVariableBranchingWeights

(

)

Class destructor.

Definition at line 654 of file OSOption.cpp.

Member Function Documentation

bool SOSVariableBranchingWeights::IsEqual

(

SOSVariableBranchingWeights *

that

)

A function to check for the equality of two objects.

Definition at line 11041 of file OSOption.cpp.

bool SOSVariableBranchingWeights::setRandom	(	double	density,
		bool	conformant
	)

A function to make a random instance of this class.

Parameters

density,:	corresponds to the probability that a particular child element is created
conformant,:	if true enforces side constraints not enforceable in the schema (e.g., agreement of "numberOfXXX" attributes and <XXX> children)

Definition at line 12754 of file OSOption.cpp.

bool SOSVariableBranchingWeights::deepCopyFrom

(

SOSVariableBranchingWeights *

that

)

A function to make a deep copy of an instance of this class.

Parameters

that,:

the instance from which information is to be copied

Returns

whether the copy was created successfully

Definition at line 13870 of file OSOption.cpp.

bool SOSVariableBranchingWeights::setSOS	(	int	numberOfSOS,
		SOSWeights **	sos
	)

A function to set an array of <sos> elements.

Parameters

numberOfSOS,:	number of <sos> elements to be set
sos,:	the array of <sos> elements that are to be set

Definition at line 5804 of file OSOption.cpp.

bool SOSVariableBranchingWeights::addSOS	(	int	sosIdx,
		int	nvar,
		double	weight,
		int *	idx,
		double *	value,
		std::string *	name
	)

A function to add an <sos> element.

Parameters

sosIdx,:	the index of the SOS that is to be added (refer back to OSiL file)
nvar,:	the number of variables in this SOS that are to be given weights
weight,:	a selection weight for the entire group of variables
idx,:	an array of variable indices
value,:	the array of corresponding selection weights
sos,:	the content of the <sos> element that is to be added

Definition at line 5855 of file OSOption.cpp.

Member Data Documentation

int SOSVariableBranchingWeights::numberOfSOS

number of <sos> children

Definition at line 1858 of file OSOption.h.

SOSWeights** SOSVariableBranchingWeights::sos

branching weights for the SOS

Definition at line 1861 of file OSOption.h.

---

The documentation for this class was generated from the following files:

• /tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSOption.h
• /tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSOption.cpp
