#include <OSmps2OS.h>

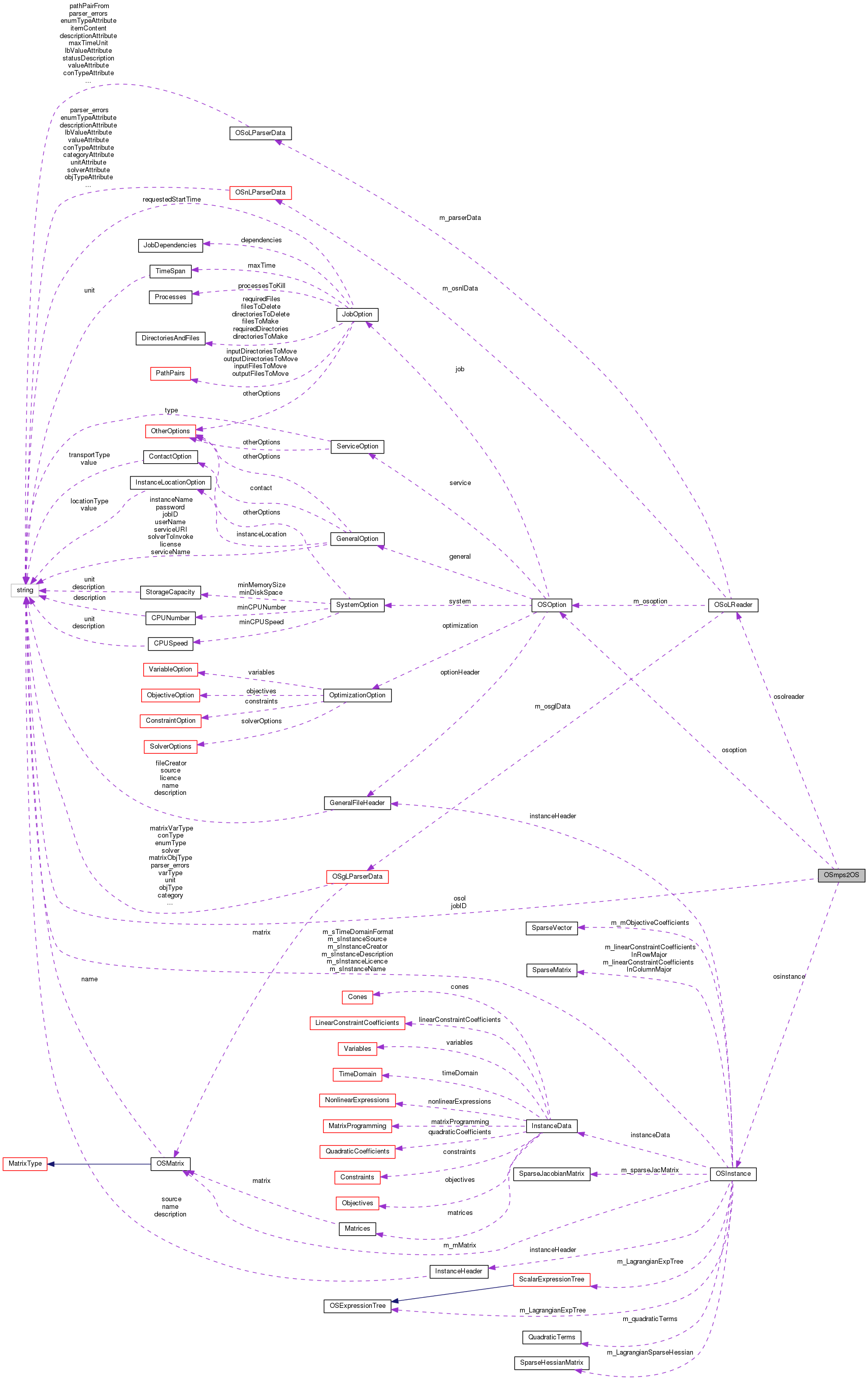

Collaboration diagram for OSmps2OS:

Public Member Functions
	OSmps2OS (std::string mpsfilename)
	the OSmps2OS class constructor More...

	~OSmps2OS ()
	the OSmps2os class destructor More...

void	setOsol (std::string osol)
	set the osol string More...

void	setJobID (std::string jobID)
	set the job ID More...

bool	createOSObjects ()
	create an OSInstance from the MPS instance representation and an OSOption in case of nonstandard sections such as SOS More...

Public Attributes
OSInstance *	osinstance
	osinstance is a pointer to the OSInstance object that gets created from the instance represented in MPS format More...

OSOption *	osoption
	osoption is a pointer to an OSOption object that gets created if the MPS file contains nonstandard sections such as SOS More...

OSoLReader *	osolreader
	we may need to parse an OSoL file if the MPS file contains an SOS os BASIS section More...

std::string	osol
	osol is a string containing the content of the OS option file (it may be empty if no option file was provided by the user). More...

std::string	jobID
	jobID is a string containing a jobID that may have been supplied on the command line (it may be empty). More...

Private Attributes
CoinMpsIO *	m_MpsData
	m_MpsData is a pointer to a CoinMpsIO object More...

CoinPackedMatrix *	m_CoinPackedMatrix
	m_CoinPackedMatrix is a pointer to a CoinPackedMatrix object More...

int	m_nOfSOS
	Data structures to hold special ordered sets. More...

CoinSet **	m_SOS

int *	m_quadColumnStart
	Data structures to hold the quadratic objective. More...

int *	m_quadColumnIdx

double *	m_quadElements

int	m_nOfCones
	Data structures to hold the cone information. More...

int *	m_coneStart

int *	m_coneIdx

int *	m_coneType

Detailed Description

The OSmps2OS Class.

Author: Robert Fourer, Jun Ma, Kipp Martin

Remarks: the OSmps2osil class is used for reading an instance in MPS format and creating an OSInstance object in OSiL format and possibly an OSOption object in OSoL format (if the MPS file contains nonstandard sections such as SOS)

Definition at line 39 of file OSmps2OS.h.

Constructor & Destructor Documentation

OSmps2OS::OSmps2OS ( std::string mpsfilename )

the OSmps2OS class constructor

Definition at line 24 of file OSmps2OS.cpp.

OSmps2OS::~OSmps2OS ( )

the OSmps2os class destructor

Definition at line 145 of file OSmps2OS.cpp.

Member Function Documentation

void OSmps2OS::setOsol ( std::string osol )

set the osol string

void OSmps2OS::setJobID ( std::string jobID )

set the job ID

bool OSmps2OS::createOSObjects ( )

create an OSInstance from the MPS instance representation and an OSOption in case of nonstandard sections such as SOS

Returns: whether the objects are created successfully.

Definition at line 192 of file OSmps2OS.cpp.

Member Data Documentation

OSInstance* OSmps2OS::osinstance

osinstance is a pointer to the OSInstance object that gets created from the instance represented in MPS format

Definition at line 65 of file OSmps2OS.h.

OSOption* OSmps2OS::osoption

osoption is a pointer to an OSOption object that gets created if the MPS file contains nonstandard sections such as SOS

Definition at line 70 of file OSmps2OS.h.

OSoLReader* OSmps2OS::osolreader

we may need to parse an OSoL file if the MPS file contains an SOS os BASIS section

Definition at line 76 of file OSmps2OS.h.

std::string OSmps2OS::osol

osol is a string containing the content of the OS option file (it may be empty if no option file was provided by the user).

If osoption is NULL, the option information is found in osol.

Definition at line 82 of file OSmps2OS.h.

std::string OSmps2OS::jobID

jobID is a string containing a jobID that may have been supplied on the command line (it may be empty).

If osoption is not NULL, the jobID has been duplicated to osoption.

Definition at line 88 of file OSmps2OS.h.

CoinMpsIO* OSmps2OS::m_MpsData

private

m_MpsData is a pointer to a CoinMpsIO object

Definition at line 91 of file OSmps2OS.h.

CoinPackedMatrix* OSmps2OS::m_CoinPackedMatrix

private

m_CoinPackedMatrix is a pointer to a CoinPackedMatrix object

Definition at line 94 of file OSmps2OS.h.

int OSmps2OS::m_nOfSOS

private

Data structures to hold special ordered sets.

Definition at line 97 of file OSmps2OS.h.

CoinSet** OSmps2OS::m_SOS

private

Definition at line 98 of file OSmps2OS.h.

int* OSmps2OS::m_quadColumnStart

private

Data structures to hold the quadratic objective.

Definition at line 101 of file OSmps2OS.h.

int* OSmps2OS::m_quadColumnIdx

private

Definition at line 102 of file OSmps2OS.h.

double* OSmps2OS::m_quadElements

private

Definition at line 103 of file OSmps2OS.h.

int OSmps2OS::m_nOfCones

private

Data structures to hold the cone information.

Definition at line 106 of file OSmps2OS.h.

int* OSmps2OS::m_coneStart

private

Definition at line 107 of file OSmps2OS.h.

int* OSmps2OS::m_coneIdx

private

Definition at line 108 of file OSmps2OS.h.

int* OSmps2OS::m_coneType

private

Definition at line 109 of file OSmps2OS.h.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/OS/src/OSModelInterfaces/OSmps2OS.h
/tmp/OS-2.10.2/OS/src/OSModelInterfaces/OSmps2OS.cpp
