The in-memory representation of the <matrixProgramming> element. More...

#include <OSInstance.h>

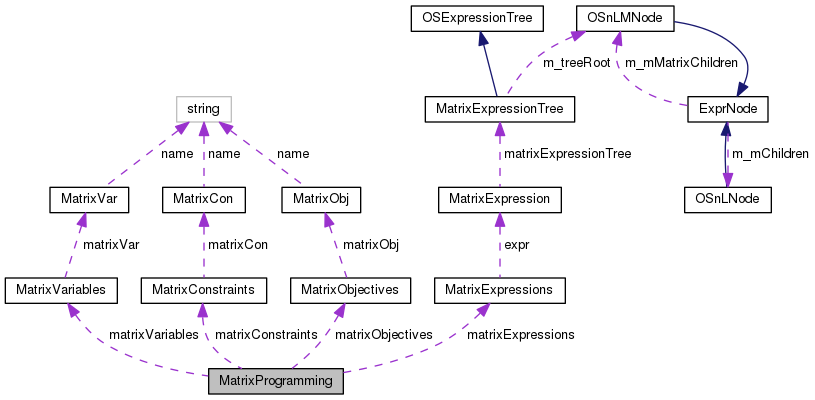

Collaboration diagram for MatrixProgramming:

Public Member Functions
	MatrixProgramming ()
	The MatrixProgramming class constructor. More...

	~MatrixProgramming ()
	The MatrixProgramming class destructor. More...

bool	IsEqual (MatrixProgramming *that)
	A function to check for the equality of two objects. More...

bool	setRandom (double density, bool conformant, int iMin, int iMax)
	A function to make a random instance of this class. More...

bool	deepCopyFrom (MatrixProgramming *that)
	A function to make a deep copy of an instance of this class. More...

Public Attributes
MatrixVariables *	matrixVariables
	a pointer to the matrixVariables object More...

MatrixObjectives *	matrixObjectives
	a pointer to the matrixObjectives object More...

MatrixConstraints *	matrixConstraints
	a pointer to the matrixConstraints object More...

MatrixExpressions *	matrixExpressions
	a pointer to the matrixExpressions object More...

Detailed Description

The in-memory representation of the <matrixProgramming> element.

Definition at line 1882 of file OSInstance.h.

Constructor & Destructor Documentation

MatrixProgramming::MatrixProgramming ( )

The MatrixProgramming class constructor.

Definition at line 1305 of file OSInstance.cpp.

MatrixProgramming::~MatrixProgramming ( )

The MatrixProgramming class destructor.

Definition at line 1316 of file OSInstance.cpp.

bool MatrixProgramming::IsEqual ( MatrixProgramming * that )

A function to check for the equality of two objects.

Definition at line 9094 of file OSInstance.cpp.

bool MatrixProgramming::setRandom	(	double	density,
		bool	conformant,
		int	iMin,
		int	iMax
	)

A function to make a random instance of this class.

Parameters

density,:	corresponds to the probability that a particular child element is created
conformant,:	if true enforces side constraints not enforceable in the schema (e.g., agreement of "numberOfXXX" attributes and <XXX> children)
iMin,:	lowest index value (inclusive) that a variable reference in this matrix can take
iMax,:	greatest index value (inclusive) that a variable reference in this matrix can take

bool MatrixProgramming::deepCopyFrom ( MatrixProgramming * that )

A function to make a deep copy of an instance of this class.

Parameters

that,: the instance from which information is to be copied

MatrixVariables* MatrixProgramming::matrixVariables

a pointer to the matrixVariables object

Definition at line 1892 of file OSInstance.h.

MatrixObjectives* MatrixProgramming::matrixObjectives

a pointer to the matrixObjectives object

Definition at line 1895 of file OSInstance.h.

MatrixConstraints* MatrixProgramming::matrixConstraints

a pointer to the matrixConstraints object

Definition at line 1898 of file OSInstance.h.

MatrixExpressions* MatrixProgramming::matrixExpressions

a pointer to the matrixExpressions object

Definition at line 1901 of file OSInstance.h.

The documentation for this class was generated from the following files:
