KnitroSolver Class Reference

the KnitroSolver class solves problems using Knitro. More...

#include <OSKnitroSolver.h>

Inheritance diagram for KnitroSolver:

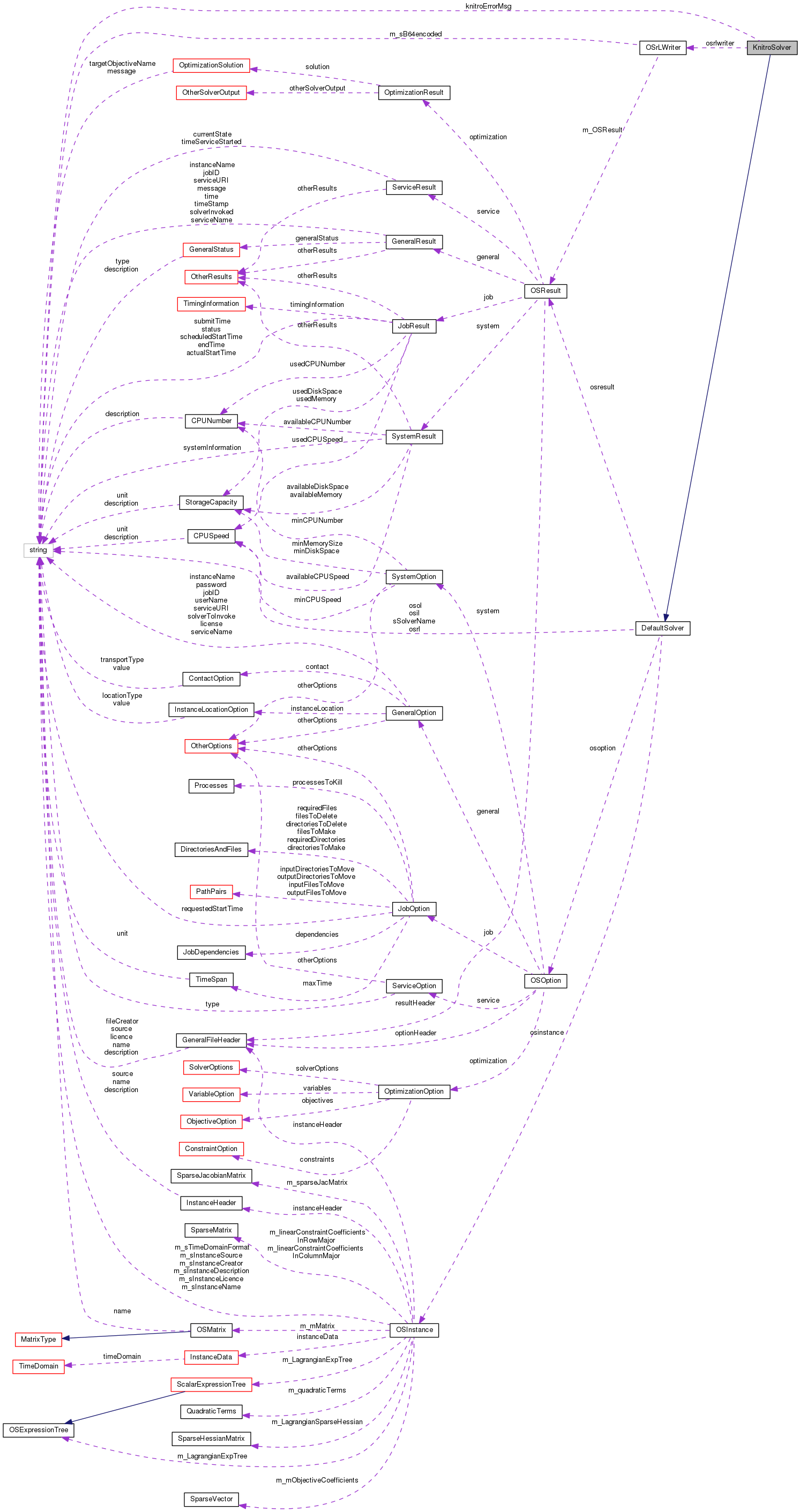

Collaboration diagram for KnitroSolver:

Public Member Functions
	KnitroSolver ()
	the KnitroSolver class constructor More...
	~KnitroSolver ()
	the KnitroSolver class constructor More...
virtual void	buildSolverInstance () throw (ErrorClass)
	buildSolverInstance is a virtual function – the actual solvers will implement their own buildSolverInstance method – the solver instance is the instance the individual solver sees in its API More...
virtual void	setSolverOptions () throw (ErrorClass)
	The implementation of the virtual functions. More...
virtual void	solve () throw (ErrorClass)
	solve results in an instance being read into the Knitro data structrues and optimized More...
void	dataEchoCheck ()
	use this for debugging, print out the instance that the solver thinks it has and compare this with the OSiL file More...
Public Member Functions inherited from DefaultSolver
	DefaultSolver ()
	default constructor. More...
virtual	~DefaultSolver ()=0
	default destructor. More...

Private Member Functions
Methods to block default compiler methods.
The compiler automatically generates the following three methods. Since the default compiler implementation is generally not what you want (for all but the most simple classes), we usually put the declarations of these methods in the private section and never implement them. This prevents the compiler from implementing an incorrect "default" behavior without us knowing. (See Scott Meyers book, "Effective C++")
	KnitroSolver (const KnitroSolver &)
KnitroSolver &	operator= (const KnitroSolver &)

Private Attributes
OSrLWriter *	osrlwriter
std::string	knitroErrorMsg

Additional Inherited Members
Public Attributes inherited from DefaultSolver
std::string	osil
	osil holds the problem instance as a std::string More...
std::string	osol
	osol holds the options for the solver More...
std::string	osrl
	osrl holds the solution or result of the model More...
OSInstance *	osinstance
	osinstance holds the problem instance in-memory as an OSInstance object More...
OSOption *	osoption
	osoption holds the solver options in-memory as an OSOption object More...
OSResult *	osresult
	osresult holds the solution or result of the model in-memory as an OSResult object More...
std::string	sSolverName
	sSolverName is the name of the Coin solver used, e.g. More...
bool	bCallbuildSolverInstance
	bCallbuildSolverInstance is set to true if buildSolverService has been called More...
bool	bSetSolverOptions
	bSetSolverOptions is set to true if setSolverOptions has been called, false otherwise More...

Detailed Description

the KnitroSolver class solves problems using Knitro.

Author

Robert Fourer, Jun Ma, Kipp Martin

Version

1.0, 03/14/2004

Since

OS 1.0

Remarks

this class takes an OSiL instance and optimizes it using the Knitro solver

Definition at line 144 of file OSKnitroSolver.h.

Constructor & Destructor Documentation

KnitroSolver::KnitroSolver

(

)

the KnitroSolver class constructor

Definition at line 571 of file OSKnitroSolver.cpp.

KnitroSolver::~KnitroSolver

(

)

the KnitroSolver class constructor

Definition at line 615 of file OSKnitroSolver.cpp.

KnitroSolver::KnitroSolver ( const KnitroSolver &  )

private

Member Function Documentation

void KnitroSolver::buildSolverInstance ( ) throw ( ErrorClass )

virtual

buildSolverInstance is a virtual function – the actual solvers will implement their own buildSolverInstance method – the solver instance is the instance the individual solver sees in its API

Implements DefaultSolver.

Definition at line 580 of file OSKnitroSolver.cpp.

void KnitroSolver::setSolverOptions ( ) throw ( ErrorClass )

virtual

The implementation of the virtual functions.

Returns

void.

Implements DefaultSolver.

void KnitroSolver::solve ( ) throw ( ErrorClass )

virtual

solve results in an instance being read into the Knitro data structrues and optimized

Implements DefaultSolver.

Definition at line 631 of file OSKnitroSolver.cpp.

void KnitroSolver::dataEchoCheck

(

)

use this for debugging, print out the instance that the solver thinks it has and compare this with the OSiL file

Definition at line 876 of file OSKnitroSolver.cpp.

KnitroSolver& KnitroSolver::operator= ( const KnitroSolver &  )

private

Member Data Documentation

OSrLWriter* KnitroSolver::osrlwriter

private

Definition at line 180 of file OSKnitroSolver.h.

std::string KnitroSolver::knitroErrorMsg

private

Definition at line 197 of file OSKnitroSolver.h.

---

The documentation for this class was generated from the following files:

• /tmp/OS-2.10.2/OS/src/OSSolverInterfaces/OSKnitroSolver.h
• /tmp/OS-2.10.2/OS/src/OSSolverInterfaces/OSKnitroSolver.cpp
