The in-memory representation of a generic cone Specific cone types are derived from this generic class. More...

#include <OSInstance.h>

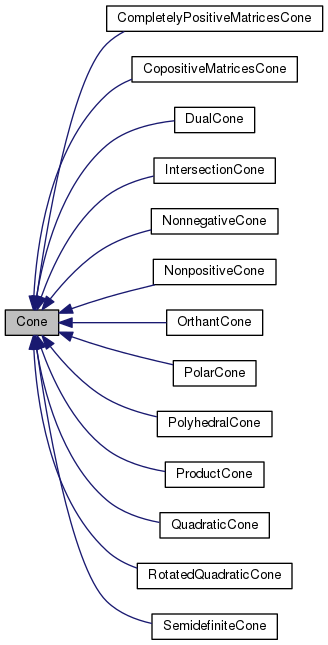

Inheritance diagram for Cone:

Collaboration diagram for Cone:

Public Member Functions
	Cone ()
	The Cone class constructor. More...

virtual	~Cone ()
	The Cone class destructor. More...

virtual std::string	getConeName ()

virtual std::string	getConeInXML ()=0
	Write a Cone object in XML format. More...

bool	IsEqual (Cone *that)
	A function to check for the equality of two objects. More...

bool	setRandom (double density, bool conformant, int iMin, int iMax)
	A function to make a random instance of this class. More...

bool	deepCopyFrom (Cone *that)
	A function to make a deep copy of an instance of this class. More...

Public Attributes
int	numberOfRows
	Every cone has (at least) two dimensions; no distinction is made between vector cones and matrix cones. More...

int	numberOfColumns

int	numberOfOtherIndexes
	Cones can also be formed by Multidimensional tensors. More...

int *	otherIndexes

ENUM_CONE_TYPE	coneType
	The type of the cone. More...

std::string	name
	The cone can have a name for easier identification. More...

int	idx
	cones are referenced by an (automatically created) index More...

Detailed Description

The in-memory representation of a generic cone Specific cone types are derived from this generic class.

Definition at line 530 of file OSInstance.h.

Constructor & Destructor Documentation

Cone::Cone ( )

The Cone class constructor.

Definition at line 987 of file OSInstance.cpp.

Cone::~Cone ( )

virtual

The Cone class destructor.

Definition at line 1000 of file OSInstance.cpp.

Member Function Documentation

std::string Cone::getConeName ( )

virtual

Returns: the type of cone as a string

Reimplemented in PolarCone, DualCone, IntersectionCone, ProductCone, CompletelyPositiveMatricesCone, CopositiveMatricesCone, SemidefiniteCone, RotatedQuadraticCone, QuadraticCone, PolyhedralCone, OrthantCone, NonpositiveCone, and NonnegativeCone.

Definition at line 1012 of file OSInstance.cpp.

std::string Cone::getConeInXML ( )

pure virtual

Write a Cone object in XML format.

This is used by OSiLWriter to write a <cone> element.

Returns: the cone and its children as an XML string.

Implemented in IntersectionCone, ProductCone, CompletelyPositiveMatricesCone, CopositiveMatricesCone, SemidefiniteCone, RotatedQuadraticCone, QuadraticCone, PolyhedralCone, OrthantCone, NonpositiveCone, and NonnegativeCone.

Definition at line 7821 of file OSInstance.cpp.

bool Cone::IsEqual ( Cone * that )

A function to check for the equality of two objects.

Definition at line 8728 of file OSInstance.cpp.

bool Cone::setRandom	(	double	density,
		bool	conformant,
		int	iMin,
		int	iMax
	)

A function to make a random instance of this class.

Parameters

density,:	corresponds to the probability that a particular child element is created
conformant,:	if true enforces side constraints not enforceable in the schema (e.g., agreement of "numberOfXXX" attributes and <XXX> children)
iMin,:	lowest index value (inclusive) that a variable reference in this matrix can take
iMax,:	greatest index value (inclusive) that a variable reference in this matrix can take

bool Cone::deepCopyFrom ( Cone * that )

A function to make a deep copy of an instance of this class.

Parameters

that,: the instance from which information is to be copied

Returns: whether the copy was created successfully

Member Data Documentation

int Cone::numberOfRows

Every cone has (at least) two dimensions; no distinction is made between vector cones and matrix cones.

Definition at line 543 of file OSInstance.h.

int Cone::numberOfColumns

Definition at line 544 of file OSInstance.h.

int Cone::numberOfOtherIndexes

Cones can also be formed by Multidimensional tensors.

(the Kronecker product, for instance, can be thought of as a four-dimensional tensor). We therefore allow additional dimensions, although they have not yet been implemented.

Definition at line 552 of file OSInstance.h.

int* Cone::otherIndexes

Definition at line 553 of file OSInstance.h.

ENUM_CONE_TYPE Cone::coneType

The type of the cone.

Definition at line 556 of file OSInstance.h.

std::string Cone::name

The cone can have a name for easier identification.

Definition at line 559 of file OSInstance.h.

int Cone::idx

cones are referenced by an (automatically created) index

Definition at line 562 of file OSInstance.h.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSInstance.h
/tmp/OS-2.10.2/OS/src/OSCommonInterfaces/OSInstance.cpp
