#include <OSBonminSolver.h>

Inheritance diagram for BonminProblem:

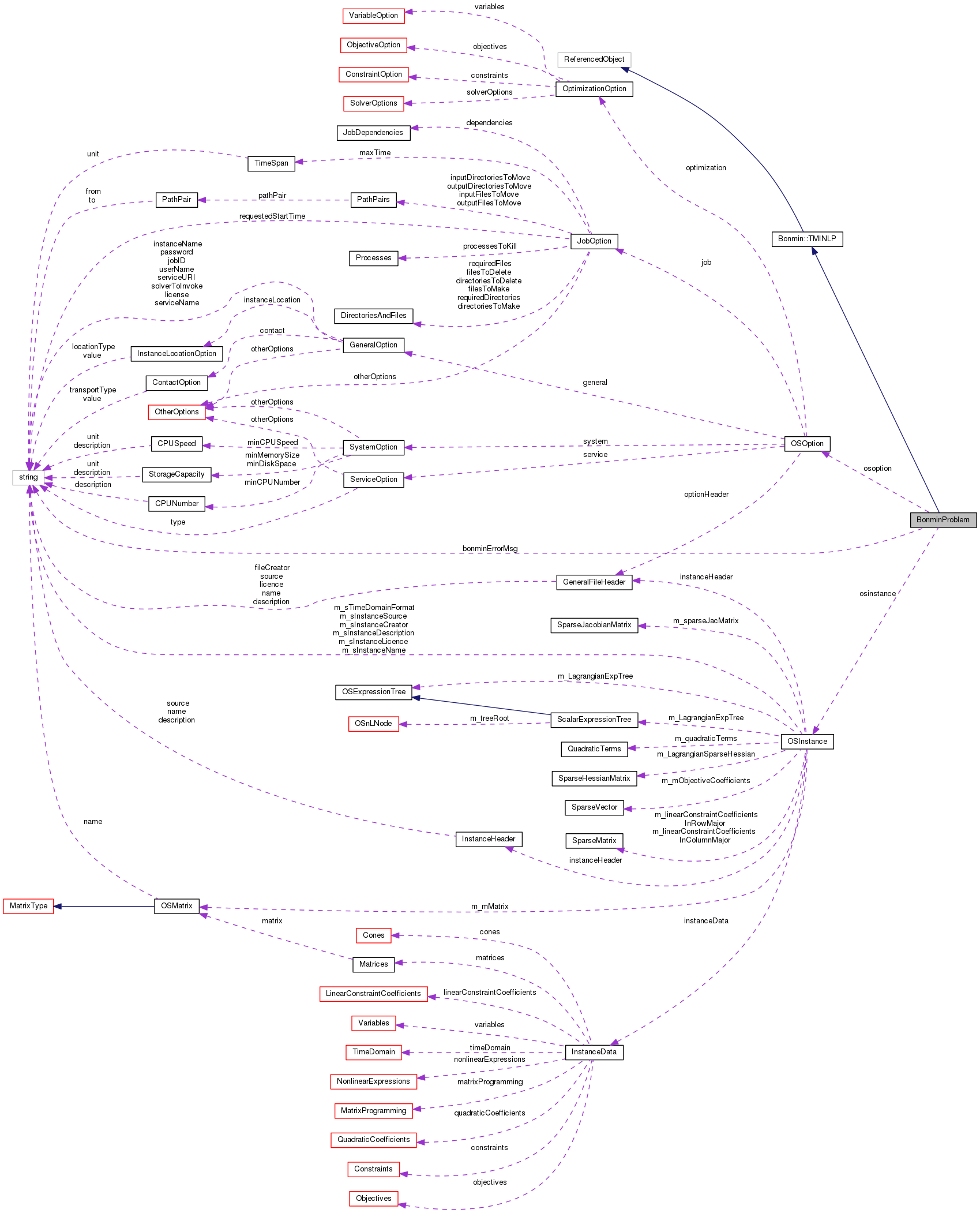

Collaboration diagram for BonminProblem:

Public Member Functions
	BonminProblem (OSInstance osinstance_, OSOption osoption_)
	the BonminProblemclass constructor More...

virtual	~BonminProblem ()
	the BonminProblem class destructor More...

virtual bool	get_scaling_parameters (Ipopt::Number &obj_scaling, bool &use_x_scaling, Ipopt::Index n, Ipopt::Number x_scaling, bool &use_g_scaling, Ipopt::Index m, Ipopt::Number g_scaling)
	overload this method to return scaling parameters. More...

virtual const SosInfo *	sosConstraints () const

virtual const BranchingInfo *	branchingInfo () const

void	printSolutionAtEndOfAlgorithm ()

Overloaded functions specific to a TMINLP.
now for some pure Bonmin methods
virtual bool	get_variables_types (Ipopt::Index n, VariableType *var_types)
	Pass the type of the variables (INTEGER, BINARY, CONTINUOUS) to the optimizer. More...

virtual bool	get_variables_linearity (Ipopt::Index n, Ipopt::TNLP::LinearityType *var_types)
	Pass info about linear and nonlinear variables. More...

virtual bool	get_constraints_linearity (Ipopt::Index m, Ipopt::TNLP::LinearityType *const_types)
	Pass the type of the constraints (LINEAR, NON_LINEAR) to the optimizer. More...

Overloaded functions defining a TNLP.
This group of function implement the various elements needed to define and solve a TNLP. They are the same as those in a standard Ipopt NLP problem
virtual bool	get_nlp_info (Ipopt::Index &n, Ipopt::Index &m, Ipopt::Index &nnz_jac_g, Ipopt::Index &nnz_h_lag, Ipopt::TNLP::IndexStyleEnum &index_style)
	Method to pass the main dimensions of the problem to Ipopt. More...

virtual bool	get_bounds_info (Ipopt::Index n, Ipopt::Number x_l, Ipopt::Number x_u, Ipopt::Index m, Ipopt::Number g_l, Ipopt::Number g_u)
	Bonmin specific methods for defining the nlp problem. More...

virtual bool	get_starting_point (Ipopt::Index n, bool init_x, Ipopt::Number x, bool init_z, Ipopt::Number z_L, Ipopt::Number z_U, Ipopt::Index m, bool init_lambda, Ipopt::Number lambda)
	Method to return the starting point for the algorithm. More...

virtual bool	eval_f (Ipopt::Index n, const Ipopt::Number *x, bool new_x, Ipopt::Number &obj_value)
	Method to return the objective value. More...

virtual bool	eval_grad_f (Ipopt::Index n, const Ipopt::Number x, bool new_x, Ipopt::Number grad_f)
	Method to return the gradient of the objective. More...

virtual bool	eval_g (Ipopt::Index n, const Ipopt::Number x, bool new_x, Ipopt::Index m, Ipopt::Number g)
	Method to return the constraint residuals. More...

virtual bool	eval_jac_g (Ipopt::Index n, const Ipopt::Number x, bool new_x, Ipopt::Index m, Ipopt::Index nele_jac, Ipopt::Index iRow, Ipopt::Index jCol, Ipopt::Number values)
	Method to return: 1) The structure of the jacobian (if "values" is NULL) 2) The values of the jacobian (if "values" is not NULL) More...

virtual bool	eval_h (Ipopt::Index n, const Ipopt::Number x, bool new_x, Ipopt::Number obj_factor, Ipopt::Index m, const Ipopt::Number lambda, bool new_lambda, Ipopt::Index nele_hess, Ipopt::Index iRow, Ipopt::Index jCol, Ipopt::Number *values)
	Method to return: 1) The structure of the hessian of the lagrangian (if "values" is NULL) 2) The values of the hessian of the lagrangian (if "values" is not NULL) More...

Solution Methods
virtual void	finalize_solution (Bonmin::TMINLP::SolverReturn status_, Ipopt::Index n, const Ipopt::Number *x, Ipopt::Number obj_value)
	Method called by Ipopt at the end of optimization. More...

Public Member Functions inherited from Bonmin::TMINLP
virtual const PerturbInfo *	perturbInfo () const

virtual bool	hasUpperBoundingObjective ()
	Say if has a specific function to compute upper bounds. More...

virtual bool	eval_upper_bound_f (Ipopt::Index n, const Ipopt::Number *x, Ipopt::Number &obj_value)
	overload this method to return the value of an alternative objective function for upper bounding (to use it hasUpperBoundingObjective should return true). More...

virtual bool	get_constraint_convexities (int m, TMINLP::Convexity *constraints_convexities) const
	Get accest to constraint convexities. More...

virtual bool	get_number_nonconvex (int &number_non_conv, int &number_concave) const
	Get dimension information on nonconvex constraints. More...

virtual bool	get_constraint_convexities (int number_non_conv, MarkedNonConvex *non_convs) const
	Get array describing the constraints marked nonconvex in the model. More...

virtual bool	get_simple_concave_constraints (int number_concave, SimpleConcaveConstraint *simple_concave) const
	Fill array containing indices of simple concave constraints. More...

virtual bool	hasLinearObjective ()
	Say if problem has a linear objective (for OA) More...

bool	hasGeneralInteger ()
	Say if problem has general integer variables. More...

virtual const int *	get_const_xtra_id () const
	Access array describing constraint to which perspectives should be applied. More...

	TMINLP ()
	Default destructor. More...

virtual	~TMINLP ()
	Default destructor. More...

virtual bool	eval_gi (Ipopt::Index n, const Ipopt::Number *x, bool new_x, Ipopt::Index i, Ipopt::Number &gi)
	Compute the value of a single constraint. More...

virtual bool	eval_grad_gi (Ipopt::Index n, const Ipopt::Number x, bool new_x, Ipopt::Index i, Ipopt::Index &nele_grad_gi, Ipopt::Index jCol, Ipopt::Number *values)
	Compute the structure or values of the gradient for one constraint. More...

Public Attributes
OSInstance *	osinstance

OSOption *	osoption

Bonmin::TMINLP::SolverReturn	status

Private Attributes
bool	printSol_

std::string	bonminErrorMsg

Additional Inherited Members
Public Types inherited from Bonmin::TMINLP
enum	SolverReturn { SUCCESS, INFEASIBLE, CONTINUOUS_UNBOUNDED, LIMIT_EXCEEDED, USER_INTERRUPT, MINLP_ERROR }
	Return statuses of algorithm. More...

enum	VariableType { CONTINUOUS, BINARY, INTEGER }
	Type of the variables. More...

enum	Convexity { Convex, NonConvex, SimpleConcave }
	Used to mark constraints of the problem. More...

Protected Member Functions inherited from Bonmin::TMINLP
	TMINLP (const TMINLP &)
	Copy constructor. More...

void	operator= (const TMINLP &)
	Overloaded Equals Operator. More...

Detailed Description

Definition at line 53 of file OSBonminSolver.h.

Constructor & Destructor Documentation

BonminProblem::BonminProblem	(	OSInstance *	osinstance_,
		OSOption *	osoption_
	)

the BonminProblemclass constructor

Definition at line 1152 of file OSBonminSolver.cpp.

BonminProblem::~BonminProblem ( )

virtual

the BonminProblem class destructor

Definition at line 1159 of file OSBonminSolver.cpp.

Member Function Documentation

bool BonminProblem::get_variables_types	(	Ipopt::Index	n,
		VariableType *	var_types
	)

virtual

Pass the type of the variables (INTEGER, BINARY, CONTINUOUS) to the optimizer.

Parameters

n	size of var_types (has to be equal to the number of variables in the problem)
var_types	types of the variables (has to be filled by function).

Implements Bonmin::TMINLP.

Definition at line 68 of file OSBonminSolver.cpp.

bool BonminProblem::get_variables_linearity	(	Ipopt::Index	n,
		Ipopt::TNLP::LinearityType *	var_types
	)

virtual

Pass info about linear and nonlinear variables.

get an index map of the nonlinear variables and see which variable are in <nonlinearExpressions> element

iterate through and get an index of all variables that are in <nonlinearExpressions> element

Implements Bonmin::TMINLP.

Definition at line 103 of file OSBonminSolver.cpp.

bool BonminProblem::get_constraints_linearity	(	Ipopt::Index	m,
		Ipopt::TNLP::LinearityType *	const_types
	)

virtual

Pass the type of the constraints (LINEAR, NON_LINEAR) to the optimizer.

Parameters

m	size of const_types (has to be equal to the number of constraints in the problem)
const_types	types of the constraints (has to be filled by function).

Implements Bonmin::TMINLP.

Definition at line 149 of file OSBonminSolver.cpp.

bool BonminProblem::get_nlp_info	(	Ipopt::Index &	n,
		Ipopt::Index &	m,
		Ipopt::Index &	nnz_jac_g,
		Ipopt::Index &	nnz_h_lag,
		Ipopt::TNLP::IndexStyleEnum &	index_style
	)

virtual

Method to pass the main dimensions of the problem to Ipopt.

Parameters

n	number of variables in problem.
m	number of constraints.
nnz_jac_g	number of nonzeroes in Jacobian of constraints system.
nnz_h_lag	number of nonzeroes in Hessian of the Lagrangean.
index_style	indicate wether arrays are numbered from 0 (C-style) or from 1 (Fortran).

Returns: true in case of success.

Implements Bonmin::TMINLP.

Definition at line 177 of file OSBonminSolver.cpp.

bool BonminProblem::get_bounds_info	(	Ipopt::Index	n,
		Ipopt::Number *	x_l,
		Ipopt::Number *	x_u,
		Ipopt::Index	m,
		Ipopt::Number *	g_l,
		Ipopt::Number *	g_u
	)

virtual

Bonmin specific methods for defining the nlp problem.

Method to return the bounds for my problem

Implements Bonmin::TMINLP.

Definition at line 246 of file OSBonminSolver.cpp.

bool BonminProblem::get_starting_point	(	Ipopt::Index	n,
		bool	init_x,
		Ipopt::Number *	x,
		bool	init_z,
		Ipopt::Number *	z_L,
		Ipopt::Number *	z_U,
		Ipopt::Index	m,
		bool	init_lambda,
		Ipopt::Number *	lambda
	)

virtual

Method to return the starting point for the algorithm.

Implements Bonmin::TMINLP.

Definition at line 295 of file OSBonminSolver.cpp.

bool BonminProblem::eval_f	(	Ipopt::Index	n,
		const Ipopt::Number *	x,
		bool	new_x,
		Ipopt::Number &	obj_value
	)

virtual

Method to return the objective value.

Implements Bonmin::TMINLP.

Definition at line 439 of file OSBonminSolver.cpp.

bool BonminProblem::eval_grad_f	(	Ipopt::Index	n,
		const Ipopt::Number *	x,
		bool	new_x,
		Ipopt::Number *	grad_f
	)

virtual

Method to return the gradient of the objective.

Implements Bonmin::TMINLP.

Definition at line 465 of file OSBonminSolver.cpp.

bool BonminProblem::eval_g	(	Ipopt::Index	n,
		const Ipopt::Number *	x,
		bool	new_x,
		Ipopt::Index	m,
		Ipopt::Number *	g
	)

virtual

Method to return the constraint residuals.

Implements Bonmin::TMINLP.

Definition at line 498 of file OSBonminSolver.cpp.

bool BonminProblem::eval_jac_g	(	Ipopt::Index	n,
		const Ipopt::Number *	x,
		bool	new_x,
		Ipopt::Index	m,
		Ipopt::Index	nele_jac,
		Ipopt::Index *	iRow,
		Ipopt::Index *	jCol,
		Ipopt::Number *	values
	)

virtual

Method to return: 1) The structure of the jacobian (if "values" is NULL) 2) The values of the jacobian (if "values" is not NULL)

Implements Bonmin::TMINLP.

Definition at line 520 of file OSBonminSolver.cpp.

bool BonminProblem::eval_h	(	Ipopt::Index	n,
		const Ipopt::Number *	x,
		bool	new_x,
		Ipopt::Number	obj_factor,
		Ipopt::Index	m,
		const Ipopt::Number *	lambda,
		bool	new_lambda,
		Ipopt::Index	nele_hess,
		Ipopt::Index *	iRow,
		Ipopt::Index *	jCol,
		Ipopt::Number *	values
	)

virtual

Method to return: 1) The structure of the hessian of the lagrangian (if "values" is NULL) 2) The values of the hessian of the lagrangian (if "values" is not NULL)

Implements Bonmin::TMINLP.

Definition at line 571 of file OSBonminSolver.cpp.

bool BonminProblem::get_scaling_parameters	(	Ipopt::Number &	obj_scaling,
		bool &	use_x_scaling,
		Ipopt::Index	n,
		Ipopt::Number *	x_scaling,
		bool &	use_g_scaling,
		Ipopt::Index	m,
		Ipopt::Number *	g_scaling
	)

virtual

overload this method to return scaling parameters.

This is only called if the options are set to retrieve user scaling. There, use_x_scaling (or use_g_scaling) should get set to true only if the variables (or constraints) are to be scaled. This method should return true only if the scaling parameters could be provided.

Reimplemented from Bonmin::TMINLP.

Definition at line 623 of file OSBonminSolver.cpp.

void BonminProblem::finalize_solution	(	Bonmin::TMINLP::SolverReturn	status_,
		Ipopt::Index	n,
		const Ipopt::Number *	x,
		Ipopt::Number	obj_value
	)

virtual

Method called by Ipopt at the end of optimization.

Implements Bonmin::TMINLP.

Definition at line 644 of file OSBonminSolver.cpp.

virtual const SosInfo* BonminProblem::sosConstraints ( ) const

inlinevirtual

Implements Bonmin::TMINLP.

Definition at line 166 of file OSBonminSolver.h.

virtual const BranchingInfo* BonminProblem::branchingInfo ( ) const

inlinevirtual

Implements Bonmin::TMINLP.

Definition at line 170 of file OSBonminSolver.h.

void BonminProblem::printSolutionAtEndOfAlgorithm ( )

inline

Definition at line 175 of file OSBonminSolver.h.

Member Data Documentation

OSInstance* BonminProblem::osinstance

Definition at line 66 of file OSBonminSolver.h.

OSOption* BonminProblem::osoption

Definition at line 68 of file OSBonminSolver.h.

Bonmin::TMINLP::SolverReturn BonminProblem::status

Definition at line 70 of file OSBonminSolver.h.

bool BonminProblem::printSol_

private

Definition at line 185 of file OSBonminSolver.h.

std::string BonminProblem::bonminErrorMsg

private

Definition at line 205 of file OSBonminSolver.h.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/OS/src/OSSolverInterfaces/OSBonminSolver.h
/tmp/OS-2.10.2/OS/src/OSSolverInterfaces/OSBonminSolver.cpp
