Base class for OA algorithms. More...

#include <BonOaDecBase.hpp>

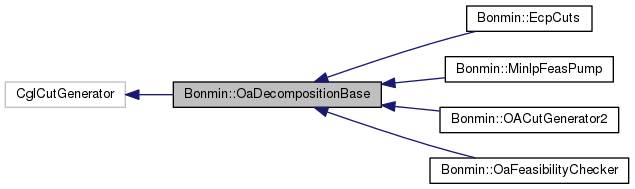

Inheritance diagram for Bonmin::OaDecompositionBase:

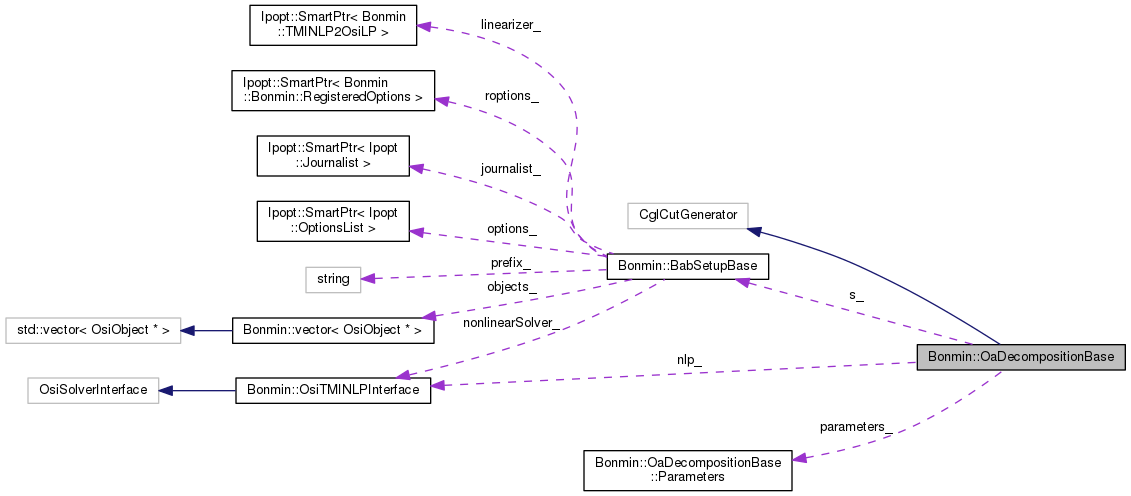

Collaboration diagram for Bonmin::OaDecompositionBase:

Classes
struct	Parameters
	Parameters for algorithm. More...

class	solverManip
	Small class to manipulatee various things in an OsiSolverInterface and restore them. More...

Public Member Functions
	OaDecompositionBase (BabSetupBase &b, bool leaveSiUnchanged, bool reassignLpsolver)
	New usefull constructor. More...

	OaDecompositionBase (const OaDecompositionBase &copy)
	Copy constructor. More...

virtual	~OaDecompositionBase ()
	Destructor. More...

virtual void	generateCuts (const OsiSolverInterface &si, OsiCuts &cs, const CglTreeInfo info=CglTreeInfo())
	Standard cut generation methods. More...

void	assignNlpInterface (OsiTMINLPInterface *nlp)
	Assign an OsiTMINLPInterface. More...

void	assignLpInterface (OsiSolverInterface *si)
	Assign an OsiTMINLPInterface. More...

bool	reassignLpsolver ()

void	setObjects (OsiObject **objects, int nObjects)
	Set objects. More...

void	setLeaveSiUnchanged (bool yesno)
	Set whether to leave the solverinterface unchanged. More...

Parameters &	parameter ()

const Parameters &	parameter () const

void	setLogLevel (int level)

void	setReassignLpSolver (bool v)

void	passInMessageHandler (CoinMessageHandler *handler)

Protected Member Functions
void	setupMipSolver (BabSetupBase &b, const std::string &prefix)

virtual double	performOa (OsiCuts &cs, solverManip &lpManip, BabInfo *babInfo, double &, const CglTreeInfo &info) const =0
	virtual method which performs the OA algorithm by modifying lp and nlp. More...

virtual bool	doLocalSearch (BabInfo *babInfo) const =0
	virutal method to decide if local search is performed More...

Protected helper functions
bool	post_nlp_solve (BabInfo *babInfo, double cutoff) const
	Solve the nlp and do output. More...

Protected Attributes
Protected members
OsiTMINLPInterface *	nlp_
	Pointer to nlp interface. More...

BabSetupBase *	s_
	Pointer to setup. More...

int	nSolve_
	Number of nlp solved done. More...

OsiSolverInterface *	lp_
	A linear solver. More...

OsiObject **	objects_
	Some objects the feasiblitiy of which to verify. More...

int	nObjects_
	Number of objects.*/. More...

int	nLocalSearch_
	number of local searches performed More...

CoinMessageHandler *	handler_
	messages handler. More...

CoinMessages	messages_
	Messages for OA. More...

bool	leaveSiUnchanged_
	Wether or not we should remove cuts at the end of the procedure. More...

bool	reassignLpsolver_
	Do we need to reassign the lp solver with Cbc. More...

double	timeBegin_
	time of construction More...

int	numSols_
	number of solutions found by OA_decomposition. More...

Parameters	parameters_
	Parameters. More...

OsiCuts	savedCuts_
	Saved cuts: in some cases when using OA to check feasible solution algorithm may loop because Cbc removes inactive cuts. More...

int	currentNodeNumber_
	Store the current node number. More...

Detailed Description

Base class for OA algorithms.

Definition at line 27 of file BonOaDecBase.hpp.

Constructor & Destructor Documentation

Bonmin::OaDecompositionBase::OaDecompositionBase	(	BabSetupBase &	b,
		bool	leaveSiUnchanged,
		bool	reassignLpsolver
	)

New usefull constructor.

Definition at line 38 of file BonOaDecBase.cpp.

Bonmin::OaDecompositionBase::OaDecompositionBase ( const OaDecompositionBase & copy )

Copy constructor.

Definition at line 76 of file BonOaDecBase.cpp.

Bonmin::OaDecompositionBase::~OaDecompositionBase ( )

virtual

Destructor.

Definition at line 112 of file BonOaDecBase.cpp.

Member Function Documentation

void Bonmin::OaDecompositionBase::generateCuts	(	const OsiSolverInterface &	si,
		OsiCuts &	cs,
		const CglTreeInfo	info = `CglTreeInfo()`
	)

virtual

Standard cut generation methods.

Definition at line 243 of file BonOaDecBase.cpp.

void Bonmin::OaDecompositionBase::assignNlpInterface ( OsiTMINLPInterface * nlp )

inline

Assign an OsiTMINLPInterface.

Definition at line 118 of file BonOaDecBase.hpp.

void Bonmin::OaDecompositionBase::assignLpInterface ( OsiSolverInterface * si )

inline

Assign an OsiTMINLPInterface.

Definition at line 124 of file BonOaDecBase.hpp.

bool Bonmin::OaDecompositionBase::reassignLpsolver ( )

inline

Definition at line 129 of file BonOaDecBase.hpp.

void Bonmin::OaDecompositionBase::setObjects	(	OsiObject **	objects,
		int	nObjects
	)

inline

Set objects.

Definition at line 134 of file BonOaDecBase.hpp.

void Bonmin::OaDecompositionBase::setLeaveSiUnchanged ( bool yesno )

inline

Set whether to leave the solverinterface unchanged.

Definition at line 140 of file BonOaDecBase.hpp.

Parameters& Bonmin::OaDecompositionBase::parameter ( )

inline

Definition at line 200 of file BonOaDecBase.hpp.

const Parameters& Bonmin::OaDecompositionBase::parameter ( ) const

inline

Definition at line 205 of file BonOaDecBase.hpp.

void Bonmin::OaDecompositionBase::setLogLevel ( int level )

inline

Definition at line 210 of file BonOaDecBase.hpp.

void Bonmin::OaDecompositionBase::setReassignLpSolver ( bool v )

inline

Definition at line 215 of file BonOaDecBase.hpp.

void Bonmin::OaDecompositionBase::passInMessageHandler ( CoinMessageHandler * handler )

Definition at line 233 of file BonOaDecBase.cpp.

void Bonmin::OaDecompositionBase::setupMipSolver	(	BabSetupBase &	b,
		const std::string &	prefix
	)

protected

Definition at line 409 of file BonOaDecBase.cpp.

bool Bonmin::OaDecompositionBase::post_nlp_solve	(	BabInfo *	babInfo,
		double	cutoff
	)		const

protected

Solve the nlp and do output.

Do update after an nlp has been solved.

Returns: true if feasible

Definition at line 364 of file BonOaDecBase.cpp.

virtual double Bonmin::OaDecompositionBase::performOa	(	OsiCuts &	cs,
		solverManip &	lpManip,
		BabInfo *	babInfo,
		double &	,
		const CglTreeInfo &	info
	)		const

protectedpure virtual

virtual method which performs the OA algorithm by modifying lp and nlp.

Implemented in Bonmin::EcpCuts, Bonmin::OACutGenerator2, Bonmin::MinlpFeasPump, and Bonmin::OaFeasibilityChecker.

virtual bool Bonmin::OaDecompositionBase::doLocalSearch ( BabInfo * babInfo ) const

protectedpure virtual

virutal method to decide if local search is performed

Implemented in Bonmin::EcpCuts, Bonmin::OACutGenerator2, Bonmin::MinlpFeasPump, and Bonmin::OaFeasibilityChecker.

Member Data Documentation

OsiTMINLPInterface* Bonmin::OaDecompositionBase::nlp_

mutableprotected

Pointer to nlp interface.

Definition at line 238 of file BonOaDecBase.hpp.

BabSetupBase* Bonmin::OaDecompositionBase::s_

protected

Pointer to setup.

Definition at line 240 of file BonOaDecBase.hpp.

int Bonmin::OaDecompositionBase::nSolve_

mutableprotected

Number of nlp solved done.

Definition at line 242 of file BonOaDecBase.hpp.

OsiSolverInterface* Bonmin::OaDecompositionBase::lp_

mutableprotected

A linear solver.

Definition at line 244 of file BonOaDecBase.hpp.

OsiObject* * Bonmin::OaDecompositionBase::objects_

protected

Some objects the feasiblitiy of which to verify.

Definition at line 246 of file BonOaDecBase.hpp.

int Bonmin::OaDecompositionBase::nObjects_

protected

Number of objects.*/.

Definition at line 248 of file BonOaDecBase.hpp.

int Bonmin::OaDecompositionBase::nLocalSearch_

mutableprotected

number of local searches performed

Definition at line 250 of file BonOaDecBase.hpp.

CoinMessageHandler* Bonmin::OaDecompositionBase::handler_

protected

messages handler.

Definition at line 252 of file BonOaDecBase.hpp.

CoinMessages Bonmin::OaDecompositionBase::messages_

protected

Messages for OA.

Definition at line 254 of file BonOaDecBase.hpp.

bool Bonmin::OaDecompositionBase::leaveSiUnchanged_

protected

Wether or not we should remove cuts at the end of the procedure.

Definition at line 256 of file BonOaDecBase.hpp.

bool Bonmin::OaDecompositionBase::reassignLpsolver_

protected

Do we need to reassign the lp solver with Cbc.

Definition at line 258 of file BonOaDecBase.hpp.

double Bonmin::OaDecompositionBase::timeBegin_

protected

time of construction

Definition at line 260 of file BonOaDecBase.hpp.

int Bonmin::OaDecompositionBase::numSols_

mutableprotected

number of solutions found by OA_decomposition.

Definition at line 262 of file BonOaDecBase.hpp.

Parameters Bonmin::OaDecompositionBase::parameters_

protected

Parameters.

Definition at line 265 of file BonOaDecBase.hpp.

OsiCuts Bonmin::OaDecompositionBase::savedCuts_

mutableprotected

Saved cuts: in some cases when using OA to check feasible solution algorithm may loop because Cbc removes inactive cuts.

To overcome this we can impose that no OA cut can be discarded by Cbc but this consumes too much memory in some cases. Here we do it another way: cuts generated at current node are saved if algorithm seems to enter a loop we impose the needed cuts to be kept.

Definition at line 270 of file BonOaDecBase.hpp.

int Bonmin::OaDecompositionBase::currentNodeNumber_

mutableprotected

Store the current node number.

Definition at line 272 of file BonOaDecBase.hpp.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/Bonmin/src/Algorithms/OaGenerators/BonOaDecBase.hpp
/tmp/OS-2.10.2/Bonmin/src/Algorithms/OaGenerators/BonOaDecBase.cpp
