N way branching Object class. More...

#include <BonNWayObject.hpp>

Inheritance diagram for Bonmin::BonNWayBranchingObject:

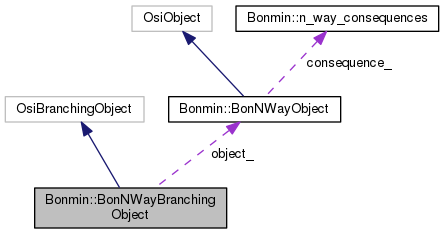

Collaboration diagram for Bonmin::BonNWayBranchingObject:

Public Member Functions
	BonNWayBranchingObject ()

	BonNWayBranchingObject (OsiSolverInterface solver, const BonNWayObject nway, const std::vector< int > &order, const std::list< int > &skipped)
	Useful constructor - order had matrix indices way_ -1 corresponds to setting first, +1 to second, +3 etc. More...

	BonNWayBranchingObject (const BonNWayBranchingObject &)

BonNWayBranchingObject &	operator= (const BonNWayBranchingObject &rhs)

virtual OsiBranchingObject *	clone () const
	Clone. More...

virtual	~BonNWayBranchingObject ()

virtual double	branch (OsiSolverInterface *solver)
	Does next branch and updates state. More...

virtual double	branch (OsiSolverInterface *solver, int state)
	Branch on specified state. More...

virtual int	numberBranches () const
	The number of branch arms created for this branching object. More...

virtual bool	twoWay () const
	Is this a two way object (-1 down, +1 up) More...

int	var_branched_on ()

int	seq_branched_on ()

int	state_branched_on ()

Private Attributes
const BonNWayObject *	object_
	Points back to object. More...

std::vector< int >	order_
	order of branching More...

std::list< int >	skipped_
	Is only branching on a subset of variables (has to do a last branch with all variables in order set to 0) More...

Detailed Description

N way branching Object class.

Variable is number of set.

Definition at line 134 of file BonNWayObject.hpp.

Constructor & Destructor Documentation

Bonmin::BonNWayBranchingObject::BonNWayBranchingObject ( )

Definition at line 262 of file BonNWayObject.cpp.

Bonmin::BonNWayBranchingObject::BonNWayBranchingObject	(	OsiSolverInterface *	solver,
		const BonNWayObject *	nway,
		const std::vector< int > &	order,
		const std::list< int > &	skipped
	)

Useful constructor - order had matrix indices way_ -1 corresponds to setting first, +1 to second, +3 etc.

this is so -1 and +1 have similarity to normal

Definition at line 269 of file BonNWayObject.cpp.

Bonmin::BonNWayBranchingObject::BonNWayBranchingObject ( const BonNWayBranchingObject & rhs )

Definition at line 279 of file BonNWayObject.cpp.

Bonmin::BonNWayBranchingObject::~BonNWayBranchingObject ( )

virtual

Definition at line 306 of file BonNWayObject.cpp.

Member Function Documentation

BonNWayBranchingObject & Bonmin::BonNWayBranchingObject::operator= ( const BonNWayBranchingObject & rhs )

Definition at line 288 of file BonNWayObject.cpp.

OsiBranchingObject * Bonmin::BonNWayBranchingObject::clone ( ) const

virtual

Clone.

Definition at line 299 of file BonNWayObject.cpp.

double Bonmin::BonNWayBranchingObject::branch ( OsiSolverInterface * solver )

virtual

Does next branch and updates state.

Definition at line 311 of file BonNWayObject.cpp.

double Bonmin::BonNWayBranchingObject::branch	(	OsiSolverInterface *	solver,
		int	state
	)

virtual

Branch on specified state.

Definition at line 322 of file BonNWayObject.cpp.

virtual int Bonmin::BonNWayBranchingObject::numberBranches ( ) const

inlinevirtual

The number of branch arms created for this branching object.

Definition at line 169 of file BonNWayObject.hpp.

virtual bool Bonmin::BonNWayBranchingObject::twoWay ( ) const

inlinevirtual

Is this a two way object (-1 down, +1 up)

Definition at line 173 of file BonNWayObject.hpp.

int Bonmin::BonNWayBranchingObject::var_branched_on ( )

inline

Definition at line 177 of file BonNWayObject.hpp.

int Bonmin::BonNWayBranchingObject::seq_branched_on ( )

inline

Definition at line 183 of file BonNWayObject.hpp.

int Bonmin::BonNWayBranchingObject::state_branched_on ( )

inline

Definition at line 189 of file BonNWayObject.hpp.

Member Data Documentation

const BonNWayObject* Bonmin::BonNWayBranchingObject::object_

private

Points back to object.

Definition at line 194 of file BonNWayObject.hpp.

std::vector<int> Bonmin::BonNWayBranchingObject::order_

private

order of branching

Definition at line 196 of file BonNWayObject.hpp.

std::list<int> Bonmin::BonNWayBranchingObject::skipped_

private

Is only branching on a subset of variables (has to do a last branch with all variables in order set to 0)

Definition at line 198 of file BonNWayObject.hpp.

The documentation for this class was generated from the following files:

/tmp/OS-2.10.2/Bonmin/experimental/RobotBonmin/BonNWayObject.hpp
/tmp/OS-2.10.2/Bonmin/experimental/RobotBonmin/BonNWayObject.cpp
