OSAmplClient.cpp File Reference

#include "OSConfig.h"
#include "OSnl2OS.h"
#include "OSosrl2ampl.h"
#include "OSiLReader.h"
#include "OSiLWriter.h"
#include "OSoLReader.h"
#include "OSoLWriter.h"
#include "OSrLReader.h"
#include "OSrLWriter.h"
#include "OSInstance.h"
#include "OSOption.h"
#include "OSResult.h"
#include "OSOutput.h"
#include "OSDefaultSolver.h"
#include "OSCoinSolver.h"
#include "OSFileUtil.h"
#include "OSSolverAgent.h"
#include "OShL.h"
#include "OSErrorClass.h"
#include "CoinError.hpp"
#include "OSCommandLine.h"
#include "OSCommandLineReader.h"
#include "OSRunSolver.h"
#include <sstream>
#include "CoinHelperFunctions.hpp"
#include <iostream>
#include <asl.h>

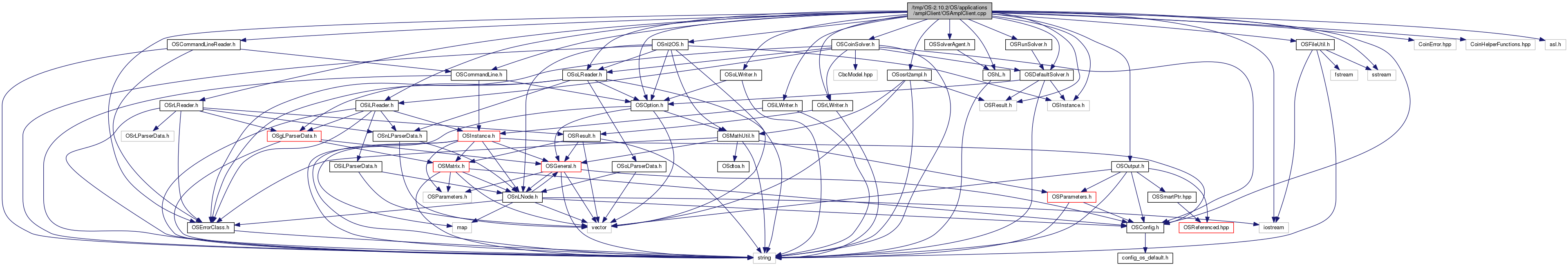

Include dependency graph for OSAmplClient.cpp:

Go to the source code of this file.

Typedefs
typedef struct yy_buffer_state *	YY_BUFFER_STATE

Functions
YY_BUFFER_STATE	osss_scan_string (const char *osss, void *scanner)
void	setyyextra (OSCommandLine *oscommandline, void *scanner)
int	ossslex (void *scanner)
int	ossslex_init (void **ptr)
int	ossslex_destroy (void *scanner)
std::string	get_help ()
void	list_options (OSCommandLine *oscommandline)
void	solve (OSCommandLine *oscommandline, OSnl2OS *nl2OS)
	Next we have implementations of the six remote service methods solve, send, retrieve, knock, kill, getJobID (Do not bother with local solve; use runSolver instead) More...
void	getJobID (OSCommandLine *oscommandline, OSnl2OS *osnl2os)
void	send (OSCommandLine *oscommandline, OSnl2OS *osnl2os)
void	kill (OSCommandLine *oscommandline, OSnl2OS *osnl2os)
void	retrieve (OSCommandLine *oscommandline, OSnl2OS *osnl2os)
void	knock (OSCommandLine *oscommandline, OSnl2OS *osnl2os)
bool	findInstance (OSCommandLine *oscommandline, OSnl2OS *nl2os)
	This method tries to find the instance by reading the .nl file. More...
void	makeStrings (OSCommandLine *oscommandline)
void	doPrintRow (OSInstance *osinstance, std::string rownumberstring)
void	reportResults (OSCommandLine *oscommandline, std::string osrl, OSnl2OS *nl2OS)
	Deal with the OSrL output generated by the call to one of the service methods. More...
void	reportErrors (OSCommandLine *oscommandline, std::string errormsg, OSnl2OS *nl2OS)
	Deal with any error messages generated by the call to one of the service methods. More...
int	main (int argc, char **argv)

Variables
const OSSmartPtr< OSOutput >	osoutput

Detailed Description

Author

Robert Fourer, Horand Gassmann, Jun Ma, Kipp Martin

Remarks

Copyright (C) 2005-2013, Robert Fourer, Horand Gassmann, Jun Ma, Kipp Martin, Northwestern University, and the University of Chicago. All Rights Reserved. This software is licensed under the Eclipse Public License. Please see the accompanying LICENSE file in OS root directory for terms.

This executable is designed to act as a "solver" for AMPL. It can be used to solve problems locally or on a remote server. For example, to solve a problem locally, start AMPL. Let's assume that the model is hs71.mod. Execute the following sequence of commands:

model hs71.mod;
option solver OSAmplClient;
option OSAmplClient_options "-solver bonmin";
solve;
display x1;
you should get:

x1 = 1

display x2;
you should get:

x2 = 4.743

in general, specify options to the OSAmplClient solver by using the AMPL command OSAmplClient_options as another example, if you wanted to solve hs71.mod on a remote server you would do: model hs71.mod;
option solver OSAmplClient;
option OSAmplClient_options "-serviceLocation http://74.94.100.129:8080/OSServer/services/OSSolverService";

there are three possible options to specify:

{itemize}

the name of the solver using the { -solver} option, valid values for this option are { clp}, { cbc}, { dylp}, { ipopt}, { bonmin}, { couenne}, { symphony}, and { vol}.

the location of the remote server using the { -serviceLocation} option

the location of the option file using the { -osol} option

{itemize}

if no options are specified using { OSAmplClient_options}, by default,for continuous linear models clp is used. For continuous nonlinear models ipopt is used. For mixed-integer linear models (MIP), cbc is used. For mixed-integer nonlinear models bonmin is used. All solvers can be invoked locally or remotely. See the Users Manual in the doc folder for more information.

Definition in file OSAmplClient.cpp.

Typedef Documentation

typedef struct yy_buffer_state* YY_BUFFER_STATE

Definition at line 127 of file OSAmplClient.cpp.

Function Documentation

YY_BUFFER_STATE osss_scan_string	(	const char *	osss,
		void *	scanner
	)

void setyyextra	(	OSCommandLine *	oscommandline,
		void *	scanner
	)

Definition at line 3383 of file OSParseosss.cpp.

int ossslex

(

void *

scanner

)

int ossslex_init

(

void **

ptr

)

Definition at line 3211 of file OSParseosss.cpp.

int ossslex_destroy

(

void *

scanner

)

Definition at line 3302 of file OSParseosss.cpp.

std::string get_help

(

)

Definition at line 1086 of file OSAmplClient.cpp.

void list_options

(

OSCommandLine *

oscommandline

)

Definition at line 2537 of file OSSolverService.cpp.

void solve	(	OSCommandLine *	oscommandline,
		OSnl2OS *	osnl2os
	)

Next we have implementations of the six remote service methods solve, send, retrieve, knock, kill, getJobID (Do not bother with local solve; use runSolver instead)

Definition at line 614 of file OSAmplClient.cpp.

void getJobID	(	OSCommandLine *	oscommandline,
		OSnl2OS *	osnl2os
	)

Definition at line 715 of file OSAmplClient.cpp.

void send	(	OSCommandLine *	oscommandline,
		OSnl2OS *	osnl2os
	)

Definition at line 653 of file OSAmplClient.cpp.

void kill	(	OSCommandLine *	oscommandline,
		OSnl2OS *	osnl2os
	)

Definition at line 898 of file OSAmplClient.cpp.

void retrieve	(	OSCommandLine *	oscommandline,
		OSnl2OS *	osnl2os
	)

Definition at line 837 of file OSAmplClient.cpp.

void knock	(	OSCommandLine *	oscommandline,
		OSnl2OS *	osnl2os
	)

Definition at line 746 of file OSAmplClient.cpp.

bool findInstance	(	OSCommandLine *	oscommandline,
		OSnl2OS *	nl2os
	)

This method tries to find the instance by reading the .nl file.

This is the only acceptable format, since AMPL has just written the content of the model to a temporary file.

Parameters

oscommandline,:

contains the information processed so far

Returns

whether an instance was found or not

Definition at line 535 of file OSAmplClient.cpp.

void makeStrings

(

OSCommandLine *

oscommandline

)

With the options we need to be a little more careful: Options can be in osol and jobID strings (either can be missing) or in an osoption object (which would include both of the above) or missing entirely (in which case a dummy string needs to be created)

Definition at line 559 of file OSAmplClient.cpp.

void doPrintRow	(	OSInstance *	osinstance,
		std::string	rownumberstring
	)

Definition at line 1052 of file OSAmplClient.cpp.

void reportResults	(	OSCommandLine *	oscommandline,
		std::string	osrl,
		OSnl2OS *	osnl2OS
	)

Deal with the OSrL output generated by the call to one of the service methods.

Definition at line 970 of file OSAmplClient.cpp.

void reportErrors	(	OSCommandLine *	oscommandline,
		std::string	errMsg,
		OSnl2OS *	osnl2OS
	)

Deal with any error messages generated by the call to one of the service methods.

Definition at line 1028 of file OSAmplClient.cpp.

int main	(	int	argc,
		char **	argv
	)

Next we need to get the command line options into a std::string This will depend on whether OSAmplClient was run stand-alone or was called from AMPL (indicated by the second command line argument "-AMPL")

Deal with action items: -printLevel, -logFile, -filePrintLevel, –help, –version

Definition at line 162 of file OSAmplClient.cpp.

Variable Documentation

const OSSmartPtr<OSOutput> osoutput

Definition at line 39 of file OSOutput.cpp.
